Air Handler BTU
- Determine the square footage of the area you want to cool or heat.
- Consider insulation and climate. If the room has poor insulation or is in a particularly hot or cold climate, you might need a higher BTU rating to compensate.
Coverage Area:
- 6000 BTU | up to 250 SqFt
- 9000 BTU | 275 to 375 SqFt
- 12,000 BTU | 350 – 550 SqFt
- 18,000 BTU | 550 – 800 SqFt
- 24,000 BTU | 800 – 1050 SqFt
- 36,000 BTU | 1050 – 1550 SqFt
Ceiling Cassette only comes in 6k, 9K, 12K and 18K
This is the distance between the indoor unit (air handler) and the outdoor unit (condenser).
Zones
A zone makes up an area that you'd like to cool and heat. Generally, a zone is equivalent to an area that is enclosed, such as a kitchen, living room, bedroom or garage.
Design Your MRCOOL DIY Mini Split System
Build a factory-matched heating and cooling package with confidence, room by room, from indoor units to installation components.
Dial in the comfort plan for each zone.
Each room selection helps pair the correct indoor unit, line set length, and installation components.
Review your MRCOOL system components.
Your matched condenser, indoor units, line sets, and installation components are organized below.
Complete your installation package.
Add optional accessories that can make setup, protection, and long-term ownership easier.
How Our Multi-Zone DIY Builder Works
Answer a few simple questions and our guided builder will match your MRCOOL DIY system by room, so you can review the equipment, line sets, and accessories before checkout.
-

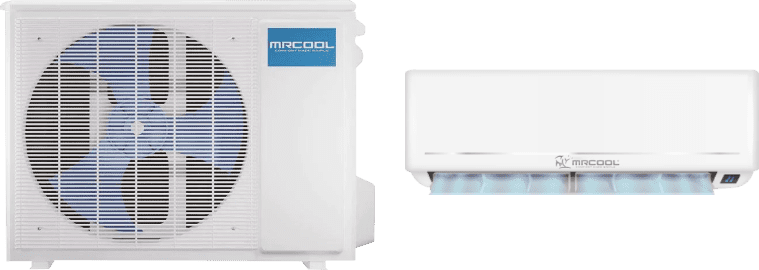

Choose how many rooms or zones you need
Start with the number of spaces you want to heat and cool, from a single room to a larger multi-zone layout.
-
Enter each room's square footage
Select the approximate size for every zone so the builder can estimate the right air handler capacity.
-
Select mount type and line set length
Pick the indoor unit style and the distance from each room to the outdoor condenser.
-
Review your matched system
The builder organizes the compatible condenser, indoor units, line sets, and required installation components.
-
Add accessories and checkout
Choose optional installation upgrades, then move forward with a complete DIY mini split package.
Why Our Builder is Different
Instead of making you guess which condenser, air handlers, line sets, and accessories work together, the builder guides you through each zone and presents a factory-matched package based on your selections.
MRCOOL DIY MULTI-ZONE SUPPORT
MRCOOL DIY Multi-Zone Mini Split System FAQ
Find answers to the most common questions about MRCOOL DIY Multi-Zone Mini Split Systems, including sizing, ceiling cassette compatibility, factory pre-charged Quick Connect® line sets, DIY installation, condenser selection, accessories, and choosing the right system for your home.
How Do I Know What Size Mini Split System I Need?
Our builder automatically helps size your system based on the square footage of each room. Simply enter each room's approximate size, choose your indoor unit style, and we'll recommend the correct combination of indoor units and outdoor condenser. While room size is the biggest factor, insulation, windows, ceiling height, and climate can also affect sizing.
Can I Mix Different BTU Sizes on the Same Multi-Zone System?
Yes. One of the biggest advantages of a MRCOOL DIY Multi-Zone System is the ability to mix different indoor unit sizes. For example, you might install a 9,000 BTU unit in a bedroom, an 18,000 BTU unit in a living room, and a 12,000 BTU unit in an office, all connected to the same outdoor condenser.

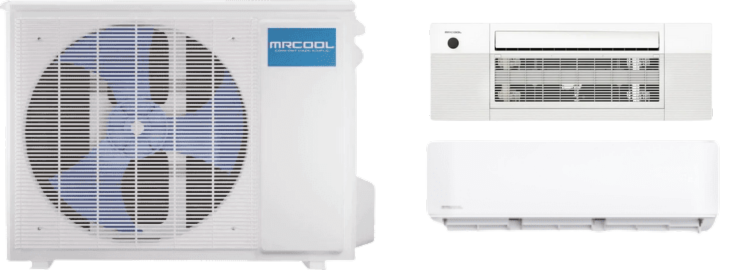

Can I Mix Wall-Mounted Units and Ceiling Cassette Units?
Absolutely. MRCOOL DIY Multi-Zone systems allow you to combine wall-mounted air handlers with ceiling cassette air handlers on the same outdoor condenser, provided the equipment is compatible. Our builder automatically selects compatible combinations.
Does The Builder Automatically Choose The Correct Outdoor Condenser?
Yes. You don't have to calculate condenser capacity yourself. Based on your selected indoor units and the number of rooms, our builder automatically matches the correct MRCOOL DIY outdoor condenser for your project.
Which Line Set Length Should I Choose?
Choose the line set that most closely matches the distance between each indoor air handler and the outdoor condenser. Standard lengths include 16 ft, 25 ft, 35 ft, 50 ft, 60 ft, 66 ft, and 75 ft. If your installation requires extended lengths, our builder automatically includes compatible couplers and control wire when needed.
Is The Control Wire Included With The Line Set?
Yes. Every line set selected through our builder includes the appropriate communication/control wire. There's no need to purchase it separately, helping eliminate guesswork and ensuring compatibility.
Can I Install A MRCOOL DIY Multi-Zone Mini Split Myself?
Yes. MRCOOL DIY systems are specifically designed for homeowners and DIY installers. The factory pre-charged Quick Connect® line sets eliminate the need for vacuum pumps, refrigerant gauges, or specialized HVAC charging equipment.
Do Ceiling Cassette Systems Require Different Equipment?
Yes. Ceiling cassette air handlers require compatible 230-volt outdoor condensers. Our builder automatically filters compatible equipment so you won't accidentally select an incompatible system.
What Accessories Should I Purchase With My Mini Split?
Most customers choose a disconnect and electrical whip, surge protector, condenser mounting bracket or pad, and line set cover kit. These accessories help create a cleaner installation while protecting your investment. Our builder recommends compatible accessories during checkout.
What's Included With A Complete MRCOOL DIY Multi-Zone System?
A complete system typically includes:
- Outdoor condenser
- Indoor air handlers
- Factory pre-charged Quick Connect® line sets
- Communication/control wire
- Remote controls
- Installation hardware
- Owner's manuals
Additional accessories such as wall brackets, line hide, disconnects, and surge protectors are available separately.
Why Use The MRCOOL DIY Multi-Zone Builder Instead Of Buying Parts Separately?
Our builder removes the guesswork. It automatically matches compatible condensers, indoor units, line set lengths, couplers, and installation accessories, helping ensure you receive a complete, factory-compatible system in one order. This reduces installation errors, saves time, and helps eliminate costly compatibility mistakes.
Can A Mini Split Heat My Entire House?
Yes. A properly sized multi-zone mini split can provide both heating and cooling for an entire home. By placing indoor units in multiple rooms, each area receives independent temperature control while sharing one outdoor condenser.

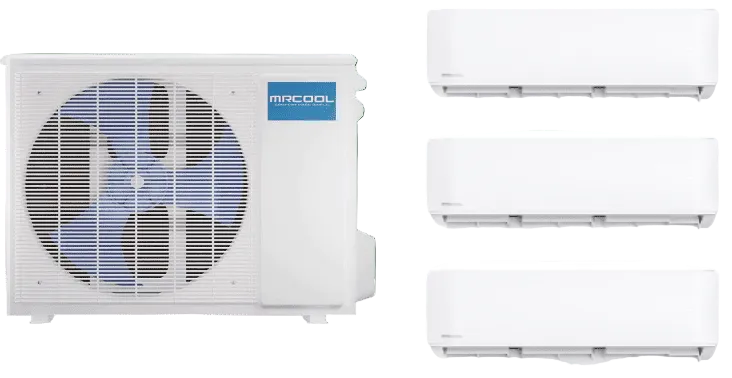

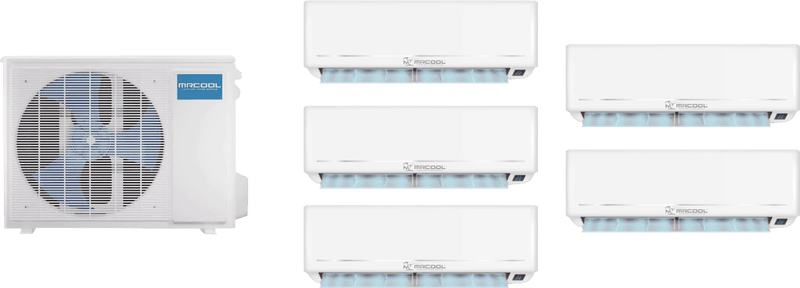

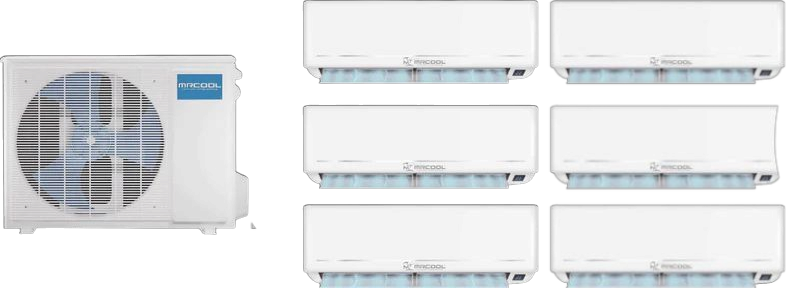

How Many Rooms Can A Multi-Zone Mini Split System Support?
MRCOOL DIY Multi-Zone systems are available in configurations supporting two to six indoor units, allowing you to heat and cool multiple rooms from a single outdoor condenser.
What Makes MRCOOL DIY Different From Other Mini Split Brands?
MRCOOL DIY is the only true DIY mini split system because the outdoor condenser, indoor air handler, and Quick Connect® line sets all arrive factory pre-charged with refrigerant. The sealed refrigeration system is designed to stay charged until the connections are made, eliminating the need for vacuum pumps, refrigerant gauges, recovery equipment, or refrigerant charging during installation.
Unlike traditional mini split systems that require an HVAC technician to evacuate and charge the system on-site, MRCOOL DIY allows homeowners to install a complete heating and cooling system using factory-engineered Quick Connect® technology. The result is a faster installation, lower installation costs, and professional-quality performance without specialized HVAC equipment.
Still deciding? Use our MRCOOL DIY Multi-Zone Builder to automatically match compatible condensers, indoor air handlers, factory pre-charged Quick Connect® line sets, and installation accessories. It's the fastest and easiest way to design a complete DIY mini split system with confidence.
