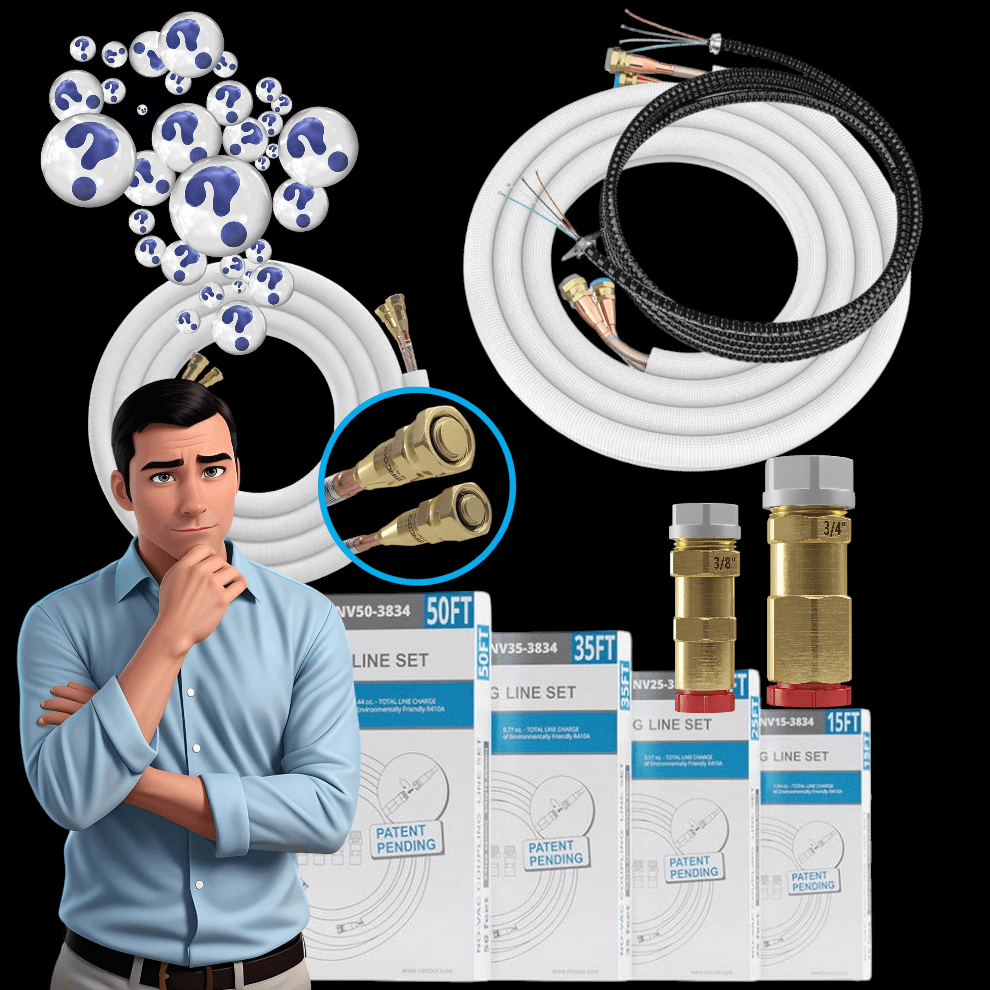

Understanding MRCOOL Pre-Charged Line Sets: A Complete Guide to Choosing the Right One
When installing a MRCOOL DIY Mini-Split or Central Ducted System, one of the most important components is the pre-charged line set. These specialized line sets make it possible for homeowners to install HVAC systems without hiring an expensive professional, keeping costs low while maintaining high performance and efficiency.
However, not all MRCOOL line sets are the same—they vary by system type, BTU capacity, and connection requirements. Choosing the wrong line set can lead to installation headaches and compatibility issues. In this guide, we’ll break down everything you need to know about MRCOOL DIY Pre-Charged Line Sets, their differences, and what’s included in each kit.
What Are Pre-Charged Line Sets and Why Do You Need Them?
MRCOOL’s DIY Pre-Charged Line Sets are pre-filled with environmentally friendly R-410A refrigerant and are designed with quick-connect fittings, allowing for an easy, tool-free installation. This eliminates the need for:
✅ Vacuum pumping
✅ Refrigerant charging
✅ Expensive HVAC labor
With pre-charged No-Vac technology, even central ducted heat pumps can now be installed in a DIY-friendly way—making MRCOOL a game changer in the HVAC industry!
MRCOOL DIY Mini-Split & Multi-Zone Line Sets
For MRCOOL DIY Mini-Splits and Multi-Zone Systems, the correct line set diameter is determined by the size of the indoor air handler, NOT the condenser unit. This is one of the biggest points of confusion when designing a multi-zone system.
Line Set Options for 9K, 12K, and 18K BTU DIY Mini-Splits
📌 Line Set Diameter: 1/4" x 1/2"
📌 Part Number Format: DIY(length)-1412
📌 Lengths Available:
- 16' (PN: DIY16-1412)
- 25' (PN: DIY25-1412)
- 35' (PN: DIY35-1412C) – Includes a 50' control wire
- 50' (PN: DIY50-1412C) – Includes a 50' control wire
For custom line set lengths (41', 60', 66', or 70'), you will receive:
- A combination of the above line set lengths
- DIY couplers for connecting the line sets
- 75' of control wire to maintain DIY capability
Line Set Options for 24K and 36K BTU DIY Mini-Splits
📌 Line Set Diameter: 3/8" x 5/8"
📌 Part Number Format: DIY(length)-3858
📌 Lengths Available (Same as above):
- 16' (PN: DIY16-3858)
- 25' (PN: DIY25-3858)
- 35' (PN: DIY35-3858C) – Includes a 50' control wire
- 50' (PN: DIY50-3858C) – Includes a 50' control wire
➡️ Multi-Zone Systems: When designing a multi-zone setup, each air handler requires its own line set, so be sure to match the correct size to each air handler BTU capacity.
MRCOOL DIY Central Ducted System Line Sets
Central ducted HyperHeat, VersaPro, and Universal Series heat pumps are unique because they can be installed in either a DIY or traditional HVAC format.
VersaPro 1.5, 2.0 & 2.5 Ton
📌 Uses the same line sets as 24K & 36K DIY Mini-Splits
📌 3/8" x 5/8" line sets (DIY-3858 series)
📌 Communicates using a control wire, just like mini-splits
VersaPro (3 Ton, 4 Ton, 5 Ton), HyperHeat & Universal Series (2-3 Ton & 4-5 Ton)
📌 Uses a larger pre-charged No-Vac line set
📌 3/8" x 3/4" line set (NV-3834 series)
📌 DOES NOT communicate like a mini-split
📌 Uses standard 2-wire thermostat or traditional heat pump wiring
➡️ Available in: 15', 25', 35', and 50' lengths, with couplers available for longer runs.
📌 NV-3834 series Line Sets Include 4 DIY Adapters For The Air Handler and Condenser
Choosing the Right Line Set – What You Need to Know
| System Type | Line Set Type | Line Diameter | Lengths Available | Wiring Method |
|---|---|---|---|---|
| 9K, 12K, 18K BTU DIY Mini-Splits | DIY Pre-Charged | 1/4" x 1/2" | 16', 25', 35', 50' | Control Wire |
| 24K & 36K BTU DIY Mini-Splits | DIY Pre-Charged | 3/8" x 5/8" | 16', 25', 35', 50' | Control Wire |
| VersaPro 1.5, 2.0, 2.5 Ton | DIY Pre-Charged | 3/8" x 5/8" | 16', 25', 35', 50' | Control Wire |
| VersaPro 3, 4, 5 Ton | DIY Pre-Charged | 3/8" x 3/4" | 15', 25', 35', 50' | Traditional or 2-Wire |
| HyperHeat & Universal 2-3 Ton & 4-5 Ton | DIY Pre-Charged | 3/8" x 3/4" | 15', 25', 35', 50' | Traditional or 2-Wire |
