Versatile and Efficient Cooling Solutions
Introducing the MrCool Universal Evaporator Coils, available in 2-3 Ton and 4-5 Ton options. These coils are designed to provide superior cooling and heating efficiency, making them ideal for your home central air conditioning and heating split system. Whether you're looking to upgrade your current system or need a reliable replacement for an outdated coil, MrCool Universal Evaporator Coils are the perfect choice.

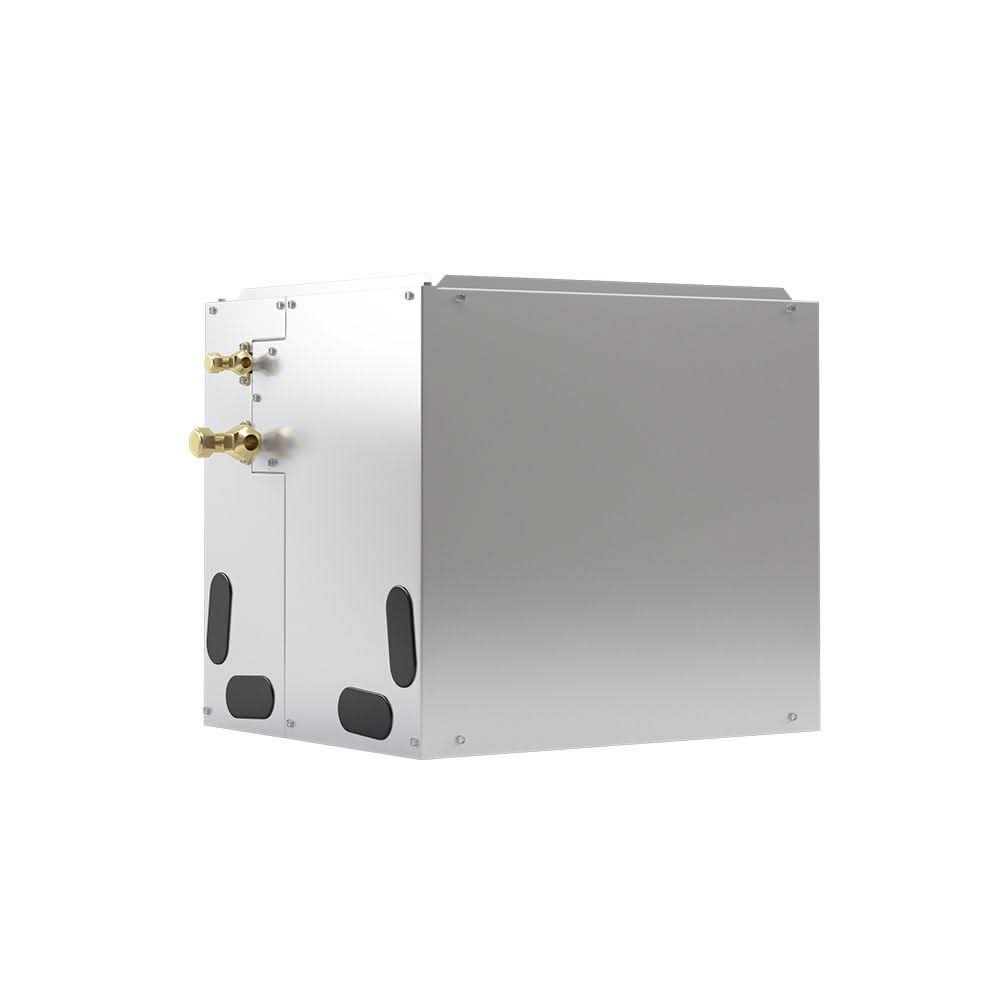

2-3 Ton MrCool Universal Evaporator Coil
The 2 to 3 Ton MrCool Universal Evaporator Coil is an ideal match for a MrCool Universal condenser in your home central air conditioning and heating split system. This coil is designed to complement the MrCool Universal product line and is flexible enough to act as a suitable replacement for a failing, previous generation A-coil in your current central heating and air system.
Key Features:
- Ease of Installation: This coil is easier and quicker to install than many similarly performing products.
- Condensation Reduction: The special liquid pipe design reduces excess condensation, minimizing the risk of drain pan overflow.
- Multiple Safeguards: Equipped with interior safeguards such as high-pressure, overload, high-discharge temperature, IPM, and more.
- Flexible Installation: Suitable for upflow, downflow, or horizontal right installations.
- Compatibility: Leverages the No-Vac Quick Connect lines for easy connection and efficiency.
- Perfect Pairing: Ideal for combining a high-efficiency MrCool Universal condenser with a superior heating MrCool Signature Series gas furnace.
4-5 Ton MrCool Universal Evaporator Coil
The 4 to 5 Ton MrCool Universal Evaporator Coil is designed to maximize the benefits of a MrCool Universal condenser matched with a MrCool Signature Series furnace, providing the most effective cooling and heating available.
Key Features:
- Advanced Condensation Control: Utilizes a special liquid pipe design to reduce excessive condensation, providing peace of mind.
- Simple Installation: Pre-charged with R-410A refrigerant, compatible with MrCool No-Vac Quick Connect lines and fittings, eliminating the need for brazing, vacuuming, or charging in the field.
- Versatile Application: Suitable for upflow, downflow, or horizontal right installations, and works effectively in mobile and manufactured home installations.
- Enhanced Protection: Equipped with multiple safeguards, including protection against high-pressure, high-discharge temperature, overload, IPM, and PFC, ensuring effective and efficient operation for the life of the unit.
Universal A-Coil Advantages
Both the 2-3 Ton and 4-5 Ton MrCool Universal Evaporator Coils offer a range of benefits:
- Quieter Operation: Enjoy a more peaceful home environment with quieter operation compared to many competitor models.
- Quick Installation: Faster and easier installation saves time and labor costs.
- Versatility: Can be paired with other Universal units or used as a replacement for outdated A-coils.
- Cost Savings: The advanced liquid pipe design and multiple safeguards protect against excessive condensation and potential property damage.
Choose MrCool Universal Evaporator Coils for a reliable, efficient, and versatile solution to your home cooling and heating needs.
SPECIFICATION & DIMENSIONS
SPECIFICATION & DIMENSIONS
2 to 3 Ton MrCool Universal Evaporator Coil - Quick Connect - Multiposition - 17.5" cabinet
Model |
MDUCC15024036 |
UPC | 810063867522 |
Air Flow Direction |
Downflow, Horizontal, Upflow
|
Cooling Capacity |
1.5 Ton, 2 Ton, 2.5 Ton, 3 Ton
|
Line Set Connection Type |
Quick Connect, Flared, or Sweat
|
Liquid Line Size | 3/8 inch |
Product Height (in) | 23 |
Product Length (in) | 21.25 |
Product Width (in) | 17.5 |
Refrigerant | R-410a |
Series | Universal |
Suction Line Size | 3/4 inch |
Warranty | 5 Year Parts |
Weight (lbs) | 75 |
4-5 Ton Specs:
Model | MDUCC15048060 |
UPC | 810063867539 |
Air Flow Direction |
Downflow, Horizontal, Upflow
|
Cooling Capacity |
3.5 Ton, 4 Ton, 5 Ton
|
Line Set Connection Type |
Quick Connect, Flared, or Sweat
|
Liquid Line Size | 3/8 inch |
Product Height (in) | 28.5 |
Product Length (in) | 21.25 |
Product Width (in) | 24.5 |
Refrigerant | R-410a |
Series | Universal |
Suction Line Size | 3/4 inch |
Warranty | 5 Year Parts |
Weight (lbs) | 110 |
