Product Overview
-

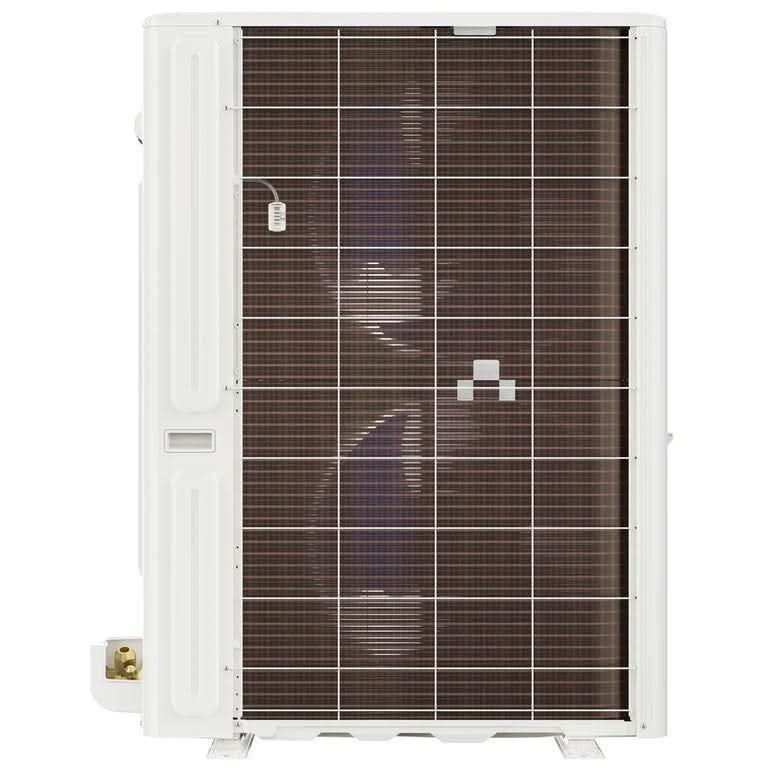

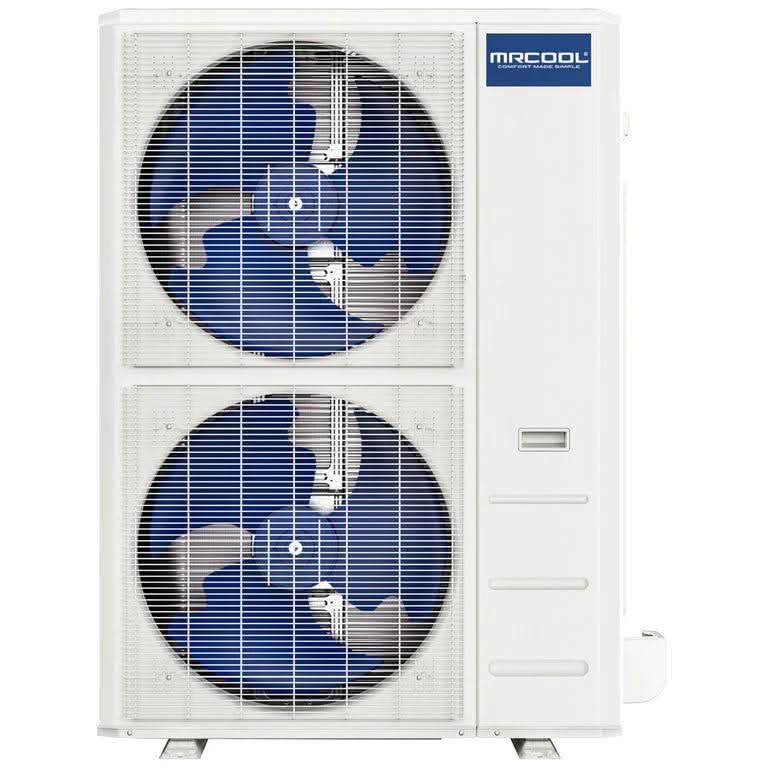

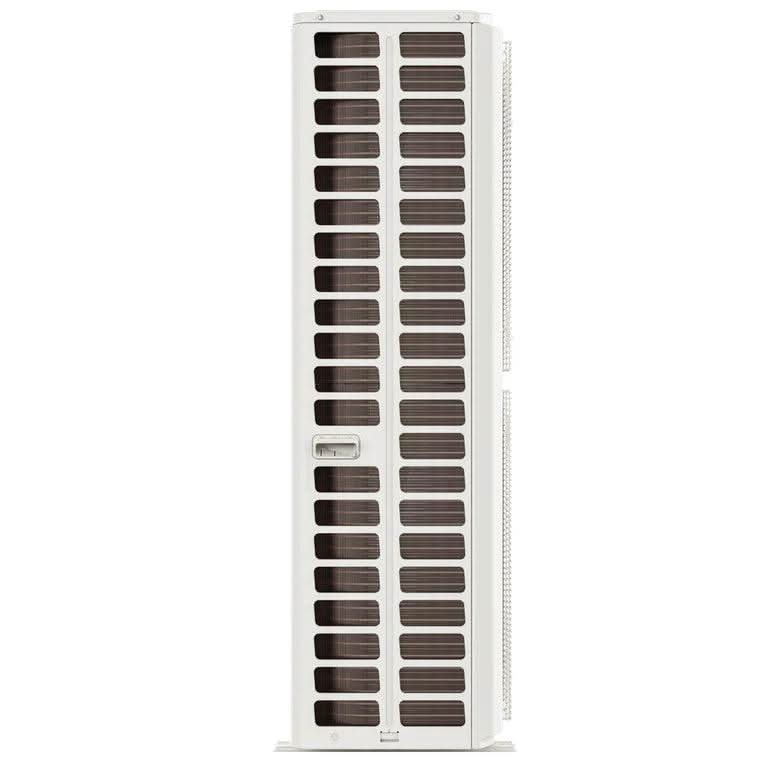

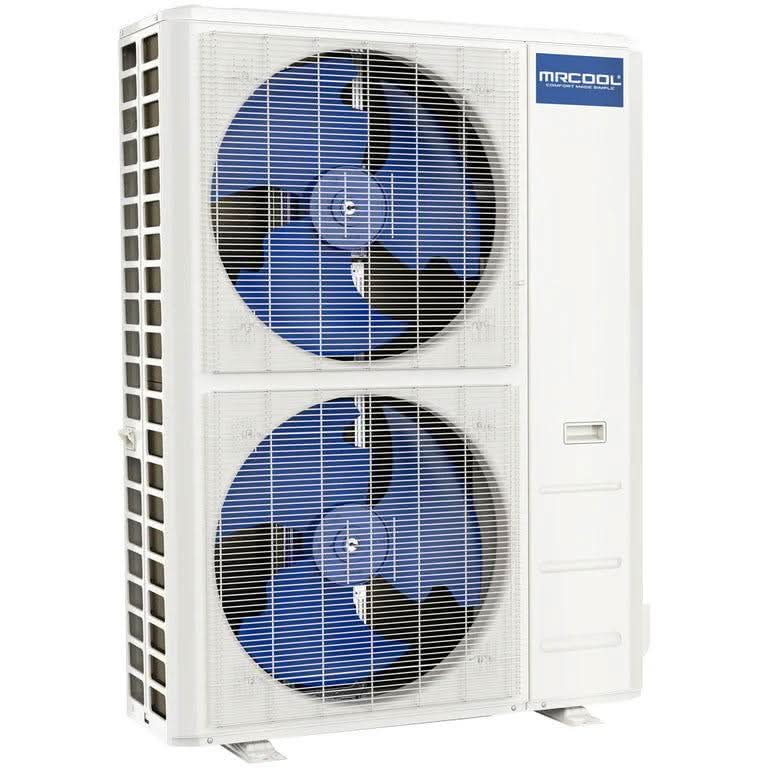

Condenser
-
DIY Installation
-
Central Ducted
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
SPECIFICATION & DIMENSIONS
SPECIFICATION & DIMENSIONS
| Condenser Dimensions | 37.48"W x 16.14"D x 52.48"H |
| Condenser Weight | 220.24 |
| SEER2 | 15.6 |
| EER2 | 8.2 |
| HSPF2 | hspf2-4/2-5: 9.4/7.7 |
| CFM | 4,411.76 |
| Cooling Capacity | 47,000 BTU |
| Heating Capacity | 50,000 BTU |
| Voltage | Requires a minimum of 208-230V/60HZ/42 to 50A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 50 |
| Min Circuit Ampacity | 42 |
| Coverage Area | 2,000 square feet |
| Refrigerant Type | R410A |
| Refrigerant Volume | 169.32 oz |
| Decibel Rating | 64 |
| Inverter System | DC |
| Air Flow Direction | Upflow, Downflow, Horizontal Left, Horizontal Right |
| Cool Mode - Outdoor Operating Temperature Range | 5°F to 122°F |
| Heat Mode - Outdoor Operating Temperature Range | -22°F to 75°F |
| Room Temperature | Cool: 61°F to 90°F Heat: 32°F to 86°F Dry: 50°F to 90°F |
| Line set Included | No |
| Max Line Set Length | 213.25 ft |
| Liquid Line Size | 3/8in |
| Suction Line Size | 3/4in |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Certificates | AHRI |
| Warranty | 10 years Parts and Labor |
| Propositon 65 Warning | Yes |
WHAT'S INCLUDED
WHAT'S INCLUDED
-
Condenser
