4th Gen DIY Multi

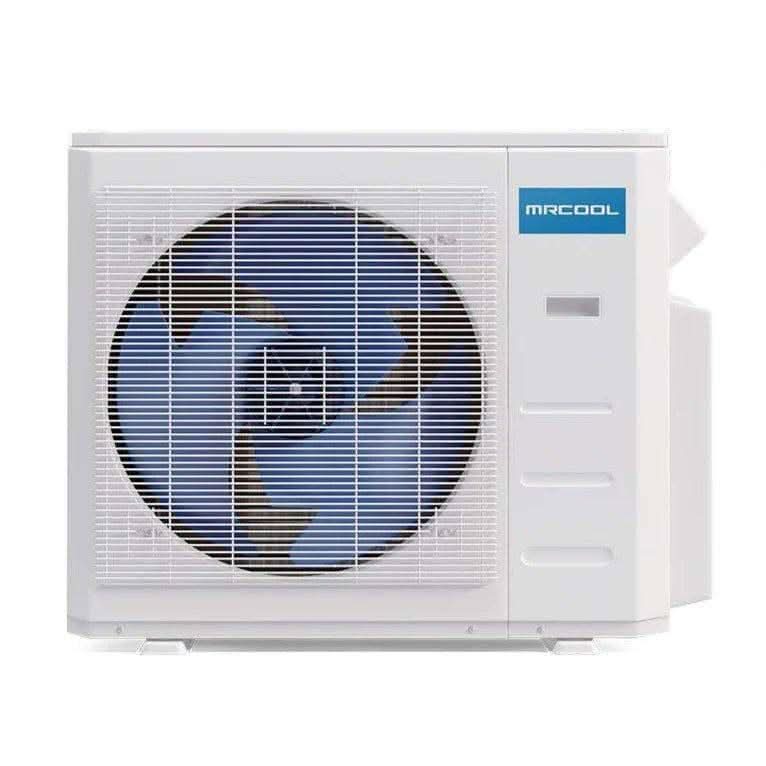

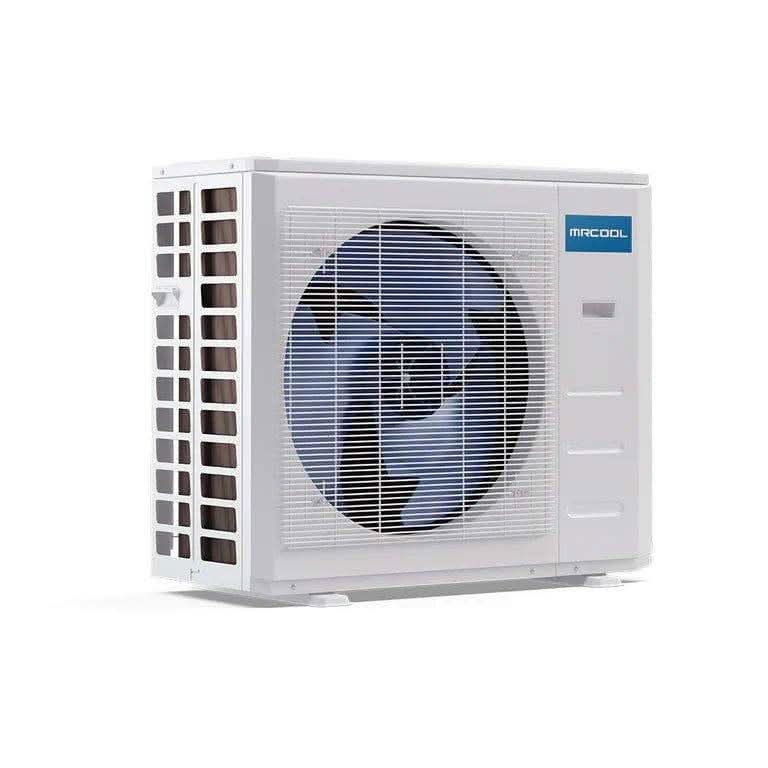

DIY Multi-Zone 4-Zone 36K BTU Condenser, 4th Gen Series, DIY-MULTI4-36HP230C

DIY Multi-Zone 4-Zone 36K BTU Condenser, 4th Gen Series, DIY-MULTI4-36HP230C

Regular price $2,107.00 USD
Regular price $2,549.88 USD Sale price $2,107.00 USD
Save $442.88 Sold out
Shipping calculated at checkout.

SKUDIY-MULTI4-36HP230C

TypeMulti-Zone Condenser

This item is in stock! Estimated Arrival: 4-8 Days After Order is Received, Depending Upon Your Location.

View full details

Have questions or need help selecting the perfect Mini Split system?

Talk with our expert HVAC team members now for assistance!!

PRODUCT DESCRIPTION

Explore cutting-edge climate control with the 4th Generation MRCOOL DIY 36K BTU 4-Zone Ductless Heat Pump (DIY-MULTI4-36HP230C), an innovative solution for multi-zone heating and cooling. This condenser supports up to 4 zones and, when paired with select MRCOOL air handlers, achieves an impressive SEER efficiency rating of up to 21.5. It's capable of providing heat in extreme cold, functioning effectively even when temperatures plummet to -13°F.

Designed to endure harsh conditions, the condenser features a Gold Fin® coating that offers superior corrosion resistance, making it ideal for coastal areas. MRCOOL sets itself apart by offering a limited lifetime compressor warranty, underscoring their commitment to quality and durability.

A standout feature of this system is its homeowner-friendly installation. The DIY-MULTI4-36HP230C uses MRCOOL’s patented Pre-Charged Quick Connect Line Sets, which are pre-charged with R-410A refrigerant and equipped with quick connect connectors. These features allow for simple assembly using only wrenches, without the need for vacuuming post-installation.

Key Features:

  • Exceptional Efficiency: Up to 21.5 SEER, minimizing energy costs while maximizing comfort.
  • Corrosion Resistance: Gold Fin® condenser coating ensures durability in corrosive environments.
  • Energy-Saving DC Inverter: Enhances performance and reduces energy consumption.
  • Eco-Friendly: Utilizes R-410A refrigerant, lessening environmental impact.
  • Comprehensive Warranty: Comes with a standard 7-year compressor and 5-year parts warranty, with the option to register for a limited lifetime compressor warranty.

The 4th Generation MRCOOL DIY 36K BTU 4-Zone Ductless Heat Pump represents the pinnacle of home HVAC technology, offering easy installation, robust performance, and efficient operation.

SPECIFICATION & DIMENSIONS

Product Dimensions 37.24"W x 16.14"D x 31.89"H
Product Weight 170.42 lbs
SEER2 21.5
EER2 10.5
HSPF2 8.8
SEER 21.5
EER 10.5
HSPF hspf4/hspf5 : 11/8.5
CFM 2147.06
Cooling Capacity 36,000 BTU
Heating Capacity 36,000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/27-45A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 45 A
Min Circuit Ampacity 27 A
Color White
Zone Capacity Up to 4
Refrigerant Type R-410A
Refrigerant Volume 134.04 oz
Decibel Rating 65 dBA
Inverter Yes
Min Ambient Cool 5°F ~ 122°F
Min Ambient Heat -13°F ~ 75.2°F
Max Lineset Length 221.5 ft TOTAL
Liquid Line Size 1/4in
Suction Line Size 3/8in+1/2in
Compressor Motor Type Rotary
Condenser Fan Motor RPM 1000/900/750
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Warranty 5-year Parts/7-year Compressor
Registered Warranty - Limited Lifetime Warranty

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Stephen Schmidt

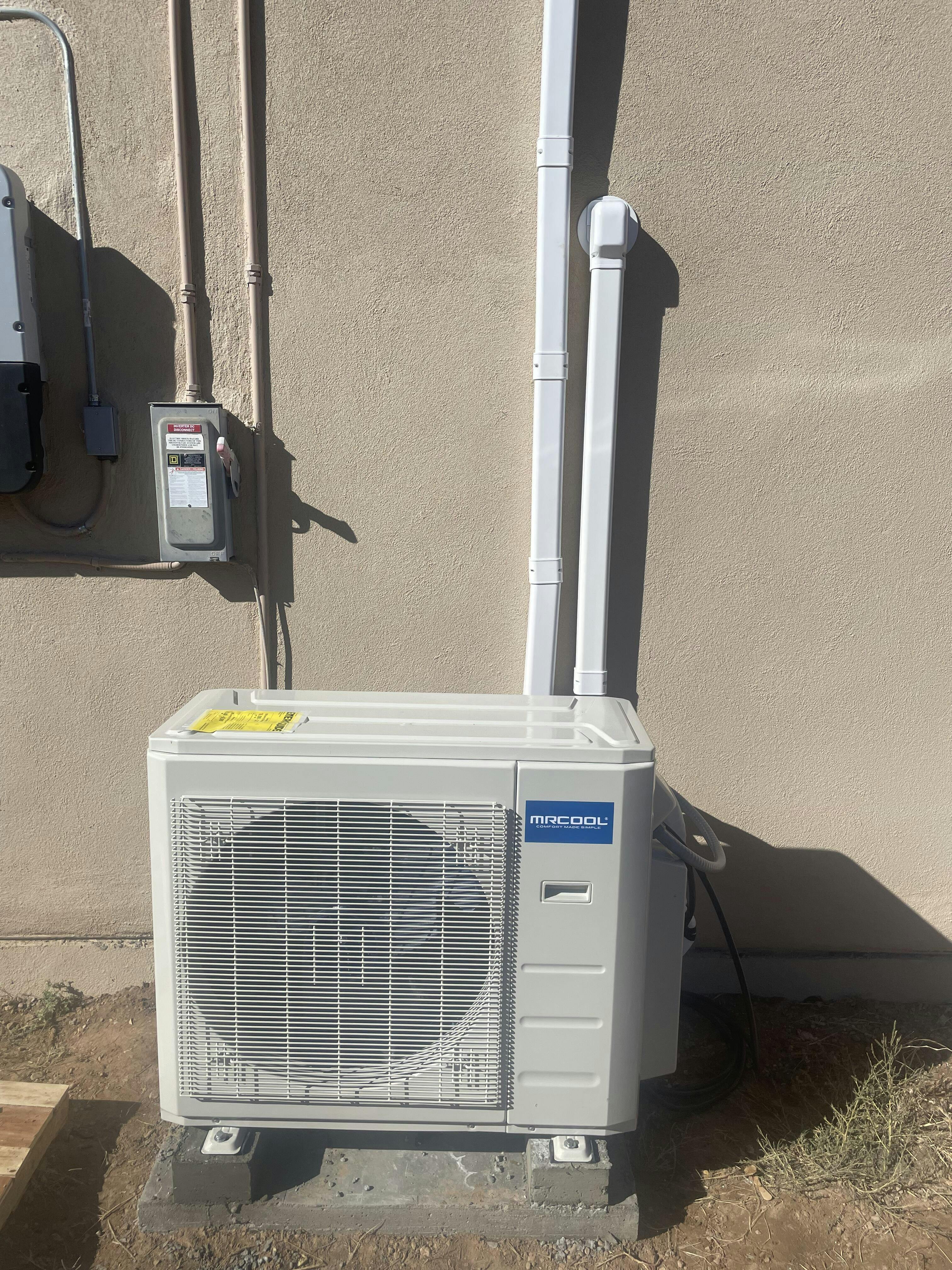

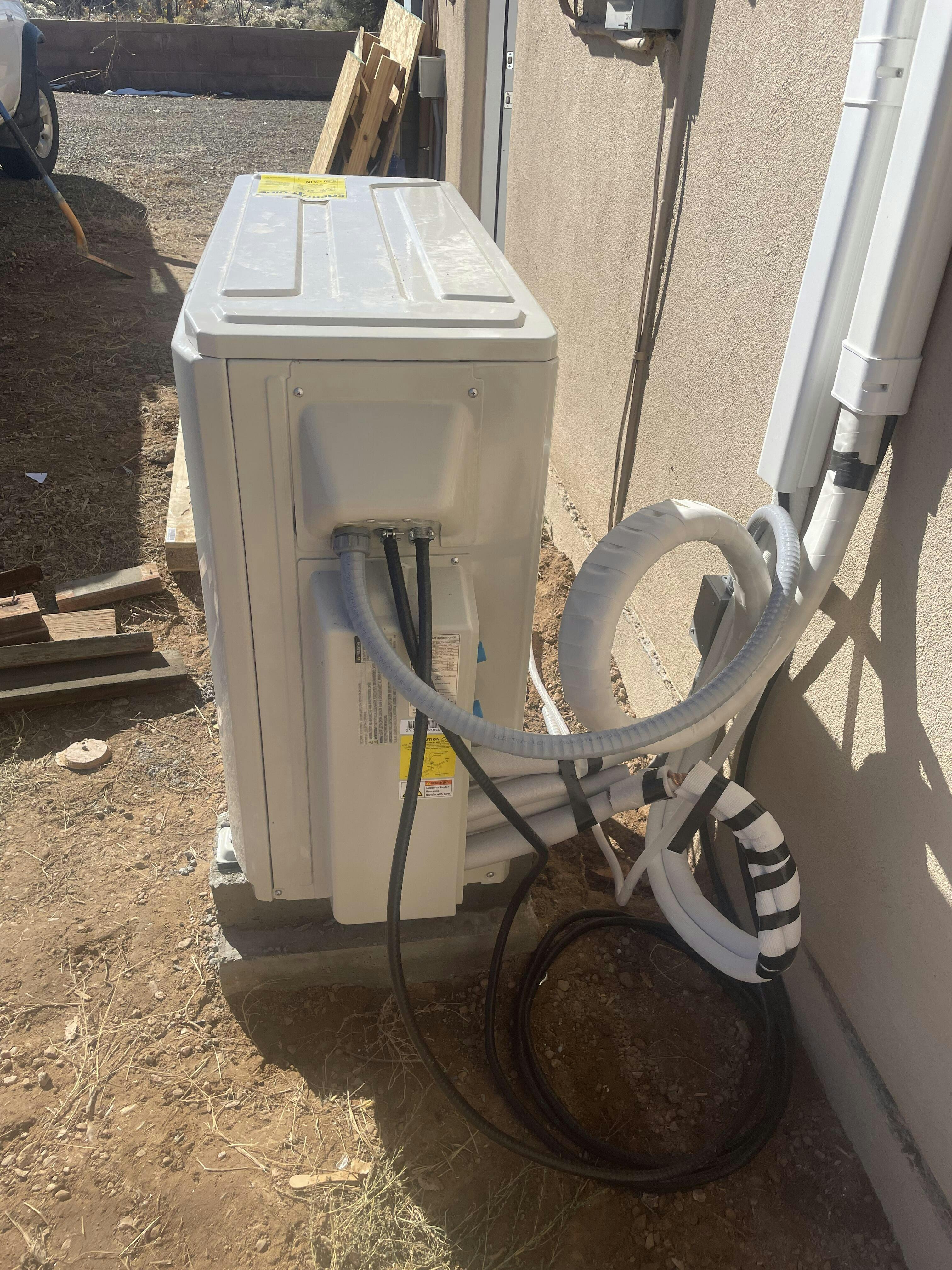

Interior wall installation complicated but worked.

Running line sets and drain tubes in an interior wall is harder than just going outside directly and I recommend doing it with unfinished walls on the back as I had to cut out sheetrock, and then you need 6 inch studs to cut out a path for the lines, power, and drain tube which needs to run downhill until you reach the exterior wall. Given that, it went well and I was able to install 2 heads and wire everything up and get it working in a couple days. The one issue I had was connecting the power as the terminals are very small and if you run a 8 gauge wire it will never fit, and even 10 gauge is near impossible. That should be re-engineered to make for easier connections. The terminals are fine for the head wires, but I don’t know why they were covered with a soft plastic cover which i had to cut off to connect. Other than that, it saved me a lot of money and they are working well. I will connect my third head unit later in a work room that I’m not using much and is passively heated. I gave a 5 star but because of the issues above I would have preferred 4.5 stars. Dealing with MRCOOL DIY Direct was easy and they were helpful.
