Product Description

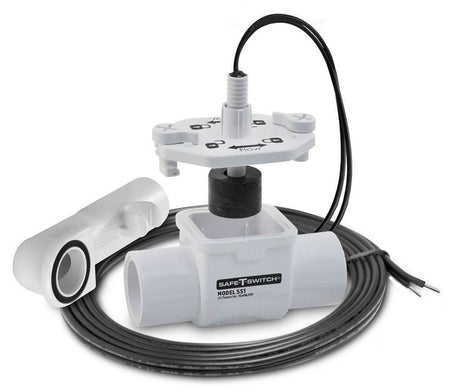

The Rectorseal Safe-T-Switch SS1, MPN 97085, is a float switch designed for managing condensate overflow in HVAC systems. This switch helps detect clogged A/C condensate drains, shutting off the system to avoid water damage and maintain efficiency.
- Magnetic reed switch for reliable operation
- Adjustable ratcheting float level for different applications
- Code compliant with inline cleanout features
Product Highlights
This switch can be installed vertically, horizontally, or inline. It comes with a cleanout tool for easy maintenance and can handle slopes up to forty-five degrees.
Product Information
Standard Information
- MPN: 97085
- Brand: Rectorseal
Technical Specifications
- Voltage Rating: 24VAC
- Ampere Rating: 1.25A
- Material: Plastic
- Length: five and one-half inches
- Width: one and three-quarter inches
- Height: nine and one-quarter inches
- Cable Length: six feet
- Wire Size: eighteen AWG
- Applications: For primary drain outlet
