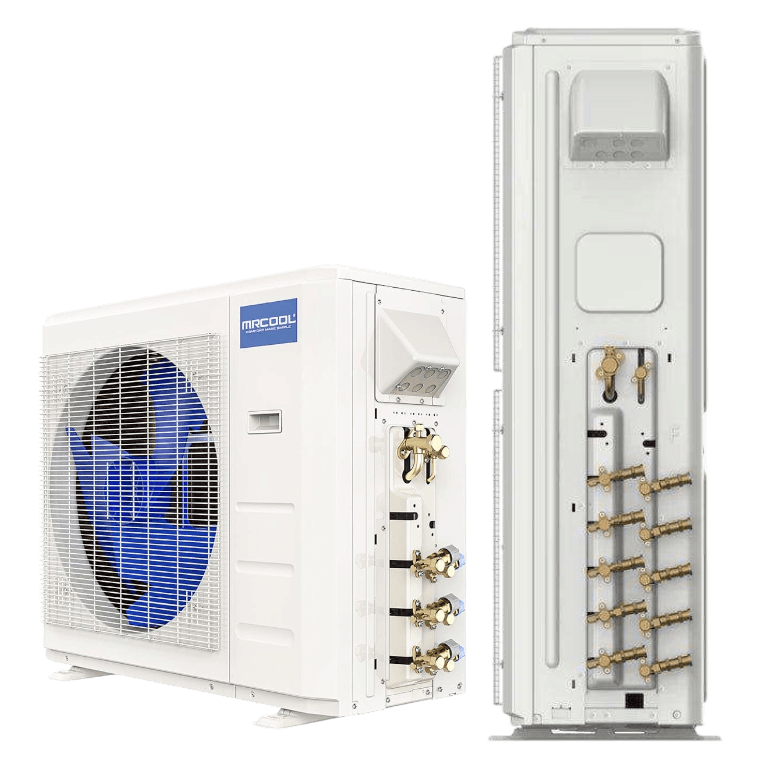

Specifications for 4th Gen MRCOOL DIY Multi-Zone Mini-Split Systems
Below are the detailed specifications for the MRCOOL DIY multi-zone mini-split systems, including models DIY-MULTI2-18HP230C, DIY-MULTI3-27HP230C, DIY-MULTI4-36HP230C, and DIY-MULTI5-48HP230C.
General Specifications
Specification
DIY-MULTI2-18HP230C
DIY-MULTI3-27HP230C
DIY-MULTI4-36HP230C
DIY-MULTI5-48HP230C
Maximum Number of Zones
2
3
4
5
EER2 (Btu/w)
12.5
12.0
10.5
11.0
SEER2 (Btu/w)
21.2
22.0
21.5
20.5
HSPF2-4 (Btu/Hr/w)
9.6
9.5
8.8
9.2
HSPF2-5 (Btu/Hr/w)
7.5
7.3
6.8
7.0
Electrical Requirements
Specification
DIY-MULTI2-18HP230C
DIY-MULTI3-27HP230C
DIY-MULTI4-36HP230C
DIY-MULTI5-48HP230C
Power Supply (V~Hz, ph)
208-230~60, 1
208-230~60, 1
208-230~60, 1
208-230~60, 1
Minimum Circuit Ampacity (A)
18.0
26.0
27.0
40.0
Maximum Fuse (Breaker A)
25.0
40.0
45.0
60.0
Dimensions & Weight
Specification
DIY-MULTI2-18HP230C
DIY-MULTI3-27HP230C
DIY-MULTI4-36HP230C
DIY-MULTI5-48HP230C
Net Dimensions (WxDxH)
35.04 x 13.46 x 26.50 in
37.24 x 16.14 x 31.89 in
37.24 x 16.14 x 31.89 in
37.48 x 16.34 x 52.48 in
Packing Dimensions (WxDxH)
40.94 x 17.64 x 29.33 in
42.91 x 19.69 x 34.84 in
42.91 x 19.88 x 37.01 in
43.11 x 19.49 x 58.27 in
Net Weight (lbs)
100.53
139.99
170.42
222.89
Gross Weight (lbs)
111.11
157.19
187.83
254.41
Performance & Other Features
Specification
DIY-MULTI2-18HP230C
DIY-MULTI3-27HP230C
DIY-MULTI4-36HP230C
DIY-MULTI5-48HP230C
Noise Level (dB(A))
59
61
65
61.5
Refrigerant (R-410A, oz)
65.00
91.71
134.04
162.00
Piping Size (Liquid-Gas)
1/4" - 1/2"
1/4" - 1/2"
1/4" - 1/2"* (3/8" - 5/8")
1/4" - 1/2"* (3/8" - 5/8")
These specifications provide a comprehensive comparison of MRCOOL’s DIY Multi-Zone Mini-Split systems, helping you choose the right system for your heating and cooling needs. For further assistance, feel free to contact MRCOOL DIY Direct!
