PRODUCT DESCRIPTION
PRODUCT DESCRIPTION

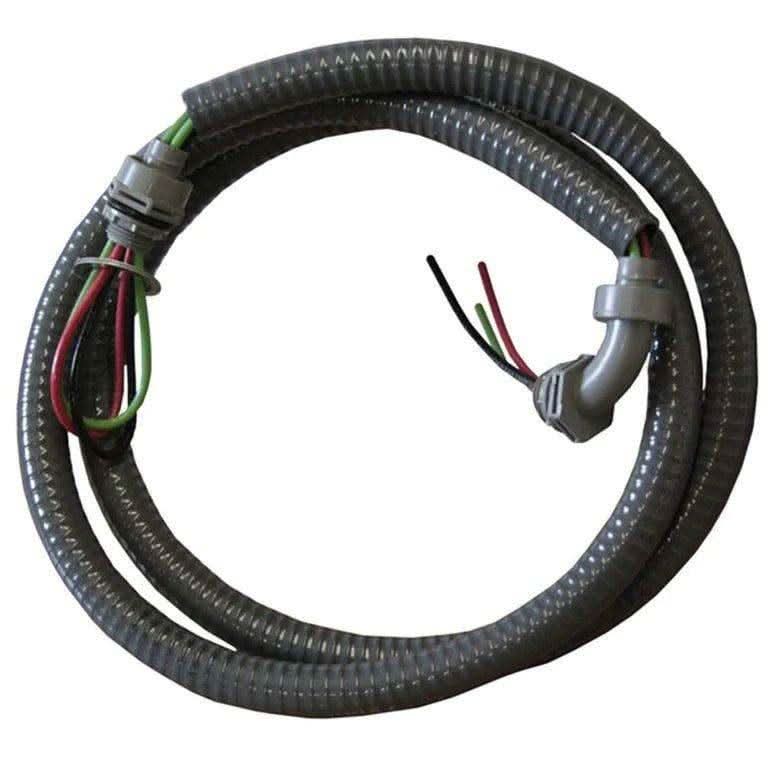

This electrical set includes:
If purchasing a MRCOOL DIY System, this is recommended to be used with all Mr Cool Mini Split Condensers and All MRCOOL Central Ducted Heat Pump Condensers.
If you need help, contact us at (417) 291-9921
Email us Contact@mrcooldiydirect.com
AWG Breakdown by MRCOOL DIY Multi-Zone Condenser
18K - #12 Minimum, #10 Preferred
27K - #10 Minimum, #8 Preferred
36K - #8 Minimum, #6 Preferred
48K - #8 Minimum, #6 Preferred
AWG Breakdown by MRCOOL DIY Single-Zone Condenser
9, 12K - #12 Minimum, #10 Preferred
18K - #10 Minimum, #8 Preferred
24K - #8 Minimum, #6 Preferred
36K - #8 Minimum, #6 Preferred
AWG stands for American Wire Gauge. It is a standardized system used in North America to denote the diameter of electrically conducting wire. Here are some key points about AWG:
-
Measurement of Wire Thickness: AWG indicates the thickness or diameter of a wire. The gauge number increases as the wire diameter decreases. For example, a 12 AWG wire is thicker than a 14 AWG wire.
-
Conductor Size: It is used primarily for non-ferrous metals such as copper, aluminum, and gold. The size of the wire affects its electrical resistance and current-carrying capacity.
-
Application: AWG is commonly used in electrical wiring and components, including household wiring, electronic devices, and industrial equipment.
-
Range: AWG sizes typically range from 0000 (4/0) which is very thick, down to 40, which is very thin. The system is logarithmic, meaning each step in AWG size represents a constant ratio of the wire's diameter and cross-sectional area.
Understanding AWG is crucial for selecting the right wire for electrical projects, ensuring safety and efficiency in the transmission of electrical power and signals.
