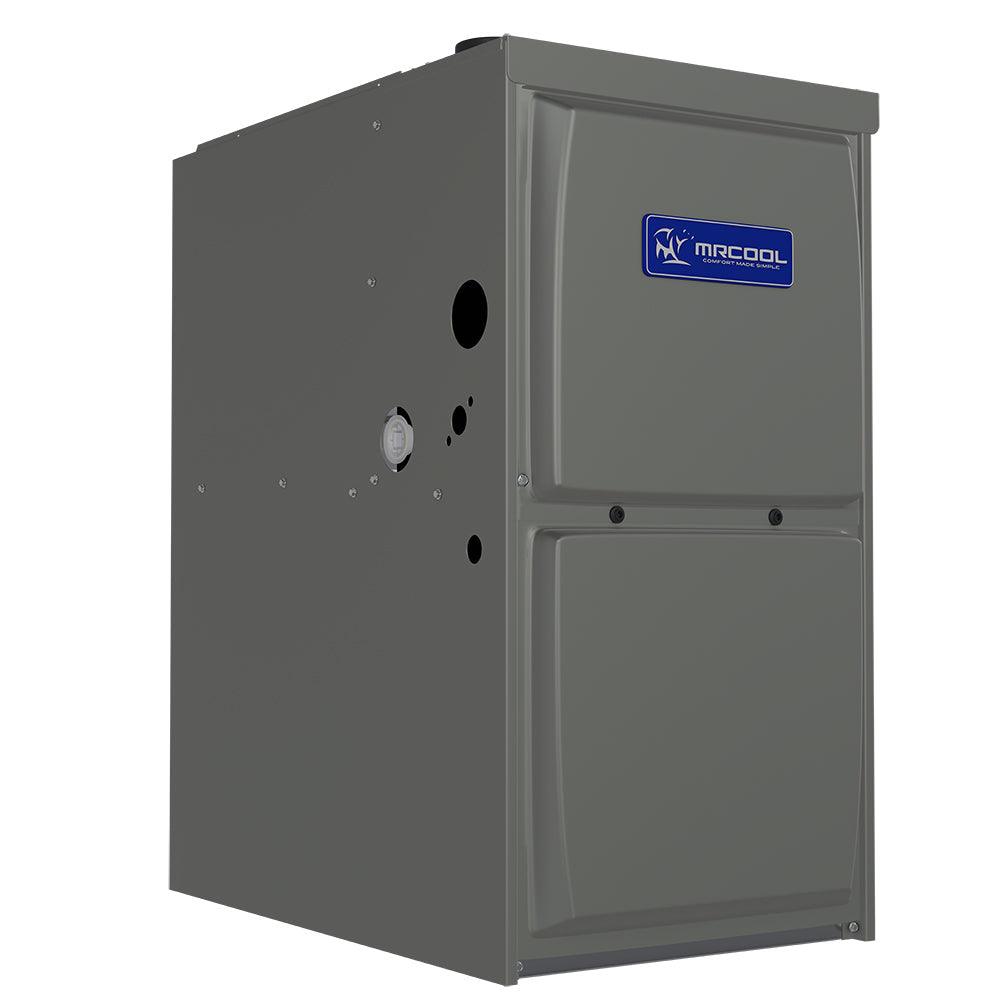

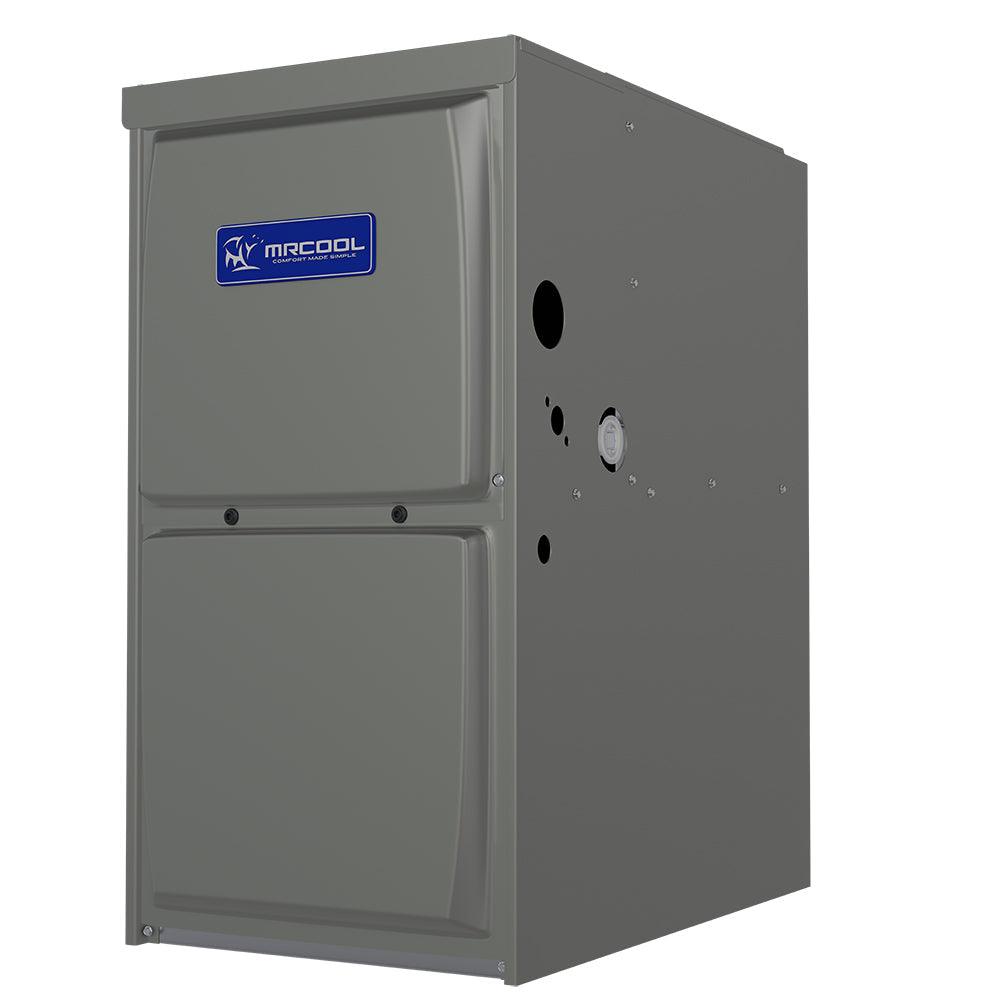

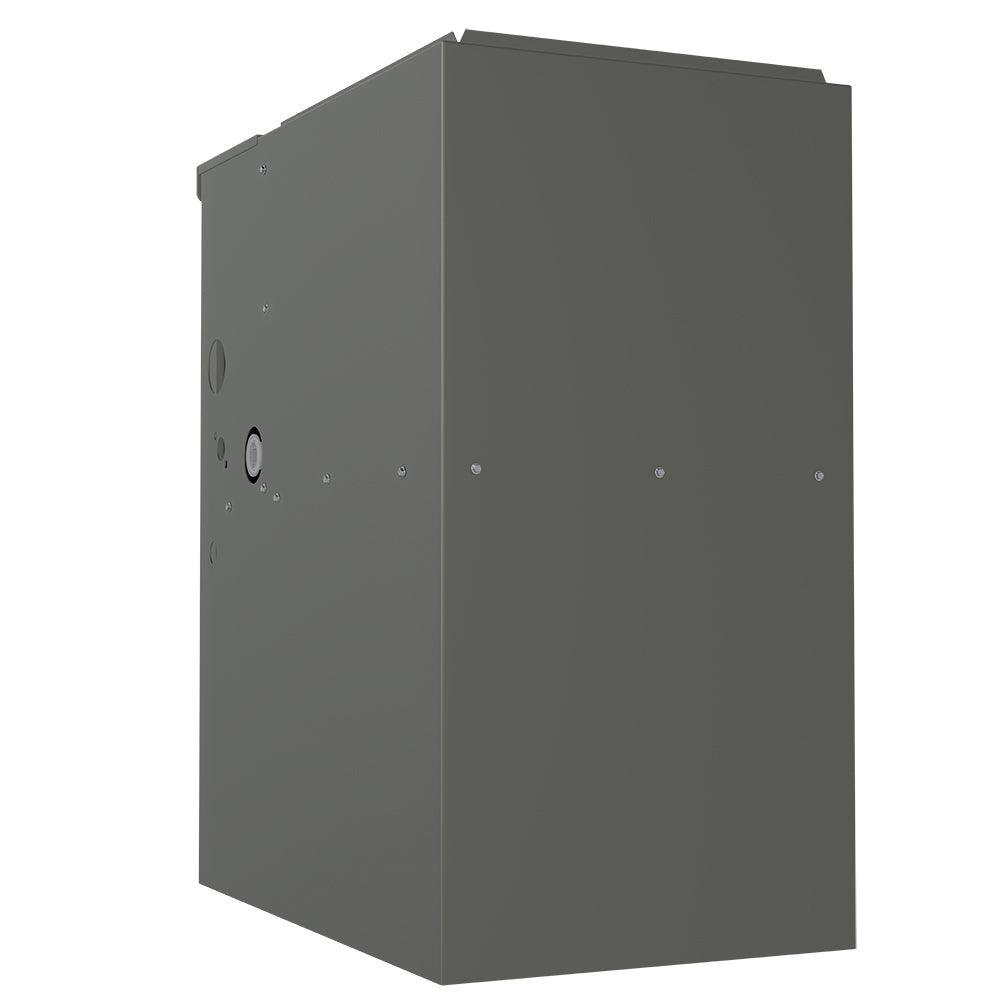

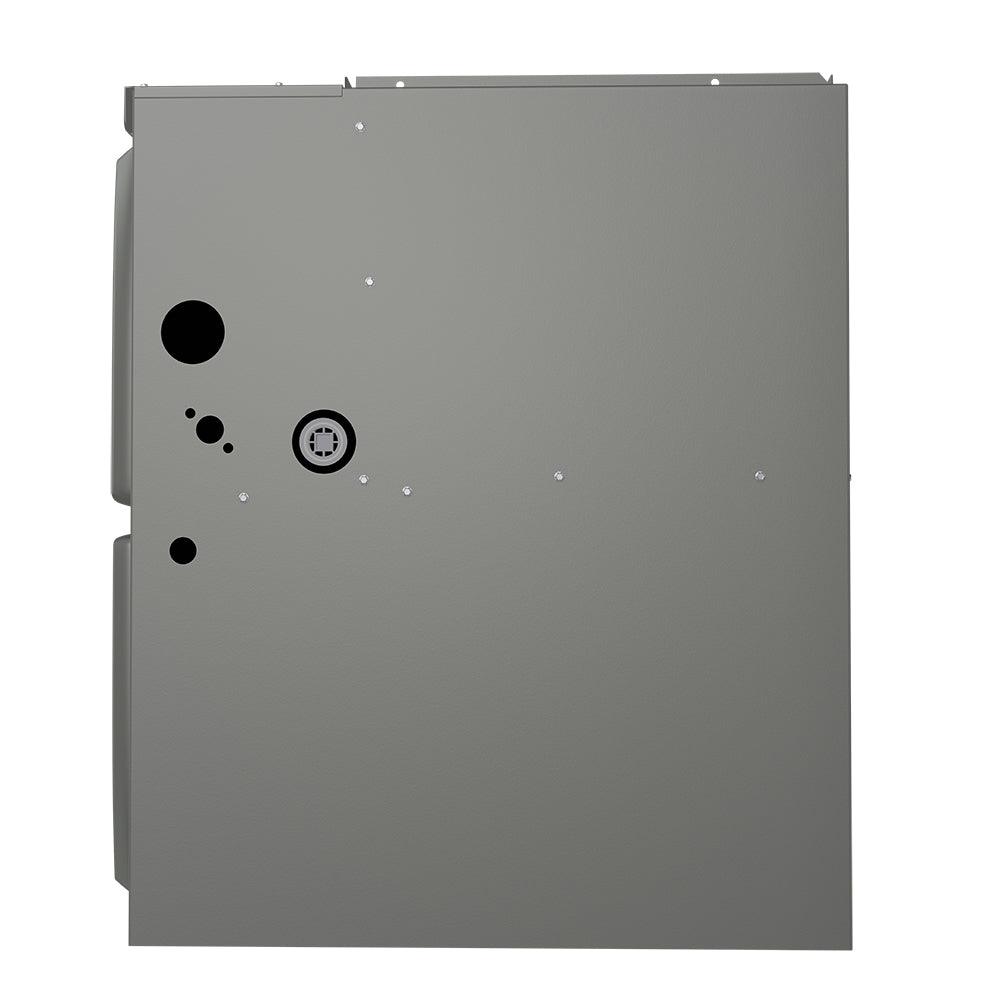

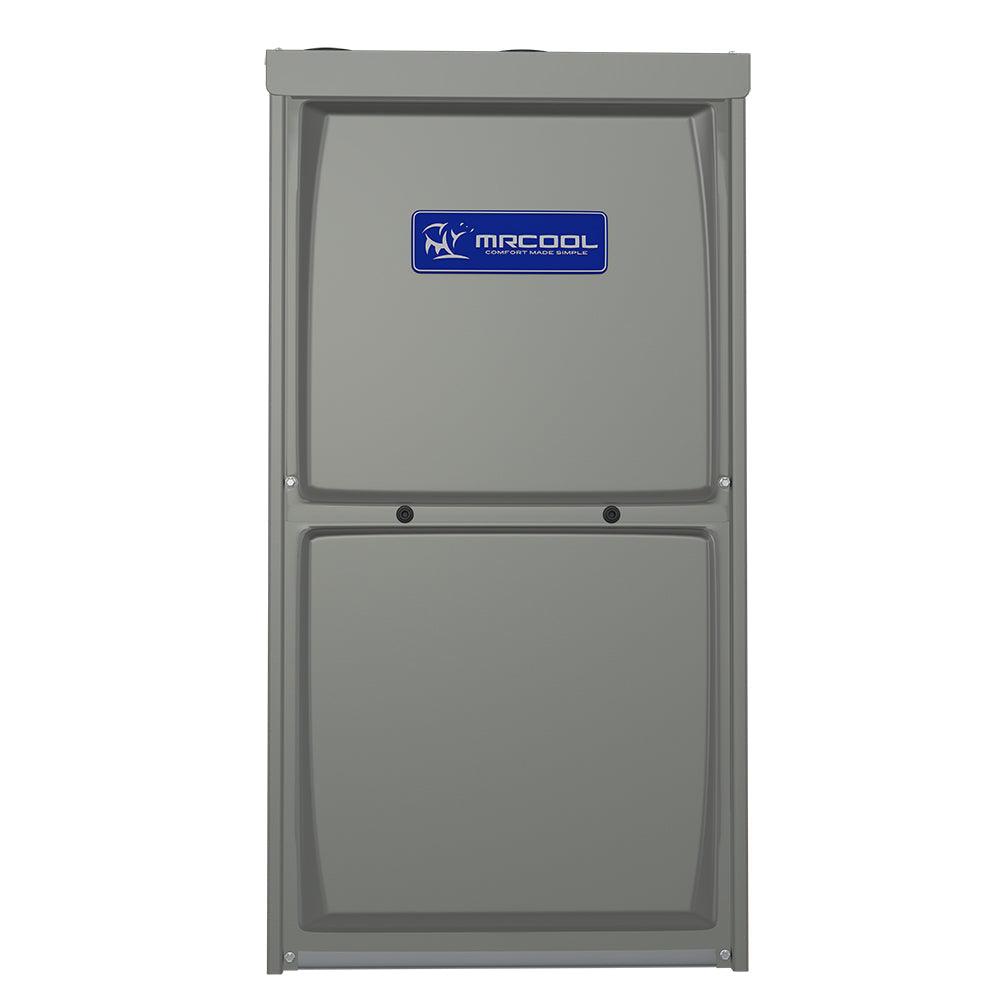

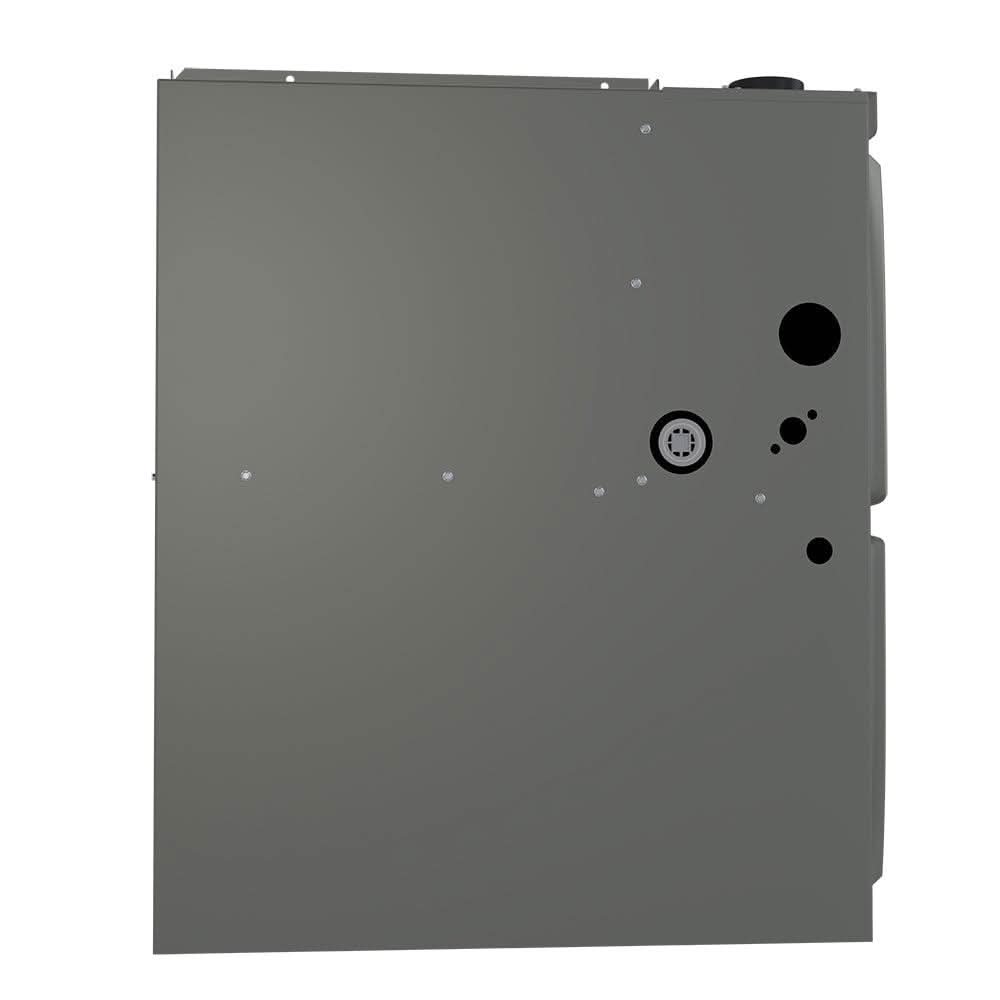

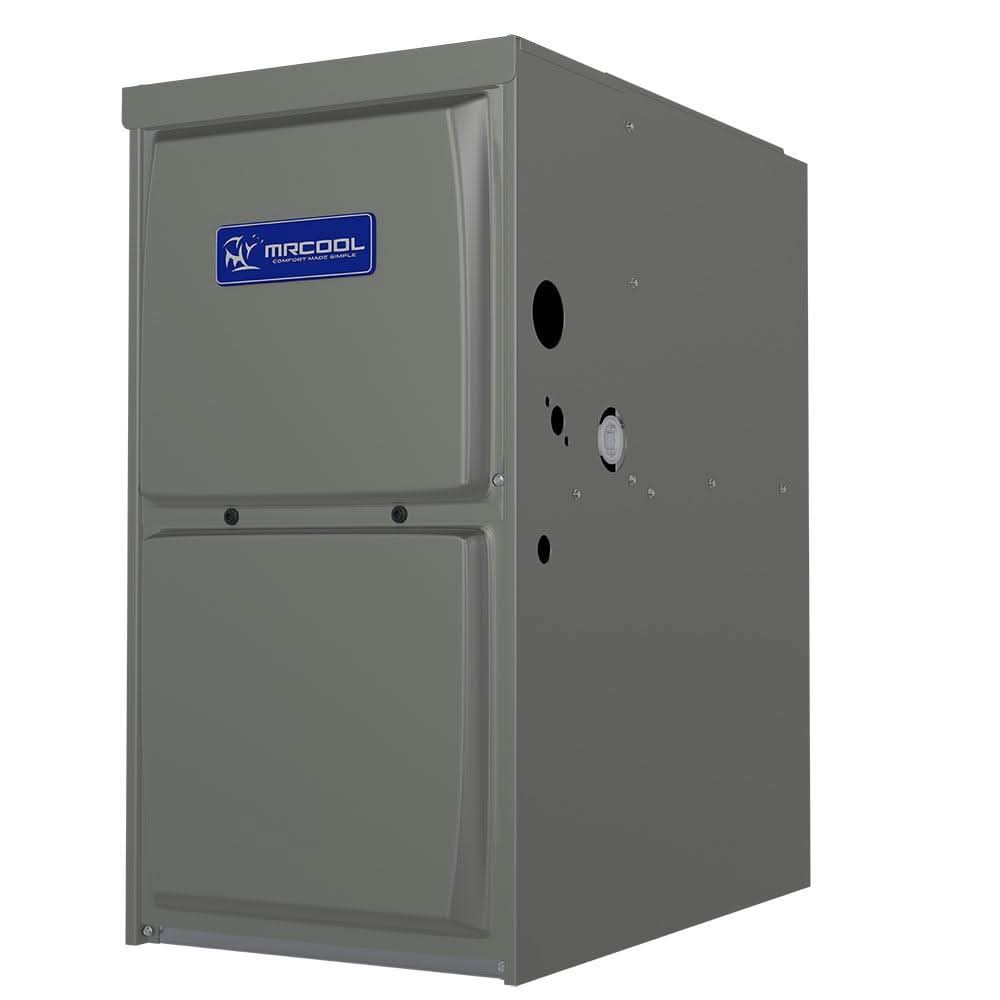

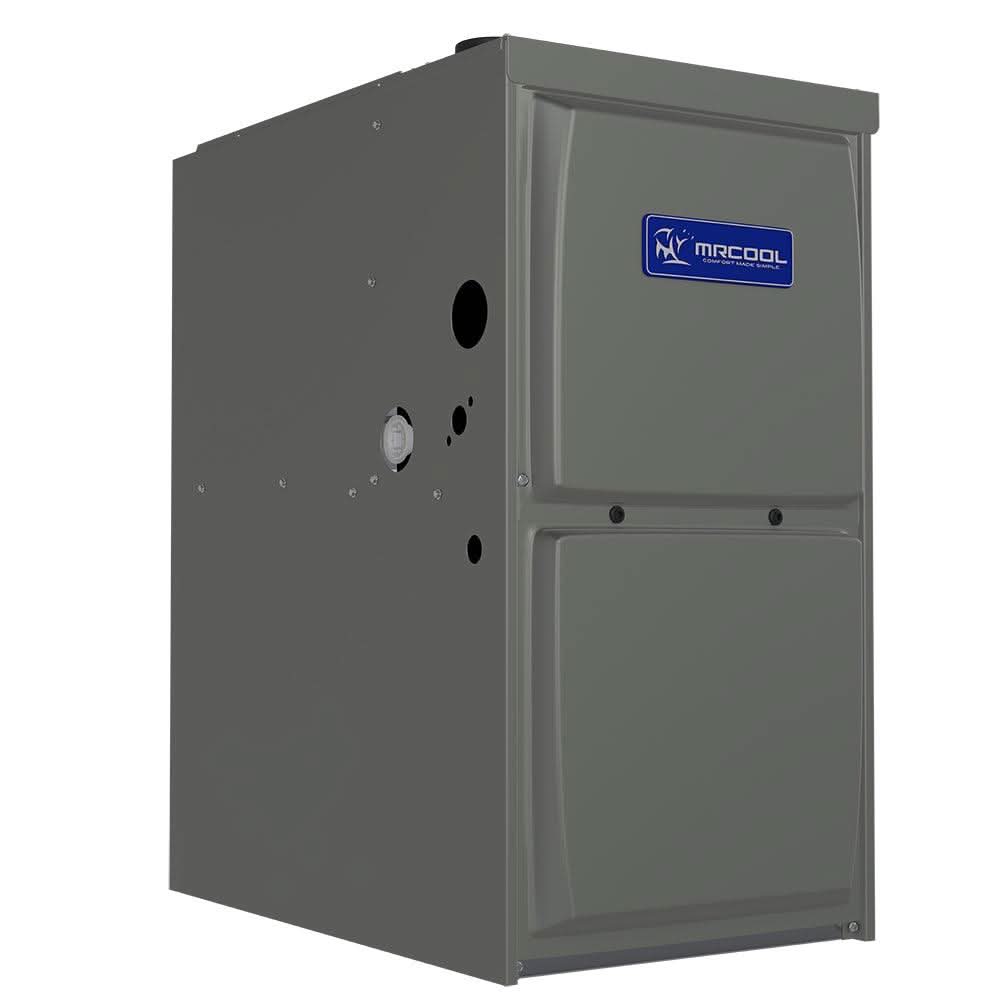

MRCOOL® Signature Series Single Stage 96% AFUE 5 Ton 135,000 BTU Multi-Position Multi-Speed Gas Furnace - MGM96SE135D5XA
Couldn't load pickup availability
MRCOOL® Signature Series Single Stage 96% AFUE 5 Ton 135,000 BTU Multi-Position Multi-Speed Gas Furnace - MGM96SE135D5XA
For optimal heating performance, choose the MRCOOL® Signature Series Single Stage 96% AFUE 5 Ton 135,000 BTU Multi-Position Multi-Speed Gas Furnace. It can be installed in an upflow or horizontal configuration and is both energy efficient and quiet running. The unit’s multi-speed high efficiency blower motor aids in the unit’s 96% AFUE. For enhanced cooling SEER ratings, apply this unit with properly matched cooling equipment. The aluminized steel primary heat exchanger with crimped non-welded construction aids in this unit’s durable build and finish. For optimal operation, the furnace features aluminized steel inshot burners and a durable silicon nitride ignitor for smooth ignition. The single stage gas valve helps to deliver heating to your home quickly and effectively. The removable floor base for bottom return air, zero step horizontal conversion, and left or right utility connections all help to make installation of the furnace easy and time saving. It features a compact 33 inch design and offers standardized widths for easy coil fit. It can be easily vented with PVC pipe and is design certified for direct and non-direct vent applications. An optional LP kit is available as well for a liquid propane conversion. Thanks to the easily removable slide out blower design, maintenance is a breeze. MRCOOL® backs this product with a lifetime heat exchanger warranty and a 10-year parts warranty.
| BRAND | MRCOOL |
| MODEL | MGM96SE135D5XA |
| SERIES | Signature Multi Position 96% AFUE Furnace |
| UNIT TYPE | Gas Furnace |
| AFUE | 96% |
| CFM | 2000 |
| TONNAGE | 5 Ton |
| FUEL TYPE | Gas |
| BTU INPUT | 132000 |
| BTU OUTPUT | 127000 |
| VOLTAGE | 120V |
| PHASE | 1 |
| CYCLE | 60Hz |
| MAX FUSE BREAKER | 15 |
| FULL LOAD | 10.9 |
| GAS CONNECTION SIZE | 1/2 in |
| AHRI CERTIFIED | Yes |
| NET DEPTH | 29 in |
| NET HEIGHT | 33 in |
| NET WIDTH | 24.5 in |
| GROSS WEIGHT | 174 lbs |
No package information available for this product.
Download installation manuals, spec sheets, and warranty documents for this system.
No documents available for this product.
No Q&A content set for this product.
No helpful articles linked for this product.
MRCOOL SIGNATURE SERIES BUYING GUIDE
How to Choose the Right MRCOOL Signature Series TruInverter System
The MRCOOL Signature Series TruInverter systems are engineered for high-performance heating and cooling in residential and light commercial applications. With advanced inverter technology, R-454B refrigerant, and durable construction, these systems deliver consistent comfort, improved efficiency, and reliable operation in extreme conditions. Use this guide to compare system sizes, performance capabilities, and installation requirements so you can confidently select the right system for your space.
MRCOOL Signature Series TruInverter HVAC System Buying Guide
The MRCOOL Signature Series TruInverter heat pump systems are designed for homeowners and professionals who need high-performance, energy-efficient HVAC solutions for year-round comfort. Unlike traditional single-stage systems, these inverter-driven systems continuously adjust output based on real-time demand, delivering more consistent indoor temperatures and improved energy efficiency.
One of the key advantages of the Signature Series is its ability to operate in extreme conditions. These systems are engineered to provide reliable cooling in high outdoor temperatures and maintain heating performance in low ambient environments, making them ideal for a wide range of climate zones.
Each system is factory-charged with R-454B refrigerant, a next-generation solution that improves heat transfer efficiency while reducing environmental impact compared to older refrigerants. Combined with advanced compressor technology, this results in lower energy consumption and long-term operational savings.
When selecting a MRCOOL Signature Series system, it is important to consider system size (tonnage), square footage, insulation quality, and climate conditions. Available options range from 2 ton to 5 ton systems, making them suitable for everything from smaller homes to large residential and light commercial applications.
These systems are designed for professional installation and are compatible with standard 24V thermostats, offering flexibility for both new construction and system replacement projects. With durable construction, quiet operation, and service-friendly design, the MRCOOL Signature Series provides a reliable, long-term HVAC solution built for real-world performance.
Frequently Asked Questions
What size MRCOOL Signature Series system do I need?
A: System size depends on square footage, insulation, ceiling height, and climate zone. A properly sized system ensures optimal efficiency, performance, and long-term reliability.
What is TruInverter technology and why does it matter?
TruInverter technology allows the system to continuously adjust compressor speed instead of cycling on and off. This results in more consistent temperatures, improved energy efficiency, quieter operation, and reduced wear on components.
Can MRCOOL Signature Series systems handle extreme temperatures?
A: Yes. These systems are engineered to operate in both high heat and low ambient conditions, providing reliable cooling during extreme summer temperatures and consistent heating in cold climates.
Is professional installation required for Signature Series systems?
A: Yes. Unlike DIY mini splits, Signature Series systems are designed for professional installation to ensure proper sizing, airflow design, refrigerant handling, and electrical setup.
What are the benefits of an inverter heat pump vs a traditional HVAC system?
Inverter heat pumps provide better efficiency, more consistent comfort, lower energy costs, and longer system lifespan compared to traditional single-stage systems that frequently cycle on and off.
