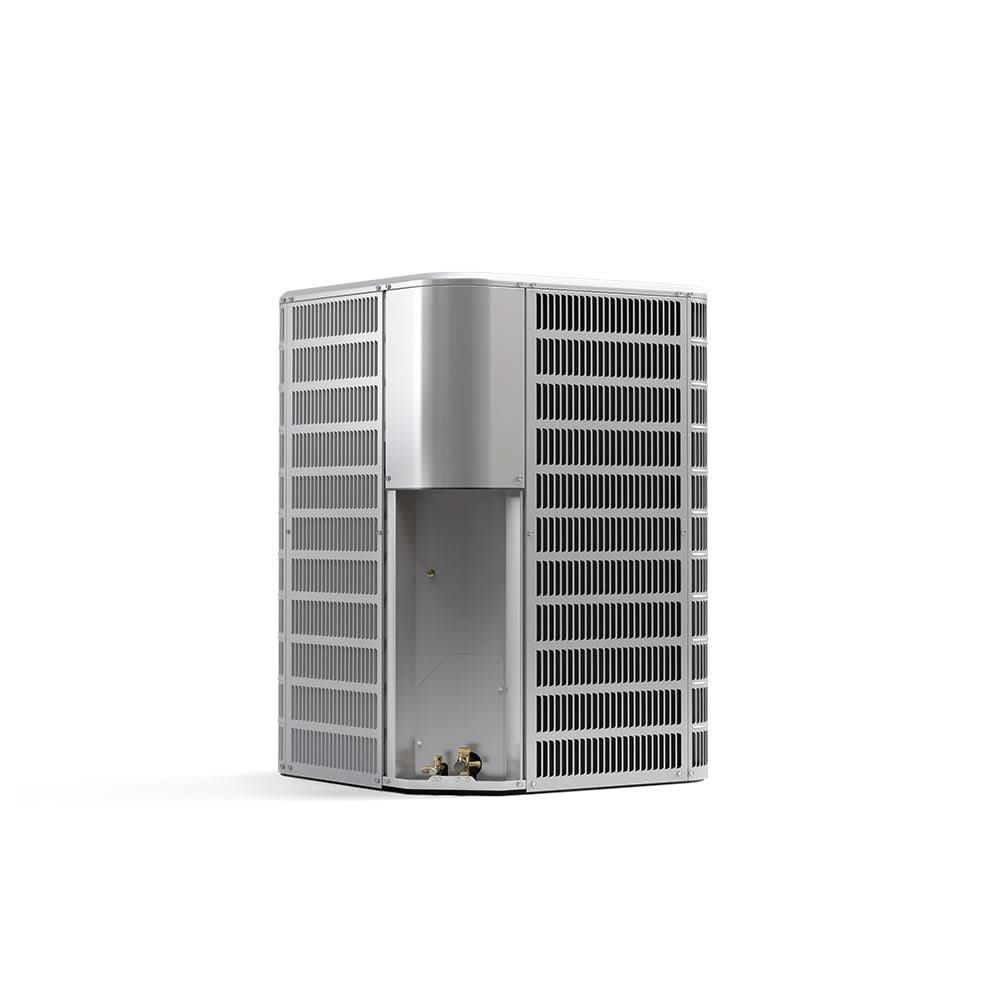

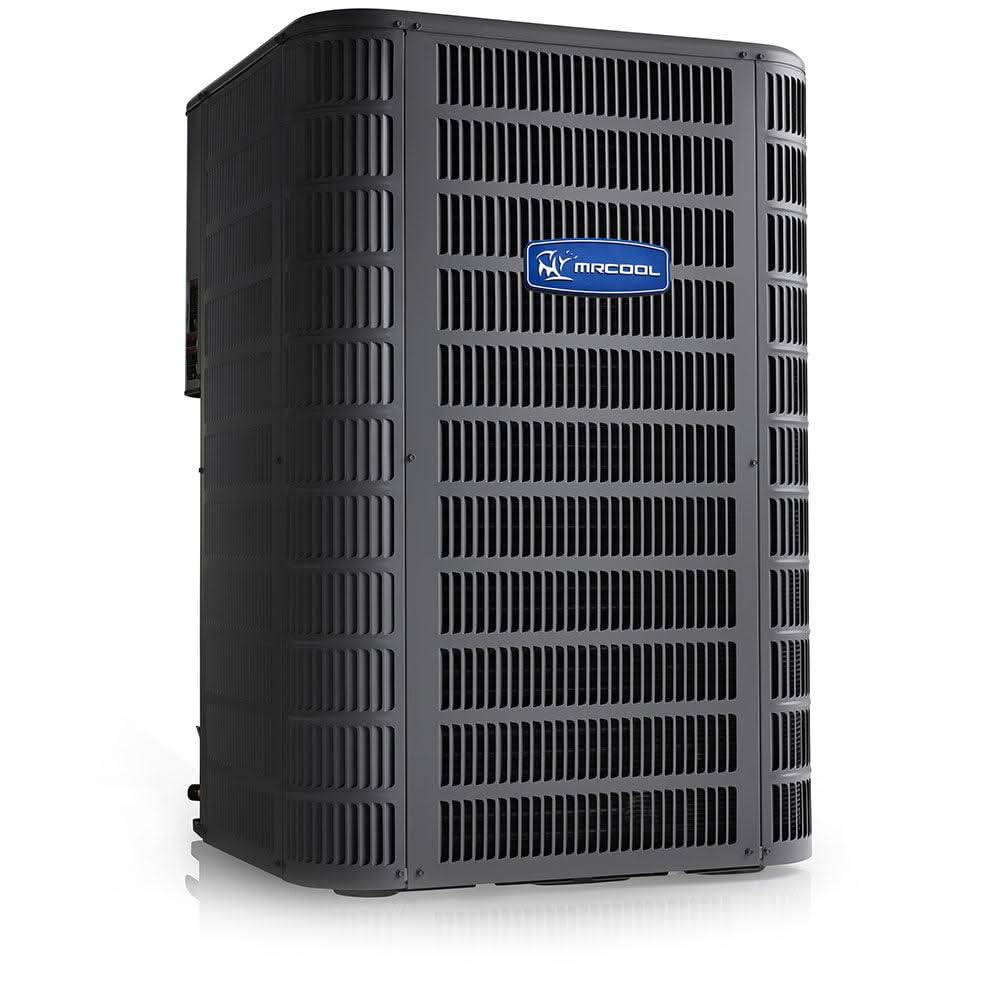

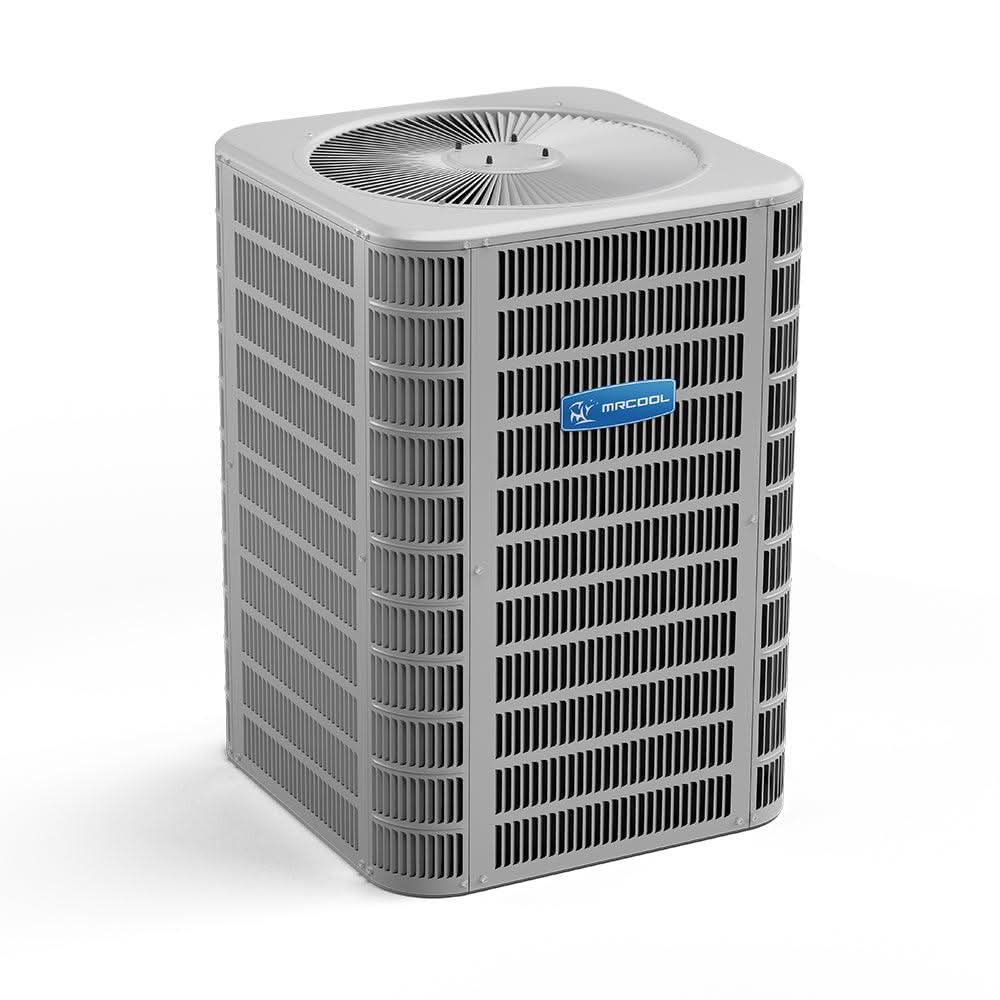

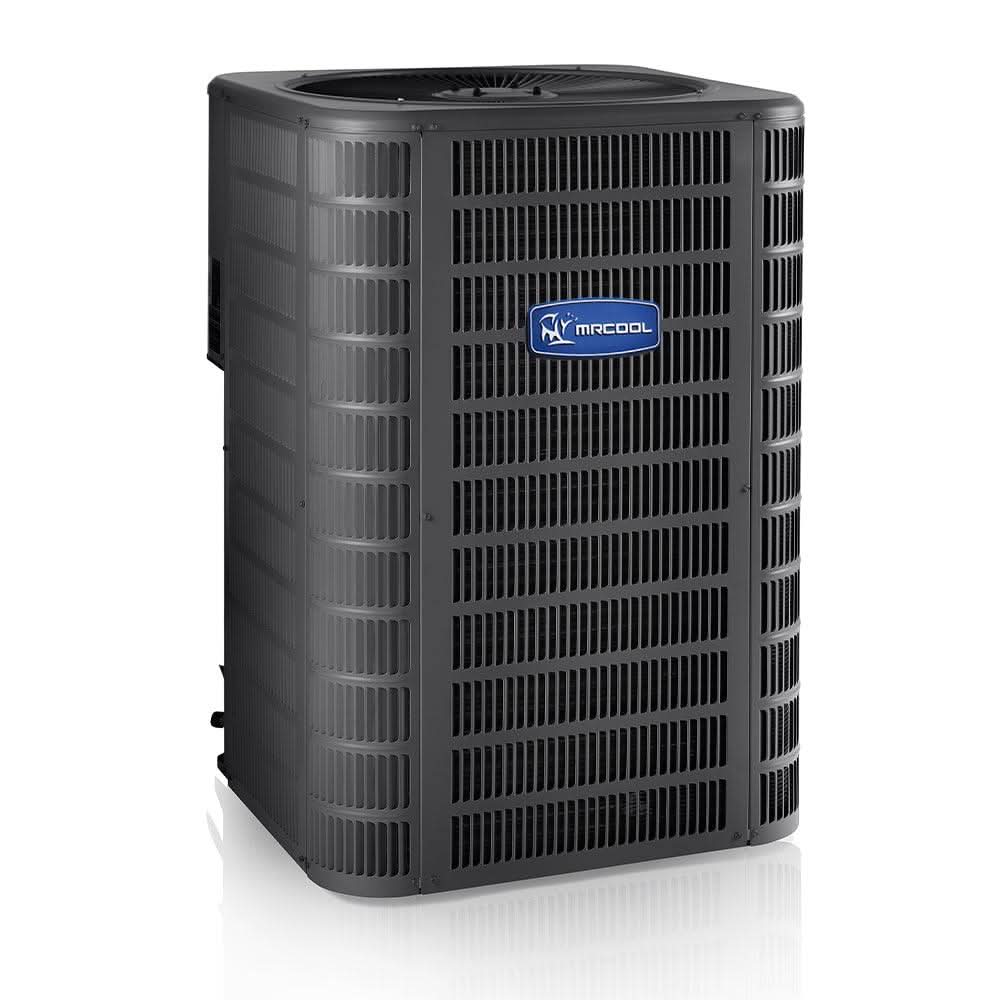

Stay Cool and Save with the MRCOOL 1.5 Ton Split System A/C Condenser
Do you need immediate cooling relief and a lower utility bill? The MRCOOL 1.5 Ton Split System A/C Condenser offers both. This brand new 208-230 volt, R410-A refrigerant outdoor condenser is designed to deliver powerful cooling with a Seasonal Energy Efficiency Ratio (SEER) of up to 16 when paired with other MRCOOL products, ensuring maximum comfort and energy savings.
With its high efficiency, you can expect your utility bills to decrease year after year. Please note, this unit is designed exclusively for cooling and is not a heat pump.
Key Features:
- CoolGuard Protection: Total corrosion protection technology ensures long-lasting coil durability.
- Easy Service: Corner-mounted controls simplify maintenance and service.
- Durable Construction: Full metal louvered design offers robust coil and hail protection.
- High-Pressure Safety: Factory-installed high-pressure switch enhances safety and reliability.
- Quick Repairs: Thread-on pressure switches allow for fast, easy replacements.
- Warranty: 10-year limited warranty on the compressor for peace of mind.
- Pre-Charged: Charged for a 15-foot line set for convenience during installation.

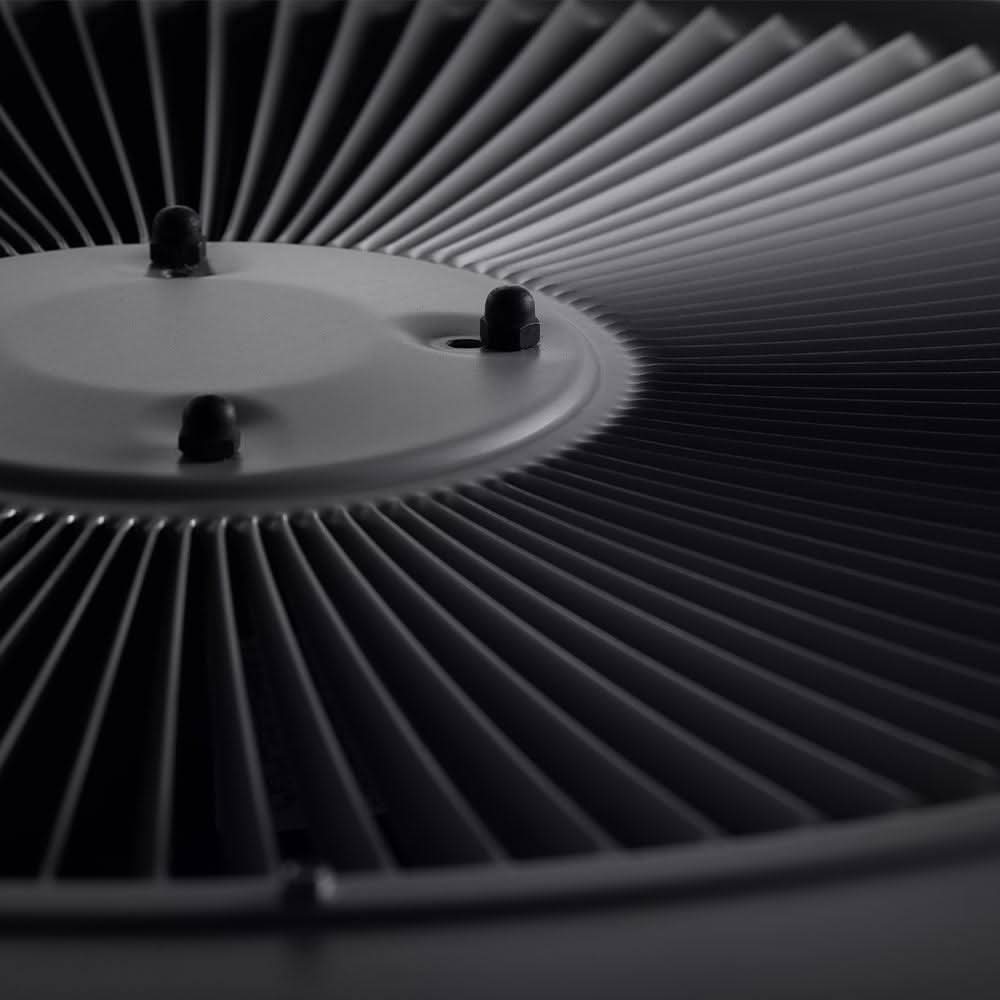

- Quiet Operation: Fan orifice reduces sound levels while ensuring smoother airflow.
- Efficient Cooling: Lanced fins optimize heat transfer for superior cooling performance.
- Leak-Proof: Every coil is factory tested for leak-proof construction.
- Certified Quality: ETL and AHRI certified, ensuring top-tier performance and safety.
Experience the comfort and savings of MRCOOL’s cutting-edge cooling technology with this reliable and efficient A/C condenser.
PRODUCT SPECIFICATIONS:
Product Dimensions | 24.25'W x 29'D x 24.25'H |
Product Weight | 134 lbs |
Unit Type | Split System AC Condensers |
SEER |
up to 16 |
Max SEER | 16 |
EER | 12.2 |
CFM | 600-650 |
Tonnage | 1 1/2 |
Cooling Capacity | 18000 |
Voltage |
Requires a minimum of 208V-230V/60HZ/20A (please check your home meets this electrical requirement prior to purchase) |
Phase | 1 |
Cycle | 60 |
Stage | Single |
Max Fuse Breaker | 20 A |
Min Circuit Ampacity | 11.9 |
Color | Gray |
Rated Load | 9 |
Max Coverage Area | 750 |
Refrigerant Type | R-410A |
Refrigerant Volume | 73 |
Decibel Rating | 73 |
Min Ambient Cool | (-20F) |
Line Set Length | 15ft, 25ft, 35ft, 50ft |
Max Line Set Length | 50ft |
Line Set Fitting Type | Sweat |
Liquid Line Size | 3/8 in |
Suction Line Size | 3/4 |
Compressor Motor Type | Scroll |
Condenser Fan Motor Type | Direct Drive |
Condenser Fan Motor HP | 1/10 |
Condenser Fan Motor RPM | 1075 |
Metering Device | TXV |
Auxiliary Heater | Yes |
Auxiliary Heater Sizes | 7.5kw |
Certifications | ETL AHRI |
Warranty |
10 year registered parts warranty |
