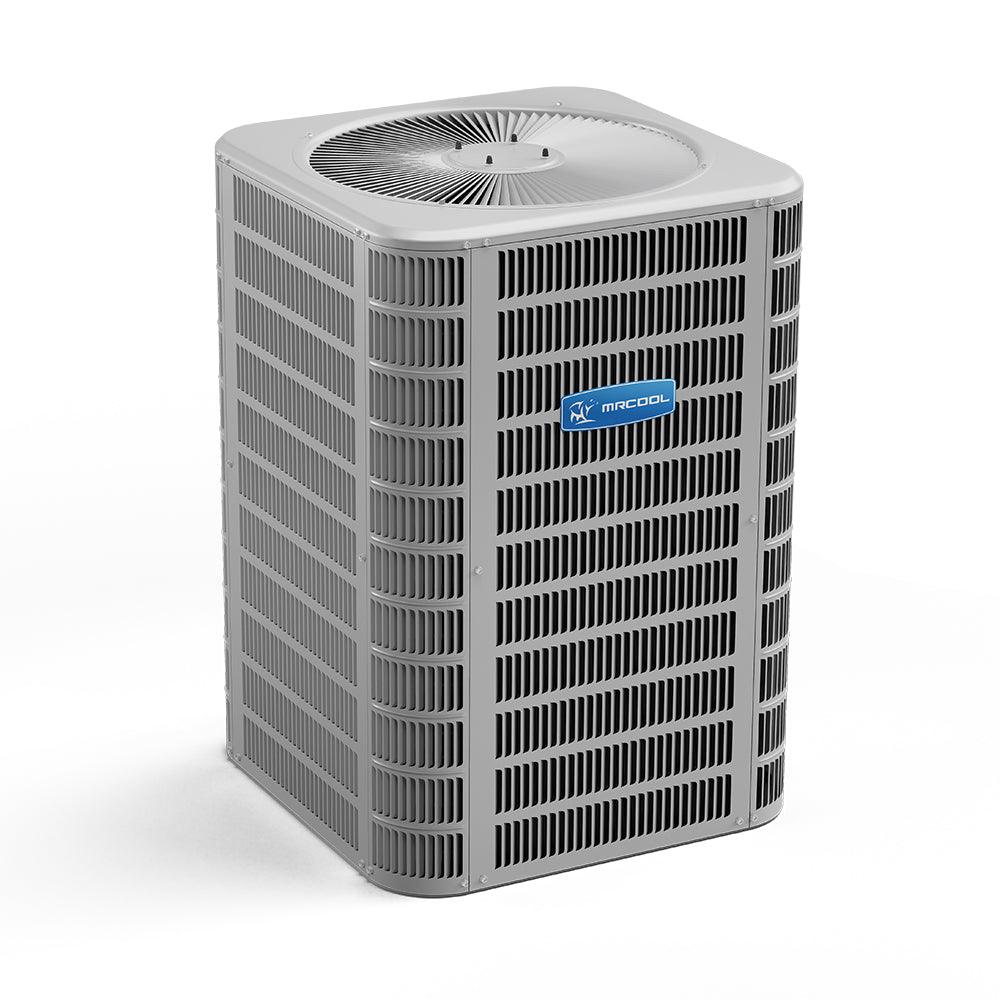

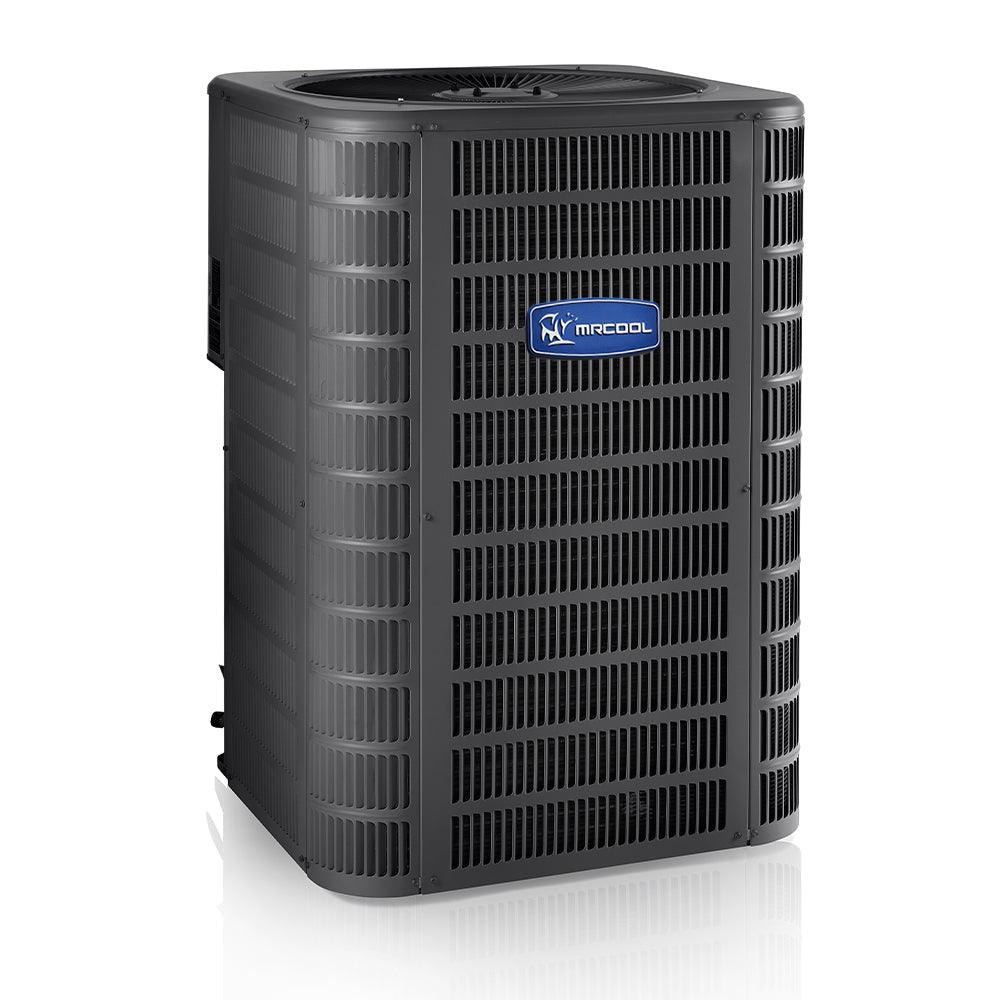

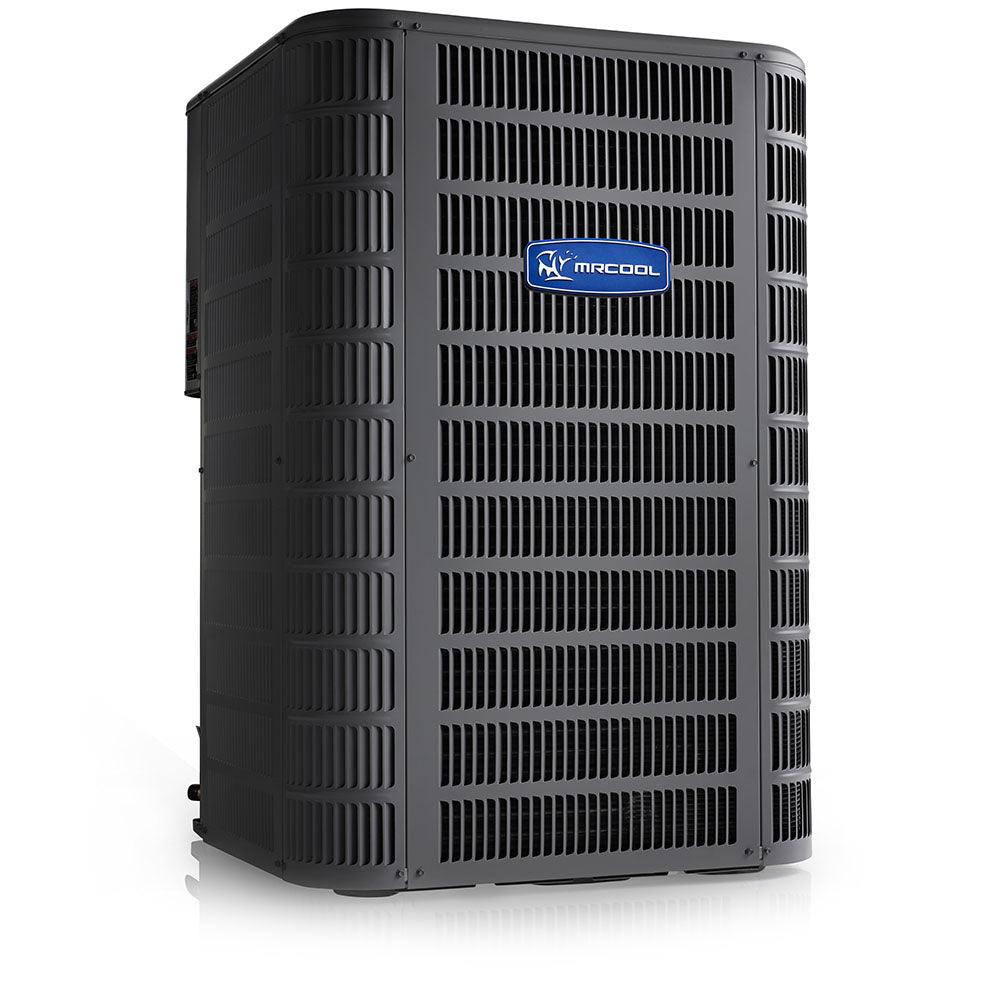

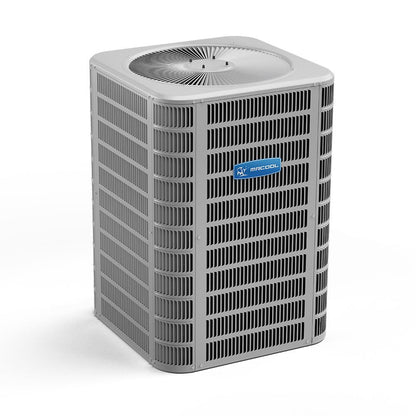

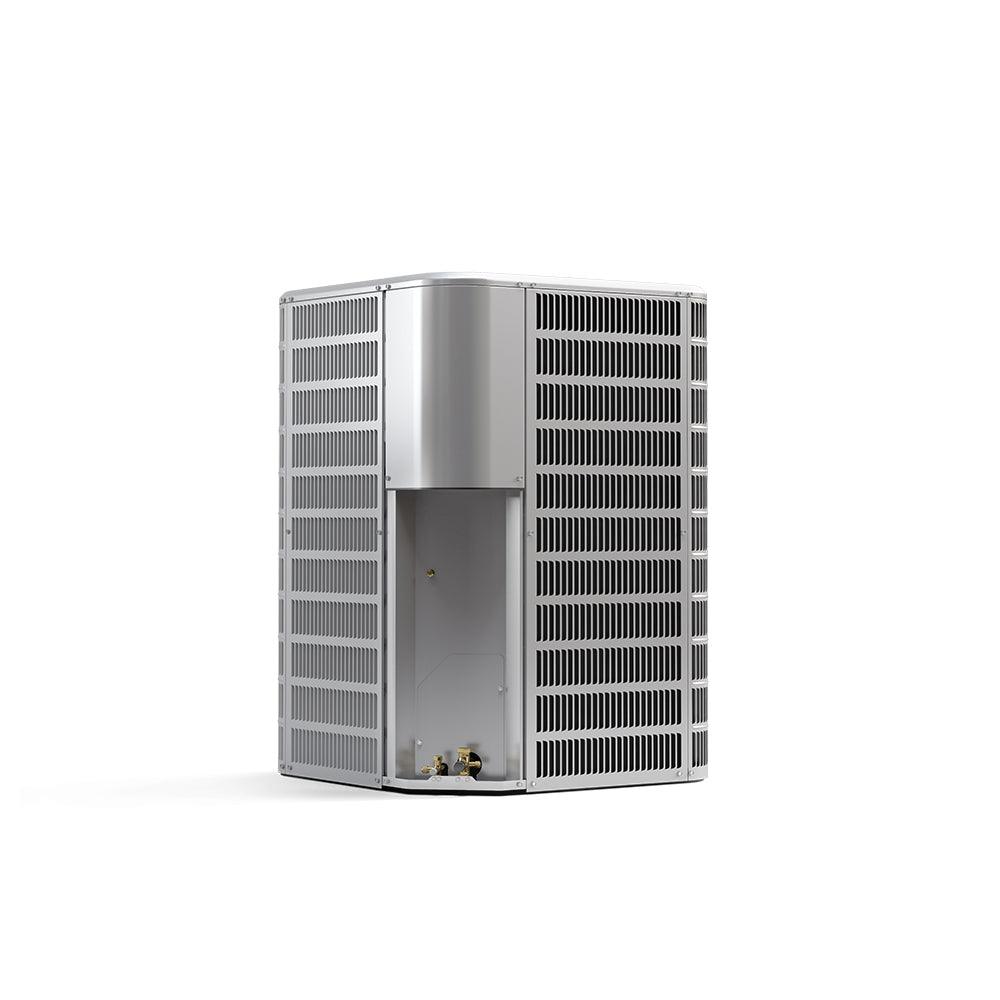

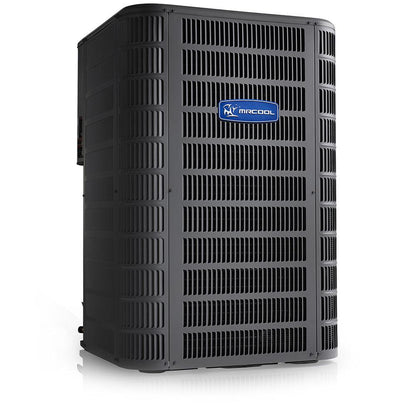

MRCOOL 2.5 Ton 16 SEER Split System Air Conditioner Condenser, MAC16030A
Couldn't load pickup availability
Verified equipment data
MAC16030A
Stay Cool and Save with the MRCOOL 2.5 Ton Split System A/C Condenser
Need immediate cooling relief and a lower utility bill? The MRCOOL 2.5 Ton Split System A/C Condenser delivers both. This brand new 208-230 volt, R410-A refrigerant outdoor condenser is engineered to provide powerful cooling with a Seasonal Energy Efficiency Ratio (SEER) of up to 16 when paired with other MRCOOL products. With its high energy efficiency, you’ll enjoy consistent comfort while watching your utility bills decrease year after year. Please note, this unit is designed exclusively for cooling and is not a heat pump.
Key Features:
- CoolGuard Protection: Total corrosion protection technology ensures long-lasting coil durability.
- Easy Maintenance: Corner-mounted controls simplify servicing and maintenance.
- Durable Construction: Full metal louvered construction provides robust coil and hail protection.
- Safety Features: Factory-installed high-pressure switch for enhanced reliability.
- Quick Repairs: Thread-on pressure switches enable fast and easy replacements.
- Warranty: 10-year limited warranty on the compressor for peace of mind.
- Pre-Charged: Comes pre-charged for a 15-foot line set, simplifying installation.

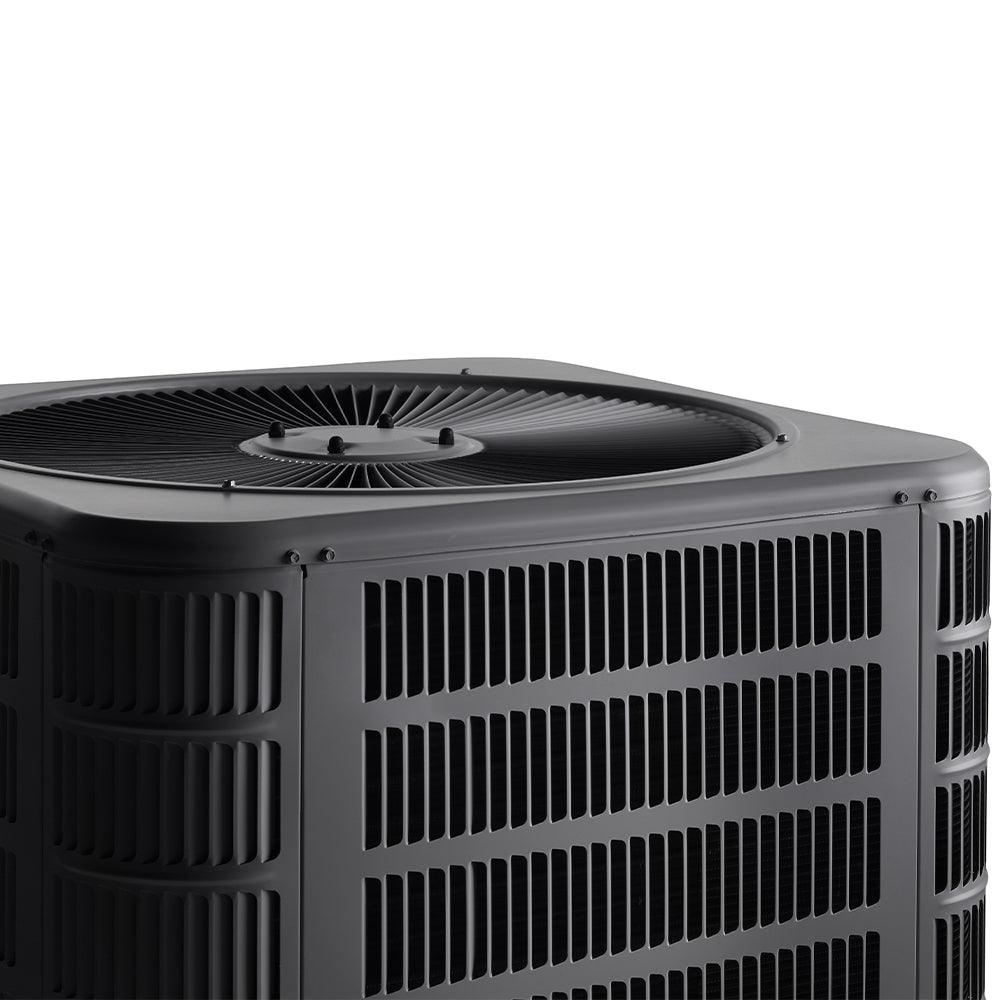

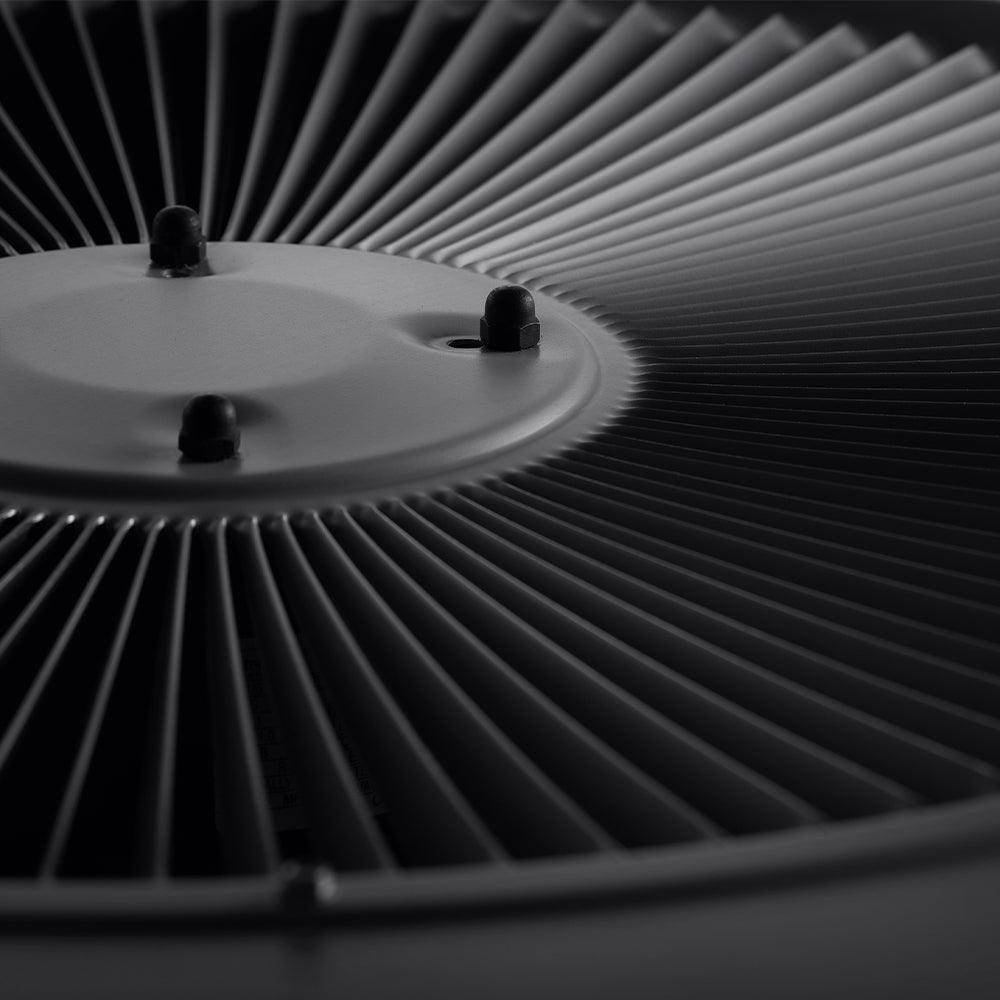

- Quiet Operation: Fan orifice reduces sound levels while ensuring smooth airflow.
- Efficient Cooling: Lanced fins maximize heat transfer for superior cooling performance.
- Leak-Proof: Every coil is factory tested to ensure leak-proof construction.
- Certified Quality: ETL and ETLC approved, and AHRI certified, guaranteeing top-tier performance and safety.
Enjoy the comfort and savings of MRCOOL’s cutting-edge cooling technology with this reliable and efficient A/C condenser.
PRODUCT SPECIFICATIONS:
| Product Dimensions | 28.25'W x 37'D x 28.25'H |
| Product Weight | 169 lbs |
| Unit Type | Split System AC Condensers |
| SEER |
up to 16 |
| Max SEER | 16 |
| EER | 12.2 |
| CFM | 945-1045 |
| Tonnage | 2 1/2 |
| Cooling Capacity | 26000-28000 |
| Voltage |
Requires a minimum of 208V-230V/60HZ/ 25A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 |
| Stage | Single |
| Max Fuse Breaker | 25 A |
| Min Circuit Ampacity | 17 |
| Color | Gray |
| Rated Load | 12.8 |
| Max Coverage Area | 1250 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 88 |
| Decibel Rating | 76 |
| Min Ambient Cool | (-20F) |
| Line Set Length | 15ft, 25ft, 35ft, 50ft |
| Max Line Set Length | 50ft |
| Line Set Fitting Type | Sweat |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 3/4 |
| Compressor Motor Type | Scroll |
| Condenser Fan Motor Type | Direct Drive |
| Condenser Fan Motor HP | 1/6 |
| Condenser Fan Motor RPM | 825 |
| Metering Device | TXV |
| Auxiliary Heater | Yes |
| Auxiliary Heater Sizes | 7.5kw, 10kw, 15kw |
| Certifications | ETL AHRI |
| Warranty |
10 year registered parts warranty |
Overview
| Manufacturer warranty | Standard 5 year limited parts warranty |
|---|
Performance
| Nominal capacity | 2.5 tons |
|---|---|
| Cooling capacity | 26000-28000 Btu/h |
| Stage | Single |
Efficiency
| SEER | up to 16 |
|---|---|
| EER | 12.2 |
Electrical
| Voltage | 208-230 V |
|---|---|
| Phase | 1 |
| Frequency | 60 Hz |
| Maximum fuse or breaker | 25 A |
| Minimum circuit ampacity | 17 A |
Refrigeration
| Refrigerant | R-410A |
|---|---|
| Compressor | Scroll |
| Liquid line | 3/8 in |
| Suction line | 3/4 in |
| Metering device | TXV |
Physical
| Depth | 37.00 in |
|---|---|
| Height | 28.25 in |
| Width | 28.25 in |
| Weight | 169.00 lb |
