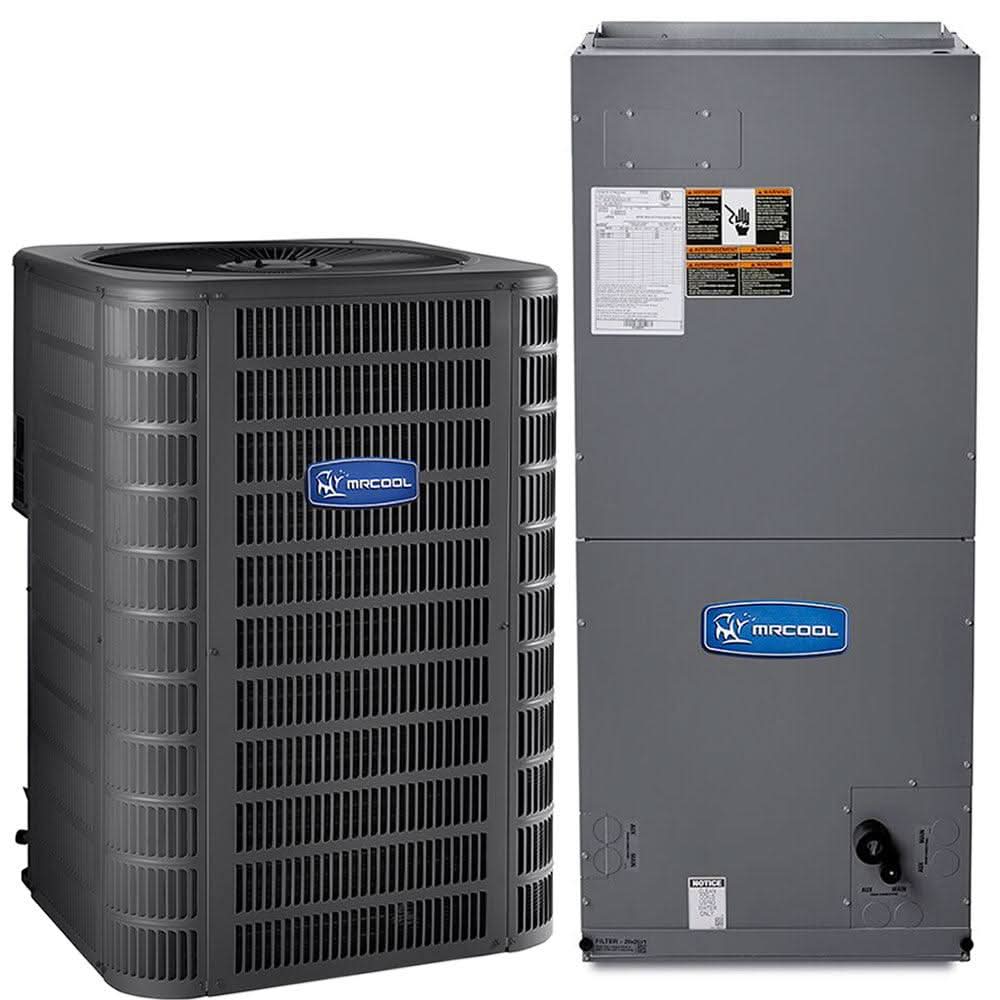

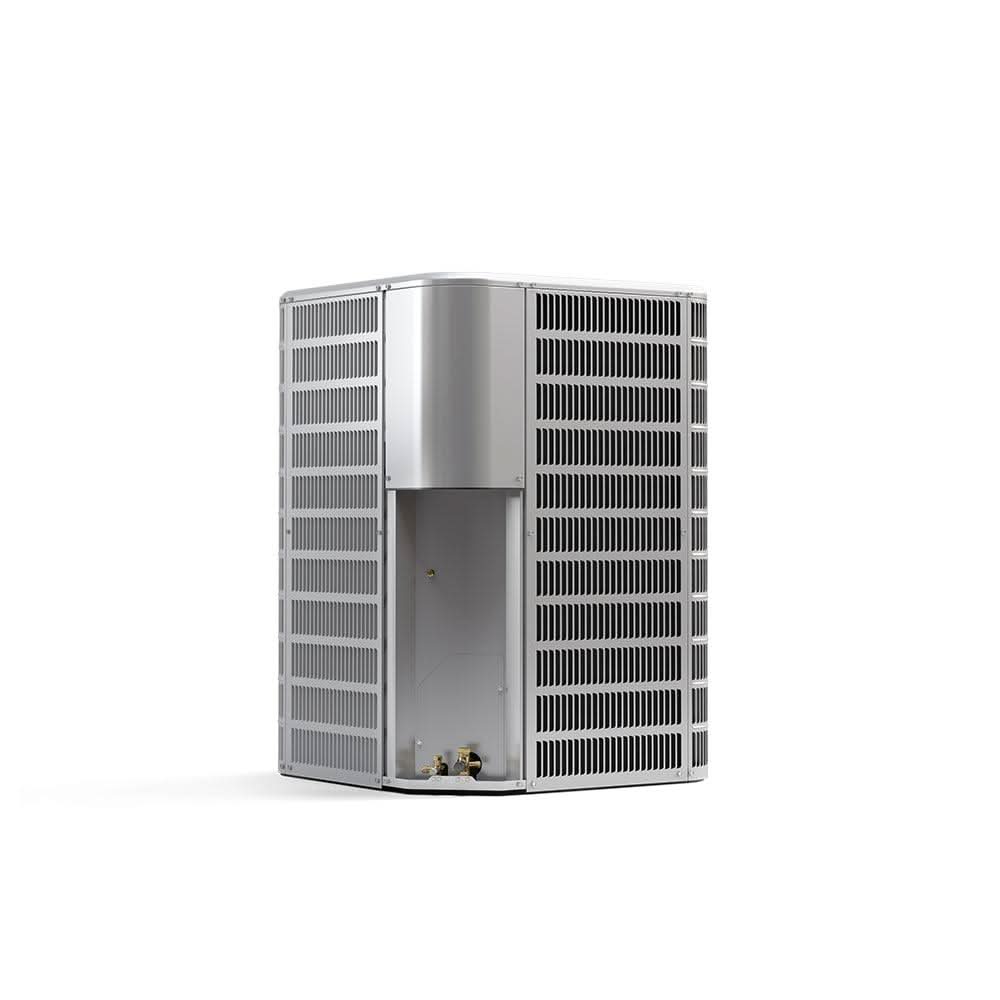

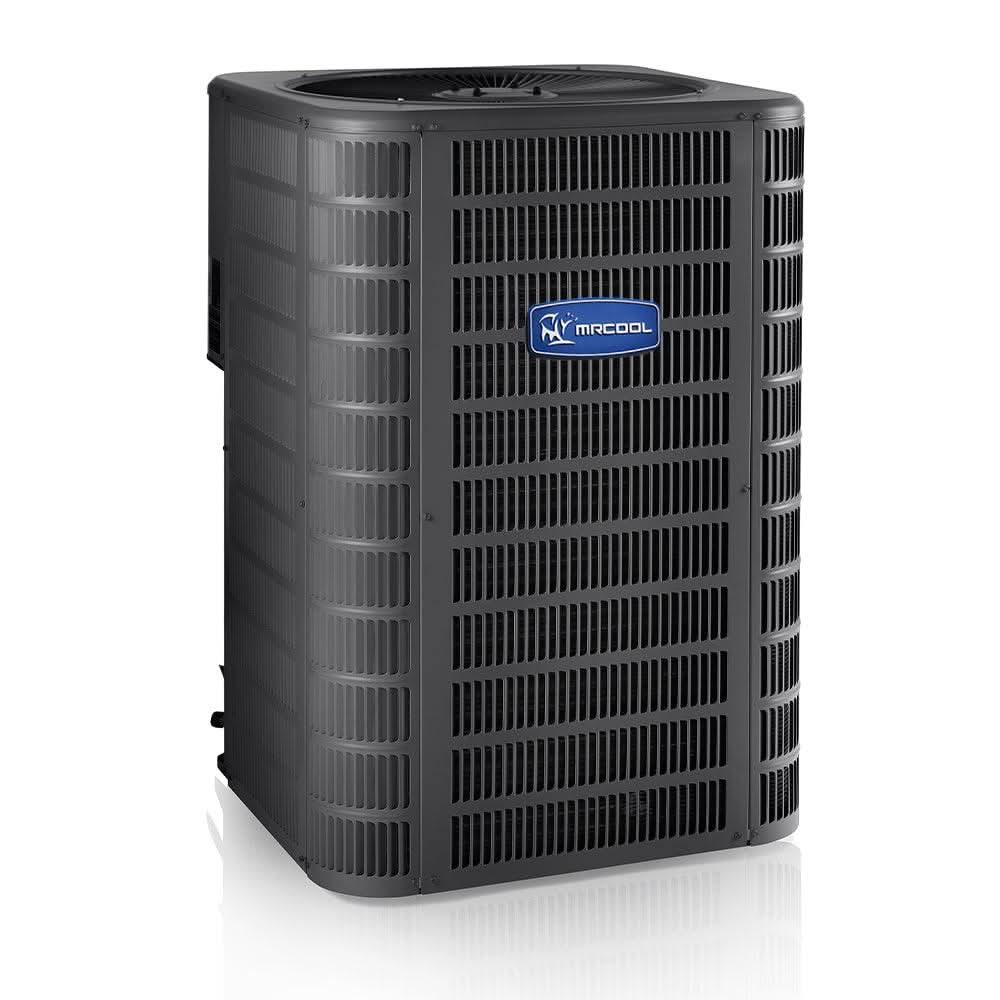

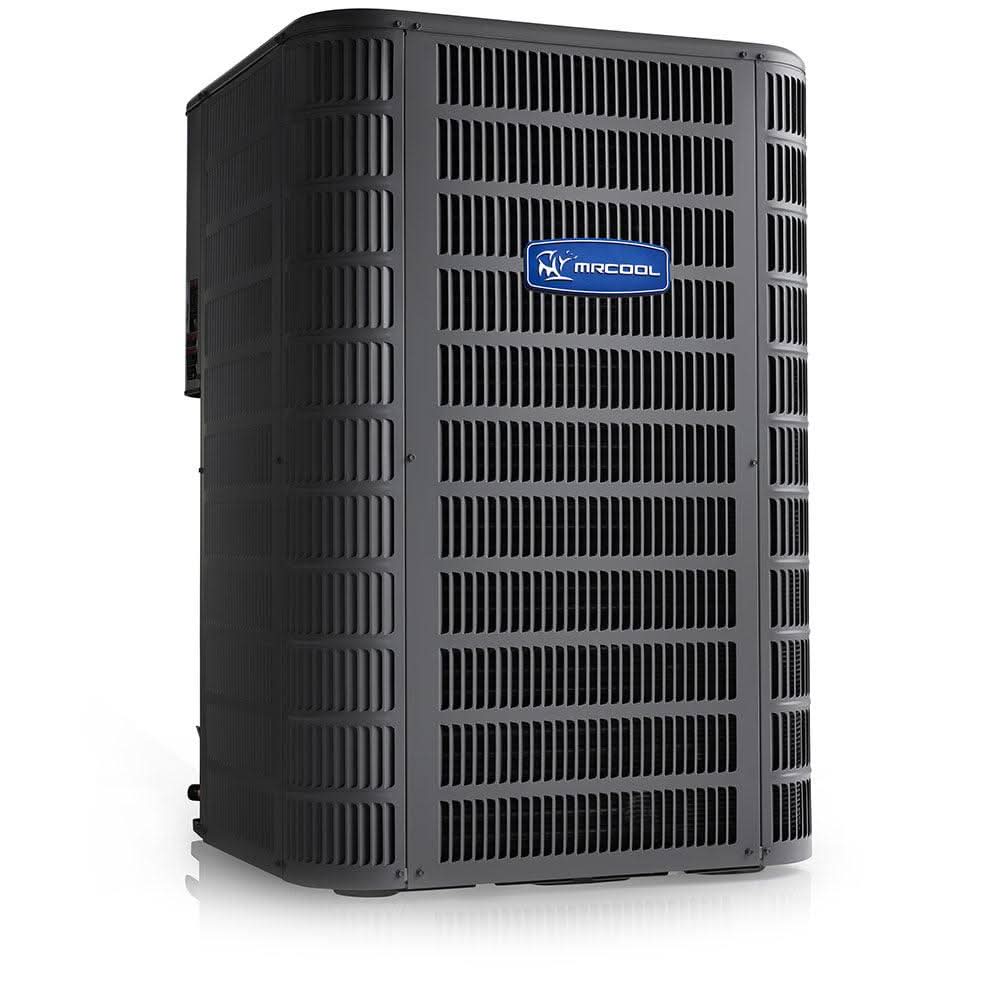

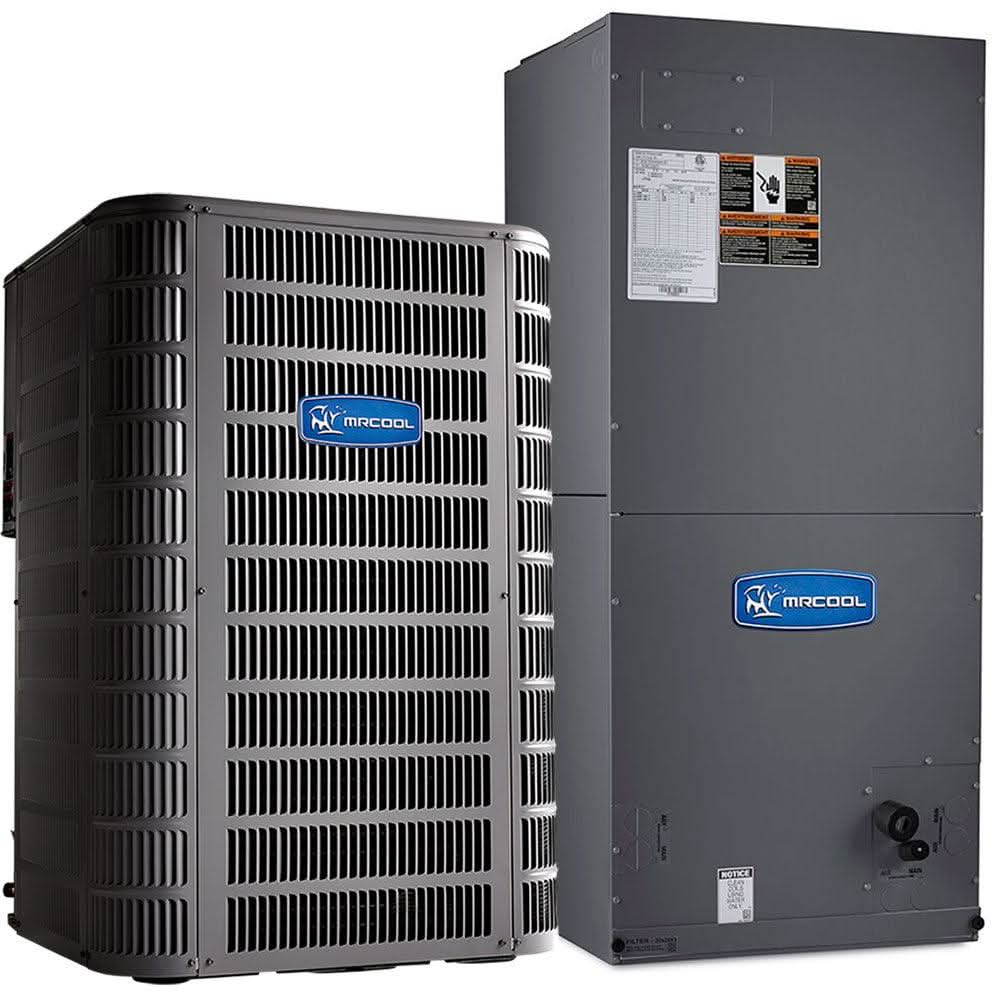

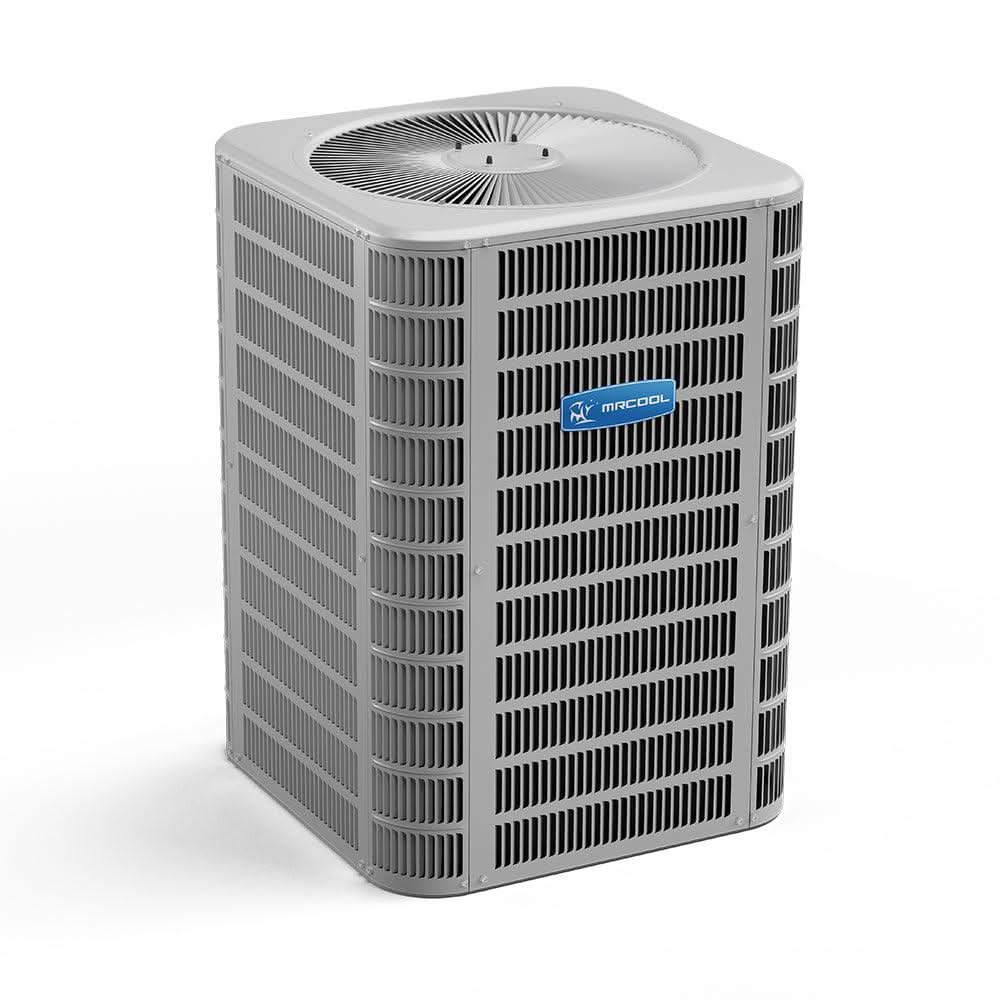

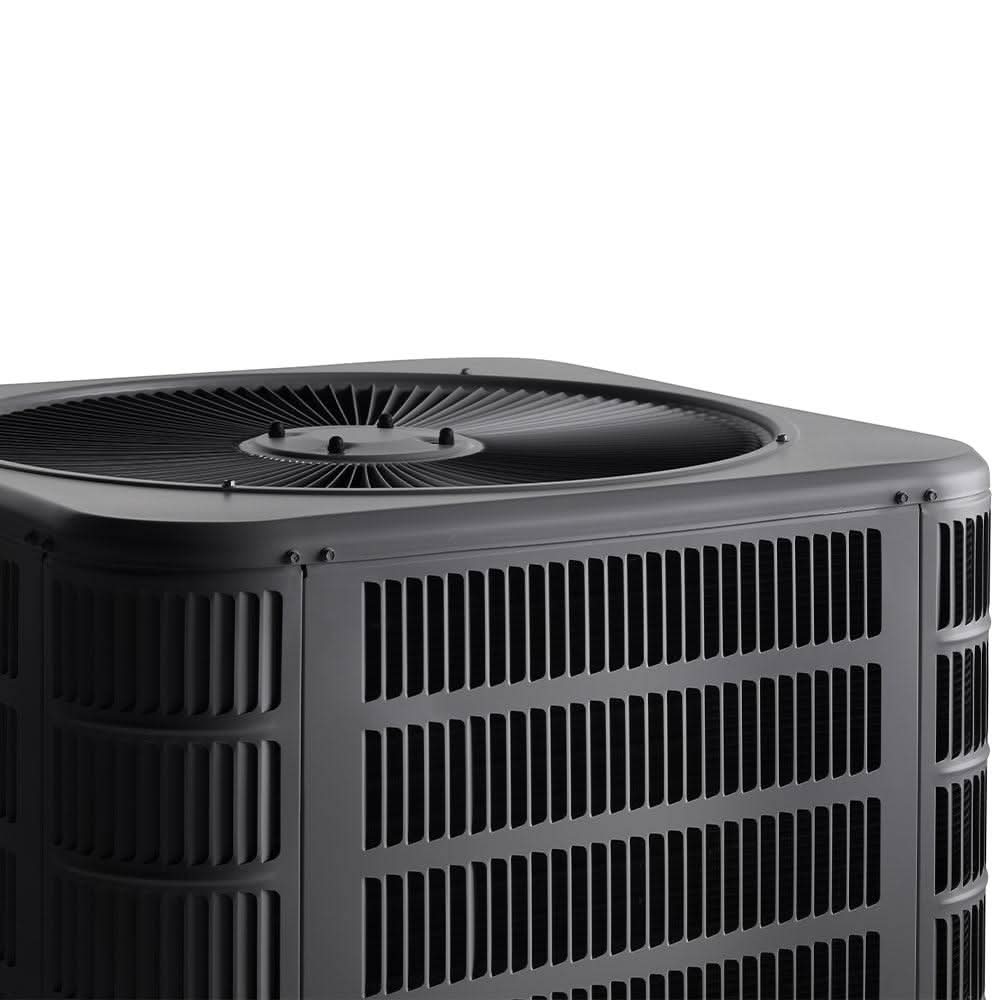

MRCOOL 3.5 Ton 16 SEER Split System Air Conditioner Condenser, MAC16042A
Couldn't load pickup availability
Stay Cool and Save with the MRCOOL 3.5 Ton Split System A/C Condenser
Need cooling relief right away and a lower utility bill? The MRCOOL 3.5 Ton Split System A/C Condenser delivers both. This brand new 208-230 volt, R410-A refrigerant outdoor condenser is engineered to provide powerful cooling with a Seasonal Energy Efficiency Ratio (SEER) of up to 16 when paired with other MRCOOL products. With its high energy efficiency, you can enjoy consistent comfort while watching your utility bills decrease year after year. Please note, this unit is designed exclusively for cooling and is not a heat pump.
Key Features:
- CoolGuard Protection: Advanced corrosion protection technology ensures long-lasting coil durability.
- User-Friendly Maintenance: Corner-mounted controls simplify servicing and upkeep.
- Durable Construction: Full metal louvered construction provides robust coil protection and hail resistance.
- Enhanced Safety: Factory-installed high-pressure switch adds reliability and protection.
- Quick & Easy Repairs: Thread-on pressure switches allow for fast, straightforward replacements.
- Compressor Warranty: 10-year limited warranty on the compressor for long-term peace of mind.
- Pre-Charged for Convenience: Pre-charged for a 15-foot line set, simplifying installation.

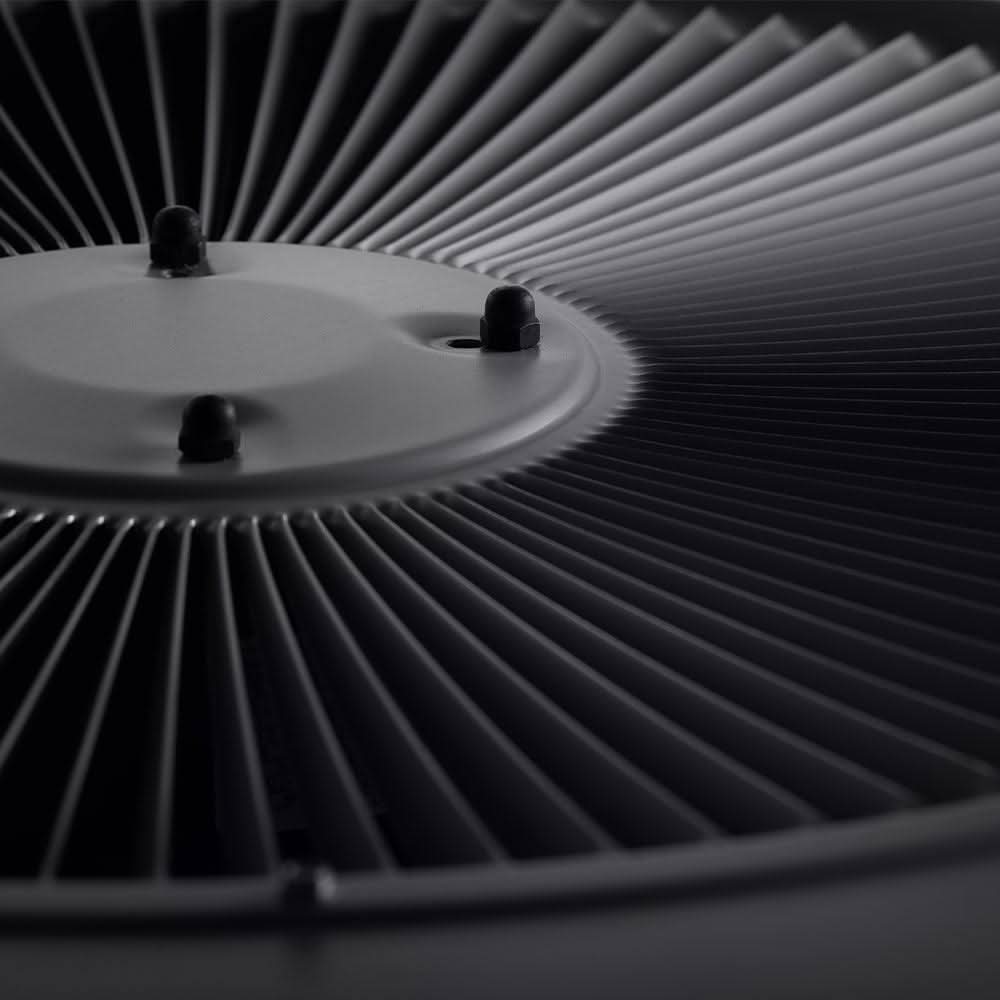

- Quiet Operation: Fan orifice design reduces noise levels while ensuring smooth airflow.
- Optimal Cooling Efficiency: Lanced fins maximize heat transfer for superior cooling performance.
- Leak-Proof Construction: Every coil is factory tested to ensure leak-proof operation.
- Certified Quality: ETL and ETLC approved, and AHRI certified, guaranteeing top-tier performance and safety.
Experience the comfort and energy savings of MRCOOL’s 3.5 Ton Split System A/C Condenser—an efficient and reliable cooling solution for your home.
PRODUCT SPECIFICATIONS:
| Product Dimensions | 28.25'W x 37'D x 28.25'H |
| Product Weight | 211 lbs |
| Unit Type | Split System AC Condensers |
| SEER |
up to 16 |
| Max SEER | 16 |
| EER | 12.2 |
| CFM | 1340-1460 |
| Tonnage | 3 1/2 |
| Cooling Capacity | 40000-41000 |
| Voltage |
Requires a minimum of 208V-230V/60HZ/ 40A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 |
| Stage | Single |
| Max Fuse Breaker | 40 A |
| Min Circuit Ampacity | 23.4 |
| Color | Gray |
| Rated Load | 17.9 |
| Max Coverage Area | 1750 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 140 |
| Decibel Rating | 76 |
| Min Ambient Cool | (-20F) |
| Line Set Length | 15ft, 25ft, 35ft, 50ft |
| Max Line Set Length | 50ft |
| Line Set Fitting Type | Sweat |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 7/8 |
| Compressor Motor Type | Scroll |
| Condenser Fan Motor Type | Direct Drive |
| Condenser Fan Motor HP | 1/6 |
| Condenser Fan Motor RPM | 825 |
| Metering Device | TXV |
| Auxiliary Heater | Yes |
| Auxiliary Heater Sizes | 7.5kw, 10kw, 15kw |
| Certifications | ETL AHRI |
| Warranty |
10 year registered parts warranty |
