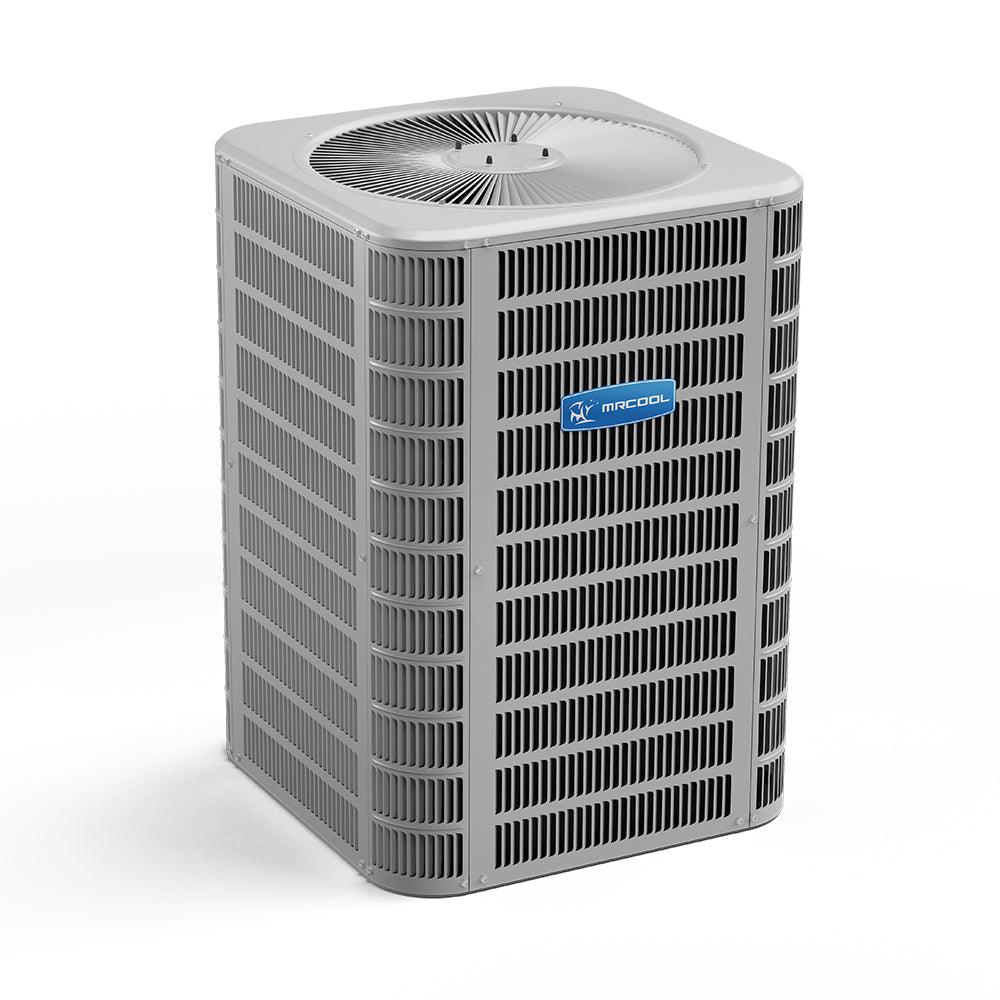

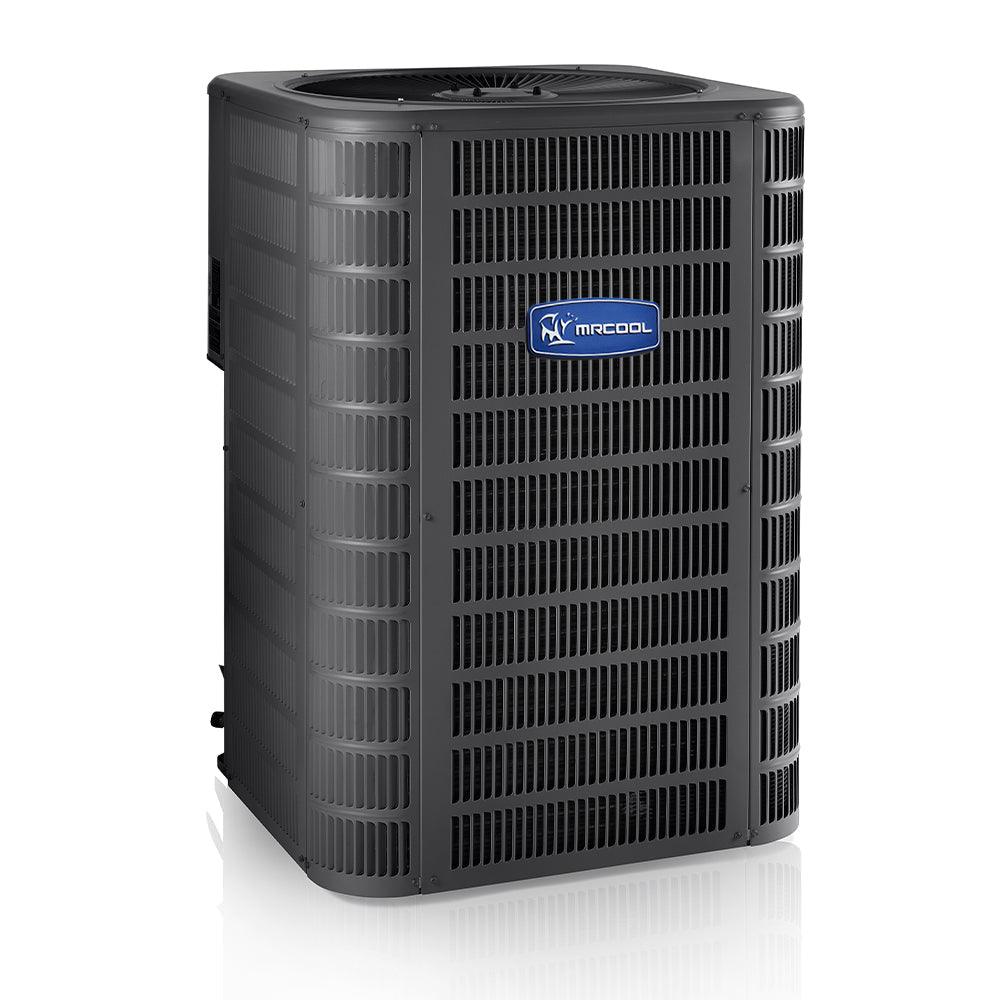

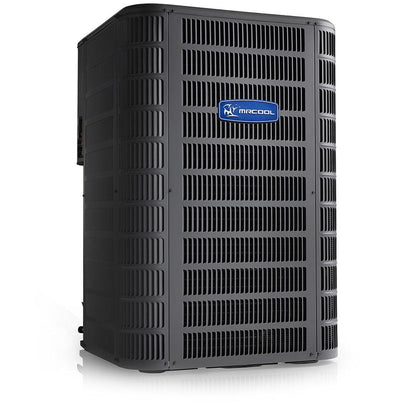

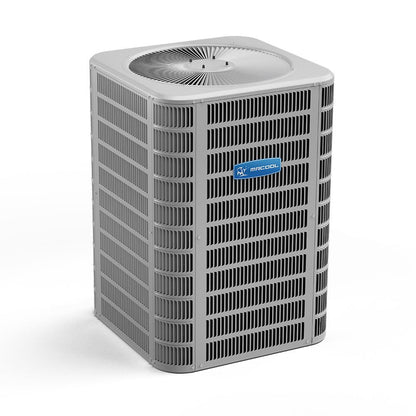

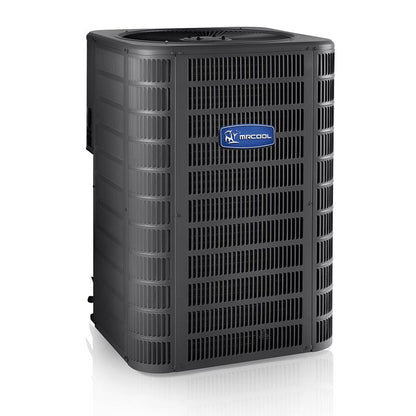

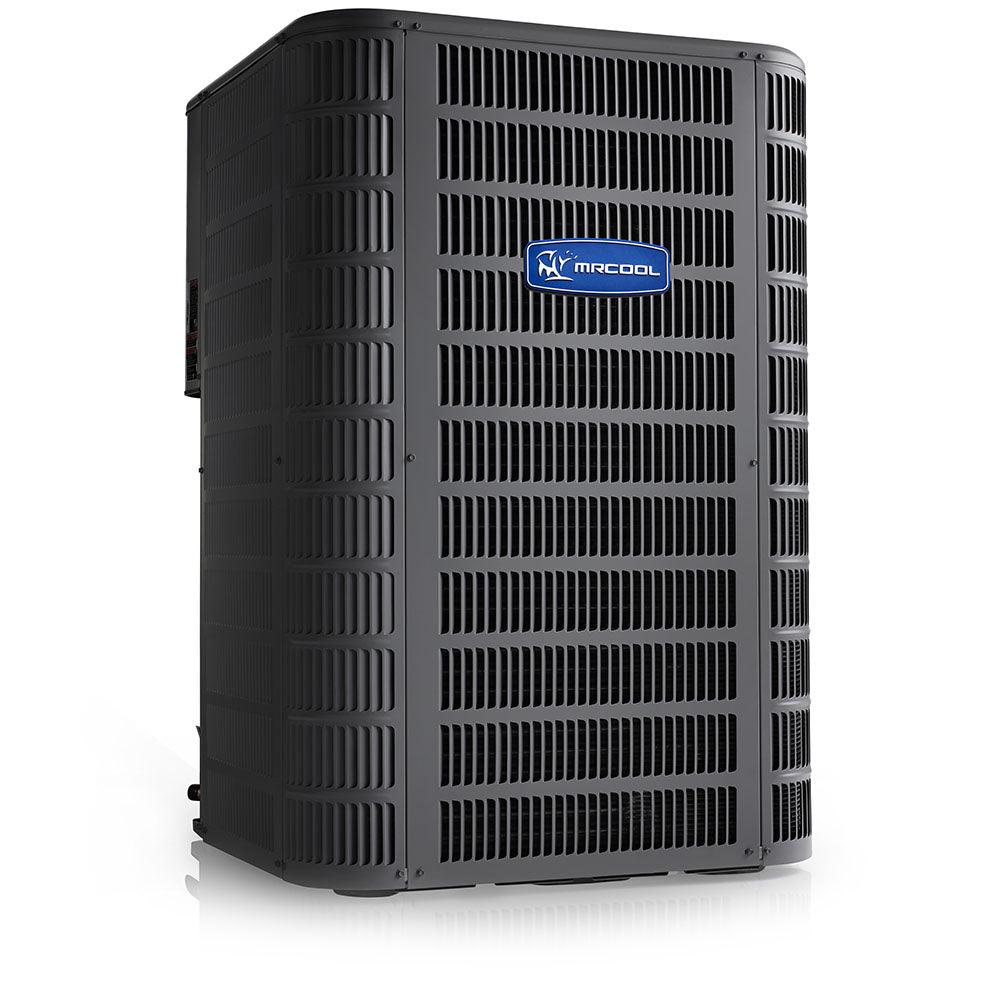

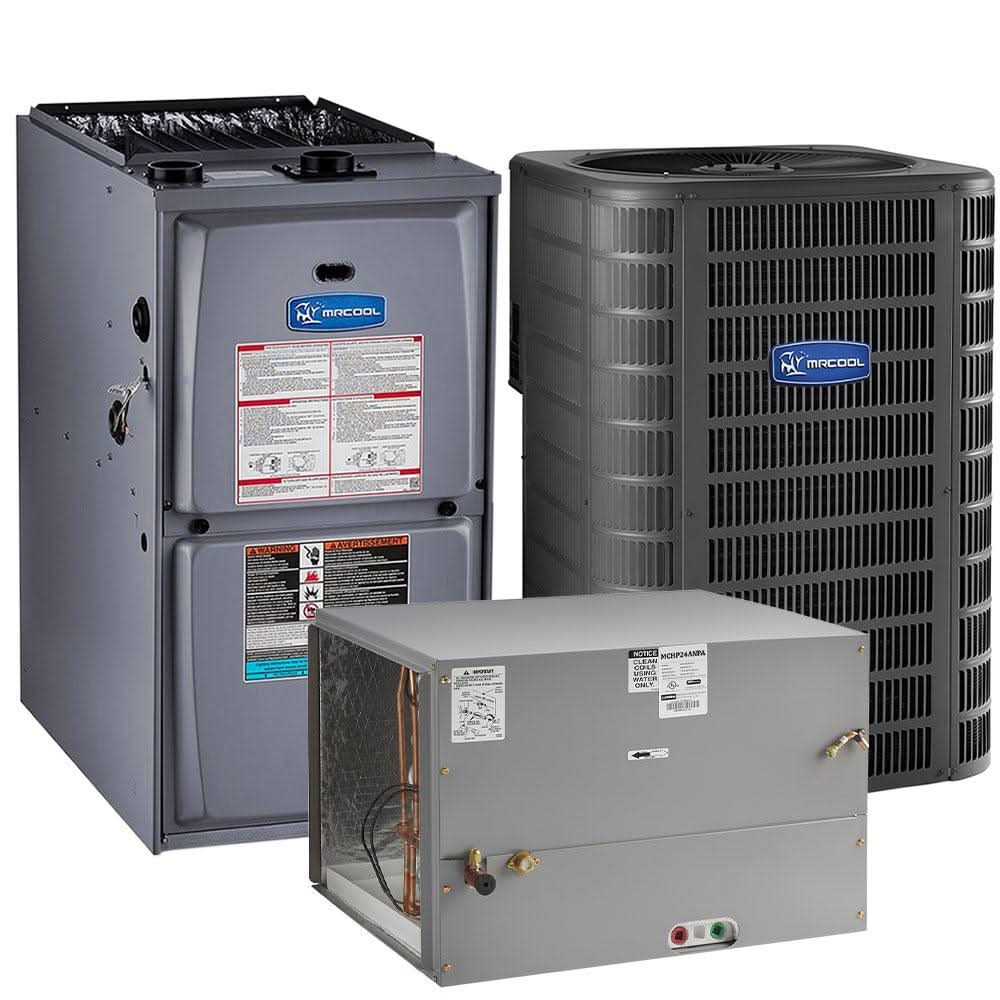

MRCOOL 3 Ton 36,000 BTU Split System Heat Pump, MHP15036A
Couldn't load pickup availability
Verified equipment data
MHP15036A
Comfort and Efficiency with the MRCOOL 15 SEER Heat Pump Split System
The MRCOOL 15 SEER Heat Pump Split System is designed to keep your home comfortable while maximizing energy efficiency. Its enhanced tube-and-fin coil design ensures optimal heat transfer, giving you more value for your investment. This system combines affordability, quality, and reliability, making it the perfect choice for your next central heating and air solution.
Key Features:

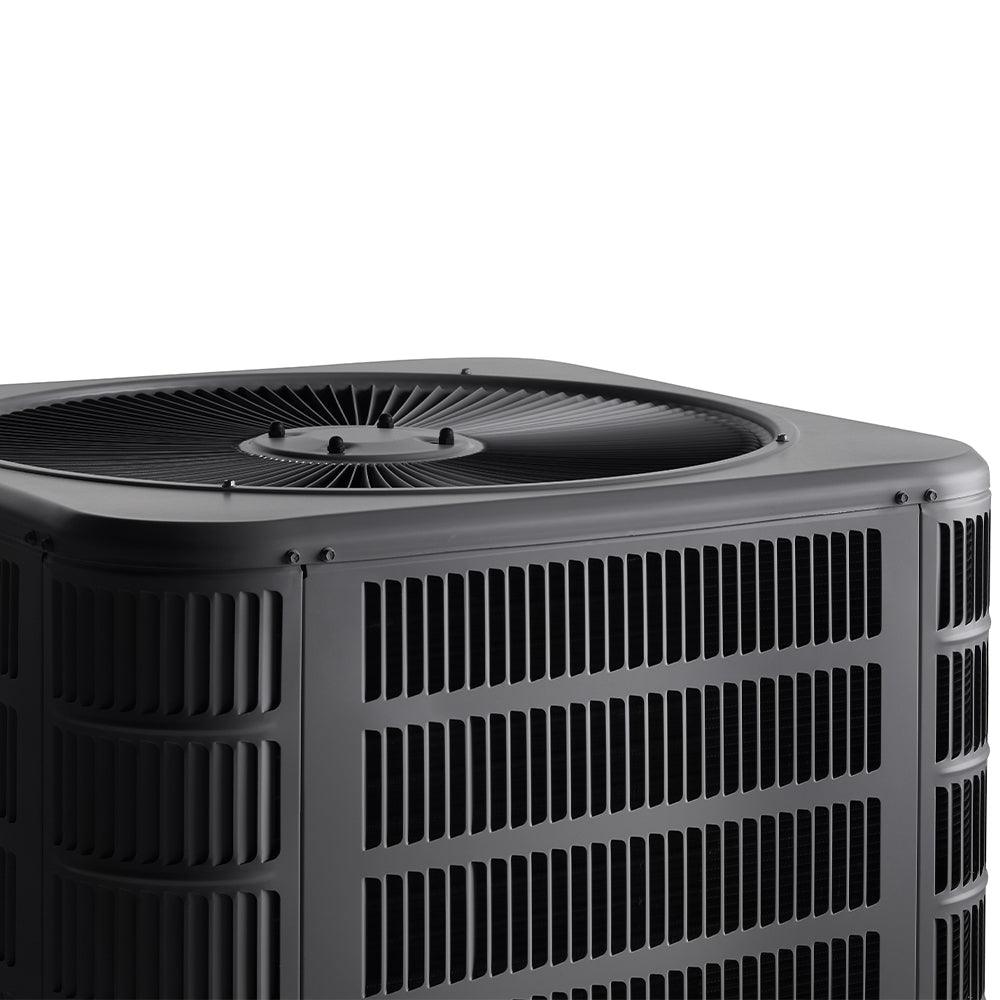

- Durable Construction: Louvered cabinet with a baked polyester finish over galvanized steel for protection against harsh weather.
- Debris Prevention: Raised coil design reduces the risk of debris blockage, ensuring continuous operation.
- CoolGuard Technology: Advanced corrosion-resistant coil extends the lifespan of your unit.

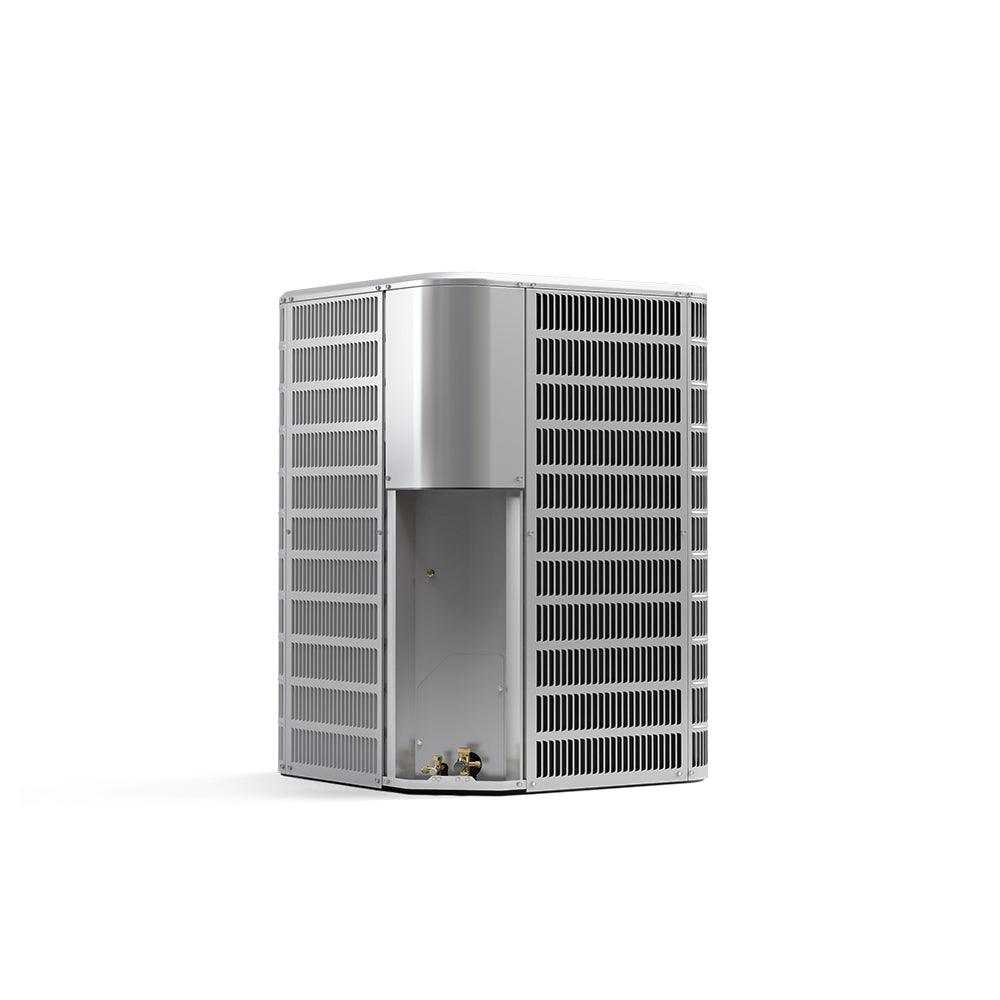

- Ease of Service: 4-screw louver panels, corner-mounted controls, and 45-degree offset valves make maintenance straightforward.
- High-Efficiency Coil: Enhanced tube-and-fin coil design improves heat transfer, boosting overall system efficiency.
- Simple Repairs: Thread-on pressure switches allow for quick and easy replacements.
- Pre-Charged: System comes charged for a 15-foot line set, simplifying installation.
- Quiet Operation: Heavy-duty compressor sound blanket ensures the system runs quietly.
- Overload Protection: Internal safeguards protect against high temperature motor overload conditions.
- Certified Quality: ETL and ETLC approved, AHRI certified for assured performance and safety.
- Warranty: Enjoy peace of mind with a 10-year registered parts warranty.
Choose the MRCOOL 15 SEER Heat Pump Split System for an energy-efficient, reliable, and comfortable heating and cooling solution for your home.
PRODUCT SPECIFICATIONS:
| Product Dimensions | 28.25'W x 28.25'D x 33'H |
| Product Weight | 202 lbs |
| Unit Type | Split System Heat Pump |
| SEER |
15 |
| Max SEER | 14-15 |
| EER | 12 |
| COP 47 | 3.4 |
| COP 47 Part Load | 2.4 |
| HSPF | 8.2-8.5 |
| CFM | 1200-1275 |
| Tonnage | 3 |
| Cooling Capacity | 34000 |
| Heating Capacity | 33800 |
| Voltage |
Requires a minimum of 208V-230V/60HZ/30A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 |
| Stage | Single |
| Max Fuse Breaker | 30 |
| Min Circuit Ampacity | 18.7 |
| Color | Gray |
| Rated Load | 14.1 |
| Max Coverage Area | 1500 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 150 |
| Decibel Rating | 76 |
| Min Ambient Cool | 55 |
| Line Set Length | 15ft, 25ft, 35ft, 50ft |
| Max Line Set Length | 50ft |
| Line Set Fitting Type | Sweat |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 7/8 |
| Compressor Motor Type | Scroll |

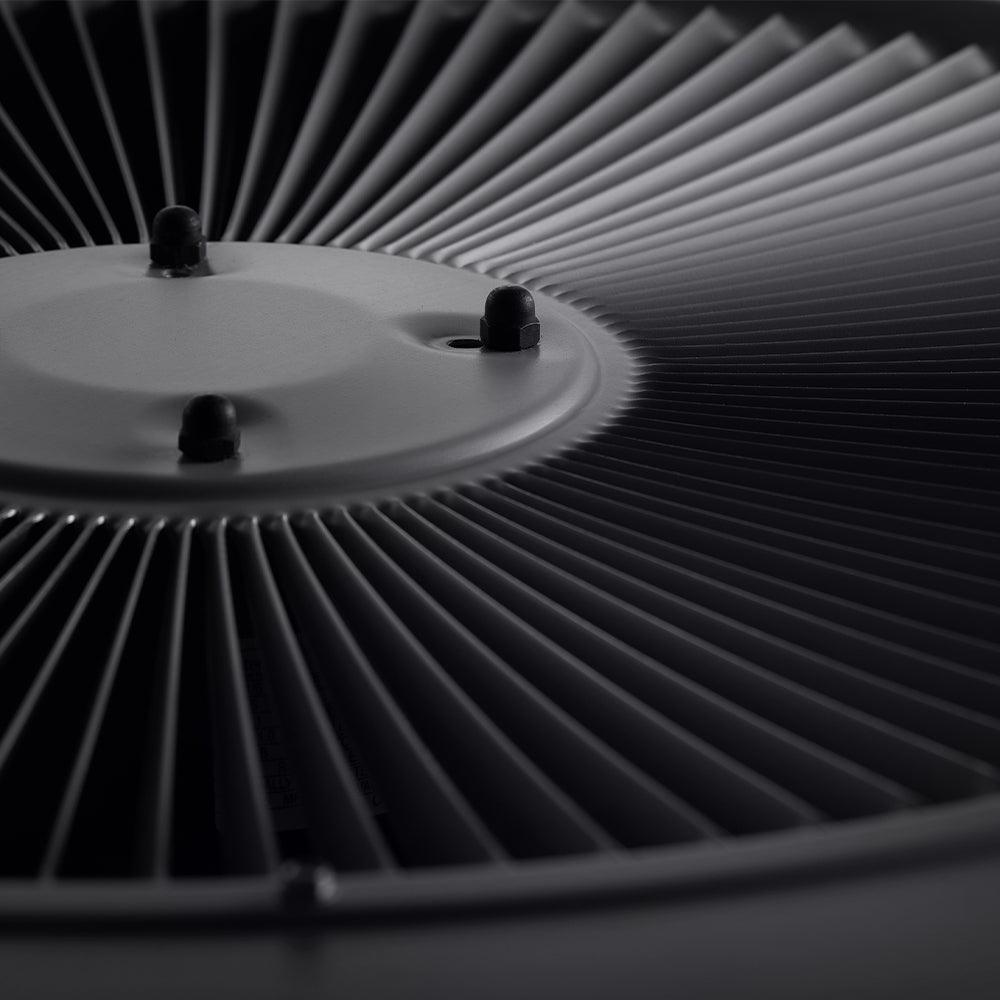

| Condenser Fan Motor Type | Direct Drive |
| Condenser Fan Motor HP | 1/6 |
| Condenser Fan Motor RPM | 825 |
| Metering Device | TXV |
| Auxiliary Heater | Yes |
| Auxiliary Heater Sizes | 7.5kw, 10kw, 15kw |
| Certifications | ETL AHRI |
| Warranty | Registered 10 Year Parts Warranty |
Overview
| Manufacturer warranty | 5 Year Parts Warranty |
|---|
Performance
| Nominal capacity | 3 tons |
|---|---|
| Cooling capacity | 34000 Btu/h |
| Stage | Single |
Efficiency
| SEER | 15 |
|---|---|
| EER | 12 |
| HSPF | 8.2-8.5 |
Electrical
| Voltage | 208-230 V |
|---|---|
| Phase | 1 |
| Frequency | 60 Hz |
| Maximum fuse or breaker | 30 A |
| Minimum circuit ampacity | 18.7 A |
Refrigeration
| Refrigerant | R-410A |
|---|---|
| Compressor | Scroll |
| Liquid line | 3/8 in |
| Suction line | 7/8 in |
| Metering device | TXV |
Heating
| Heating capacity | 33800 Btu/h |
|---|
Physical
| Depth | 28.25 in |
|---|---|
| Height | 33.00 in |
| Width | 28.25 in |
| Weight | 202.00 lb |
Installation
| Minimum cooling ambient | 55 °F |
|---|
