MRCOOL 5 Ton 16 SEER Split System Air Conditioner Condenser, MAC16060A
Couldn't load pickup availability
Verified equipment data
MAC16060A
Do you need cooling relief right away? How about a decreasing utility bill? Thanks to MRCOOL, you can have all these things and more with our Split System A/C Condensers. This is a brand new 5 ton, 208-230 volt, R410-A refrigerant, MRCOOL outdoor condenser. This condenser (when paired with other MRCOOL products) has a seasonal energy efficiency rating of up to 16 SEER, providing maximum comfort cooling. Thanks to its high energy efficiency, you will see your utility bill decline year after year. This unit only provides 'cooling' (this is NOT a heat pump).
Key Features
- CoolGuard total corrosion protection technology designed coil
- Corner-mounted controls for easy service
- Full metal louvered construction to protect the coil/ hail protection
- Factory installed high pressure switch
- Thread-on pressure switches for simple, quick replacement
- 10 year limited warranty on compressor
- Charged for 15 feet of line set

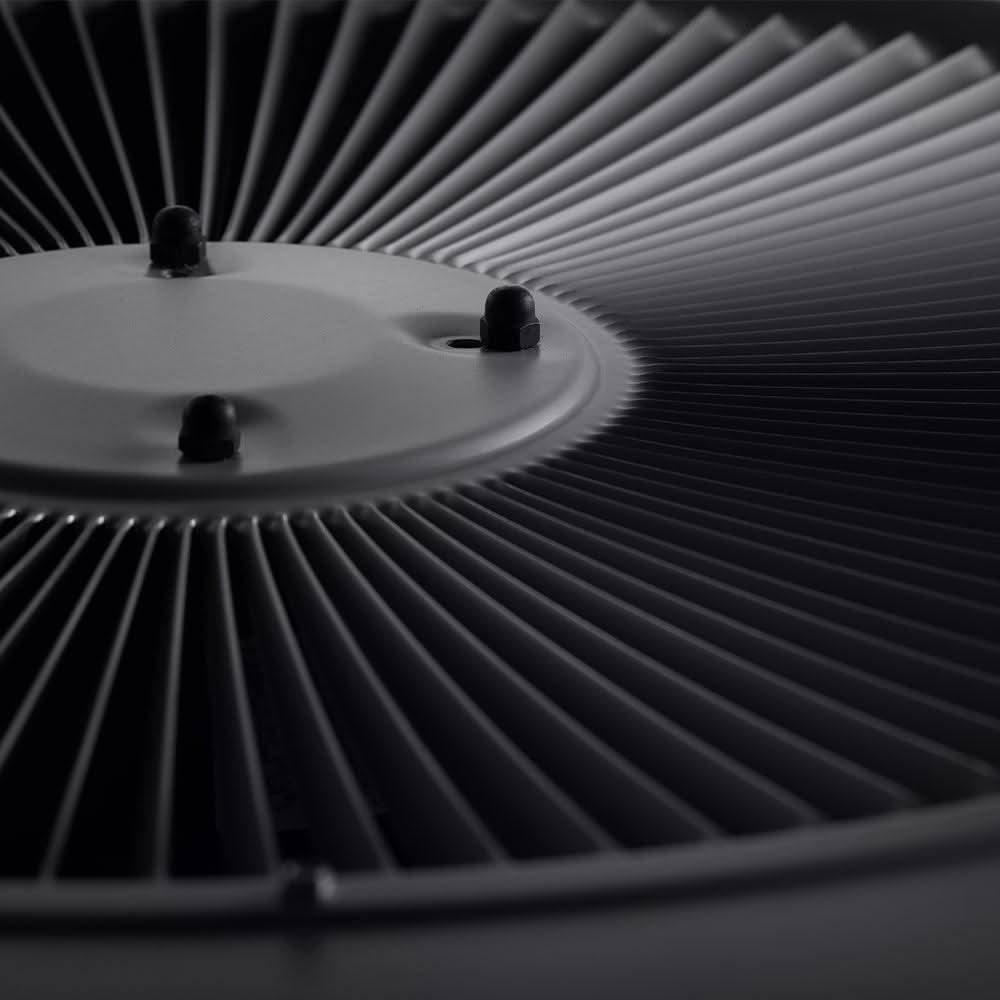

- Fan orifice for smoother airflow and sound level reduction
- Lanced fins for maximum heat transfer
- Every coil factory tested for leak proof construction
- All units ETL and ETLC approved and AHRI Certified
- Internally protected against high temperature motor overload conditions
PRODUCT SPECIFICATIONS:
| Product Dimensions | 32.25'W x 43'D x 32.25'H |
| Product Weight | 226 lbs |
| Unit Type | Split System AC Condensers |
| SEER |
up to 16 |
| Max SEER | 16 |
| EER | 11.7 |
| CFM | 1780-1800 |
| Tonnage | 5 |
| Cooling Capacity | 57000-58000 |
| Voltage |
Requires a minimum of 208V-230V/60HZ/ 50A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 |
| Stage | Single |
| Max Fuse Breaker | 50 A |
| Min Circuit Ampacity | 29.6 |
| Color | Gray |
| Rated Load | 22.2 |
| Max Coverage Area | 2500 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 192 |
| Decibel Rating | 80 |
| Min Ambient Cool | (-20F) |
| Line Set Length | 15ft, 25ft, 35ft, 50ft |
| Max Line Set Length | 50ft |
| Line Set Fitting Type | Sweat |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 7/8 ** Ada |
| Compressor Motor Type | Scroll |
| Condenser Fan Motor Type | Direct Drive |
| Condenser Fan Motor HP | 1/3 |
| Condenser Fan Motor RPM | 825 |
| Metering Device | TXV |
| Auxiliary Heater | Yes |
| Auxiliary Heater Sizes | 7.5kw, 10kw, 15kw, 20kw |
| Certifications | ETL AHRI |
| Warranty |
10 year registered parts warranty |
Overview
| Manufacturer warranty | Standard 5 year limited parts warranty |
|---|
Performance
| Nominal capacity | 5 tons |
|---|---|
| Cooling capacity | 57000-58000 Btu/h |
| Stage | Single |
Efficiency
| SEER | up to 16 |
|---|---|
| EER | 11.7 |
Electrical
| Voltage | 208-230 V |
|---|---|
| Phase | 1 |
| Frequency | 60 Hz |
| Maximum fuse or breaker | 50 A |
| Minimum circuit ampacity | 29.6 A |
Refrigeration
| Refrigerant | R-410A |
|---|---|
| Compressor | Scroll |
| Liquid line | 3/8 in |
| Suction line | 7/8 in |
| Metering device | TXV |
Physical
| Depth | 43.00 in |
|---|---|
| Height | 32.25 in |
| Width | 32.25 in |
| Weight | 226.00 lb |
