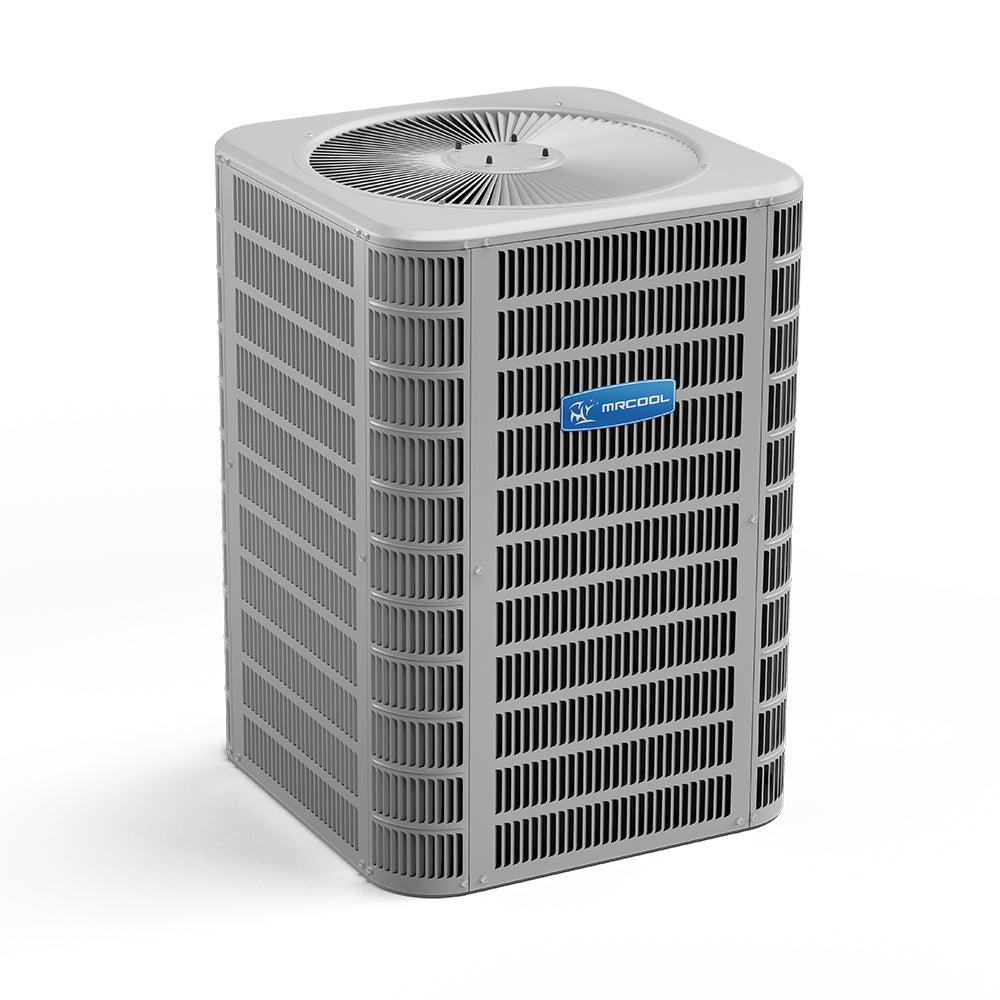

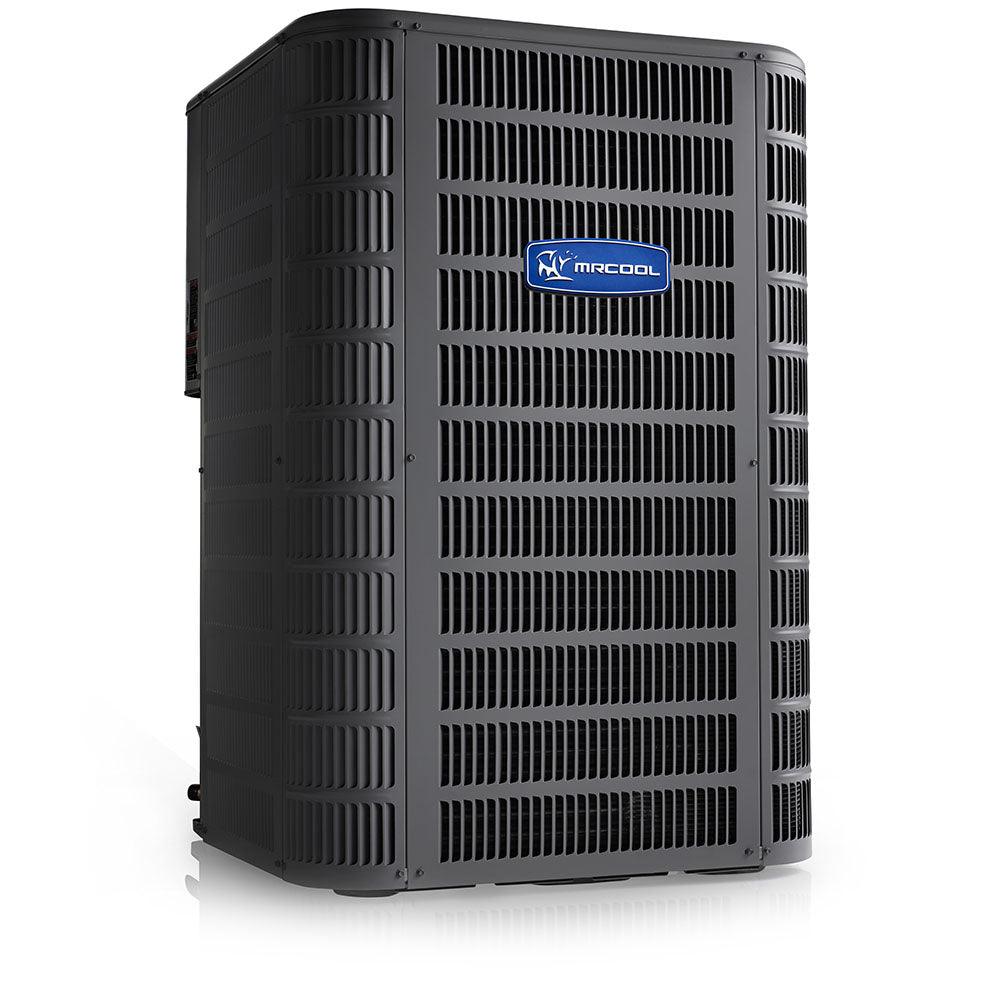

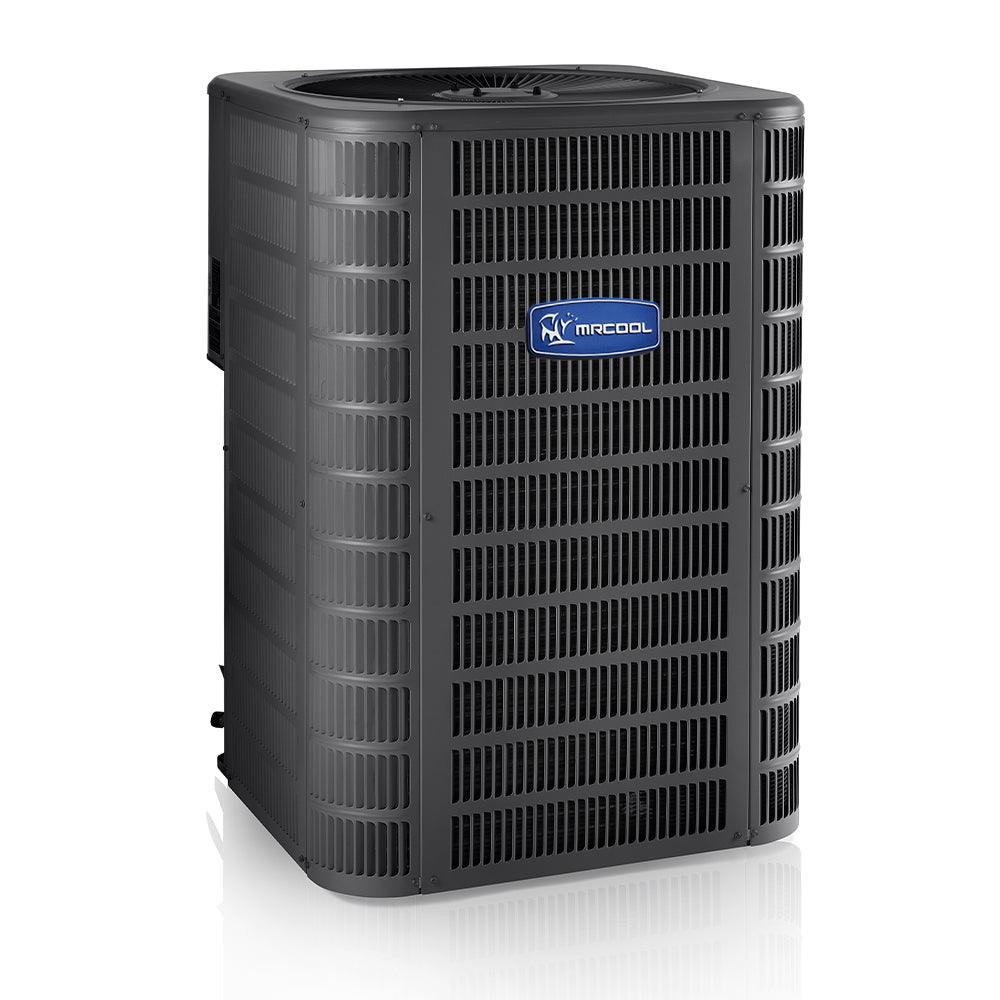

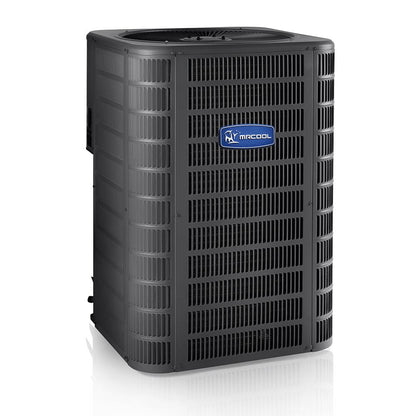

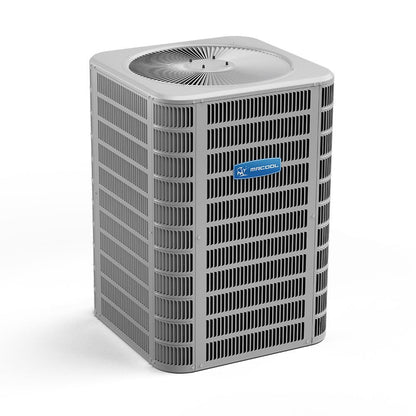

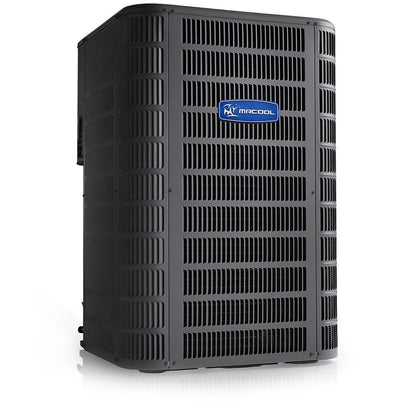

MRCOOL 5 Ton 60,000 BTU Split System Heat Pump, MHP15060A
Couldn't load pickup availability
Verified equipment data
MHP15060A
The MRCOOL 15 SEER Heat Pump Split System works diligently to make your home a comfortable space. This product gives you total energy efficiency with it's enhanced tube-and-fin coil design, allowing you to get more bang for your buck. You can have peace-of-mind with this product due to its affordability, quality, efficiency, and comfort. Look no further for your family's next home central heating and air system.
Key Features

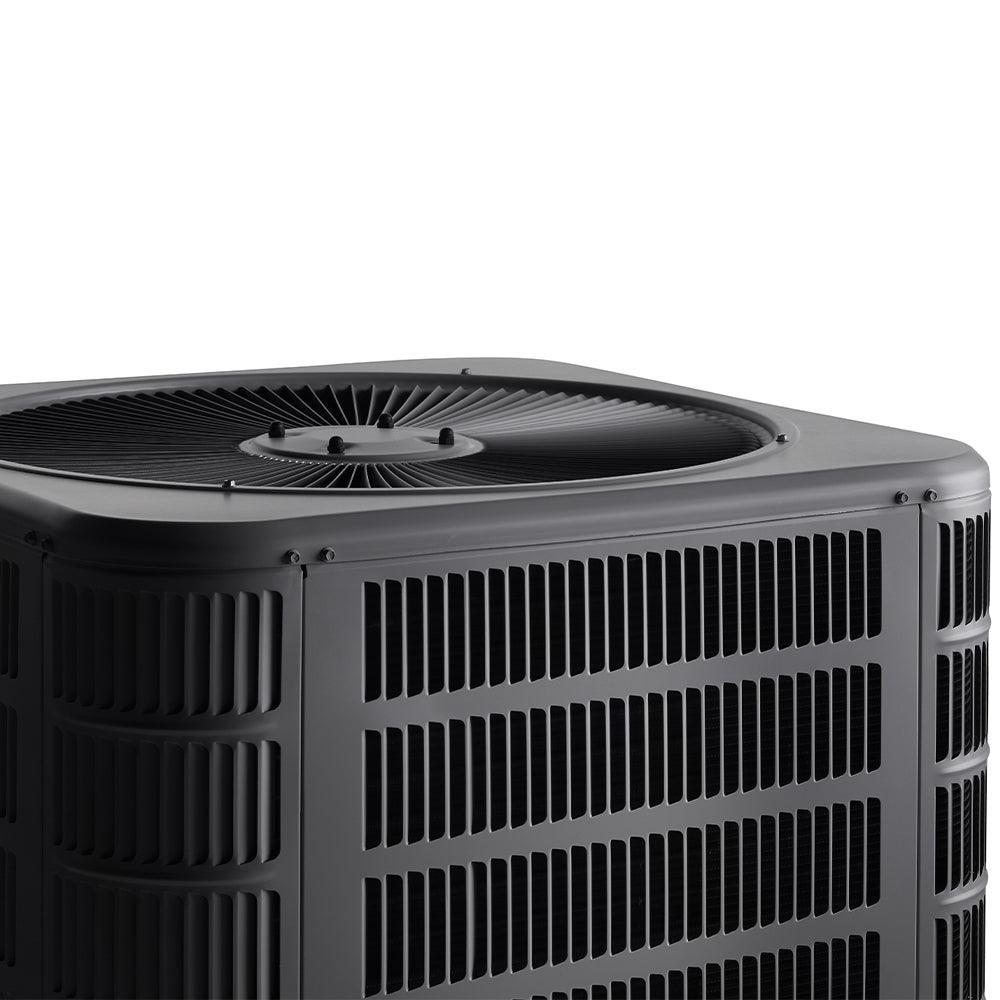

- Louvered construction with baked polyester finish over galvanized steel to withstand bad weather
- Raised coil to prevent debris blockage
- CoolGuard advanced corrosion resistant coil

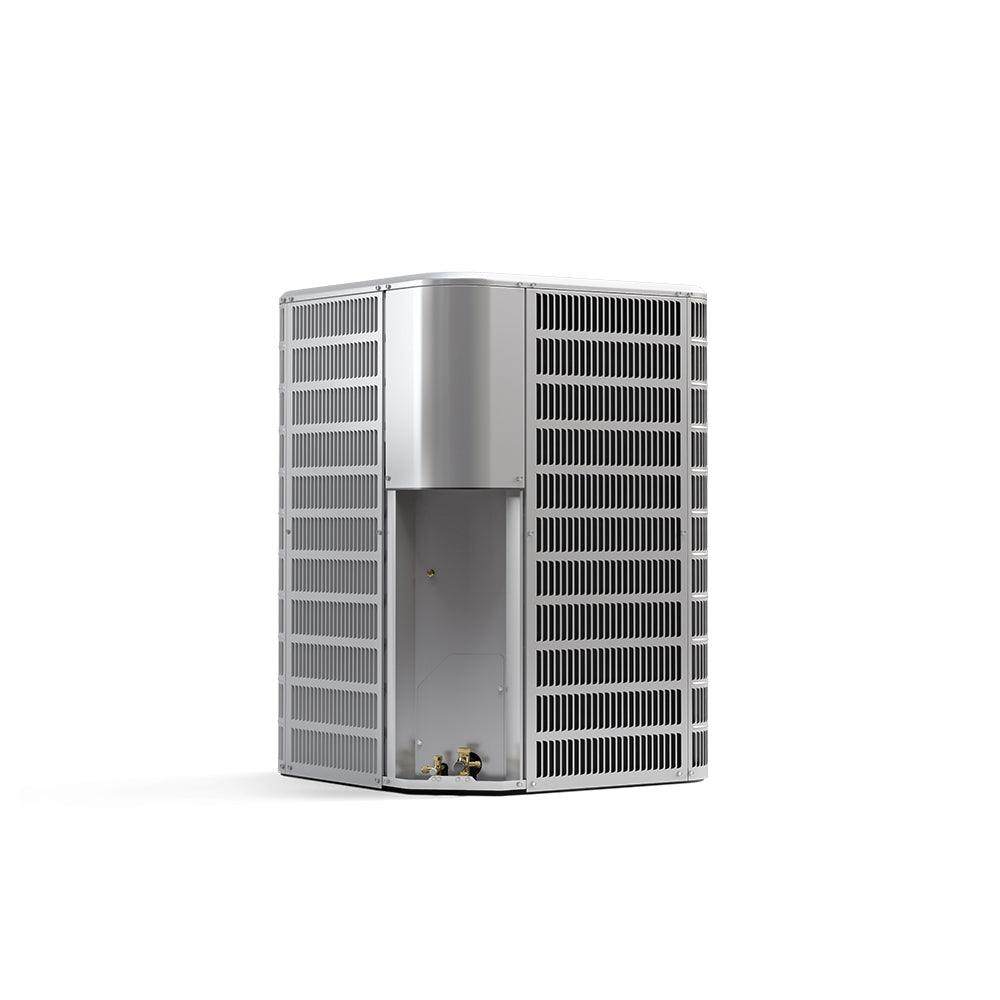

- 4-screw louver panels, corner-mounted controlsand 45-degree offset valves for easy service.
- Enhanced tube-and-fin coil design featuring high efficiency heat transfer technology
- Thread-on pressure switches for simple, quick replacement
- Charged for 15 feet of line set
- Heavy-duty compressor sound blanket forquiet operation
- Internally protected against high temperature motor overload conditions
- Ships with filter drier
- All units ETL and ETLC approved and AHRI Certified
- 10 year registered parts warranty
PRODUCT SPECIFICATIONS:
| Product Dimensions | 32.25'W x 32.25'D x 43'H |
| Product Weight | 297 lbs |
| Unit Type | Split System Heat Pump |
| SEER |
15 |
| Max SEER | 14-15 |
| EER | 12 |
| COP 47 | 3.5 |
| COP 47 Part Load | 2.6 |
| HSPF | 8.2-8.5 |
| CFM | 1900-1930 |
| Tonnage | 5 |
| Cooling Capacity | 57000 |
| Heating Capacity | 55000 |
| Voltage |
Requires a minimum of 208V-230V/60HZ/ 50A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 |
| Stage | Single |
| Max Fuse Breaker | 50 |
| Min Circuit Ampacity | 29.4 |
| Color | Gray |
| Rated Load | 22.1 |
| Max Coverage Area | 2500 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 197 |
| Decibel Rating | 80 |
| Min Ambient Cool | 55 |
| Line Set Length | 15ft, 25ft, 35ft, 50ft |
| Max Line Set Length | 50ft |
| Line Set Fitting Type | Sweat |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 7/8 |
| Compressor Motor Type | Scroll |
| Condenser Fan Motor Type | Direct Drive |
| Condenser Fan Motor HP | 1/3 |
| Condenser Fan Motor RPM | 825 |
| Metering Device | TXV |
| Auxiliary Heater | Yes |
| Auxiliary Heater Sizes | 7.5kw, 10kw, 15kw, 20kw |
| Certifications | ETL AHRI |
| Warranty | Registered 10 Year Parts Warranty |
Overview
| Manufacturer warranty | 5 Year Parts Warranty |
|---|
Performance
| Nominal capacity | 5 tons |
|---|---|
| Cooling capacity | 57000 Btu/h |
| Stage | Single |
Efficiency
| SEER | 15 |
|---|---|
| EER | 12 |
| HSPF | 8.2-8.5 |
Electrical
| Voltage | 208-230 V |
|---|---|
| Phase | 1 |
| Frequency | 60 Hz |
| Maximum fuse or breaker | 50 A |
| Minimum circuit ampacity | 29.4 A |
Refrigeration
| Refrigerant | R-410A |
|---|---|
| Compressor | Scroll |
| Liquid line | 3/8 in |
| Suction line | 7/8 in |
| Metering device | TXV |
Heating
| Heating capacity | 55000 Btu/h |
|---|
Physical
| Depth | 32.25 in |
|---|---|
| Height | 43.00 in |
| Width | 32.25 in |
| Weight | 297.00 lb |
Installation
| Minimum cooling ambient | 55 °F |
|---|
