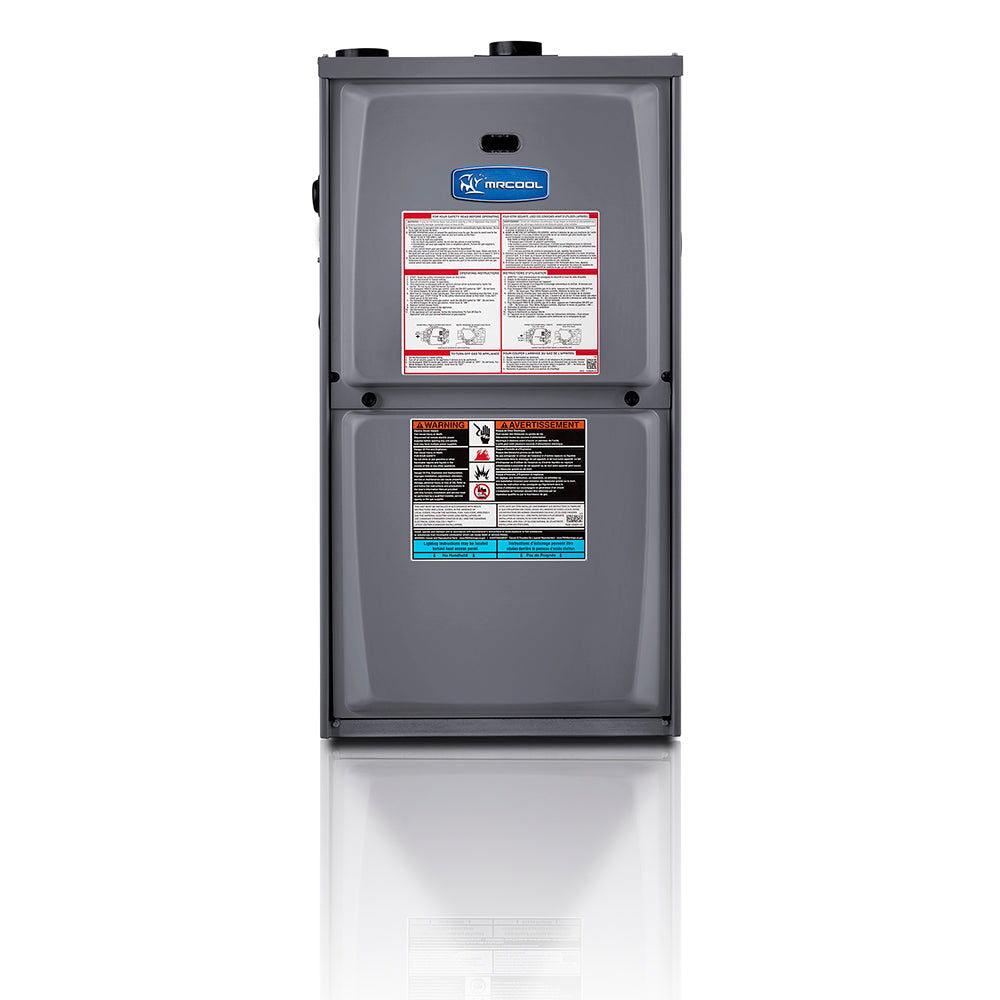

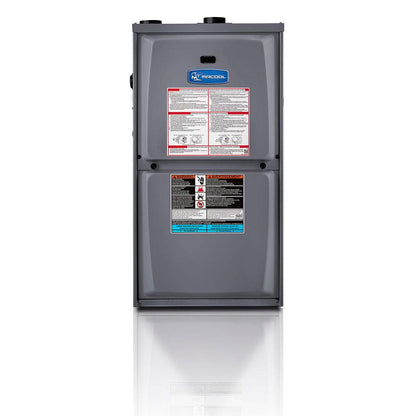

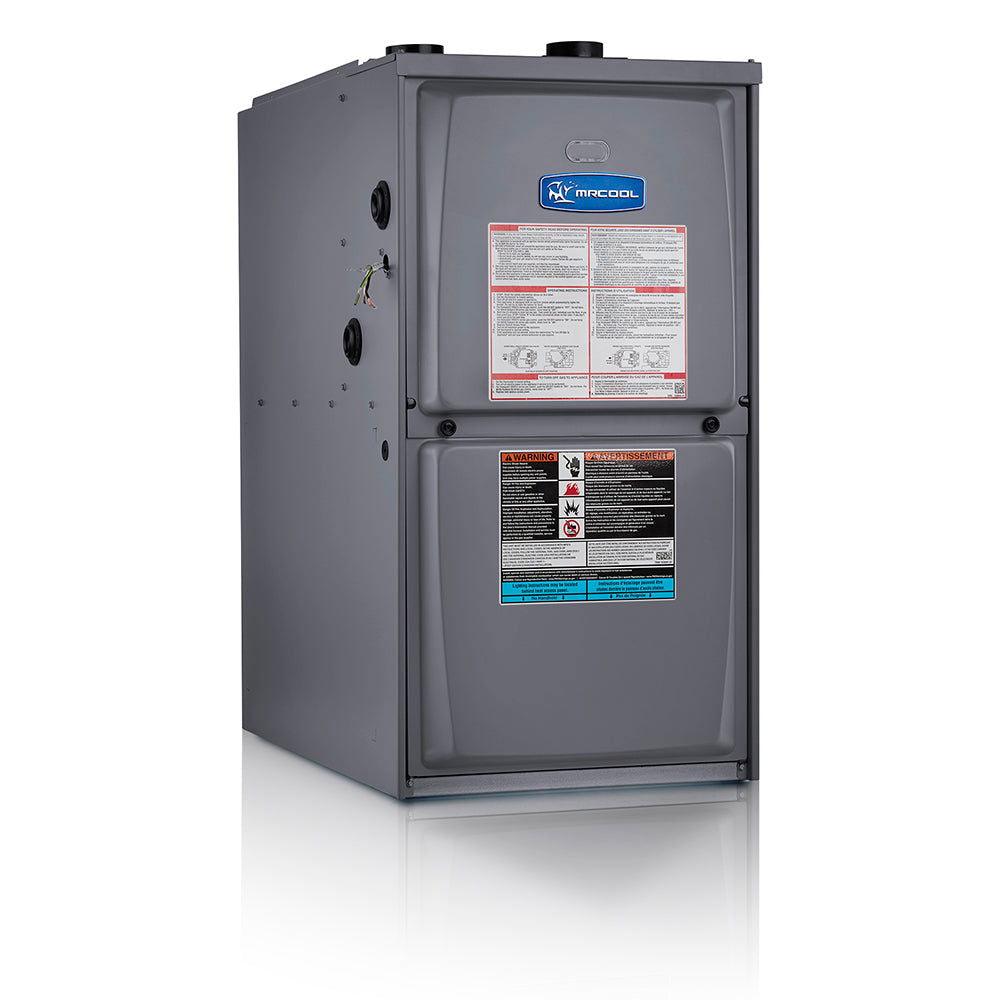

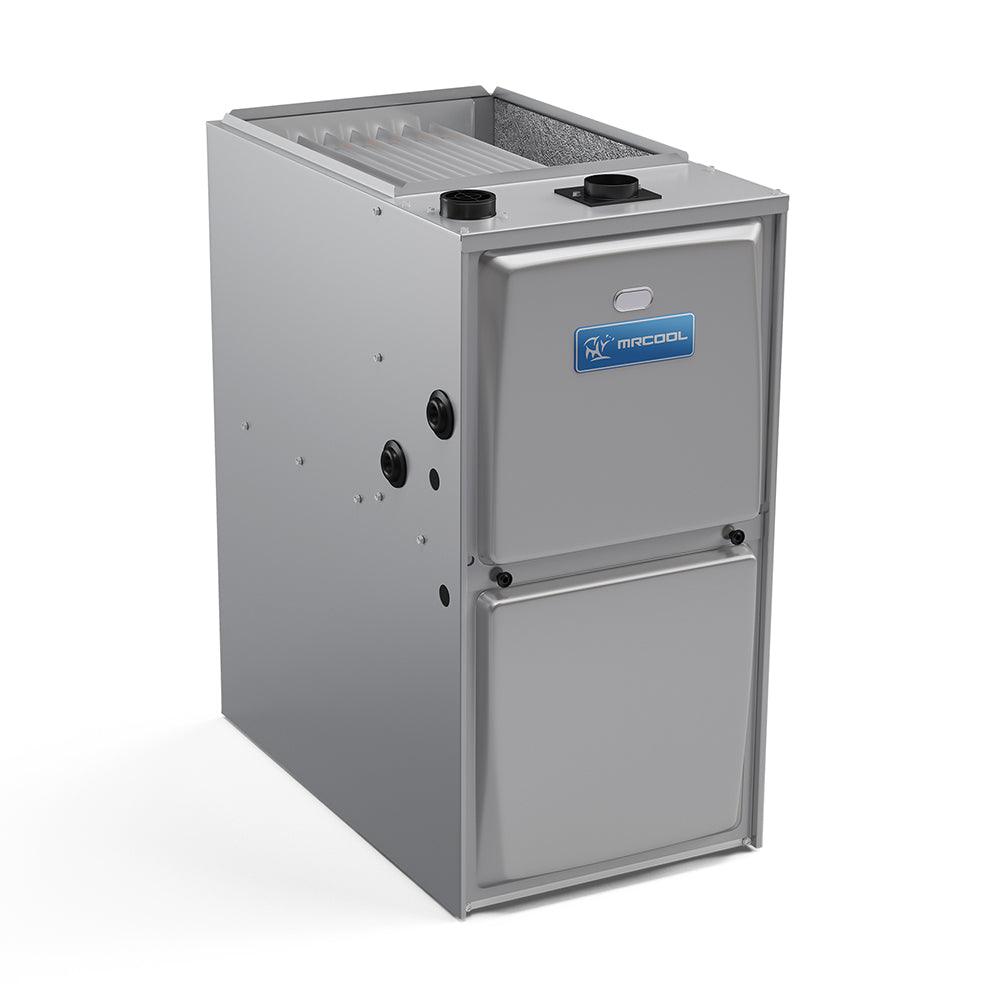

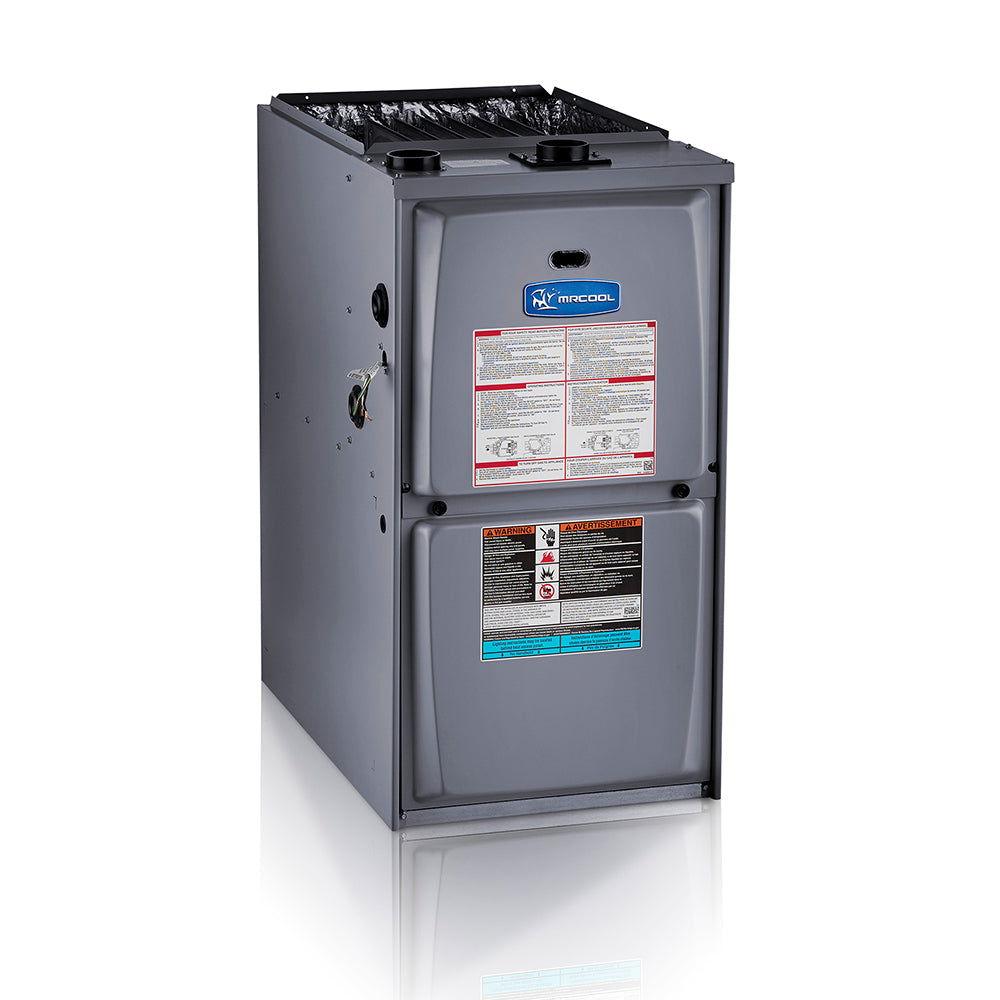

MRCOOL 95% AFUE 3 Ton 45,000 BTU Multi-Position Multi-Speed Gas Furnace (Model MGM95SE045B3XA)
As the temperatures drop and the heating bills rise, it’s time to consider a change. The MRCOOL 95% AFUE 3 Ton 45,000 BTU Multi-Position Multi-Speed Gas Furnace is designed to keep your home warm and your energy costs low. This high-efficiency furnace ensures that 95% of every dollar spent on heating fuel is converted into effective heat, minimizing waste and maximizing savings. Unlike many other furnaces, the MRCOOL 95% AFUE model offers top-tier efficiency without compromising on performance.
Depending on the severity of your winters, this furnace can save you a significant amount on your heating bills—ranging from a few dozen to a few hundred dollars. Instead of dreading the cold season, embrace it with the reliable, versatile, and high-quality heat provided by MRCOOL. Plus, this furnace is backed by a 20-year Heat Exchanger Warranty and a 10-Year Registered Parts Warranty, giving you peace of mind for years to come.
Key Features:
-
High Efficiency: 95% AFUE rating means 95% of your heating fuel is turned into heat, reducing energy waste and lowering your heating bills.
-
Multi-Speed Blower Motor: Constant torque motor delivers consistent airflow and even temperatures while using up to 1/3 less energy than a fixed-speed blower.
-
Self-Diagnostics: Integrated diagnostics system saves the last 10 fault codes, making maintenance and troubleshooting easier.
-
Versatile Installation: Multi-position design allows for installation in various configurations with standardized widths for easy coil fit, left or right utility connections, and zero step horizontal conversion.
-
Durable Construction: Aluminized steel inshot burners provide smooth ignition and reliable performance.
-
Warranty Protection: Comes with a 20-year Heat Exchanger Warranty and a 10-Year Registered Parts Warranty for long-term peace of mind.
-
Complies with Air Quality Standards: Meets California's South Coast Air Quality requirements, ensuring it’s environmentally friendly.
-
Easy Maintenance: Easily removable slide-out blower design simplifies routine maintenance and servicing.
-
Optional LP Kit: Optional liquid propane kit available for those who need LP fuel compatibility.
Choose the MRCOOL 95% AFUE 3 Ton 45,000 BTU Multi-Position Gas Furnace to enjoy efficient, reliable, and cost-effective heating all winter long.
PRODUCT SPECIFICATIONS:
Product Dimensions |
17 1/2'W x 28 1/2'D x 33'H |
Product Weight |
129 lbs |
Unit Type |
Gas Furnace
|
AFUE |
95
|
CFM |
1215
|
Tonnage |
3
|
Heating Capacity |
44,000 BTU |
Fuel Type |
Natural Gas |
BTU Input |
44000
|
BTU Output |
42000
|
Voltage |
Requires a minimum of 120V/60HZ/15A
|
Phase |
1 |
Cycle |
60 |
Stage |
Single |
Max Fuse Breaker |
15
|
Min Circuit Ampacity |
6.8
|
Color |
Gray |
Number of Burners |
4 |
Gas Connection Size |
0.5
|
Blower Motor Type |
ECM |
Blower Motor HP
|
1/2
|
Blower Motor Speeds |
4 Speed |
Blower Motor RPM |
635-1215
|
Heat Exchanger Type |
Aluminized steel primary, AL 29-4C Stainless steel |
Ignition Type |
Silicon Nitride Ignitor |
Vent Connector |
2 inch |
LP Kit Available |
Yes
|
Certifications |
CSA AHRI |
Warranty |
10 year registered parts warranty
|
