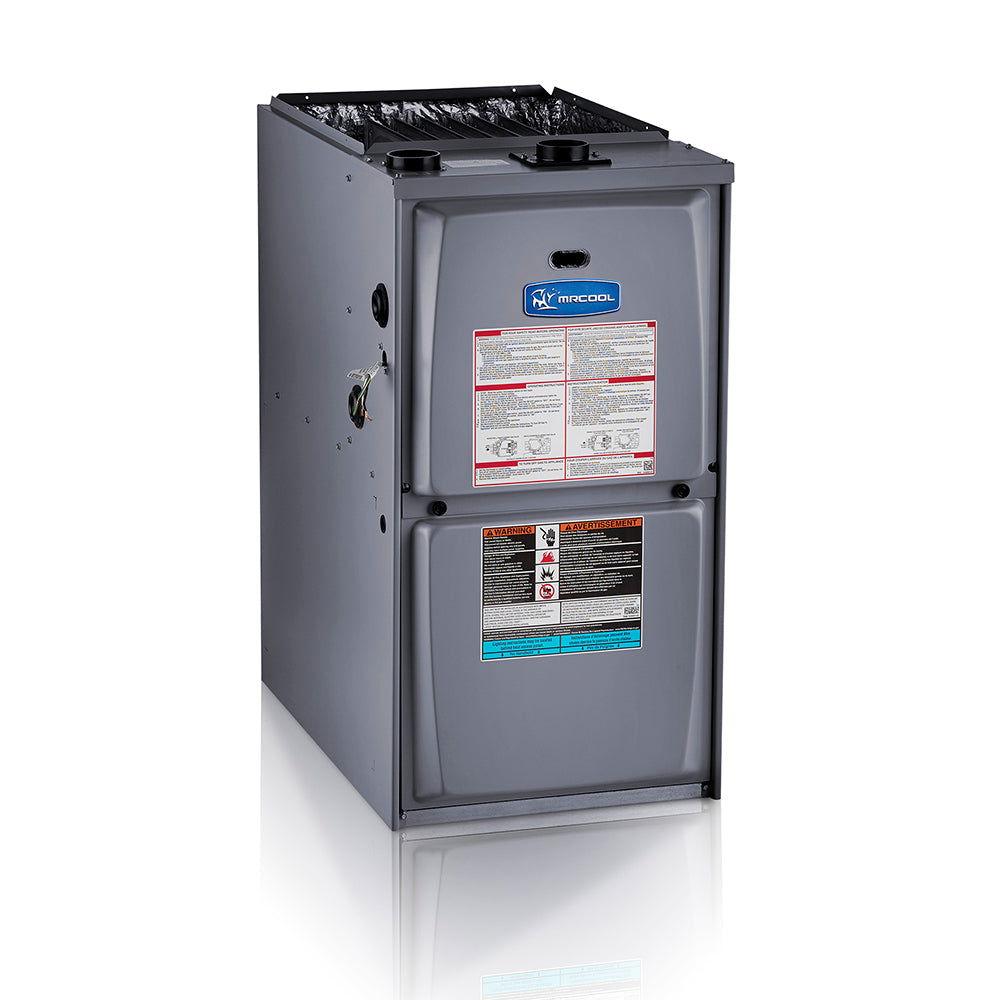

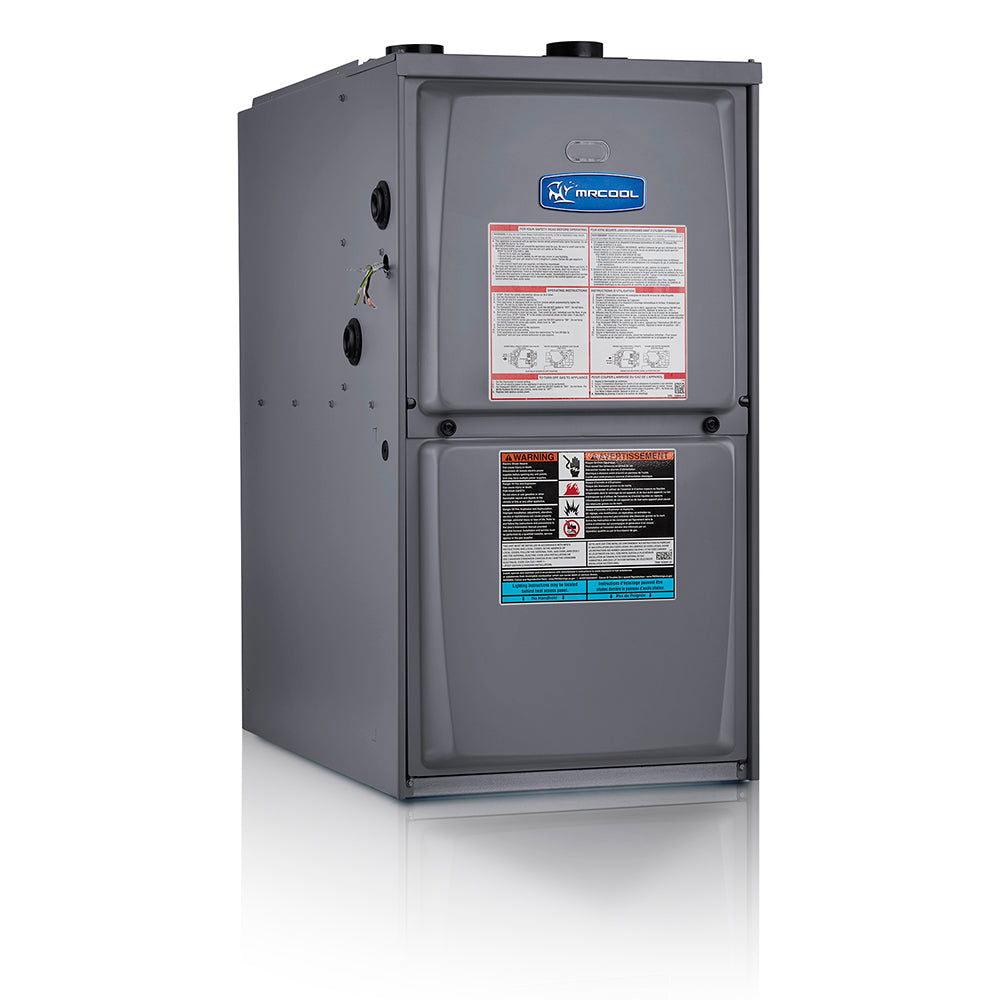

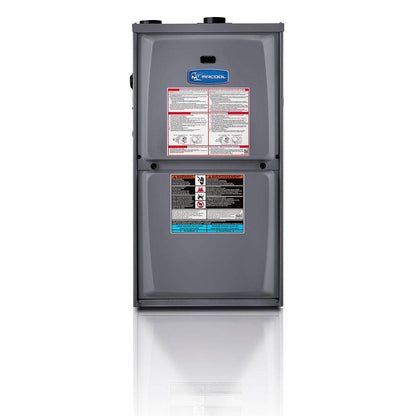

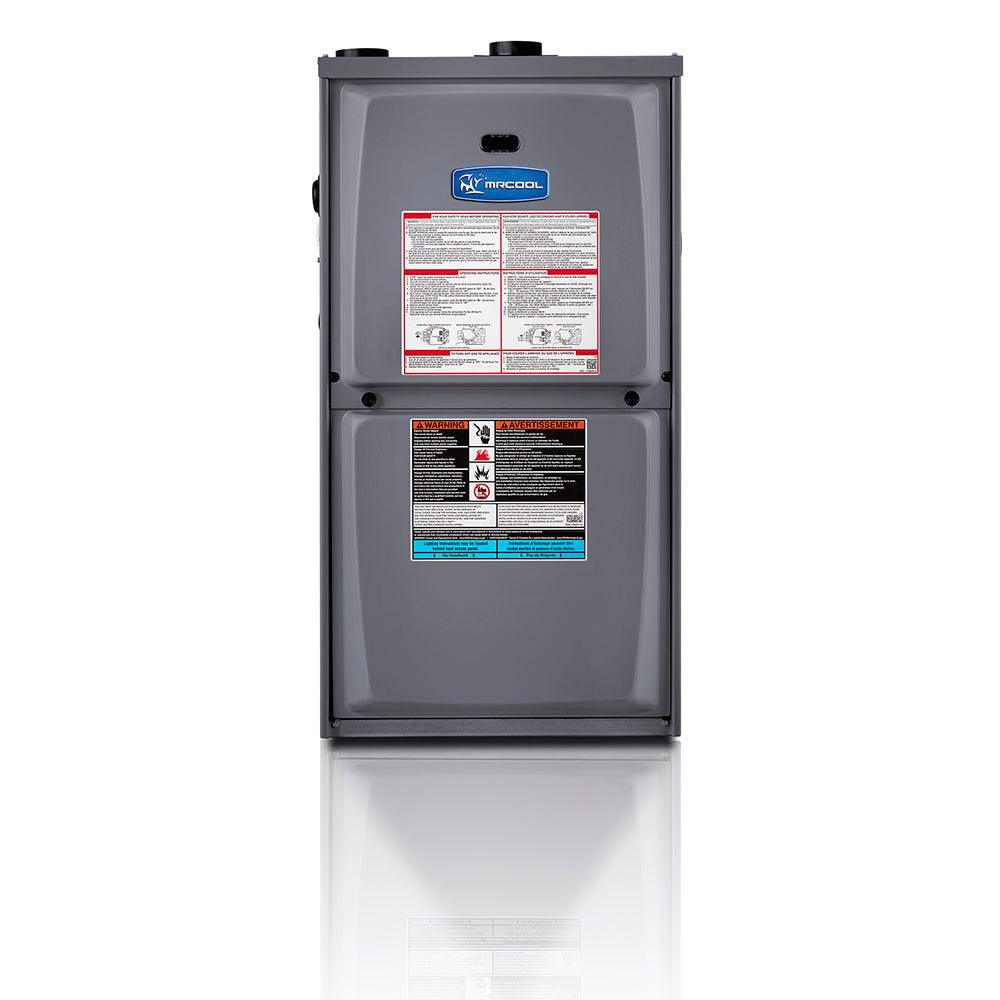

MRCOOL 95% AFUE 5 Ton 110,000 BTU Downflow Multi-Speed Gas Furnace (Model MGD95SE110C5XA)
When the first high gas bill of the season hits, it can make you dread the long, cold winter ahead. But with the MRCOOL 95% AFUE 5 Ton 110,000 BTU Downflow Multi-Speed Gas Furnace, you can stay warm and keep your heating costs under control. This high-efficiency furnace ensures that 95% of every dollar spent on heating fuel is converted into effective heat, minimizing waste and maximizing savings. Unlike many other furnaces, the MRCOOL model is designed to provide powerful, reliable heat without driving up your energy bills.
Whether your winters are mild or severe, this furnace can significantly reduce your heating expenses, potentially saving you hundreds of dollars. Don’t let winter bring you down—embrace it with the efficient, versatile, and high-quality heat of MRCOOL. Plus, this furnace is backed by a 20-year Heat Exchanger Warranty and a 10-Year Registered Parts Warranty, providing long-term reliability and peace of mind.
Key Features:
- High Efficiency: 95% AFUE rating ensures that 95% of your heating fuel is converted into usable heat, reducing waste and lowering your energy bills.
- Multi-Speed Blower Motor: Constant torque motor delivers consistent airflow and even temperatures while using up to 1/3 less energy than a fixed-speed blower.
- Self-Diagnostics: Built-in diagnostics system saves the last 10 fault codes, even during power interruptions, making maintenance easier and more efficient.
- Versatile Installation: Standardized widths for easy coil fit, with left or right utility connections and a removable floor base for bottom return air.
- Durable Construction: Aluminized steel inshot burners ensure smooth ignition and reliable performance for years to come.
- Warranty Protection: Protected by a 20-year Heat Exchanger Warranty and a 10-Year Registered Parts Warranty for added peace of mind.
- Environmental Compliance: Complies with California's South Coast Air Quality standards, ensuring it meets rigorous environmental standards.
- Easy Maintenance: Easily removable slide-out blower design simplifies routine maintenance and servicing.
- Optional LP Kit: Optional liquid propane kit available for those who require LP fuel compatibility.
- Flexible Installation: Zero step horizontal conversion offers flexibility in installation configurations.
Choose the MRCOOL 95% AFUE 5 Ton 110,000 BTU Downflow Gas Furnace for efficient, reliable, and cost-effective heating that keeps your home warm and your energy bills low throughout the winter.
PRODUCT SPECIFICATIONS:
Product Dimensions | 21'W x 28 1/2'D x 33'H |
Product Weight | 174 lbs |
Unit Type | Gas Furnace |
AFUE | 95 |
CFM | 2060 |
Tonnage | 5 |
Heating Capacity | 110,000 BTU |
Fuel Type | Natural Gas |
BTU Input | 110000 |
BTU Output | 106000 |
Voltage |
Requires a minimum of 120V/60HZ/15A |
Phase | 1 |
Cycle | 60 |
Stage | Single |
Max Fuse Breaker | 15 |
Min Circuit Ampacity | 10.9 |
Color | Gray |
Number of Burners | 8 |
Gas Connection Size | 0.5 |
Blower Motor Type | ECM |
Blower Motor HP | 1 |
Blower Motor Speeds | 4 Speed |
Blower Motor RPM | 1190-2060 |
Heat Exchanger Type | Aluminized steel primary, AL 29-4C Stainless steel |
Ignition Type | Silicon Nitride Ignitor |
Vent Connector | 2 inch |
LP Kit Available | Yes |
Certifications | CSA AHRI |
Warranty |
10 year registered parts warranty |
