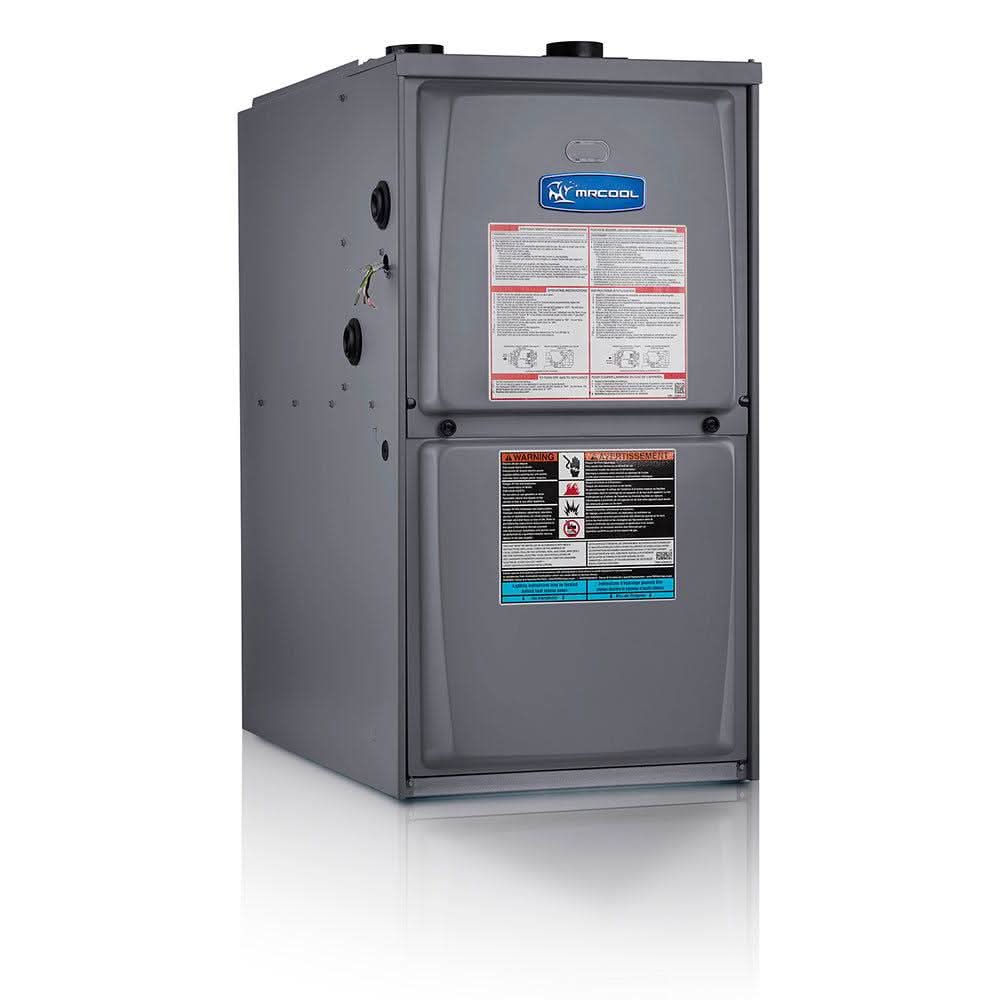

MRCOOL 95% AFUE 5 Ton 110,000 BTU Multi-Position Multi-Speed Gas Furnace (Model MGM95SE110C5XA)
If your first high gas bill of the season has you dreading the long, cold winter ahead, it’s time for a change. The MRCOOL 95% AFUE 5 Ton 110,000 BTU Multi-Position Multi-Speed Gas Furnace is a powerful, high-quality, and energy-efficient solution that will keep your home warm while helping you save money. With a 95% AFUE rating, this furnace ensures that the majority of your heating fuel is converted into real, effective heat, reducing waste and lowering your energy bills.
Depending on the severity of your winter weather, this furnace could mean the difference between saving a few dozen dollars or a few hundred dollars on your heating costs. Instead of dreading winter, you can enjoy it with the efficient, versatile, and high-quality heat provided by MRCOOL. Additionally, this furnace is protected by a 20-year Heat Exchanger Warranty and a 10-Year Registered Parts Warranty, giving you long-term peace of mind.
Key Features:
- High Efficiency: 95% AFUE rating ensures that 95% of your heating fuel is converted into usable heat, minimizing waste and maximizing savings.
- Multi-Speed Blower Motor: Constant torque motor delivers consistent airflow and even temperatures while using up to 1/3 less energy than a fixed-speed blower.
- Self-Diagnostics: Integrated diagnostics system saves the last 10 fault codes, even during power interruptions, making maintenance easier and more efficient.
- Versatile Installation: Multi-position design allows for various installation configurations, with standardized widths for easy coil fit and zero step horizontal conversion.
- Durable Construction: Aluminized steel inshot burners ensure smooth ignition and reliable performance over the long term.
- Warranty Protection: Backed by a 20-year Heat Exchanger Warranty and a 10-Year Registered Parts Warranty for added peace of mind.
- Environmental Compliance: Complies with California's South Coast Air Quality standards, ensuring eco-friendly operation.
- Easy Maintenance: Easily removable slide-out blower design simplifies routine maintenance and servicing.
- Optional LP Kit: Optional liquid propane kit available for those requiring LP fuel compatibility.
- Flexible Installation: Offers left or right utility connections and a removable floor base for bottom return air, providing versatile installation options.
Choose the MRCOOL 95% AFUE 5 Ton 110,000 BTU Multi-Position Gas Furnace for efficient, reliable, and cost-effective heating that keeps your home warm and your energy bills low all winter long.
PRODUCT SPECIFICATIONS:
Product Dimensions | 21'W x 28 1/2'D x 33'H |
Product Weight | 170 lbs |
Unit Type | Gas Furnace |
AFUE | 95 |
CFM | 2030 |
Tonnage | 5 |
Heating Capacity | 110,000 BTU |
Fuel Type | Natural Gas |
BTU Input | 110000 |
BTU Output | 106000 |
Voltage |
Requires a minimum of 120V/60HZ/15A |
Phase | 1 |
Cycle | 60 |
Stage | Single |
Max Fuse Breaker | 15 |
Min Circuit Ampacity | 10.9 |
Color | Gray |
Number of Burners | 10 |
Gas Connection Size | 0.5 |
Blower Motor Type | ECM |
Blower Motor HP | 3/4 |
Blower Motor Speeds | 4 Speed |
Blower Motor RPM | 1215-2030 |
Heat Exchanger Type | Aluminized steel primary, AL 29-4C Stainless steel |
Ignition Type | Silicon Nitride Ignitor |
Vent Connector | 2 inch |
LP Kit Available | Yes |
Certifications | CSA AHRI |
Warranty |
10 year registered parts warranty |
