MRCOOL DIY® 9K BTU 5th Gen Single-Zone Mini Split Heat Pump
Couldn't load pickup availability
MRCOOL DIY® 9K BTU 5th Gen Single-Zone Mini Split System
The MRCOOL DIY® 5th Generation 9,000 BTU Single-Zone Mini Split System provides efficient, reliable heating and cooling for spaces up to approximately 400 square feet. Designed for homeowners who want professional-level performance without professional installation, this system delivers year-round comfort with true DIY simplicity.
Looking for a 6,000 BTU Single-Zone Mini Split?
MRCOOL does not manufacture a 6K BTU single-zone DIY system. However, this 9K BTU 5th Gen system is inverter-driven, meaning it automatically adjusts its output based on demand.
Unlike traditional fixed-capacity systems, the MRCOOL 9K can modulate down to lower operating levels, making it an ideal solution for spaces that would traditionally be sized at 6,000 BTU.
If you're searching for:
- 6k mini split
- 6000 BTU single zone mini split
- 6,000 BTU DIY mini split
- small room mini split system
This 9K inverter system is the correct modern replacement and provides greater efficiency, better humidity control, and improved temperature stability.
Built on MRCOOL’s proven DIY platform, the system uses MRCOOL® DIY® Quick Connect Pre-Charged Line Sets, allowing installation without vacuum pumps, refrigerant handling, or specialized HVAC tools. All critical components arrive factory sealed and pre-charged, making installation accessible for anyone comfortable using basic tools.
Advanced inverter technology helps maintain consistent indoor temperatures while reducing energy consumption. This system is ENERGY STAR® certified and uses R-454B refrigerant, a lower-GWP alternative to R-410A that meets modern efficiency and environmental standards without sacrificing performance.
Comfort control is flexible and intuitive. The system supports wireless remote operation, app-based control through the MRCOOL Smart HVAC app, and voice control via Amazon Alexa and Google Assistant. Features such as Follow Me temperature sensing and Dry Mode dehumidification allow precise comfort adjustments throughout the year.
Designed for durability, the outdoor condenser features Gold Fin® corrosion-resistant coating, making it suitable for coastal or high-humidity environments. Quiet operation makes this system ideal for bedrooms, home offices, and other noise-sensitive spaces. When properly registered, the system is backed by manufacturer warranty coverage for added peace of mind.
This system is an excellent solution for bedrooms, small living areas, offices, and additions where efficient climate control, smart features, and DIY installation are priorities.
| Spec | Value |
|---|---|
| 9k | SEER2 | |
| SEER2 | 23.6 Btu/hr/w |
| 9k | EER2 | |
| EER2 | 14 Btu/hr/w |
| 9k | Heating Capacity | |
| Heating Capacity | 10000 Btu/h |
| 9k | HSPF2-4\nHSPF2-5 | |
| HSPF2-4\nHSPF2-5 | 11.5\n8.6 Btu/hr/w Btu/hr/w |
| 9k | Max Coverage Area* | |
| Max Coverage Area | Up to 400 sq. ft. |
| 9k | Indoor Noise Level (Turbo/Hi/Mi/Lo) | |
| Indoor Noise Level (Turbo/Hi/Mi/Lo) | 43/39.5/33.5/24/18 dB(A) |
| 9k | Outdoor Noise Level | |
| Outdoor Noise Level | 54 dB(A) |
| 9k | Minimum Circuit Ampacity (Outdoor) | |
| Minimum Circuit Ampacity (Outdoor) | 18 A |
| 9k | Maximum Fuse (Outdoor) | |
| Maximum Fuse (Outdoor) | 20 A |
| 9k | Net Dimension | |
| Indoor | 31.57 x 7.44 x 11.69\n802 x 189 x 297 inch mm |
| Outdoor | 30.12 x 11.93 x 21.85\n765 x 303 x 555 inch mm |
| 9k | Packing Dimension | |
| Indoor | 36.02 x 16.34 x 14.37\n915 x 415 x 365 inch mm |
| Outdoor | 36.22 x 16.54 x 27.56\n920 x 420 x 700 inch mm |
| 9k |Net/Gross Weight | |
| Indoor | 24.91/35.49\n11.3/16.1 lbs kg |
| 9k | Net/Gross Weight | |
| Outdoor | 65.48/83.11\n29.7/37.7 lbs kg |
| 9k | Refrigerant R-454B | |
| Refrigerant R-454B | 30.34 oz |
| 9k | Piping Size Liquid side/Gas side | |
| Piping Size Liquid side/Gas side | 1/4"-3/8" / 6.35 x 9.52 inch / mm |
| 9k | Energy Star V6.1 | |
| Energy Star V6.1 | Yes |
| 9k | Energy Star V6.1 Cold Climate | |
| Energy Star V6.1 Cold Climate | Yes |
| 9k | Federal Tax Credits | |
| Federal Tax Credits | Yes |
| 9k | NEEP | |
| NEEP | Yes |
| 9k | GHG | |
| GHG | Yes |
| 9k | CEE Tier 1 - North\nCEE Tier 2 - North | |
| CEE Tier 1 - North\nCEE Tier 2 - North | Yes\nYes |
| 9k | CEE Tier 1 - South | |
| CEE Tier 1 - South | Yes |
| 9k | CEE Tier 2 - South | |
| CEE Tier 2 - South | Yes |
| 9k | MASS Save | |
| MASS Save | Yes |

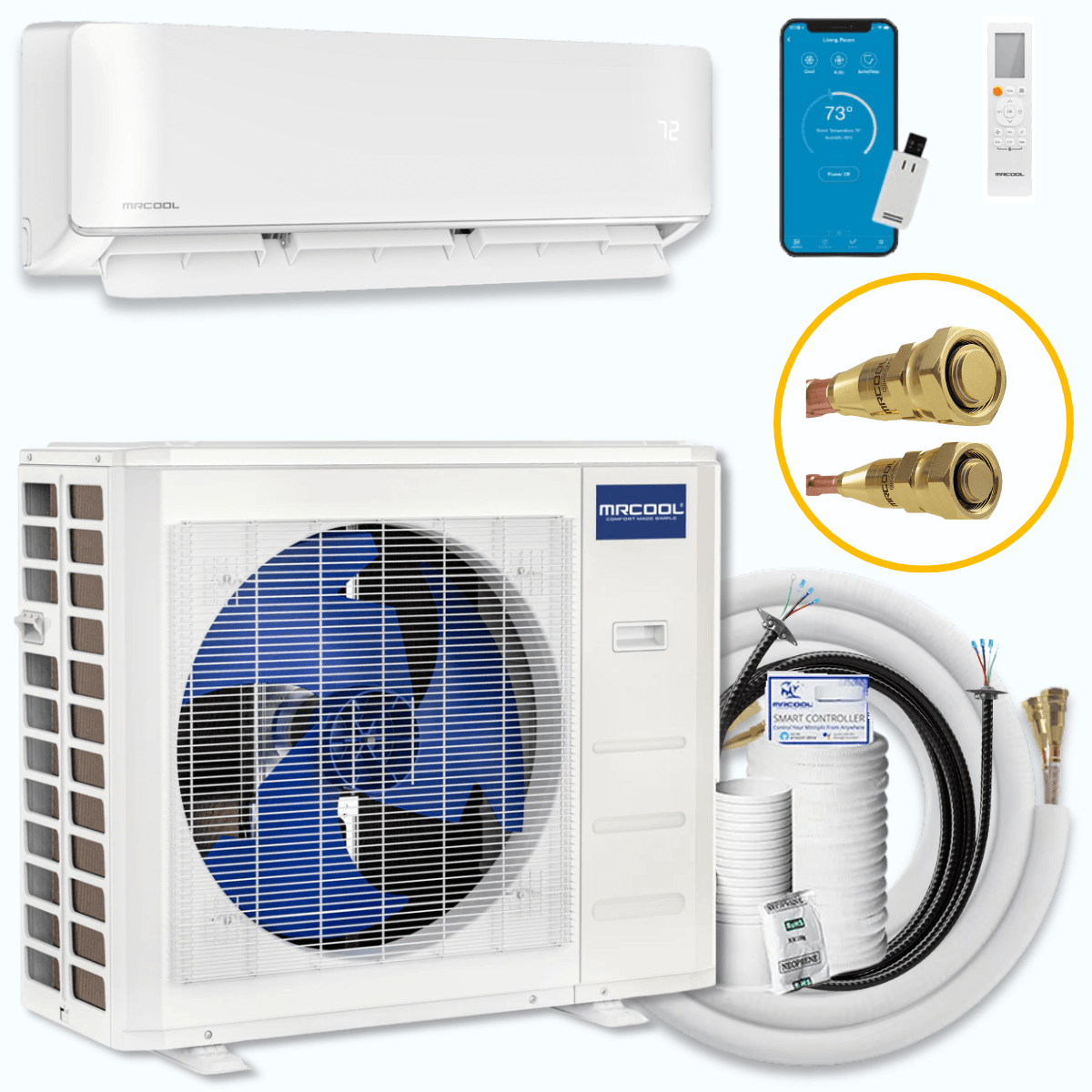

DIY Single-Zone System

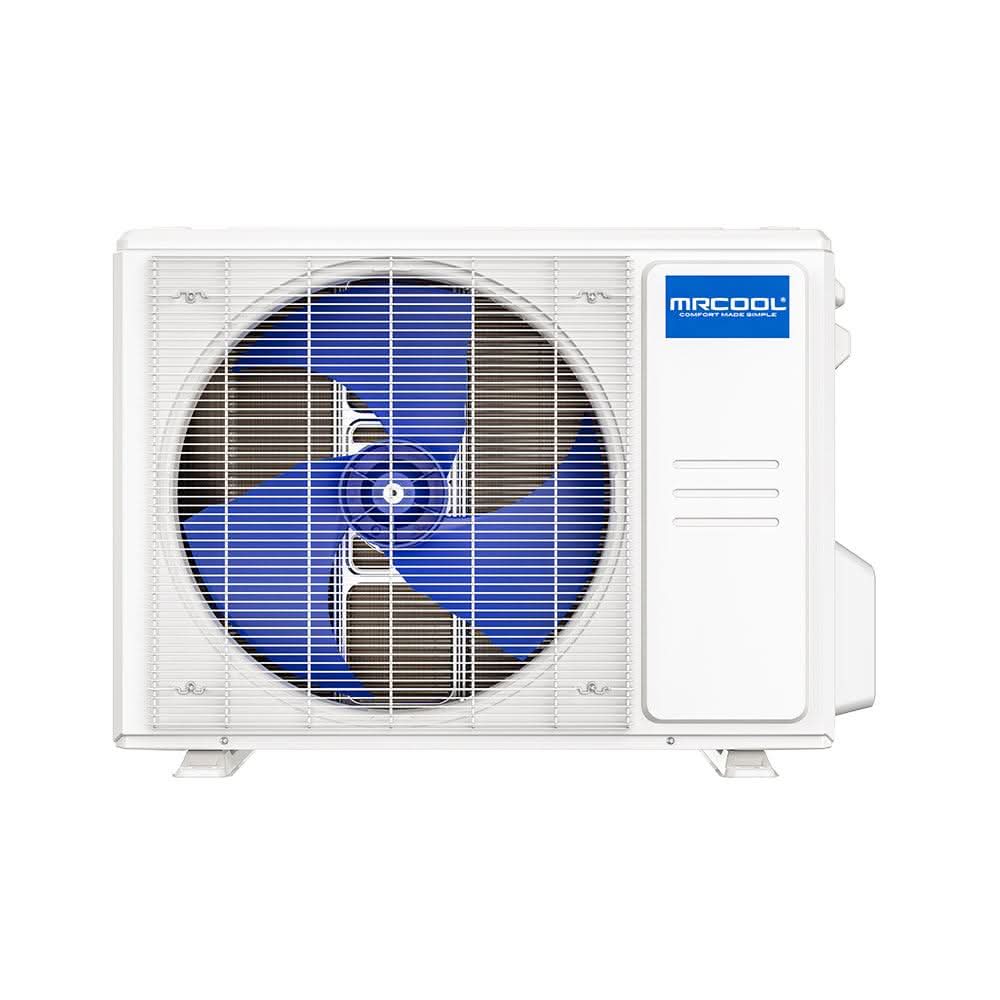

Outdoor Condenser

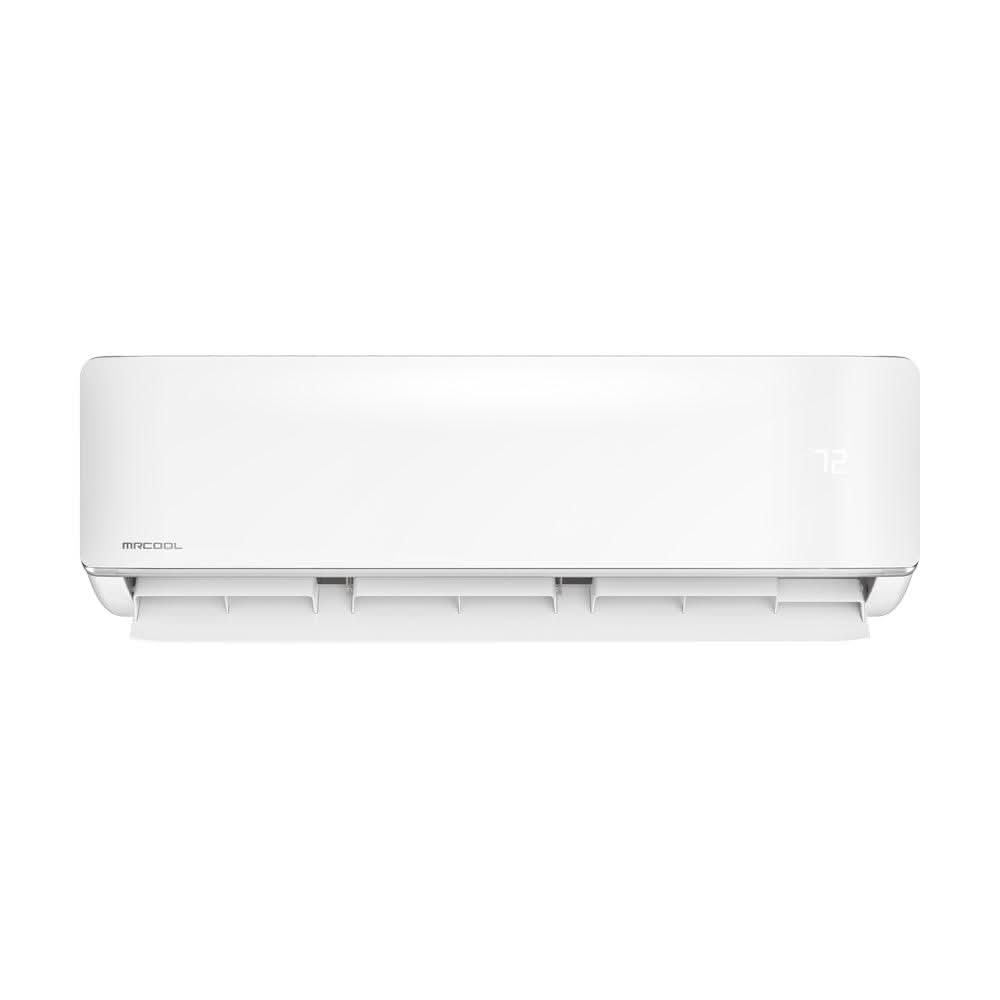

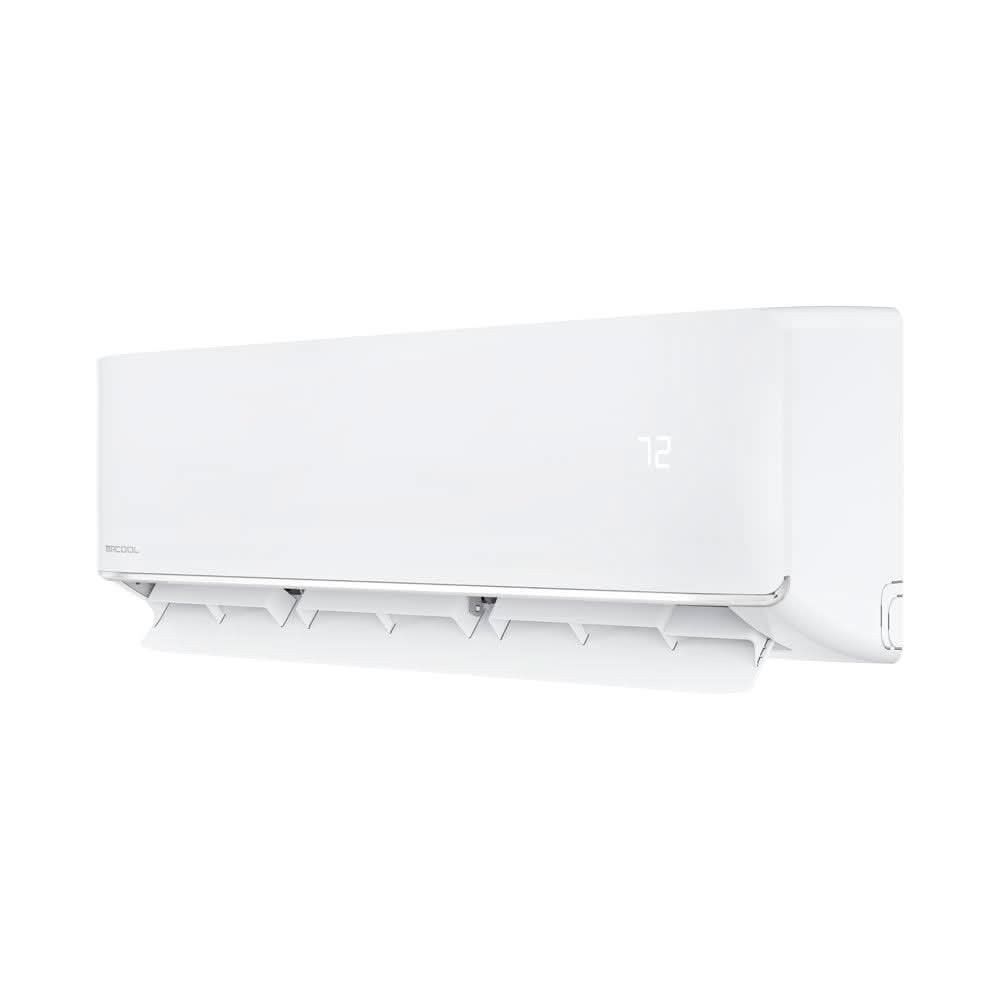

Indoor Air Handler

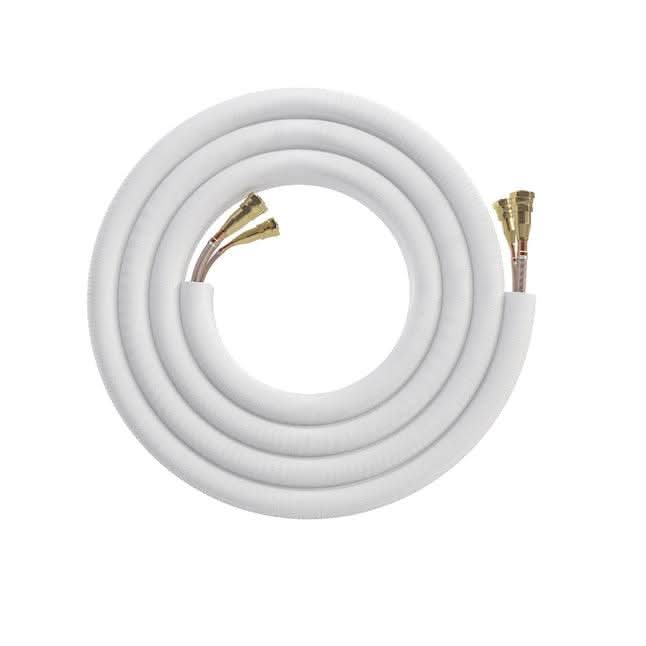

Pre-Charged DIY Line Set

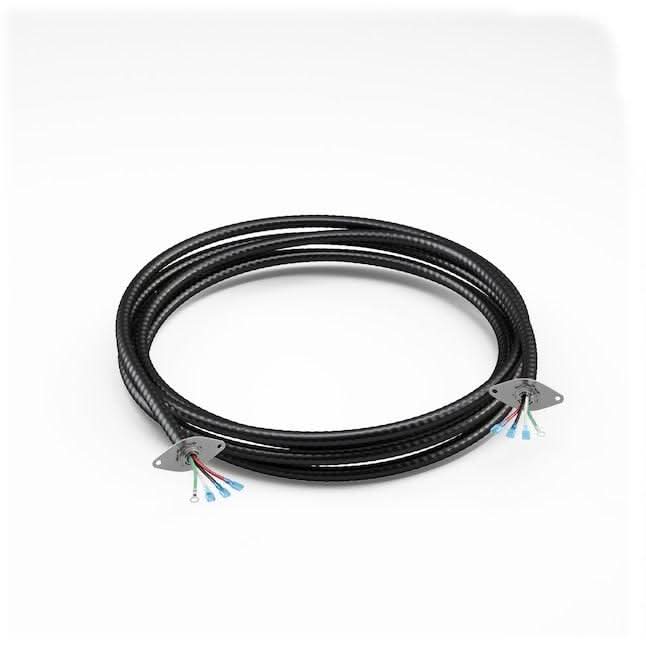

Control Wire

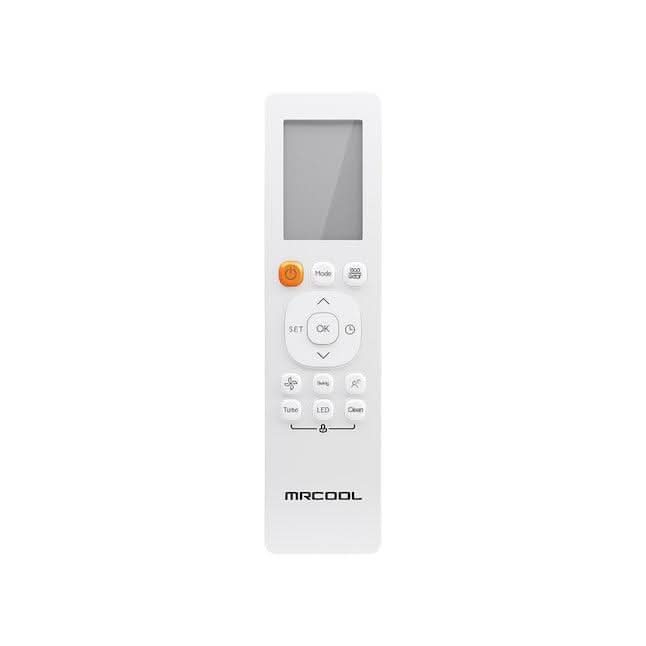

Wireless Remote
Installation Manual

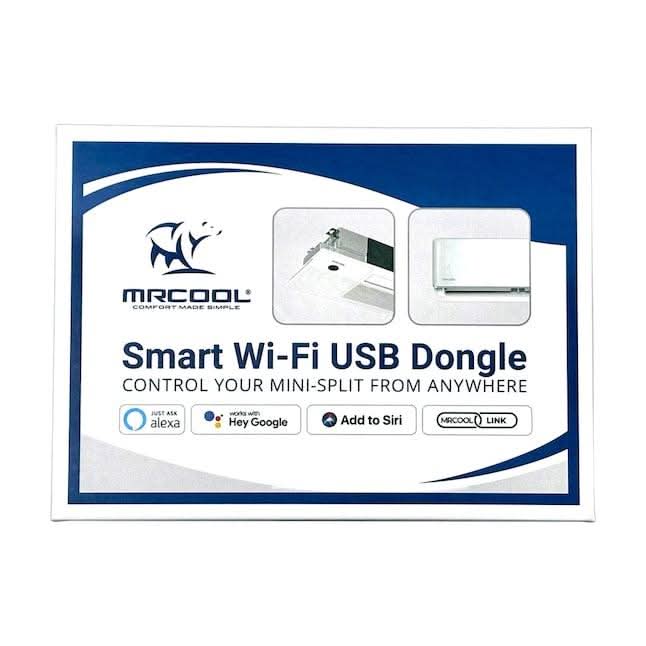

WiFi Dongle / Smart Controller Adapter
Wall Mounting Plate
Wall Sleeve / Wall Pass-Through
Line Set Wrap / Insulation Tape
Download installation manuals, spec sheets, and warranty documents for this system.
- 5th Gen E-Star® Series Product Brochure
- 5th Gen E-Star® Series Installation Manual
- 5th Gen E-Star® Series Quick Start Guide
- 5th Gen E-Star® Series Remote Control Guide
- 5th Gen E-Star® Series Warranty Document
- 5th Gen E-Star® Series Service Manual
- 5th Gen E-Star® Series Smart Controller Manual
- 5th Gen E-Star® Series (Spanish) Installation Manual
- 5th Gen E-Star® Series (Spanish) Remote Control Manual
- 5th Gen E-Star® Series (French) Installation Manual
- 5th Gen E-Star® Series (French) Remote Control Manual
