MRCOOL 5th Gen DIY® E-Star vs 5th Gen DIY® HyperHeat Single Zone Mini Split: What’s the Difference?
Shopping for a single zone ductless mini split heat pump and trying to decide between the MRCOOL® 5th Gen DIY® E-Star Single Zone Series and the MRCOOL® 5th Gen DIY® HyperHeat (HH) Single Zone Series? This guide breaks down the key differences in voltage, sizing, cold-climate heating, efficiency, and ideal applications so you can pick the best system for your space.
Both lines are high-efficiency DIY ductless mini split heat pumps. The big differences are:
- HyperHeat is available only in 12k and 18k BTU sizes.
- The 12k HyperHeat is 230V, while the 12k E-Star DIY is 115V.
- HyperHeat is optimized for cold climate performance with heating down to extremely low ambient temperatures.
- The E-Star DIY line offers more size options and easier electrical planning for smaller 115V circuits.
Model Overview: 5th Gen DIY E-Star vs 5th Gen DIY HyperHeat

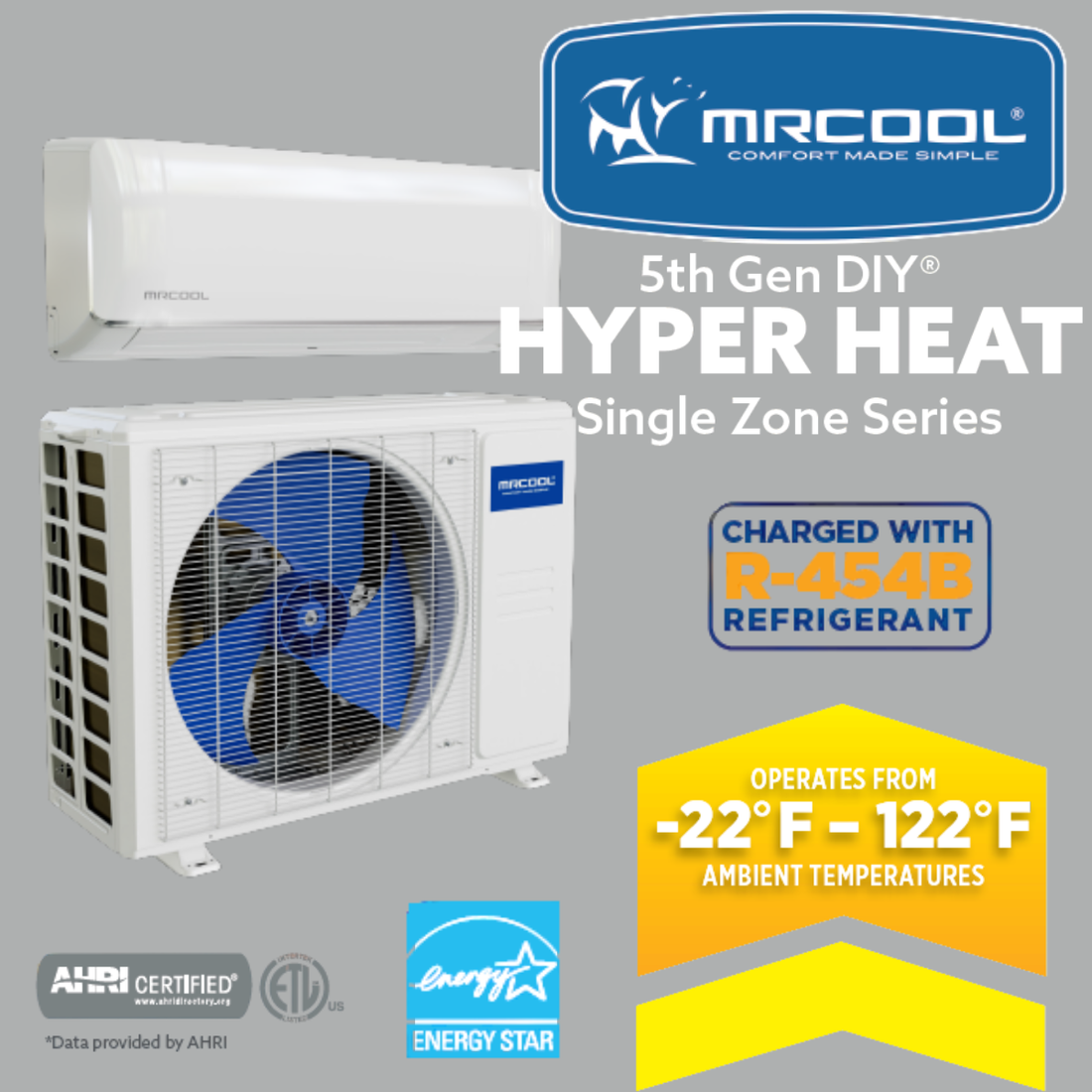

The 5th Gen DIY E-Star and 5th Gen DIY HyperHeat series are both Energy Star certified ductless mini split heat pumps designed for easy homeowner installation using MRCOOL’s patented QuickConnect® pre-charged line sets and DIYPRO® armored cable. They share core features like:
- DIY-friendly installation with pre-charged R-454B refrigerant line sets
- Smartphone app control plus Amazon Alexa and Google Assistant compatibility
- Gold Fin® corrosion-resistant condenser coating
- Auto restart, programmable timer, Turbo mode, and Follow Me® comfort tracking
However, the HyperHeat Single Zone Series is engineered to deliver stronger cold-climate heating performance compared to the standard E-Star models, especially in regions where winter temperatures drop well below freezing.
1. Capacity & Sizing: Available BTU Options
5th Gen DIY E-Star Single Zone Capacity Range
The 5th Gen DIY E-Star Single Zone series offers a broad range of capacities, making it easy to match the system to the room or zone size. According to the official specifications, it includes:
- 9,000 BTU (up to approx. 400 sq. ft.)
- 12,000 BTU (up to approx. 550 sq. ft.)
- 18,000 BTU (up to approx. 800 sq. ft.)
- 24,000 BTU (up to approx. 1,050 sq. ft.)
- 36,000 BTU (up to approx. 1,550 sq. ft.)
5th Gen DIY HyperHeat Single Zone Capacity Range
The 5th Gen DIY HyperHeat line focuses on the two most popular room sizes for cold-climate applications:
- 12,000 BTU HyperHeat – ideal for up to ~550 sq. ft.
- 18,000 BTU HyperHeat – ideal for up to ~800 sq. ft.
If you need a high-performance cold-climate mini split for a bedroom, office, bonus room, living room, or garage in the 350–800 sq. ft. range, HyperHeat hits the sweet spot. For very small rooms or large open-plan areas, the broader size range of the E-Star series may fit better.
2. Voltage: 115V vs 230V — The Big Electrical Difference
One of the most important differences between the two lines is voltage, especially in the popular 12k size.
12k E-Star DIY: 115V Convenience
The 5th Gen DIY E-Star 12k single zone mini split uses a 115V, 60Hz, single-phase power supply. That means it typically works on a standard dedicated 115V circuit, which many homes can support without electrical panel upgrades.
12k HyperHeat: 230V Power & Performance
The 5th Gen DIY HyperHeat 12k single zone mini split is designed as a 208/230V, 60Hz, single-phase system. This 230V configuration better supports the high heating output and low ambient performance that HyperHeat delivers.
What this means for homeowners:
- If you want the easiest electrical planning and already have a spot for a dedicated 115V circuit, the 5th Gen DIY E-Star 12k (115V) is very attractive.
- If you can run or already have a 230V circuit and want maximum cold-weather heating performance, the 12k HyperHeat (230V) is the better long-term choice.
3. Heating Performance & Cold-Climate Capability
HyperHeat: Built for Cold Climates
The 5th Gen DIY HyperHeat systems are engineered to deliver reliable heating in very low outdoor temperatures. The official brochure notes an operating range of approximately -22°F to 122°F ambient, giving year-round comfort even in harsh winters.
HyperHeat models also post strong HSPF2 (Heating Seasonal Performance Factor) ratings:
- 12k HyperHeat – HSPF2-4 around 10.0
- 18k HyperHeat – HSPF2-4 around 11.0
Paired with variable-speed DC inverter technology, HyperHeat is designed for efficient, stable heating without relying heavily on backup space heaters or fossil-fuel furnaces.
E-Star DIY: High-Efficiency Heating for Mild to Moderate Winters
The 5th Gen DIY E-Star Single Zone series still provides excellent heating performance and Energy Star certified efficiency. The 12k model, for example, offers:
- Heating capacity: 12,000 BTU
- HSPF2-4: approximately 10.2
For many regions in the U.S. with moderate winter temperatures, the E-Star DIY models provide more than enough heating. However, if you live somewhere that regularly drops well below freezing (especially near 0°F and below), HyperHeat is the more cold-climate-optimized choice.
4. Cooling Efficiency: SEER2 Ratings
Both series are designed as high-efficiency ductless heat pumps with strong SEER2 ratings.
5th Gen DIY E-Star SEER2
- 9k E-Star: SEER2 ~23.6
- 12k E-Star: SEER2 ~23.5
- 18k E-Star: SEER2 ~22.5
- 24k E-Star: SEER2 ~22.7
- 36k E-Star: SEER2 ~18
5th Gen DIY HyperHeat SEER2
- 12k HyperHeat: SEER2 ~23.5
- 18k HyperHeat: SEER2 ~21.2
In other words, cooling efficiency is very similar between the E-Star 12k and HyperHeat 12k. Your decision is less about cooling performance and more about heating performance, voltage, and climate.
5. Shared DIY Features: Why Both Lines Are Popular With Homeowners
Whether you choose the E-Star or HyperHeat single zone series, you get the key MRCOOL DIY advantages:
- QuickConnect® pre-charged line sets filled with R-454B refrigerant, no vacuum pump required
- DIYPRO® armored cable for simplified, protected electrical connections
- Wi-Fi connectivity with the SmartHVAC® app for iOS and Android
- Amazon Alexa and Google Assistant integration
- Gold Fin® condenser coating for corrosion resistance, great for coastal environments
- Modes like Auto, Sleep, Turbo, and programmable timers for comfort and energy savings
The HyperHeat outdoor unit is also compatible with both the standard wall-mounted air handler and the low-profile OuttaSight® ceiling cassette option, giving more flexibility in how you design the room’s airflow and aesthetics.
6. When to Choose 5th Gen DIY HyperHeat vs 5th Gen DIY E-Star
Choose 5th Gen DIY HyperHeat if:
- You live in a cold climate where winter temps regularly drop near or below 0°F.
- You want your mini split to handle the majority of your heating load without constant backup heat.
- Your space is between roughly 350 and 800 sq. ft. (perfect for the 12k or 18k size).
- You can install or already have a 208/230V electrical circuit.
- You prioritize maximum comfort and stability in extreme weather.
Choose 5th Gen DIY E-Star if:
- You live in a mild or moderate climate where winters are not extremely severe.
- You want the easiest electrical path and prefer a 115V 12k mini split option.
- You need additional sizes like 9k, 24k, or 36k for very small or very large spaces.
- Your main goal is high-efficiency cooling with solid supplemental heating.
7. Comparison Table: 12k E-Star vs 12k HyperHeat
| Specification | 5th Gen DIY E-Star 12k | 5th Gen DIY HyperHeat 12k |
|---|---|---|
| Application | Single zone ductless mini split heat pump | Single zone ductless mini split heat pump with enhanced cold-climate heating |
| Voltage | 115V, 60Hz, 1Ph | 208/230V, 60Hz, 1Ph |
| Cooling Capacity | 12,000 BTU | 12,000 BTU |
| Heating Capacity | 12,000 BTU | 12,000 BTU |
| SEER2 | ≈ 23.5 | ≈ 23.5 |
| HSPF2-4 | ≈ 10.2 | ≈ 10.0 |
| Estimated Coverage | Up to ~550 sq. ft. | Up to ~550 sq. ft. |
| Operating Range | Cold-climate capable, suitable for many regions | Designed for -22°F to 122°F ambient (extreme cold ready) |
| Best For | Spaces needing 115V install & efficient cooling/heating | Cold-climate rooms where heating performance is critical |
8. FAQ: E-Star vs HyperHeat Single Zone Mini Splits
Q: Do both systems qualify for energy rebates?
Many MRCOOL 5th Gen DIY models are Energy Star certified and listed with various programs, which can help with utility rebates or tax credits depending on your location. Always check local requirements and model-specific listings for confirmation.
Q: Which mini split is easier for a first-time DIY installer?
From an installation perspective, the process is very similar. Both use QuickConnect® pre-charged lines, DIYPRO® cable, and wall-mounted indoor units, so either series is friendly for a careful DIYer. The main difference is the electrical work: the 115V E-Star 12k may be simpler to integrate in certain homes than a 230V circuit.
Q: If I already own an E-Star, is upgrading to HyperHeat worth it?
If you live in a region with very cold winters and want your ductless system to handle more of your primary heating load, upgrading to a 5th Gen DIY HyperHeat system can be worthwhile. If you live in a milder climate and mostly use your mini split for cooling plus light winter use, your E-Star model is likely already a strong performer.
Q: Which is better for a garage, shop, or bonus room?
For unconditioned spaces that get very cold, such as garages in snowy climates, the HyperHeat 12k or 18k is typically the better choice. For attached bonus rooms or spaces in milder climates, the E-Star DIY 12k or 18k is often sufficient.
Final Thoughts: Which MRCOOL 5th Gen Single Zone Mini Split Should You Choose?
Both the MRCOOL 5th Gen DIY E-Star Single Zone and the MRCOOL 5th Gen DIY HyperHeat Single Zone are excellent choices for homeowners who want a high-efficiency, DIY-friendly ductless mini split heat pump.
If you prioritize cold-climate heating performance and can supply a 230V circuit, the HyperHeat 12k or 18k is the clear winner. If you need more size options and prefer the convenience of a 115V 12k system, the 5th Gen DIY E-Star series is a fantastic fit.
Either way, you get the core MRCOOL advantages: DIY installation, smart controls, high efficiency, and year-round comfort.
