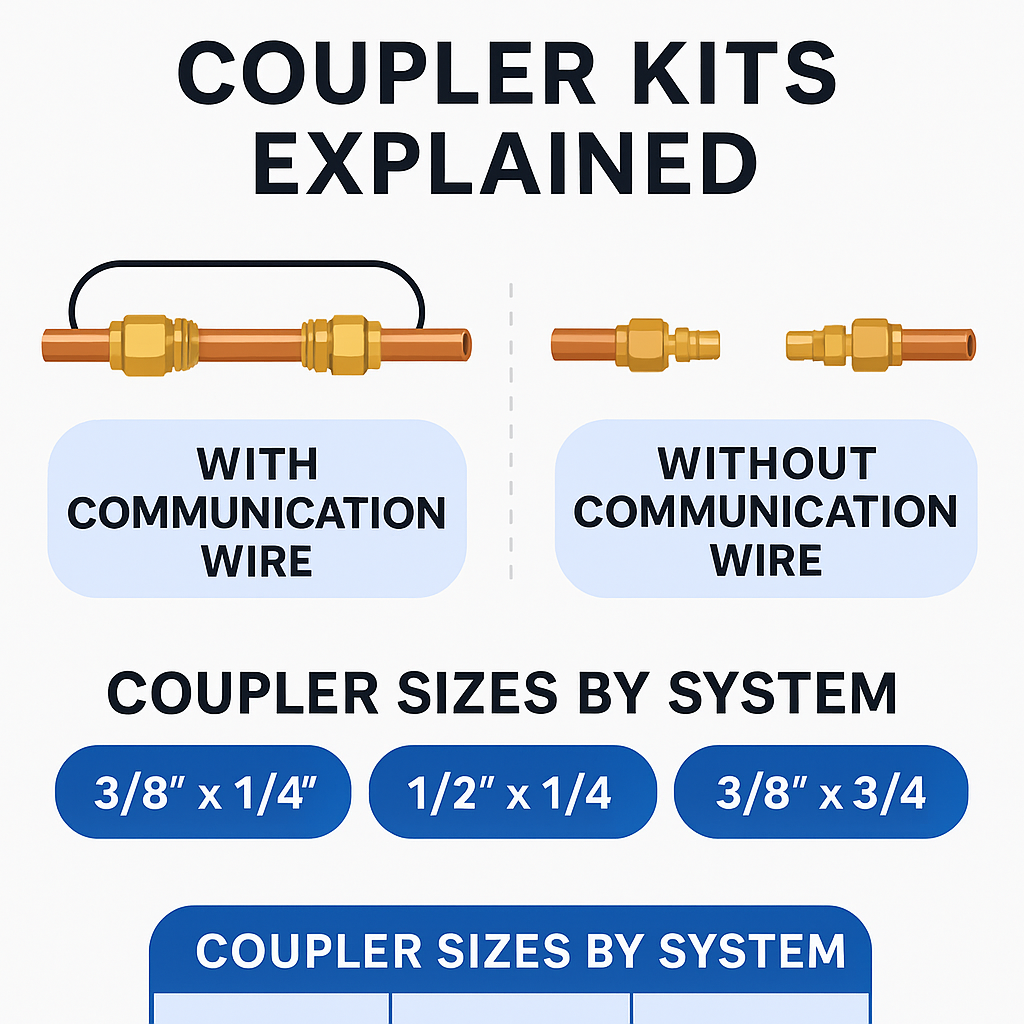

Infographic explaining MRCOOL DIY® coupler kits with and without communication wire, showing coupler sizes 3/8×1/4, 1/2×1/4, and 3/8×3/4 for line set extensions.

MRCOOL DIY® Coupler Kits & Line Set Extensions: With vs Without Communication Wire

Chill Masterson • Friendly HVAC Expert

MRCOOL DIY® Coupler Kits Explained: With vs Without Communication Wire

Need more than the standard 25-ft line set? Coupler kits “bridge” two pre-charged Quick Connect line sets so you can extend your run—no vacuum pump, no refrigerant handling, 100% DIY-friendly.

What’s a MRCOOL Coupler Kit?

Think of a coupler as a secure “bridge” joining two pre-charged Quick Connect line sets. It lets you extend your refrigerant lines cleanly and safely—keeping your install simple and DIY-friendly.

Why people use them

  • Standard 16 or 25-ft line set isn’t long enough
  • Preferred routing around obstacles
  • Cleaner, hidden runs for finished spaces

Good to know

  • No vacuum pump or refrigerant handling required
  • Same proven Quick Connect design—just match sizes
  • Every extension uses two couplers (one per line)

Which Coupler Size Do I Need?

Match the coupler size to your line set and system type.

Coupler / Line Set Size Typical Use Compatible Units
3/8" × 1/4" DIY® mini-split line sets (smaller) 6k, 9k, 12k DIY® (wall & ceiling cassette)
1/2" × 1/4" DIY® mini-split line sets (larger suction) 18k DIY® (wall & ceiling cassette)
3/8" × 3/4" Central ducted Quick Connect Universal, HyperHeat & VersaPro™ (central ducted)
3/8" × 5/8" Large-capacity DIY® mini-splits 24k & 36k DIY® (see model-specific kit)
✅ 6k, 9k, 12k & 18k DIY® (wall & ceiling cassette) all take the same size coupler

Couplers With vs Without Communication Wire

With Communication Wire

  • Best when extending both refrigerant lines and control wire together
  • Everything bundled—simple planning
Great for unified routing

Without Communication Wire

  • Ideal if you already have enough control wire
  • Or when you plan to route control wire differently
Flexible for custom runs
⚠️ If you extend beyond the included 25-ft line set, you’ll typically need additional control wire. You can purchase these couplers with or without extended wire. It is not recommended to splice the communication wire.

Compatibility Across Generations

Coupler kits can be used on single-zone or multi-zone systems and are compatible with both refrigerants:

  • 4th-Gen & older: R-410A
  • 5th-Gen DIY®: R-454B

How Many Couplers Do I Need?

Every extension uses two couplers—one for each refrigerant line.

Example

Extending a 25-ft line set with a 16-ft line set → you’ll need two couplers to connect them.

Choosing the Right Kit (Quick Recap)

  • 6k–12k DIY®: use 3/8" × 1/4" couplers
  • 18k DIY®: use 1/2" × 1/4" couplers
  • Universal/HyperHeat/VersaPro (central ducted): use 3/8" × 3/4"
  • ⚠️ 24k & 36k DIY®: require larger model-specific couplers
  • ➕ Decide: with or without communication wire

FAQs

Will these couplers work with both R-410A and R-454B systems?

Yes. They’re compatible with 4th-Gen (R-410A) and 5th-Gen DIY® (R-454B) systems.

Do I always need the version with communication wire?

No. Choose the version with wire if you’re extending both refrigerant lines and control wire together. If you already have sufficient wire or plan a different route, use the couplers-only version.

How many couplers are required for one extension?

Two—one for each refrigerant line.

What size do I need for central ducted Quick Connect systems?

Use 3/8" × 3/4" couplers for MRCOOL Universal, HyperHeat, and VersaPro™ central ducted Quick Connect systems.

Does this listing include control wire?

This listing is for couplers only. If you extend beyond 25 ft, you’ll typically need additional control wire (sold separately) or the kit version that includes wire.

Coupler kits are small but mighty—keeping installs clean, flexible, and DIY-easy. When in doubt, match the coupler size to your line set and choose whether you need control wire included.

Written by Chill Masterson • MRCOOL DIY® guide for homeowners & pros.
