If you are shopping for a MRCOOL central ducted air handler, evaporator coil, or furnace, you may notice cabinet size labels such as A-Cabinet, B-Cabinet, C-Cabinet, and D-Cabinet. These cabinet letters refer to the physical width of the indoor HVAC equipment cabinet.
Understanding MRCOOL cabinet sizes is important when matching central ducted air handlers, coils, furnaces, and ductwork. Choosing the correct cabinet width can help with equipment compatibility, installation fitment, airflow performance, and replacement system planning.

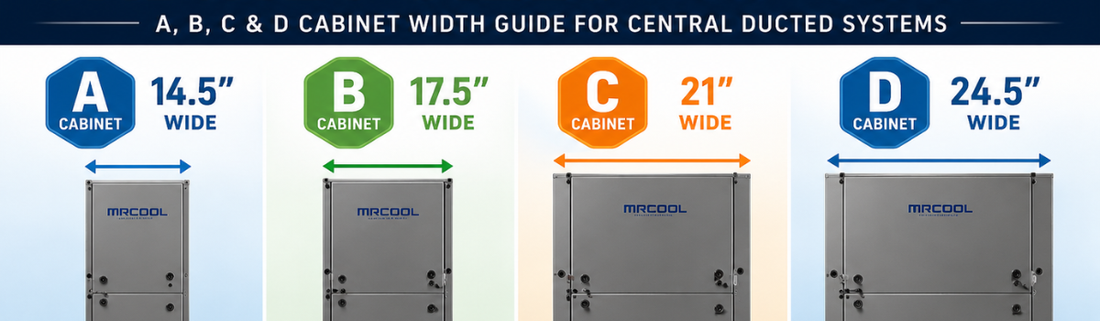

Quick MRCOOL Cabinet Size Chart
| MRCOOL Cabinet Size | Cabinet Width | Common Use |
|---|---|---|
| A-Cabinet | 14.5 inches | Compact installations, smaller ducted systems, limited space applications |
| B-Cabinet | 17.5 inches | Common residential replacement size and standard central ducted applications |
| C-Cabinet | 21 inches | Larger residential systems requiring increased airflow capacity |
| D-Cabinet | 24.5 inches | Large-capacity systems, high-airflow applications, larger homes |
What Do MRCOOL A, B, C, and D Cabinet Sizes Mean?
MRCOOL uses A, B, C, and D cabinet designations to identify the width of central ducted indoor equipment. These cabinet sizes are commonly associated with equipment such as:
- MRCOOL central ducted air handlers
- MRCOOL evaporator coils
- MRCOOL gas furnaces
- MRCOOL dual fuel system components
- MRCOOL central ducted heat pump systems
The cabinet letter does not describe the BTU rating by itself. Instead, it tells you the cabinet width, which helps determine physical fitment and compatibility between indoor HVAC components. Because apparently letters and inches had to team up to make HVAC slightly less chaotic.
MRCOOL A-Cabinet Size: 14.5 Inches Wide
The MRCOOL A-Cabinet is approximately 14.5 inches wide. This is the narrowest of the common MRCOOL cabinet sizes and is often used where installation space is limited.
When an A-Cabinet May Be Used
- Smaller residential HVAC systems
- Compact mechanical closets
- Installations with narrow ductwork transitions
- Replacement projects where existing equipment is around 14.5 inches wide
If your existing furnace, coil, or air handler cabinet measures close to 14.5 inches wide, you may be looking at an A-Cabinet configuration.
MRCOOL B-Cabinet Size: 17.5 Inches Wide
The MRCOOL B-Cabinet is approximately 17.5 inches wide. This is a very common residential HVAC cabinet size and is often used in standard central ducted installations.
When a B-Cabinet May Be Used
- Standard residential central ducted systems
- Common replacement installations
- Homes with moderate heating and cooling loads
- Systems requiring more airflow than a compact A-Cabinet setup
Many homeowners replacing older central ducted equipment may find that a B-Cabinet width is close to their existing furnace, coil, or air handler size.
MRCOOL C-Cabinet Size: 21 Inches Wide
The MRCOOL C-Cabinet is approximately 21 inches wide. This cabinet size is commonly used for larger central ducted HVAC systems that require additional airflow capacity.
When a C-Cabinet May Be Used
- Larger residential homes
- Higher-capacity central ducted systems
- Installations with increased airflow requirements
- Systems where a wider coil, furnace, or air handler cabinet is needed
A C-Cabinet can be useful when the system requires more airflow and a larger indoor equipment footprint.
MRCOOL D-Cabinet Size: 24.5 Inches Wide
The MRCOOL D-Cabinet is approximately 24.5 inches wide. This is the largest common MRCOOL cabinet width in this A-through-D cabinet sizing structure.
When a D-Cabinet May Be Used
- Large residential central ducted systems
- High-BTU heating and cooling applications
- Homes requiring increased airflow capacity
- Installations with wider ductwork or larger indoor equipment requirements
A D-Cabinet is typically selected when the system design calls for a larger cabinet, greater airflow potential, or compatibility with larger indoor HVAC components.
MRCOOL Cabinet Width Comparison
| Cabinet Letter | Width | Relative Size | Best For |
|---|---|---|---|
| A-Cabinet | 14.5" | Smallest | Compact spaces and smaller systems |
| B-Cabinet | 17.5" | Small/Medium | Standard residential installations |
| C-Cabinet | 21" | Medium/Large | Larger homes and higher airflow systems |
| D-Cabinet | 24.5" | Largest | Large-capacity systems and high-airflow applications |
Why MRCOOL Cabinet Size Matters
Cabinet size matters because central ducted HVAC equipment needs to physically fit the installation space and properly match connected components. The cabinet width can affect coil fitment, furnace matching, duct transitions, airflow, and service access.
1. Equipment Compatibility
When matching a MRCOOL evaporator coil to a furnace or central ducted air handler, cabinet width helps determine whether the components are physically compatible. A coil that is too narrow or too wide may require transition pieces or additional installation work.
2. Replacement Fitment
If you are replacing an existing furnace, air handler, or evaporator coil, matching the cabinet width can make installation easier. Measuring your current cabinet width is one of the simplest ways to narrow down which MRCOOL cabinet size may fit your setup.
3. Ductwork Alignment
Central ducted systems connect to existing supply and return ductwork. A cabinet that closely matches the existing duct opening can reduce the amount of duct modification needed during installation.
4. Airflow Performance
Cabinet size can influence airflow capacity. Larger cabinets are commonly used with systems that need more airflow, while smaller cabinets are often used in compact or lower-capacity applications.
5. Service and Installation Access
Choosing the correct cabinet size can make the system easier to install, service, and maintain. And yes, future-you will appreciate not having to wrestle sheet metal in a closet designed by someone who clearly hated technicians.
How to Measure Your Existing Cabinet Size
If you are replacing an existing central ducted HVAC system, you can measure the width of your current indoor equipment to help identify the cabinet size.
- Locate your existing furnace, air handler, or evaporator coil.
- Measure the cabinet width from left to right.
- Compare your measurement to the MRCOOL cabinet size chart.
- Confirm compatibility with the specific MRCOOL model before ordering.
| If Your Existing Cabinet Width Is About... | Likely Cabinet Size |
|---|---|
| 14.5 inches | A-Cabinet |
| 17.5 inches | B-Cabinet |
| 21 inches | C-Cabinet |
| 24.5 inches | D-Cabinet |
Does Cabinet Size Determine HVAC Tonnage?
No. Cabinet size and HVAC tonnage are related, but they are not the same thing.
The cabinet size tells you the physical width of the equipment. Tonnage or BTU capacity tells you the heating and cooling capacity of the system. A larger cabinet is often used with larger-capacity equipment, but you should always verify the exact MRCOOL model specifications before assuming compatibility.
For example, a 21-inch C-Cabinet does not automatically mean the system is a specific tonnage. It simply means the cabinet width is 21 inches.
MRCOOL Cabinet Sizes for Air Handlers, Coils, and Furnaces
MRCOOL cabinet sizing is especially important when comparing:
- Central ducted air handler cabinet sizes
- Evaporator coil cabinet widths
- Gas furnace cabinet widths
- Dual fuel system indoor equipment
- Heat pump and furnace matching combinations
When building a complete central ducted MRCOOL system, the air handler, coil, furnace, and condenser must be selected based on proper compatibility, capacity, airflow, and installation requirements.
MRCOOL Cabinet Size FAQ
What is a MRCOOL A-Cabinet?
A MRCOOL A-Cabinet is a 14.5-inch-wide cabinet used on select central ducted indoor HVAC equipment such as air handlers, evaporator coils, or furnaces.
What is a MRCOOL B-Cabinet?
A MRCOOL B-Cabinet is a 17.5-inch-wide cabinet. This is a common residential cabinet size used in many central ducted HVAC applications.
What is a MRCOOL C-Cabinet?
A MRCOOL C-Cabinet is a 21-inch-wide cabinet, commonly used for larger residential systems or applications requiring more airflow capacity.
What is a MRCOOL D-Cabinet?
A MRCOOL D-Cabinet is a 24.5-inch-wide cabinet. It is typically used for larger-capacity central ducted systems and high-airflow applications.
Are MRCOOL cabinet sizes the same as furnace widths?
In many cases, cabinet size refers directly to the width of the furnace, coil, or air handler cabinet. However, you should always confirm the specific product dimensions before ordering.
How do I know which MRCOOL cabinet size I need?
Start by measuring your existing indoor equipment width, checking the required system capacity, and verifying compatibility between the air handler, coil, furnace, and condenser.
Need Help Choosing the Right MRCOOL Cabinet Size?
Choosing the correct MRCOOL cabinet size can help prevent installation headaches, ductwork issues, and equipment compatibility problems.
At MRCOOL DIY Direct, we help customers select compatible MRCOOL central ducted systems, air handlers, evaporator coils, furnaces, and accessories. Whether you are replacing an existing system or building a new central ducted setup, our team can help you find the right equipment for your home.
Shop MRCOOL central ducted systems, air handlers, coils, and furnaces today at MRCOOL DIY Direct.
Summary
MRCOOL cabinet sizes make it easier to identify the width of central ducted air handlers, evaporator coils, and furnaces. The common MRCOOL cabinet sizes are A-Cabinet 14.5 inches, B-Cabinet 17.5 inches, C-Cabinet 21 inches, and D-Cabinet 24.5 inches. Understanding these cabinet widths can help homeowners and installers choose compatible MRCOOL central ducted HVAC equipment.
