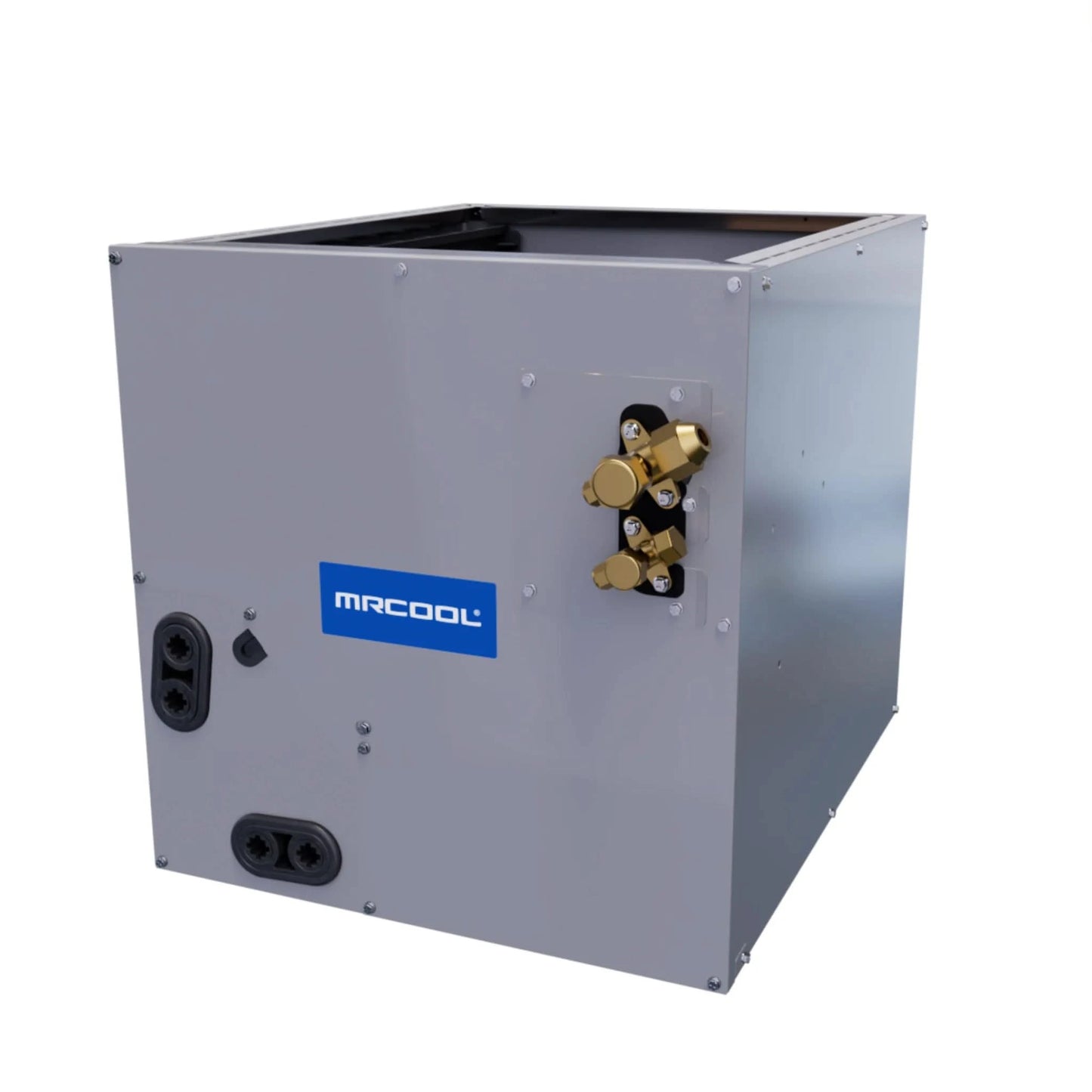

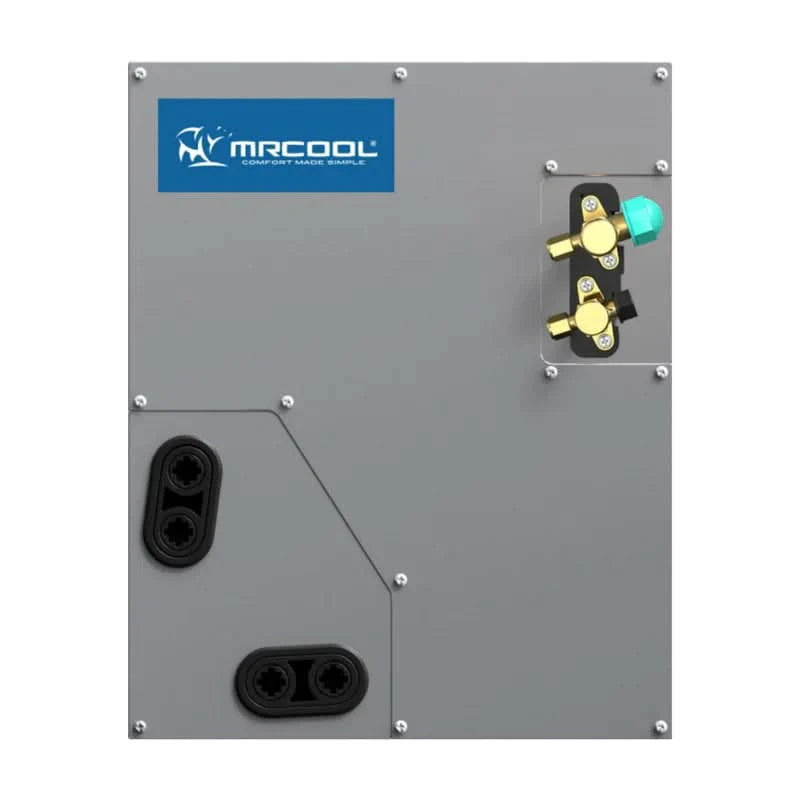

4–5 Ton Cased A-Coil – 24.5” Width – Multi-Position – R-454B – Pre-Charged – Model MCMP4860DOTB
Couldn't load pickup availability
4–5 Ton Cased A-Coil for High-Capacity HVAC Applications
Designed for high-capacity residential HVAC systems, this 4 to 5 ton cased A-coil delivers efficient heat transfer and simplified installation. Pre-charged with R-454B refrigerant, it reduces setup time while supporting modern efficiency standards and environmentally responsible operation.
Key Features
- 4–5 Ton Capacity – Ideal for larger residential HVAC systems
- Pre-Charged with R-454B – Reduces installation time and supports low GWP refrigerant standards
- Multi-Position Installation – Supports upflow, downflow, and horizontal applications
- TXV Metering Device – Optimized refrigerant control for improved efficiency
- Aluminum Coil Construction – Corrosion-resistant design for long-term durability
- Integrated Drain System – Dual front drains and side drain pan for horizontal installs
- A2L Leak Detection Sensor – Added safety for modern refrigerant systems
- 24.5” Cabinet Width – Designed for maximum airflow in high-capacity systems
Performance & Compatibility
This A-coil is designed to pair with compatible condensers, heat pumps, and furnaces to create a complete HVAC system. Its higher tonnage and larger cabinet size make it ideal for larger homes and systems requiring increased airflow and performance.
Installation & Flexibility
Supporting upflow, downflow, and horizontal configurations, this coil provides flexibility for installation across a wide range of residential applications. The larger cabinet supports proper airflow in high-capacity systems while maintaining compatibility with standard HVAC layouts.
Technical
| Tonnage | 4–5 Ton |
| Refrigerant Type | R-454B |
| Metering Device | TXV |
| Liquid Line Size | 3/8" |
| Suction Line Size | 3/4" |
| Installation Type | Upflow / Downflow / Horizontal |
| Cabinet Width | 24.5" |
Dimensions & Weight
| Width | 24.5" |
| Depth | 21" |
| Height | 28" |
| Weight | 81 lbs |
Durability & Build Quality
Constructed with corrosion-resistant aluminum, this A-coil is built for long-term durability and efficient heat transfer. Its design ensures consistent performance across high-capacity HVAC systems.
Warranty
- 10-Year Limited Parts Warranty
Build a Complete System
Pair this A-coil with a compatible condenser and furnace to create a complete heating and cooling system. Ideal for large residential installations requiring maximum performance and efficiency.
No package information available for this product.
Download installation manuals, spec sheets, and warranty documents for this system.
No documents available for this product.
No Q&A content set for this product.
No helpful articles linked for this product.
Upgrade Faster with MRCOOL Pre-Charged A-Coils
MRCOOL pre-charged A-coils are designed to simplify HVAC upgrades without sacrificing performance. Built for use with MRCOOL No-Vac® line sets, these coils eliminate the need for vacuuming and manual refrigerant charging, making installation faster, easier, and more accessible for both homeowners and professionals. Whether you're replacing an existing coil or building a high-efficiency system, MRCOOL delivers reliable comfort with less hassle.
No Vacuum Required Installation
Factory Pre-Charged with R-454B Refrigerant
High-Efficiency Heating & Cooling Performance
Compatible with Existing Furnaces & Systems
Installation Notice: MRCOOL pre-charged A-coils are designed for simplified installation using No-Vac® line sets. System compatibility, electrical, and local code requirements should always be verified before installation. For gas furnace integration, professional installation may be required depending on your setup.
