Electronic Control Box Assembly - DIY-MULTI3-27HP230C
Fits These MRCOOL® Models
- DIY-MULTI3-27HP230C
This part may fit other MRCOOL® models or generations. Always verify your model number before ordering.
Not Sure This Is The Correct Part?
Send us your indoor unit model number, serial number, and photos of the existing part before ordering. This helps us verify compatibility and reduce the chance of ordering the wrong replacement part.

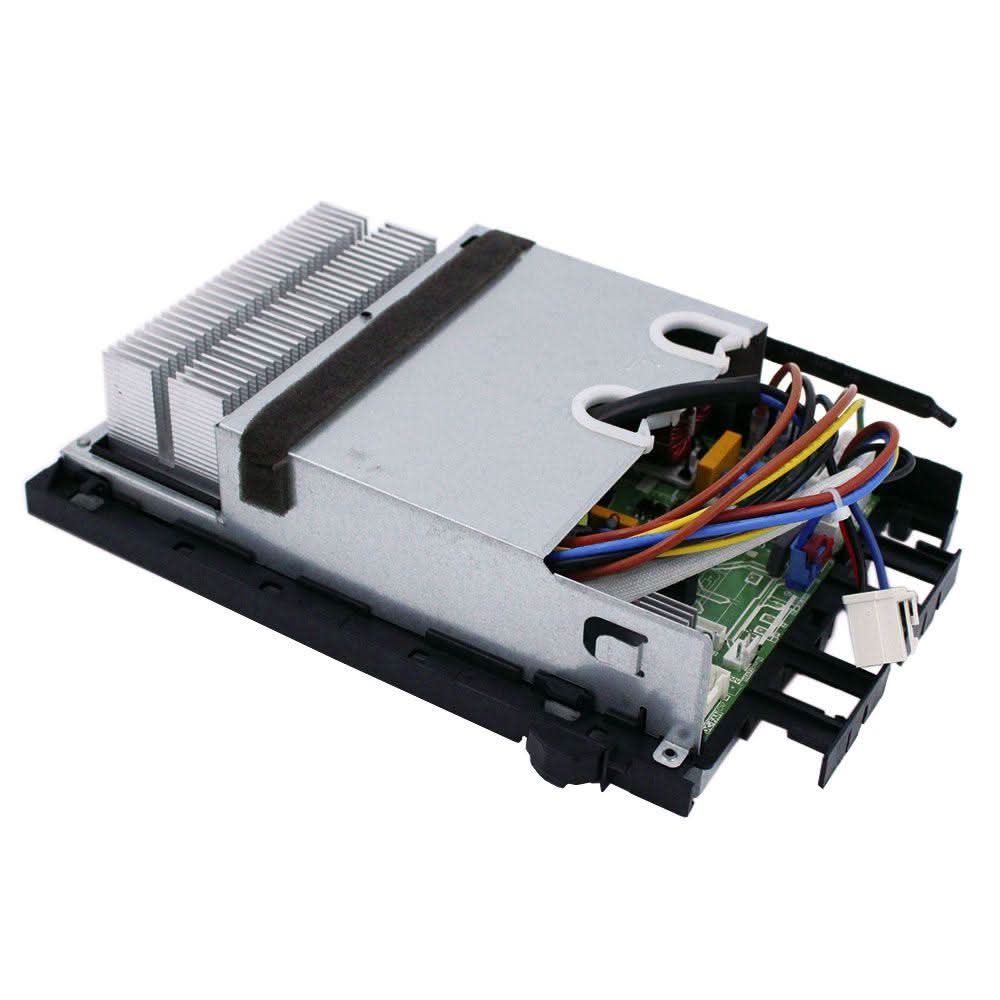

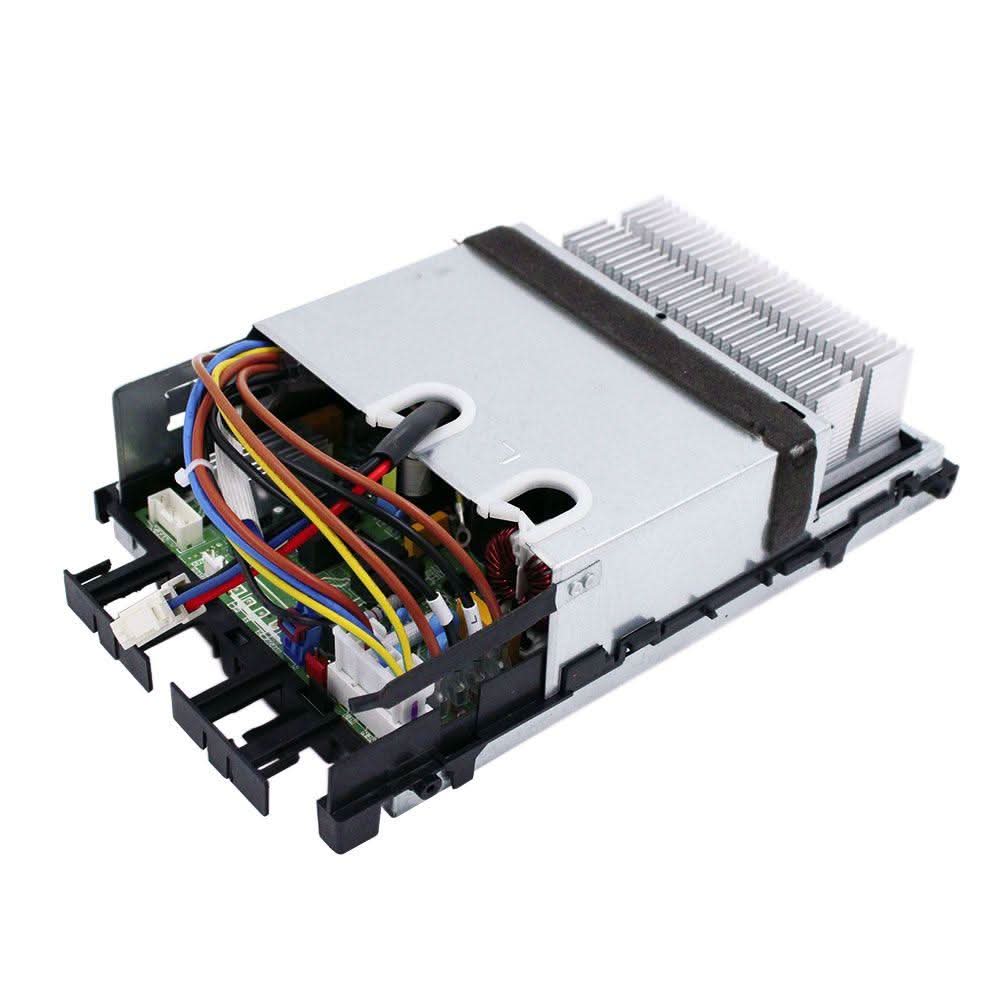

MRCOOL DIY-MULTI3-27HP230C Electronic Control Box Subassembly
The MRCOOL Electronic Control Box Subassembly is a genuine OEM replacement component designed specifically for the MRCOOL DIY-MULTI3-27HP230C multi-zone heat pump condenser. This complete control box assembly contains the electronic components responsible for managing power distribution, compressor operation, fan control, system communication, temperature regulation, diagnostics, and equipment protection.
Use this replacement electronic control box when repairing a damaged or malfunctioning factory control assembly in a compatible MRCOOL DIY multi-zone outdoor unit. Installing the correct model-specific component helps restore reliable heating and cooling performance while maintaining proper communication between the condenser and connected indoor air handlers.
Key Features
- Genuine MRCOOL OEM replacement part designed for the DIY-MULTI3-27HP230C condenser.
- Complete electronic control box subassembly for replacing the factory-installed outdoor unit control assembly.
- Controls essential system functions, including compressor operation, outdoor fan performance, system communication, diagnostics, and protective functions.
- Factory-matched connections and programming for compatible MRCOOL DIY multi-zone equipment.
- Designed for dependable operation using components manufactured to MRCOOL equipment specifications.
⚠️ Important Model Compatibility Warning
This electronic control box is compatible only with the MRCOOL DIY-MULTI3-27HP230C model with the letter “C” at the end of the model number.
It is not compatible with the earlier DIY-MULTI3-27HP230 condenser without the “C” suffix. These models may appear similar but use different electronic control components.
Verify the complete model number on the outdoor unit data plate before ordering.
Compatible MRCOOL Model
Compatible outdoor unit: MRCOOL DIY-MULTI3-27HP230C
Not compatible with: MRCOOL DIY-MULTI3-27HP230
Before Ordering
Confirm both the complete outdoor unit model number and the original control box part number before purchasing. MRCOOL may use different control assemblies across equipment generations, revisions, and production runs. Similar-looking assemblies may use different circuit boards, wiring harnesses, connectors, sensors, or control programming.
Installation and Service Information
- Disconnect all electrical power before opening or servicing the outdoor unit.
- Verify the model and part numbers against the equipment data plate and original component.
- Inspect all wiring and connectors for heat damage, corrosion, loose terminals, or failed components before installing the replacement assembly.
- Confirm all connections are secure before restoring power and completing system startup.
Electronic control box diagnosis and replacement should be completed by a qualified HVAC technician familiar with inverter-driven mini-split and multi-zone heat pump systems. Improper diagnosis or installation can damage the replacement component or other system electronics.
Restore dependable operation to your MRCOOL DIY multi-zone heat pump with the correct factory-matched DIY-MULTI3-27HP230C electronic control box subassembly.
Confirmed Fitment
| Known Compatible Models / Series |
|
|---|---|
| Compatibility Notice | This part may fit other MRCOOL® models and generations. Compatibility outside the listed models is not guaranteed without verification. |
Part Details
| Part Category | Outdoor Unit Electronics |
|---|---|
| Part Type | Outdoor Control Board |
| Brand | Control Board |
| MRCOOL® Part Number | 17222300002929 |
| Also Known As |
|
Common Symptoms
This replacement part may be needed if your system is experiencing any of the following issues:
- Outdoor unit not starting
- Communication faults
- Error codes
- Random system shutdowns
- Compressor not operating
- Outdoor fan not operating
- Power issues
- Intermittent operation
Installation Notes
This replacement part should be installed by a qualified technician or a capable installer familiar with mini split service procedures. Always disconnect power before servicing HVAC equipment.
