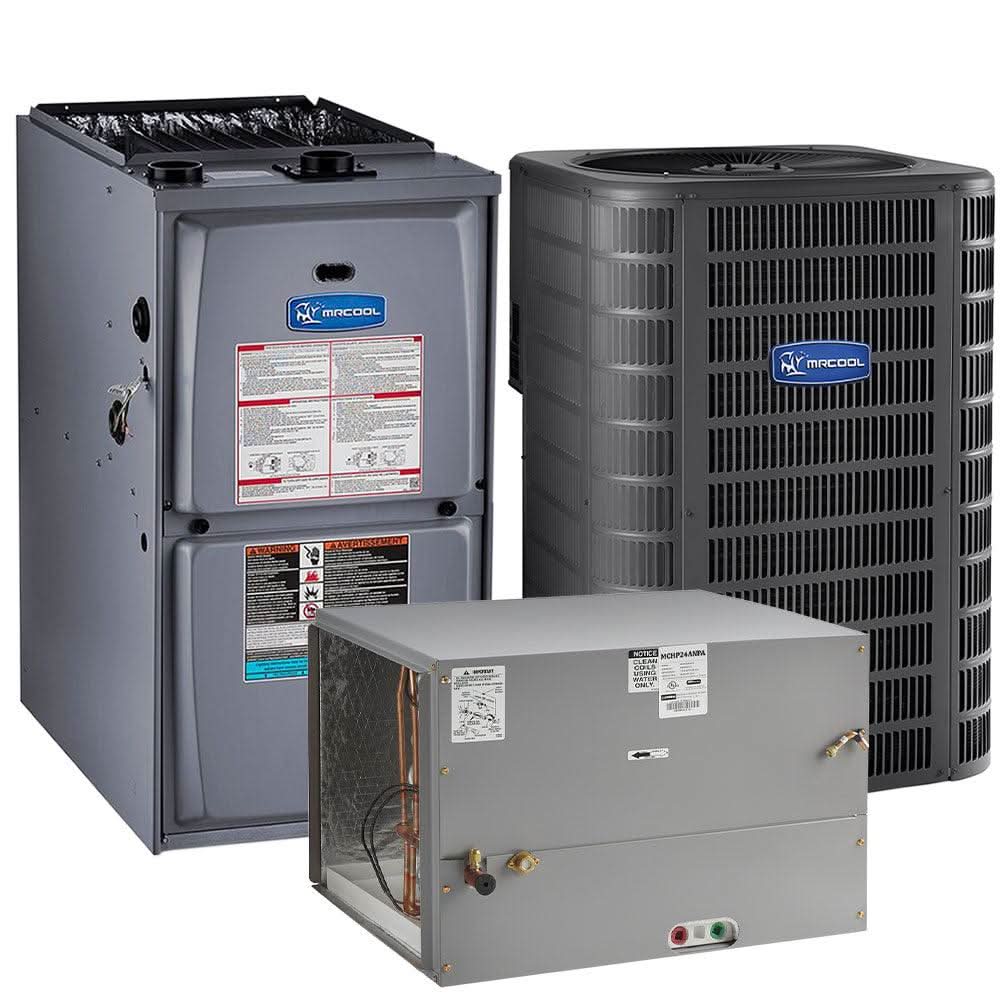

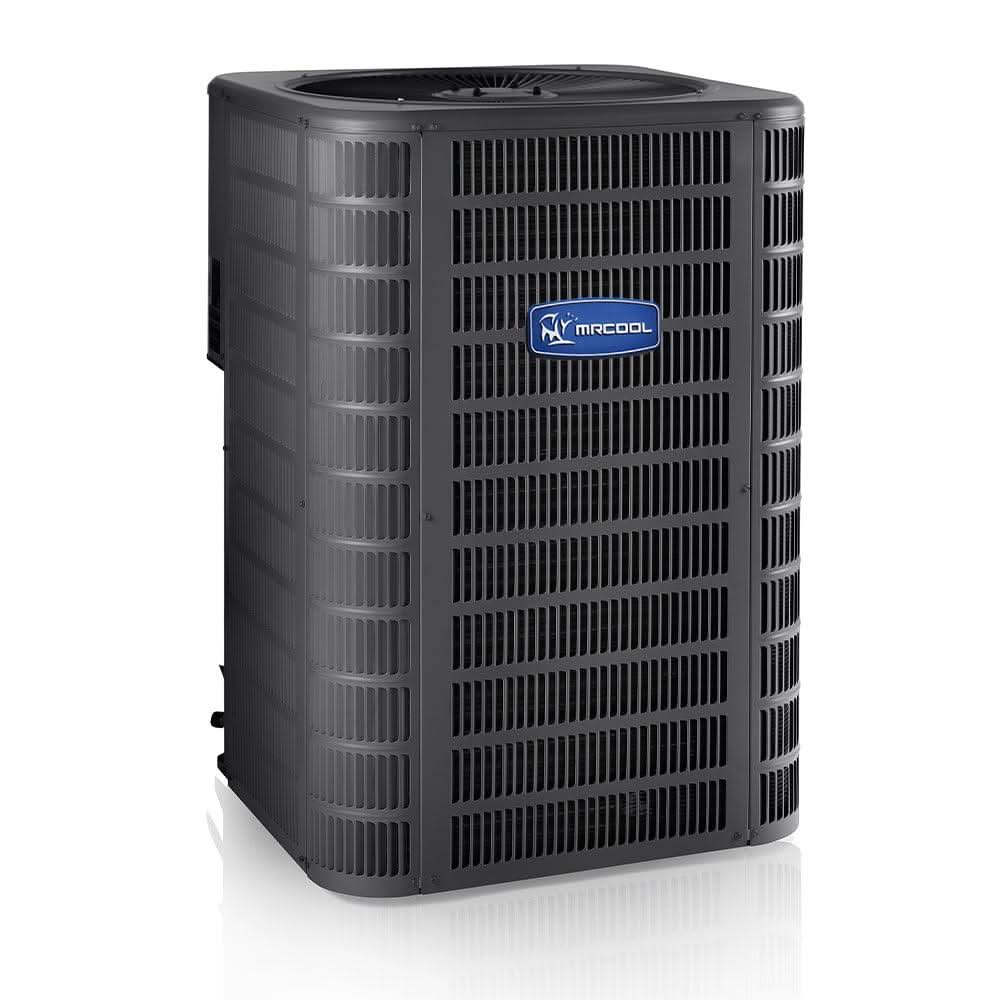

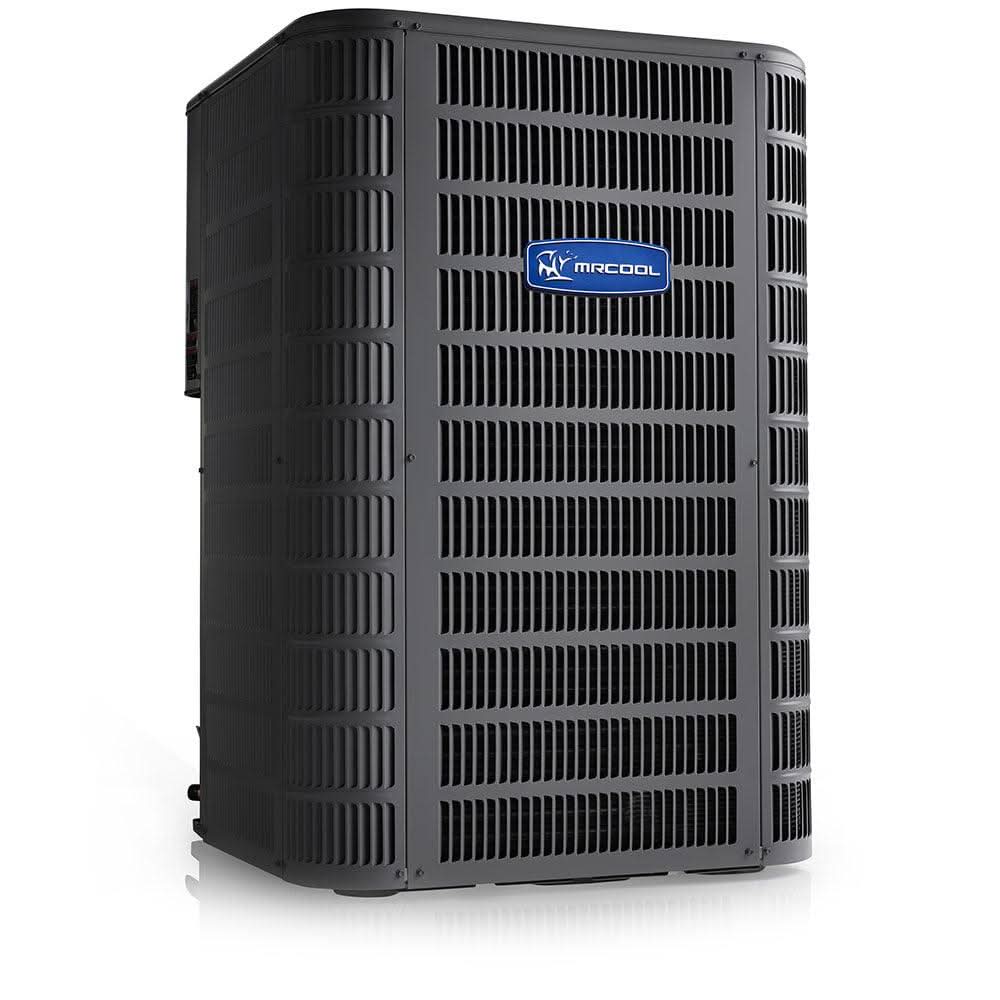

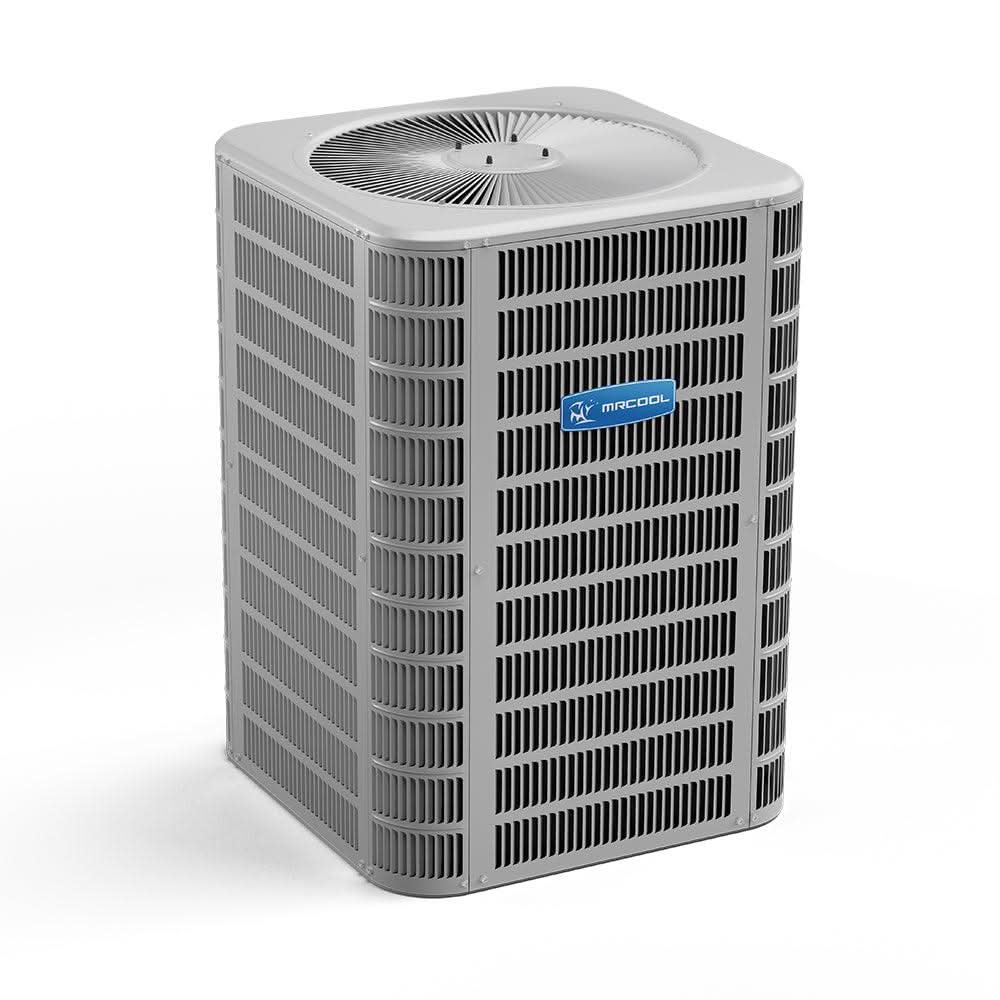

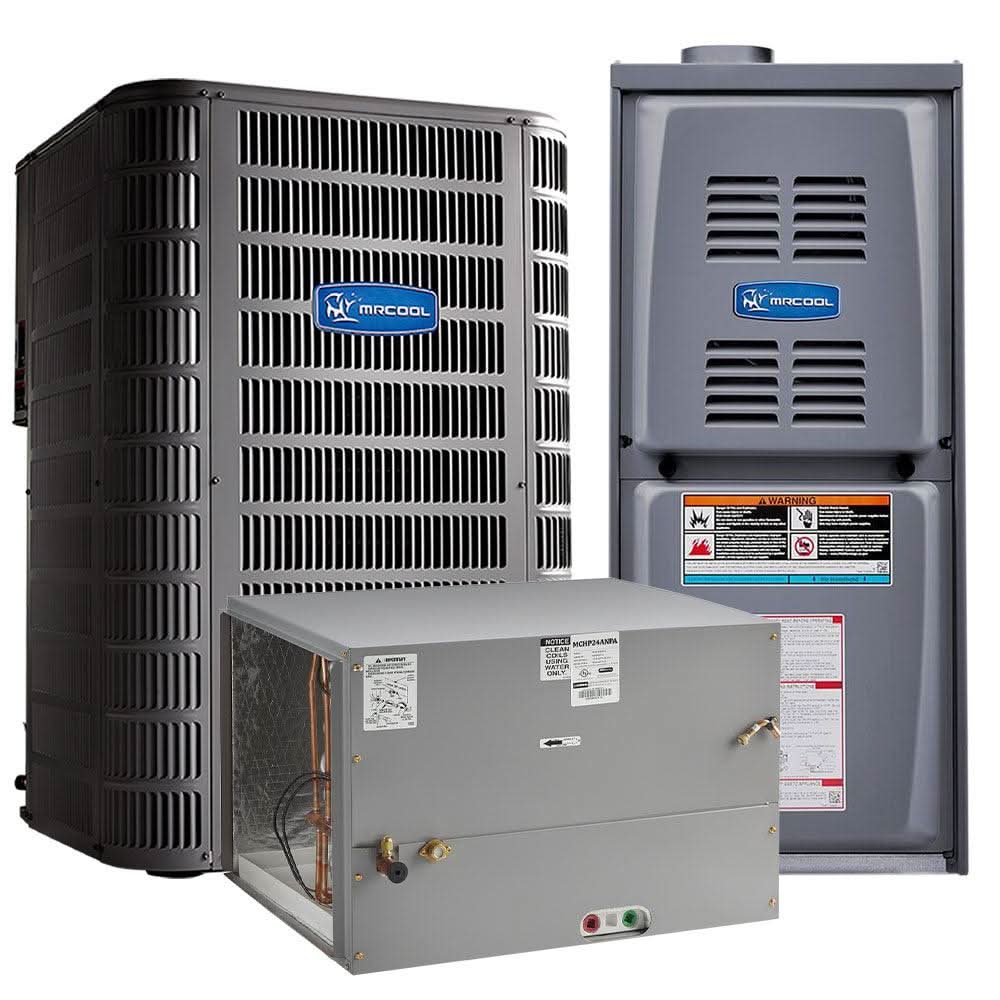

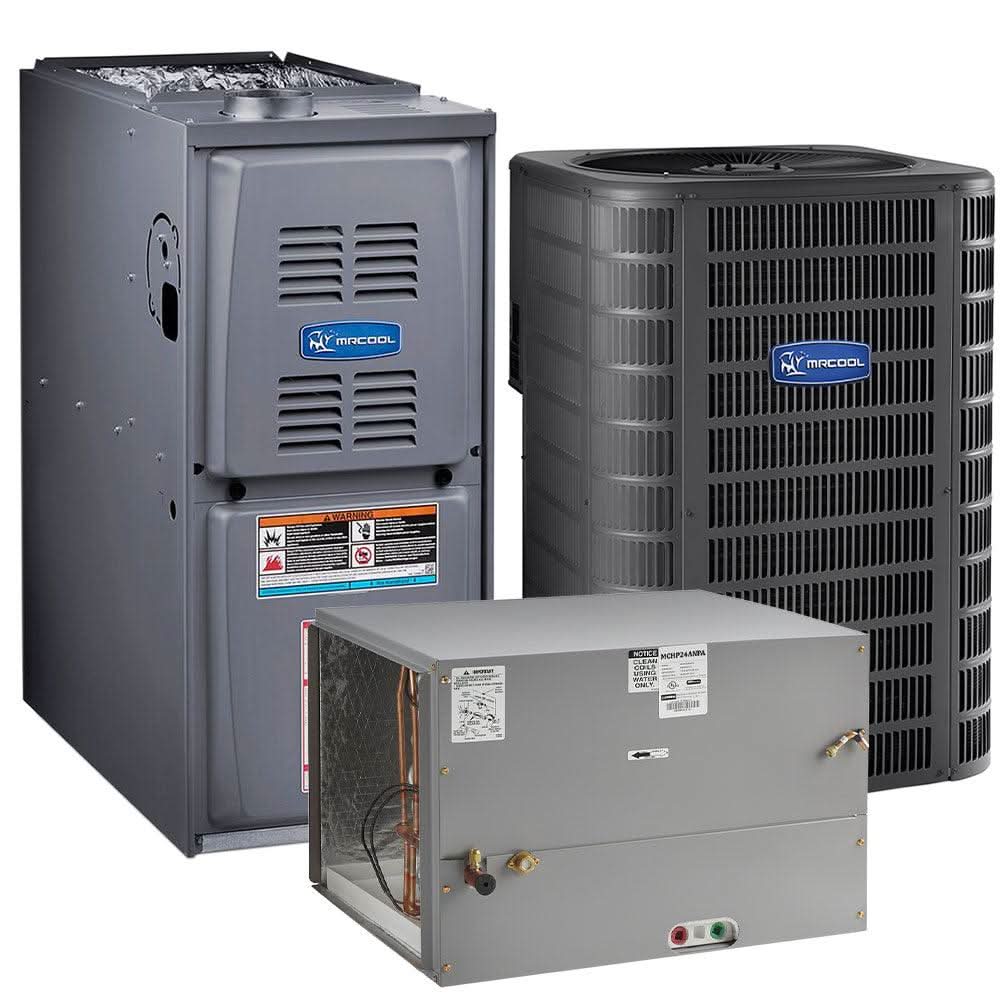

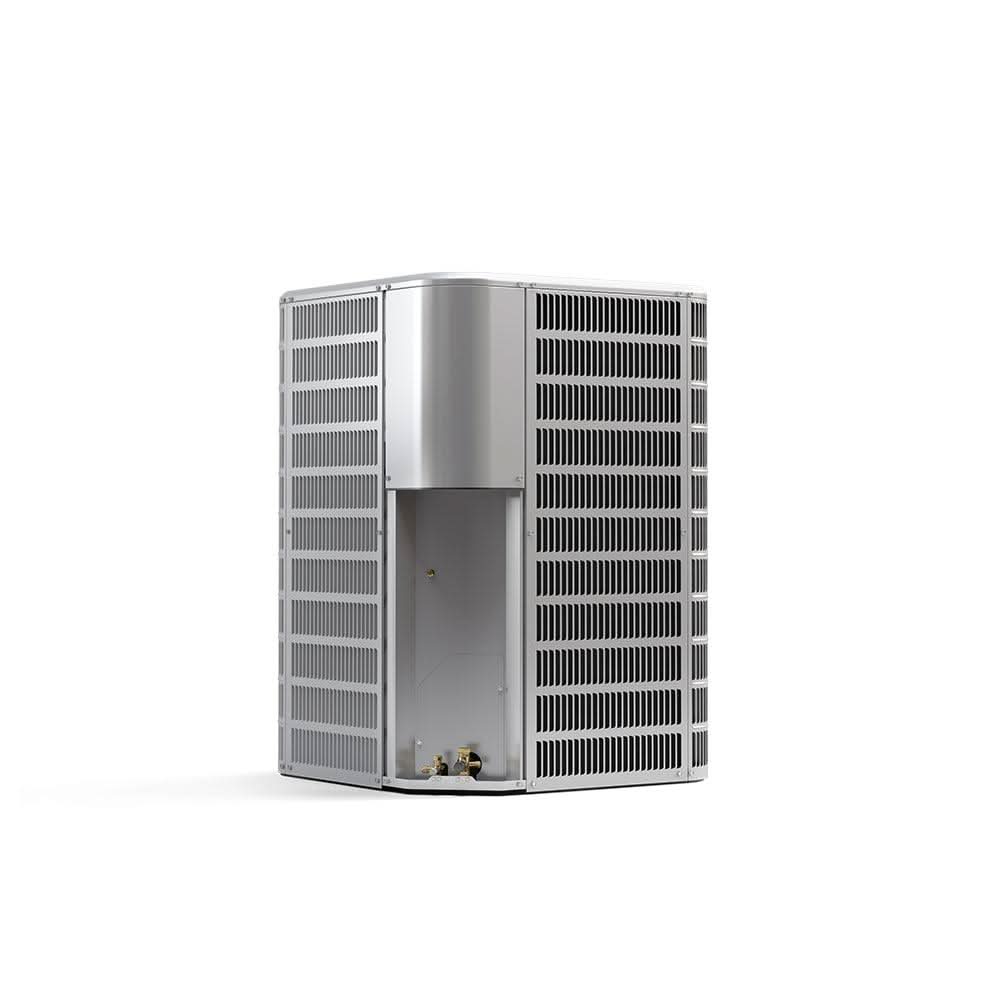

MRCOOL 1.5 Ton 18,000 BTU Split System Heat Pump, MHP15018A
Couldn't load pickup availability
Comfort and Efficiency with the MRCOOL 15 SEER Heat Pump Split System
The MRCOOL 15 SEER Heat Pump Split System is designed to keep your home comfortable and energy-efficient year-round. Featuring an enhanced tube-and-fin coil design, this system maximizes heat transfer, giving you exceptional efficiency and savings. With MRCOOL, you can enjoy a perfect blend of affordability, quality, and comfort, making it an ideal choice for your home’s central heating and cooling needs.
Key Features:

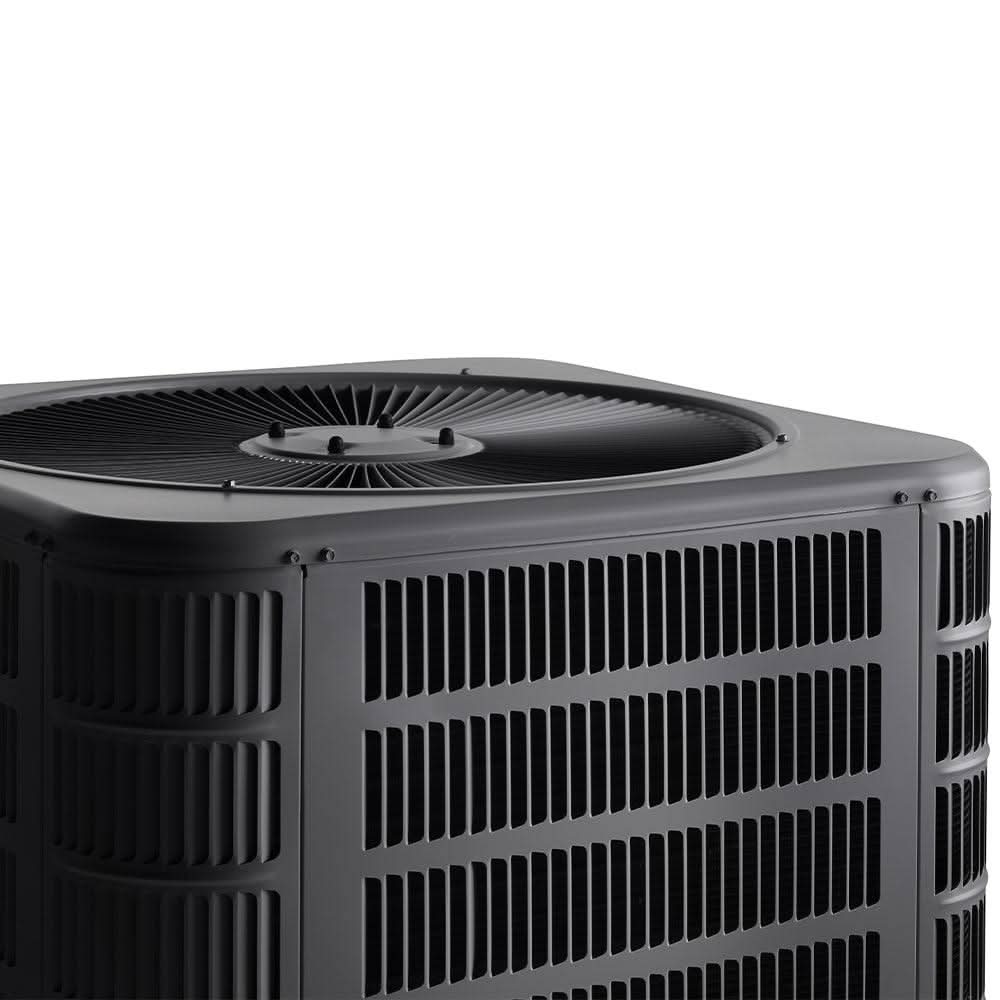

- Durable Construction: Louvered design with a baked polyester finish over galvanized steel, built to withstand harsh weather conditions.
- Debris Protection: Raised coil design helps prevent blockage and ensures optimal performance.
- CoolGuard Technology: Advanced corrosion-resistant coil extends the lifespan of your system.
- Easy Maintenance: 4-screw louver panels, corner-mounted controls, and 45-degree offset valves simplify service and upkeep.
- High Efficiency: Enhanced tube-and-fin coil design ensures superior heat transfer and energy efficiency.
- Quick Repairs: Thread-on pressure switches allow for fast, hassle-free replacements.
- Pre-Charged: Comes charged for a 15-foot line set, easing installation.
- Quiet Operation: Heavy-duty compressor sound blanket minimizes noise for a peaceful environment.
- Reliable Protection: Internal safeguards against high temperature motor overload conditions.
- Complete Package: Includes a filter drier and ships fully ETL, ETLC approved, and AHRI Certified.
- Warranty: Backed by a 10-year registered parts warranty for added peace of mind.
Choose the MRCOOL 15 SEER Heat Pump Split System for a reliable, efficient, and comfortable home heating and cooling solution.
PRODUCT SPECIFICATIONS:
| Product Dimensions | 28.25'W x 28.25'D x 37'H |
| Product Weight | 175 lbs |
| Unit Type | Split System Heat Pump |
| SEER |
15 |
| Max SEER | 14-16 |
| EER | 12 |
| COP 47 | 3.5 |
| COP 47 Part Load | 2.3 |
| HSPF | 8.2 |
| CFM |
650 |
| Tonnage | 1 1/2 |
| Cooling Capacity | 18000 |
| Heating Capacity | 17000 |
| Voltage | Requires a minimum of 208V-230V/60HZ/20A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 |
| Stage | Single |
| Max Fuse Breaker | 20 |
| Min Circuit Ampacity | 12.2 |
| Color | Gray |
| Rated Load | 9 |
| Max Coverage Area | 750 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 93 |
| Decibel Rating | 74 |
| Min Ambient Cool | 55 |
| Line Set Length | 15ft, 25ft, 35ft, 50ft |
| Max Line Set Length | 50ft |
| Line Set Fitting Type | Sweat |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 3/ 4 |
| Compressor Motor Type | Scroll |
| Condenser Fan Motor Type | Direct Drive |
| Condenser Fan Motor HP | 1/6 |
| Condenser Fan Motor RPM | 825 |
| Metering Device | TXV |
| Auxiliary Heater | Yes |
| Auxiliary Heater Sizes | 7.5kw |
| Certifications | ETL AHRI |
| Warranty | Registered 10 Year Parts Warranty |
| Base Warranty | 5 Year Parts Warranty |
| Base Parts Warranty | 5 Year Parts Warranty |
