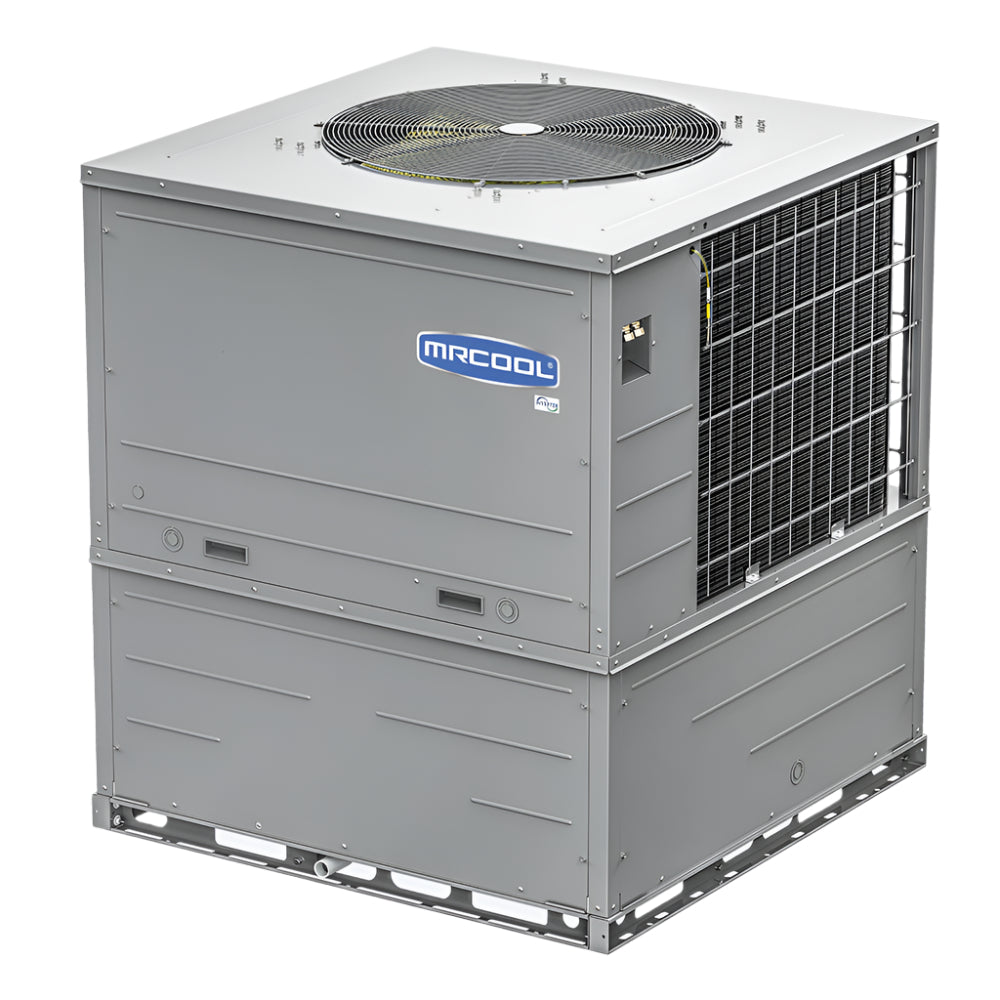

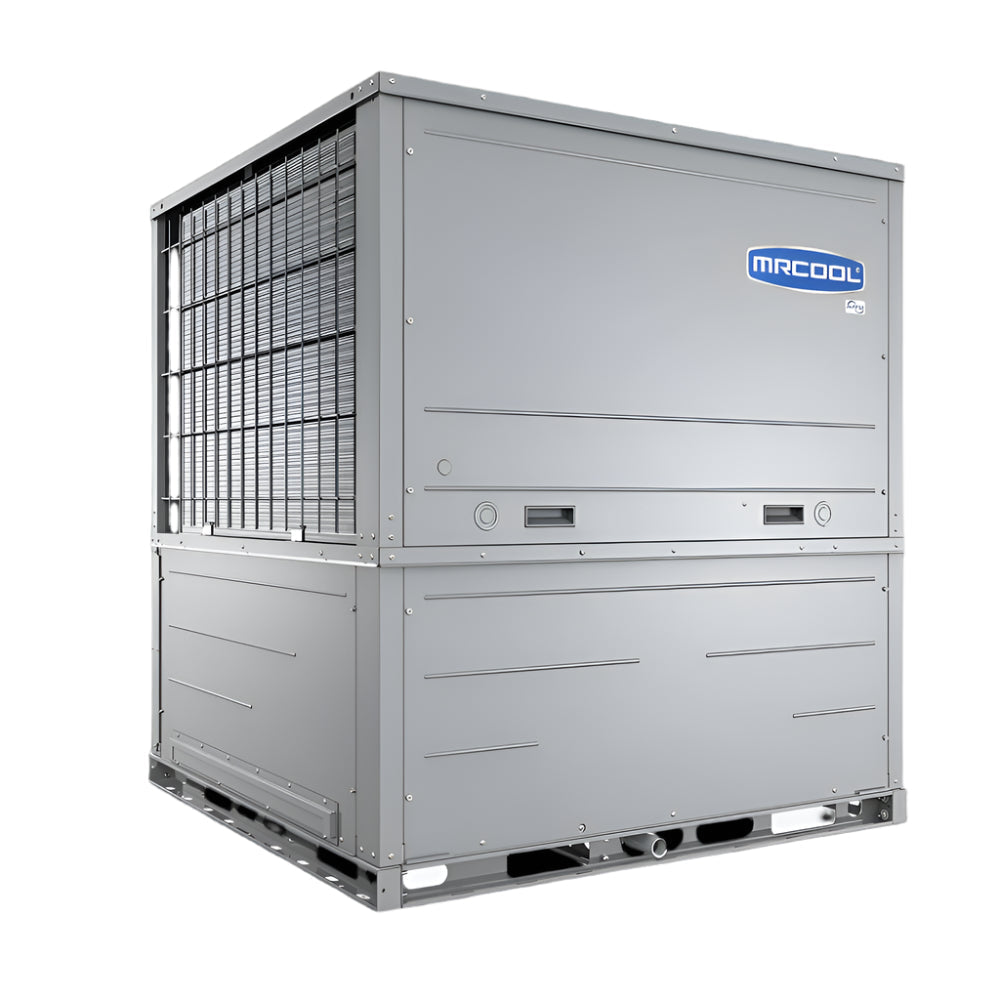

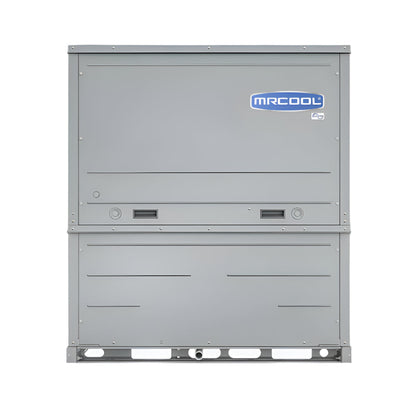

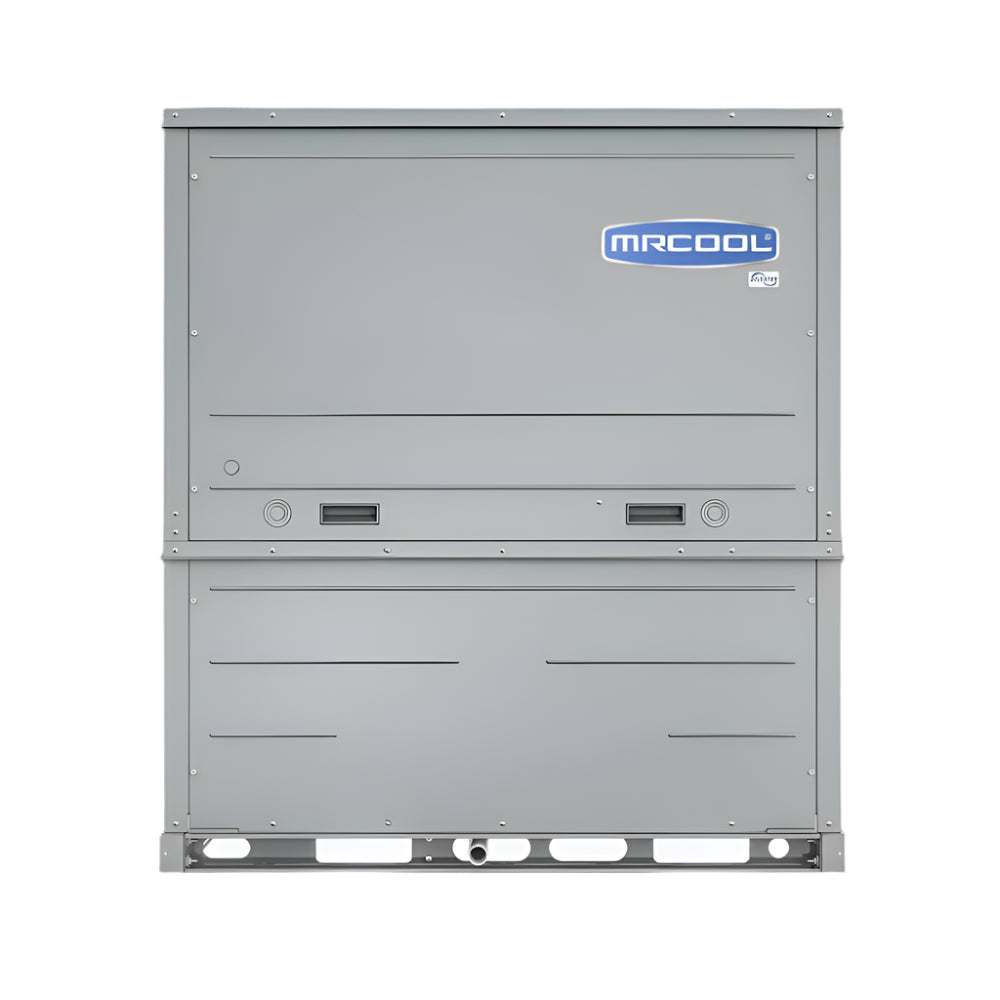

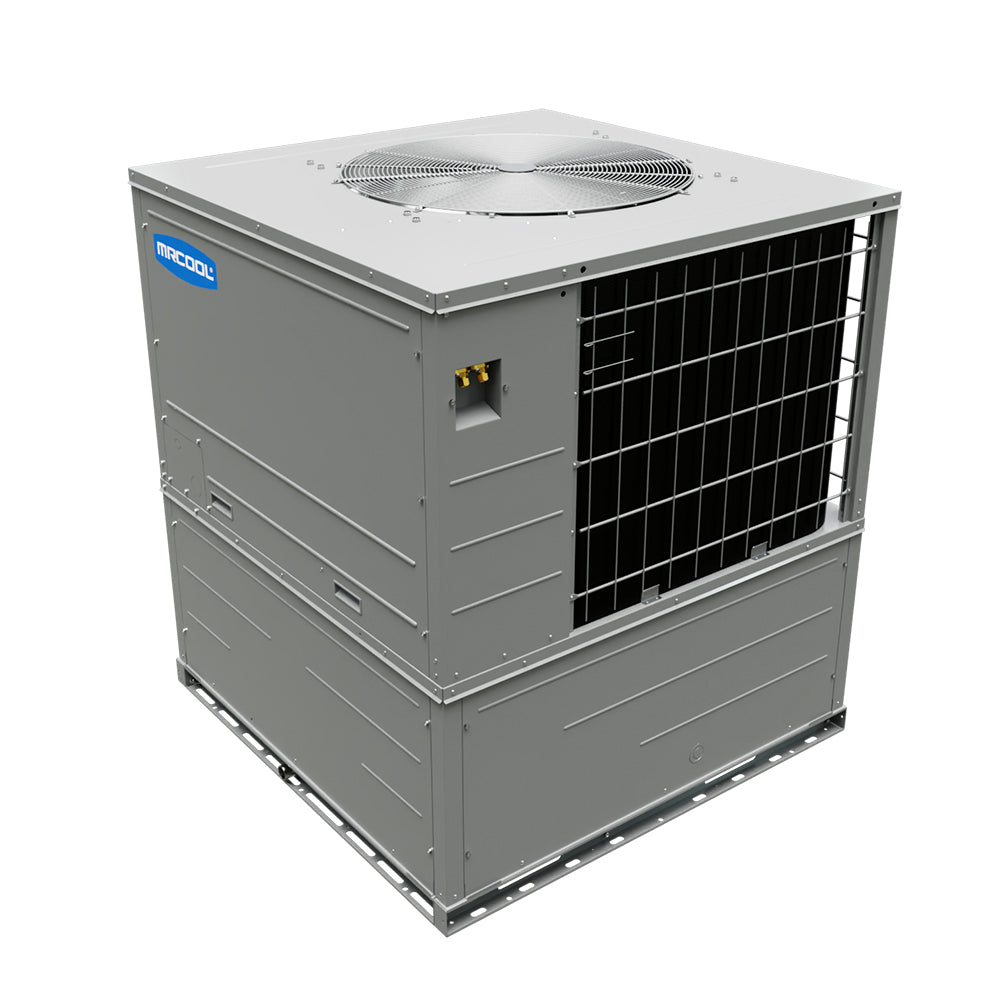

MRCOOL 5 Ton 18 SEER2 DC Inverter Packaged Heat Pump / R-32, MDPH18060D
Couldn't load pickup availability

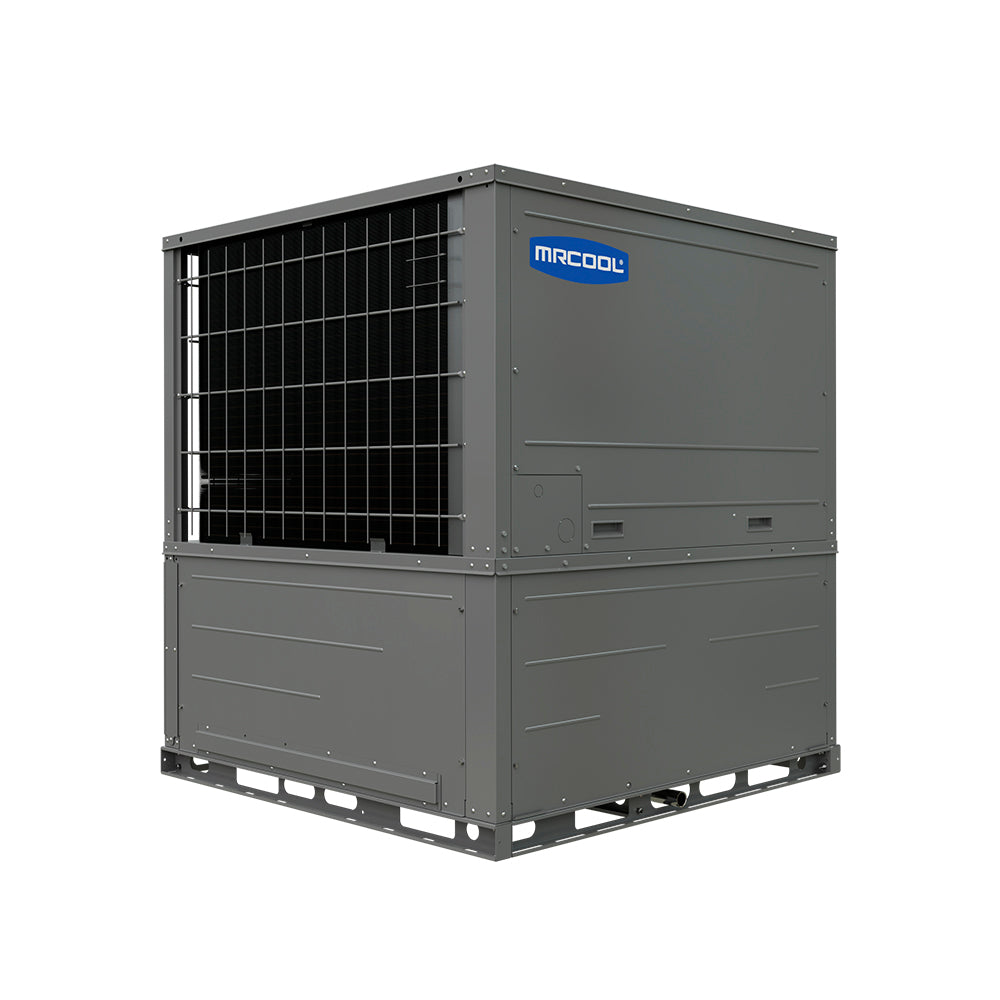

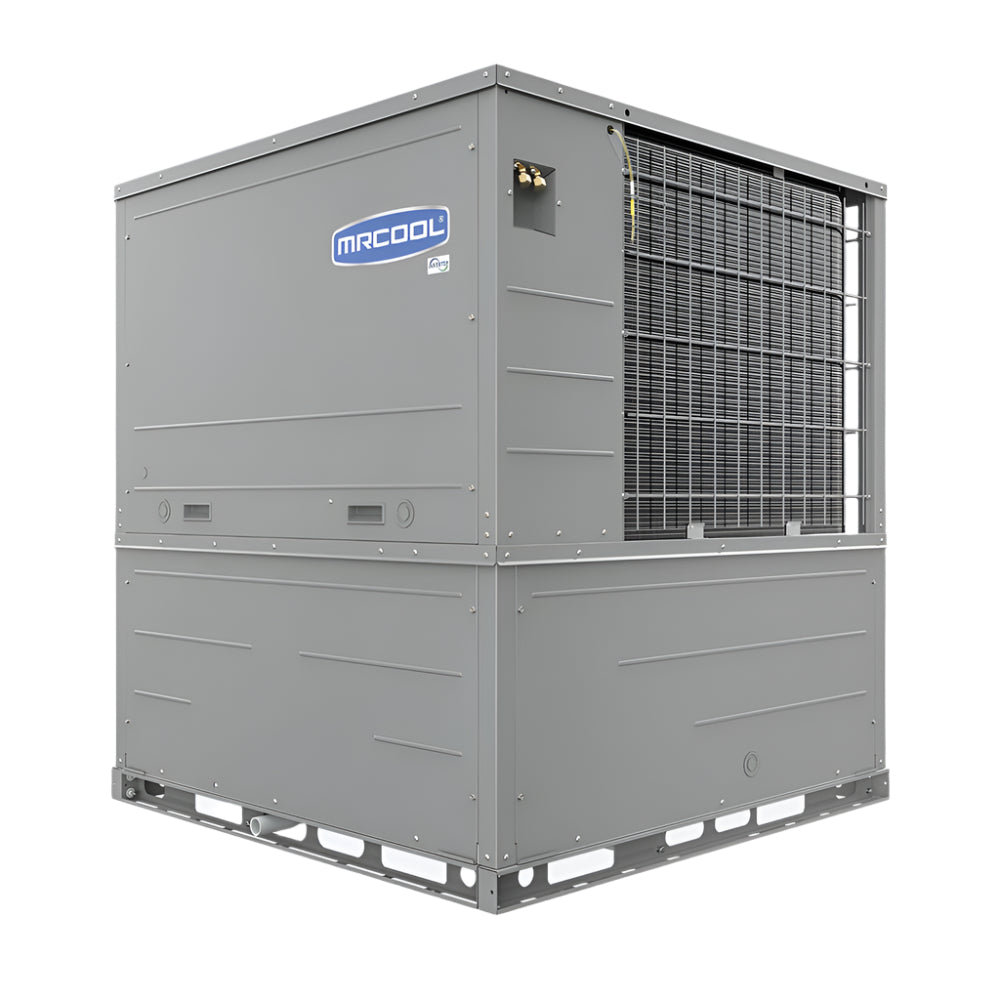

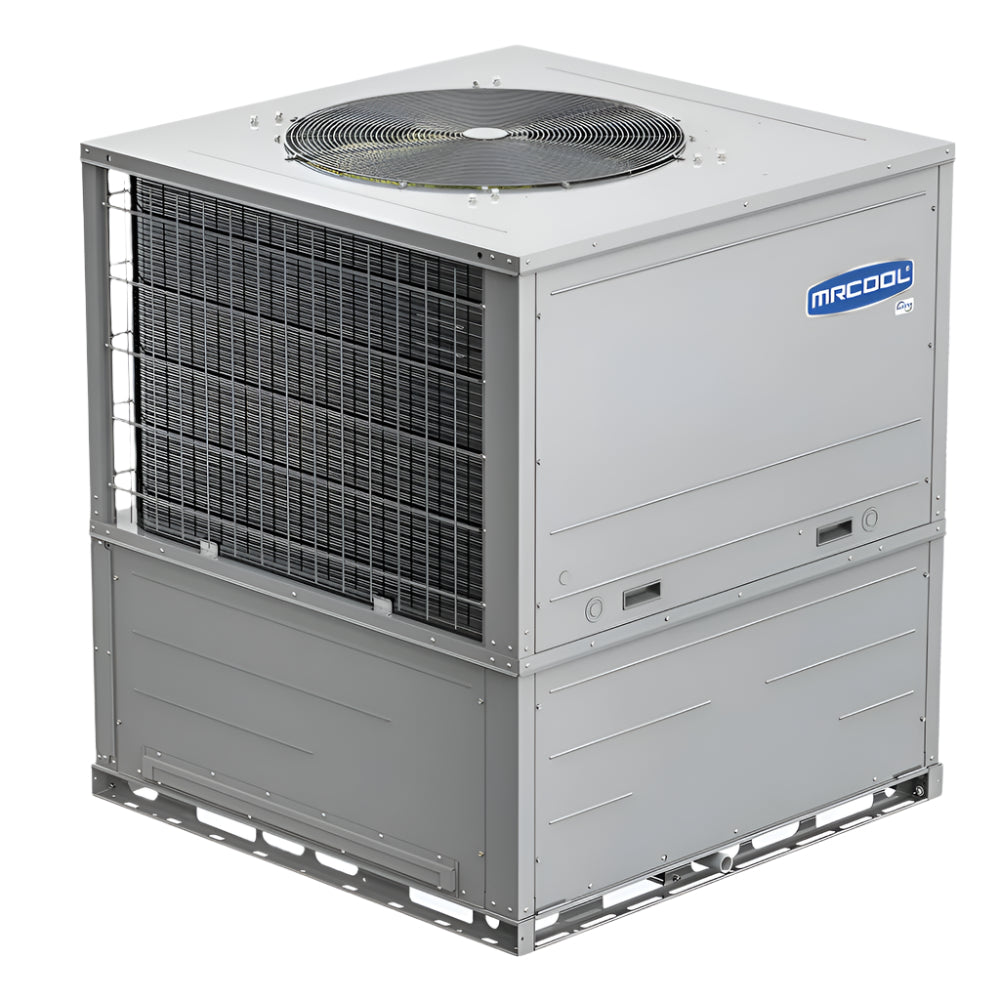

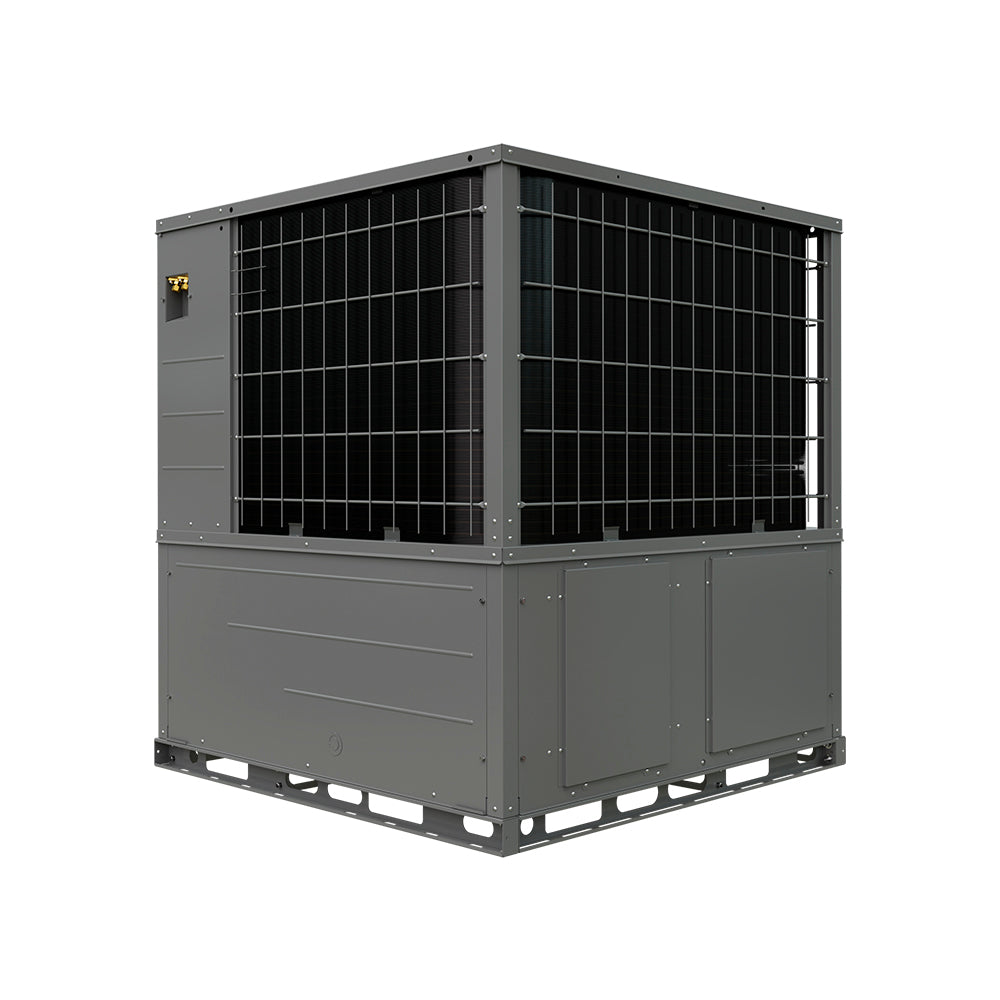

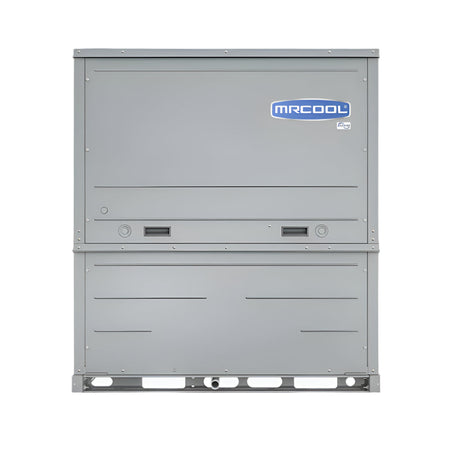

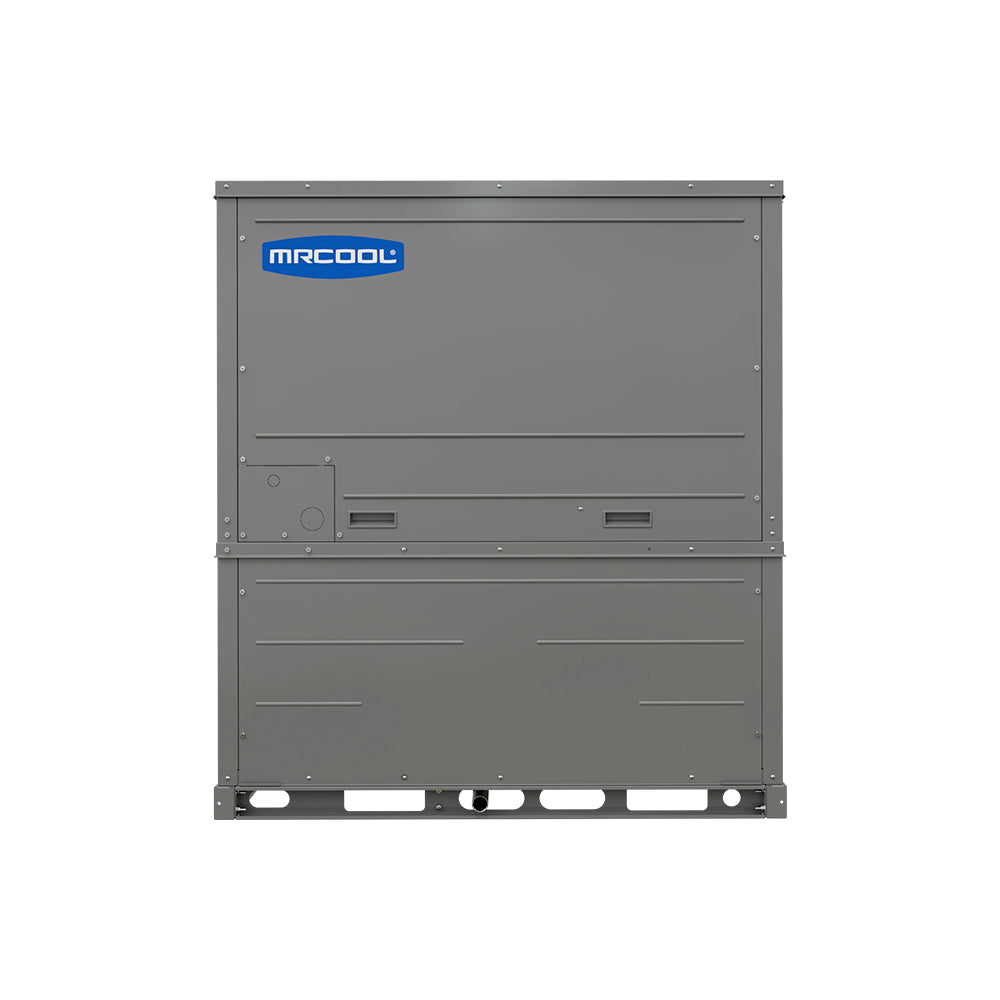

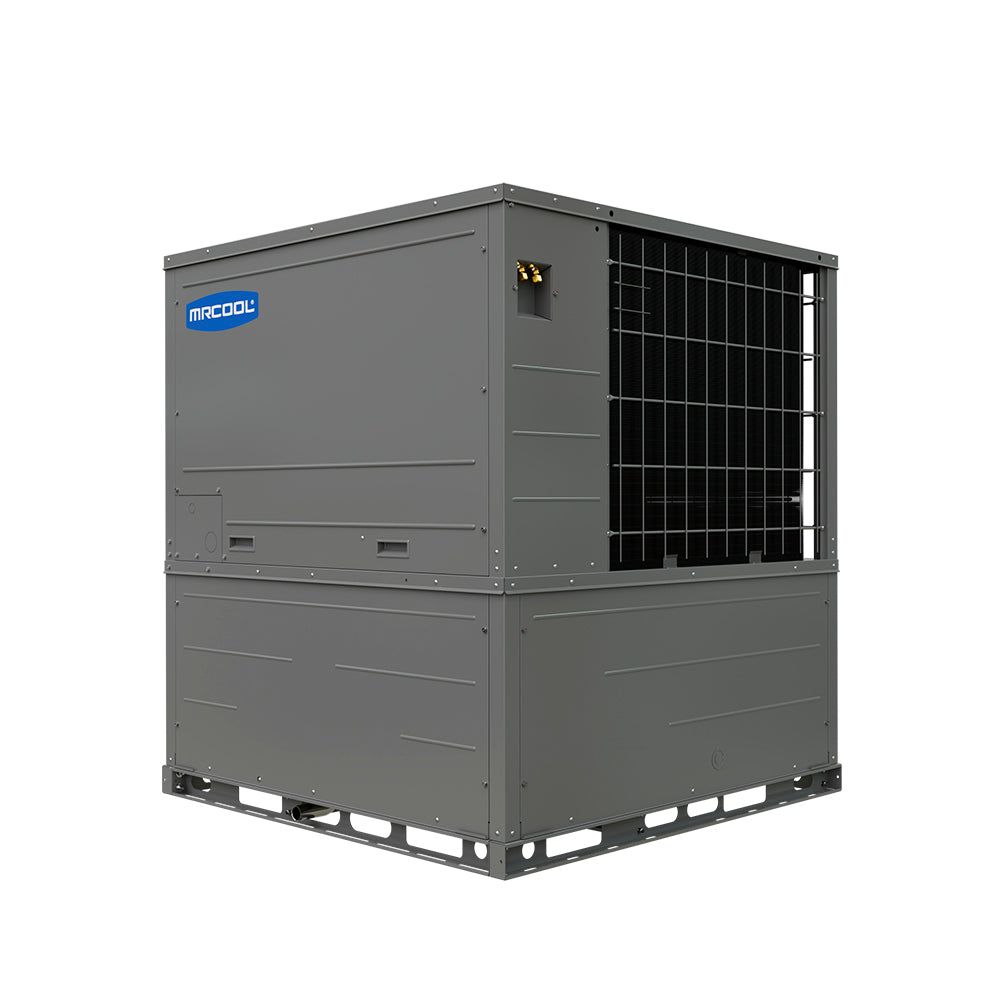

MRCOOL Universal 60K BTU Inverter Packaged Heat Pump – Model MDPH18060D
The MRCOOL Universal® 60K BTU DC Inverter Packaged Heat Pump (MDPH18060D) is a powerful all-in-one HVAC solution engineered to deliver dependable heating and cooling while reducing energy consumption and operating costs. Designed with advanced DC inverter compressor technology, this system automatically adjusts compressor speed to match the heating and cooling demands of your home in real time.
Unlike traditional HVAC systems that cycle on and off repeatedly, the inverter-driven compressor operates at variable speeds to maintain stable indoor temperatures. This results in improved efficiency, quieter operation, reduced mechanical wear, and more consistent comfort throughout the home.
With a high 18 SEER2 efficiency rating, the MRCOOL Universal 5-ton packaged heat pump delivers powerful performance while helping homeowners lower monthly energy costs. The system is engineered for extreme weather performance, providing reliable heating in temperatures as low as –22°F and efficient cooling operation in outdoor conditions up to 125°F.
The unit uses R-32 refrigerant, a modern refrigerant with lower Global Warming Potential compared to older refrigerants. This environmentally responsible refrigerant supports improved system efficiency while meeting modern environmental standards.
Installation flexibility makes the Universal Series ideal for both new HVAC installations and system replacements. The packaged unit supports horizontal and downflow configurations, allowing installers to adapt the system to a wide range of residential applications.
Built for durability and long-term reliability, the MRCOOL Universal packaged heat pump is backed by a 10-year parts and labor warranty, providing homeowners peace of mind and dependable performance for years to come.
Key Features
- Advanced DC inverter compressor technology
- 18 SEER2 high-efficiency packaged heat pump system
- Cold climate heating operation down to –22°F
- Cooling capability up to 125°F outdoor temperature
- R-32 environmentally responsible refrigerant
- Flexible installation with horizontal and downflow configurations
- Energy Star Cold Climate Certified
- Quiet inverter-driven compressor operation
- Intelligent defrost control
- 10-year parts and labor warranty included
Performance
| Cooling Capacity | 56,000 BTU |
| Heating Capacity | 57,000 BTU |
| Tonnage | 5 Ton |
| SEER2 | 18 |
| EER2 | 11.2 |
| HSPF2 | 8.3 |
| Voltage | 208/230V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Refrigerant | R-32 |
| Refrigerant Volume | 204.6 oz |
| Maximum Breaker | 45A |
| Minimum Circuit Ampacity | 39.1A |
| Sound Level | 68 dBA |
System Components
- Compressor: Inverter Rotary
- Condenser Fan Motor: Direct Drive
- Condenser Fan RPM: 720
- Blower Motor: Direct Drive
- Blower Speeds: 9
- Blower RPM: 1060
- Metering Device: Electronic Expansion Valve (EEV)
Optional Electric Heat Kits
- 6kW Electric Heat Kit
- 9kW Electric Heat Kit
- 12kW Electric Heat Kit
Dimensions & Weight
| Width | 44 in |
| Depth | 44 in |
| Height | 49.25 in |
| Net Weight | 628.3 lbs |
| Shipping Weight | 650 lbs |
Warranty
- 10 Year Parts Warranty
- 10 Year Labor Warranty
The MRCOOL Universal 60K BTU packaged heat pump offers powerful heating and cooling performance, advanced inverter efficiency, and environmentally responsible operation, making it an excellent solution for homeowners seeking reliable whole-home comfort.
