Package Heat Pump

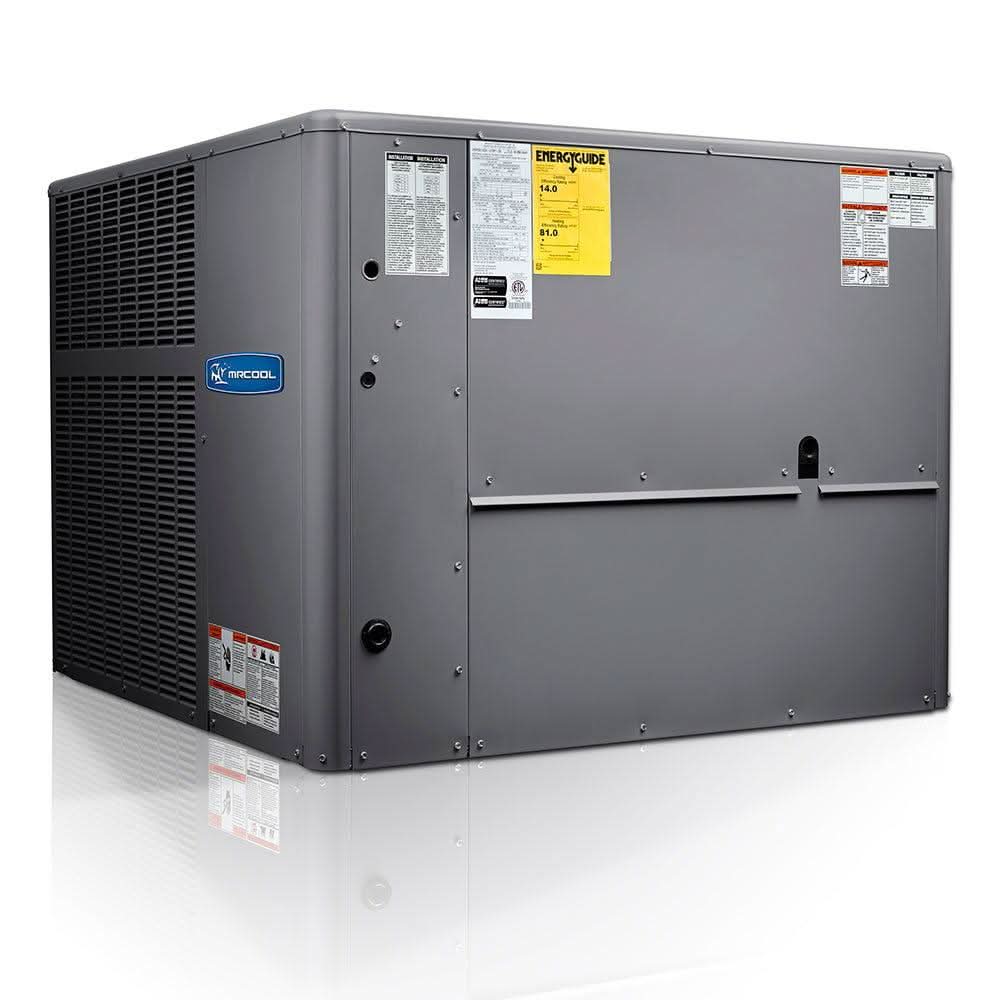

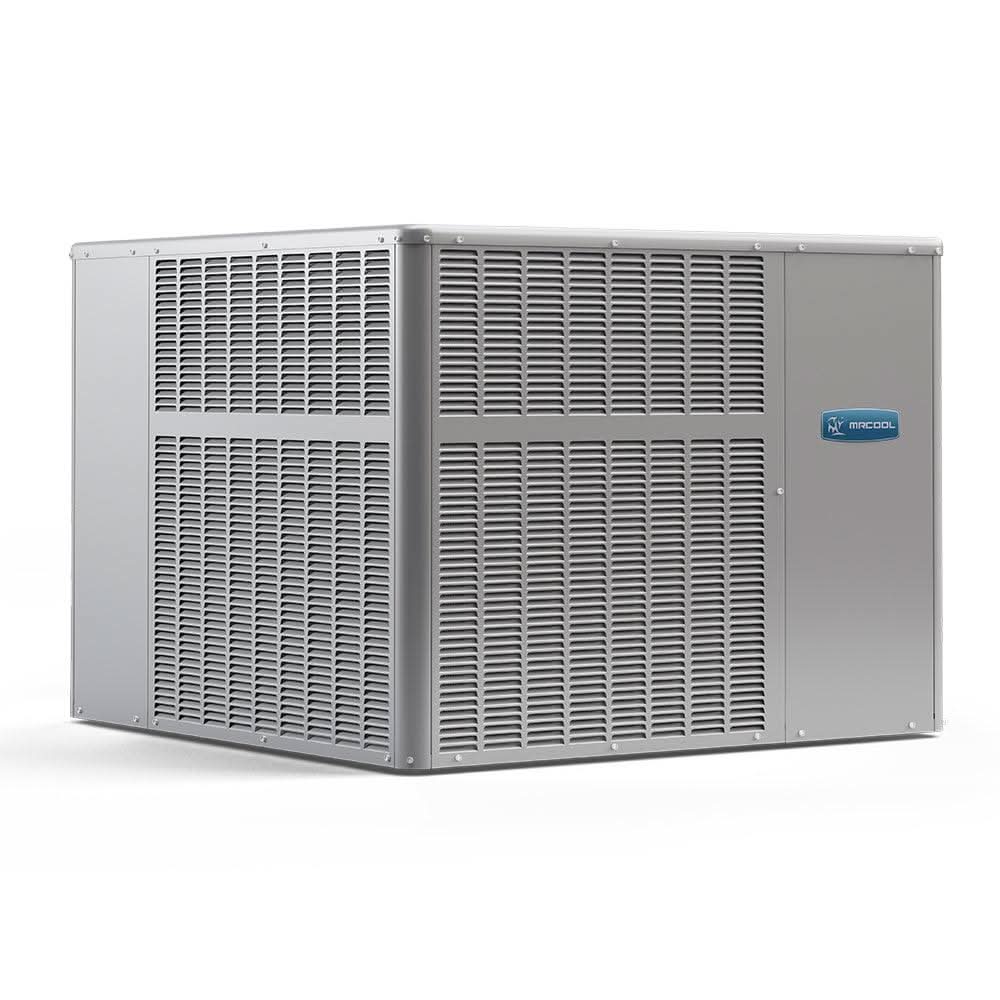

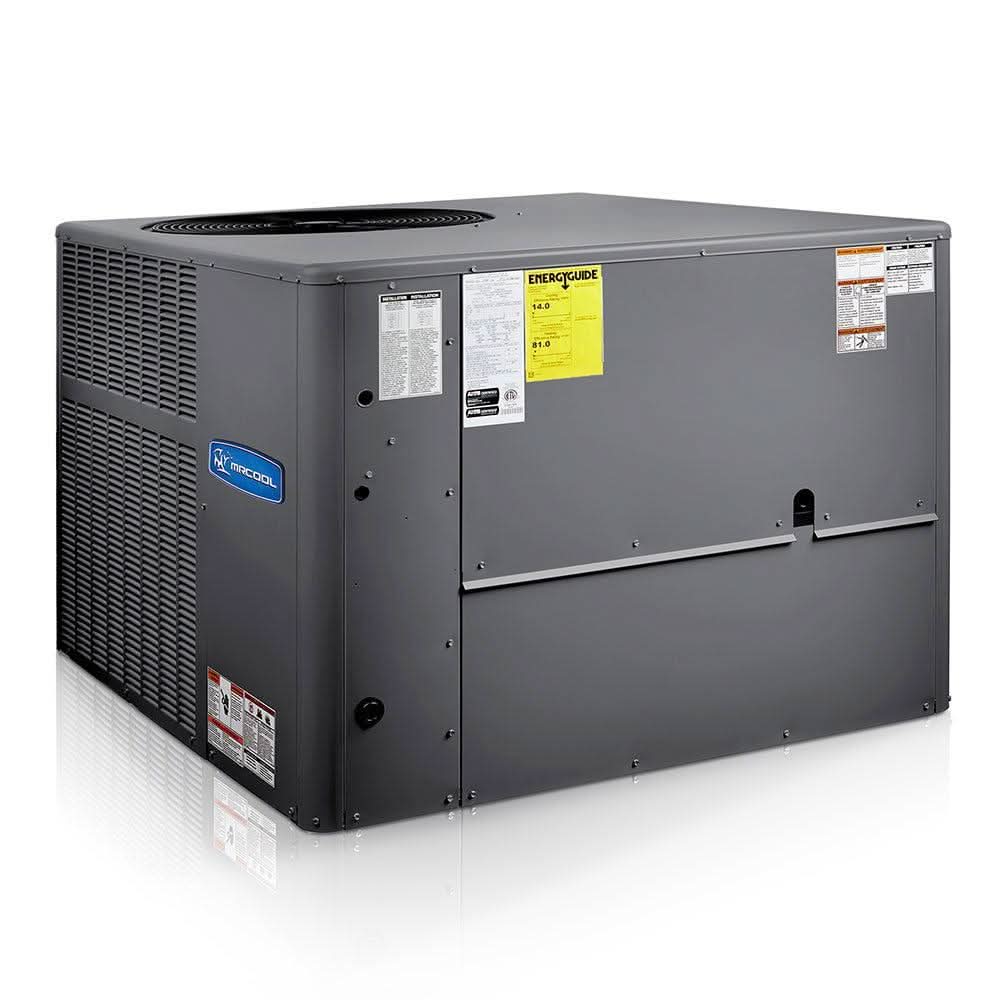

MRCOOL 5 Ton 57,000 BTU 14 SEER R-410A Multi-Position Packaged Heat Pump, MPH601M414A

MRCOOL 5 Ton 57,000 BTU 14 SEER R-410A Multi-Position Packaged Heat Pump, MPH601M414A

Regular price $5,159.99 USD
Regular price $6,346.99 USD Sale price $5,159.99 USD
Save $1,187.00 Sold out
Shipping calculated at checkout.

SKUMPH601M414A

TypePackaged Heat Pumps

Refrigerant Type: R-410A

❌ Out of Stock

This product is currently unavailable.

View full details

Have questions or need help selecting the perfect Mini Split system?

Talk with our expert HVAC team members now for assistance!!

PRODUCT DESCRIPTION

A MRCOOL packaged heat pump combines high performance cooling and powerful heating in one convenient, easy-to-install system. These units are competitively priced and operate at 14 SEER efficiency. A MRCOOL packaged heat pump will be a great solution for tough air comfort problems in a suburban home, commercial office space, condominium, seaside villa, or wherever you desire.

MRCOOL packaged heat pumps combine superior product quality, energy efficiency, quiet operation, and financial value. The units come standard with a high performance compressor and eco-safe, chlorine-free R-410A refrigerant. This is truly an all-in-one packaged unit that will deliver energy efficient air comfort with minimal environmental impact.

Key Features

  • Warranty is 10 years on all parts if registered, 5 years if not (no licensed tech required)
  • 14 SEER efficiency
  • Designed for easy and convenient installation
  • Optional electric heat available
  • R-410A environmentally friendly refrigerant
  • Built in short cycle protection to protect the compressor
  • One piece 'no leak' top design
  • Sloped drain for improved indoor air quality
  • Louvered panel coil protection
  • Insulation to minimize heat loss plus reduce sound
  • Built in 'quiet shift' operation during defrost on select models
  • Efficient constant torque motor for wide airflow range

PRODUCT SPECIFICATIONS:

Product Dimensions 46.8'W x 55.27'D x 40.88'H
Product Weight 460 lbs
Unit Type Packaged Heat Pump
SEER 14
EER 11
COP 47 3.5
HSPF 8
CFM 1800
Tonnage 5
Cooling Capacity 57000
Heating Capacity 56000
Voltage Requires a minimum of 208V-230V/60HZ/ 60A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60
Stage Single
Max Fuse Breaker 60
Min Circuit Ampacity 39.7
Color Gray
Rated Load 27.1
Max Coverage Area 2500
Refrigerant Type R-410A
Refrigerant Volume 161
Decibel Rating 78
Min Ambient Heat 0
Compressor Motor Type Scroll
Condenser Fan Motor Type ECM
Condenser Fan Motor HP 1/4
Blower Motor Type ECM
Blower Motor HP 1
Blower Motor Speeds Multi-Speed
Blower Motor RPM 1120-2090
Filter Type Replaceable
Filter Size 20 x 20 x 1
Metering Device TXV
Auxiliary Heater Yes
Auxiliary Heater Sizes 5kw, 7.5kw, 10kw, 15kw, 20kw
Certifications ETL
AHRI
Warranty Warranty is 10 years on all parts if registered
Base Warranty 5 years if not (no licensed tech required)
