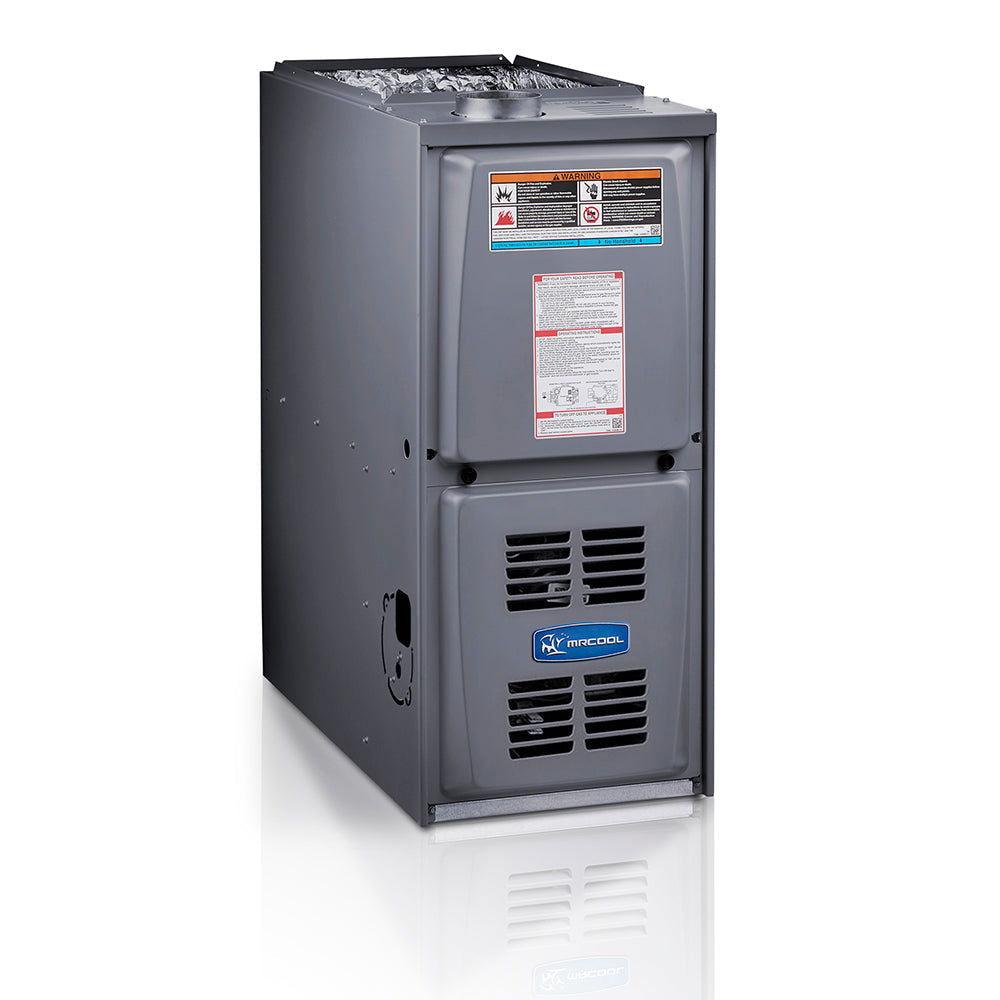

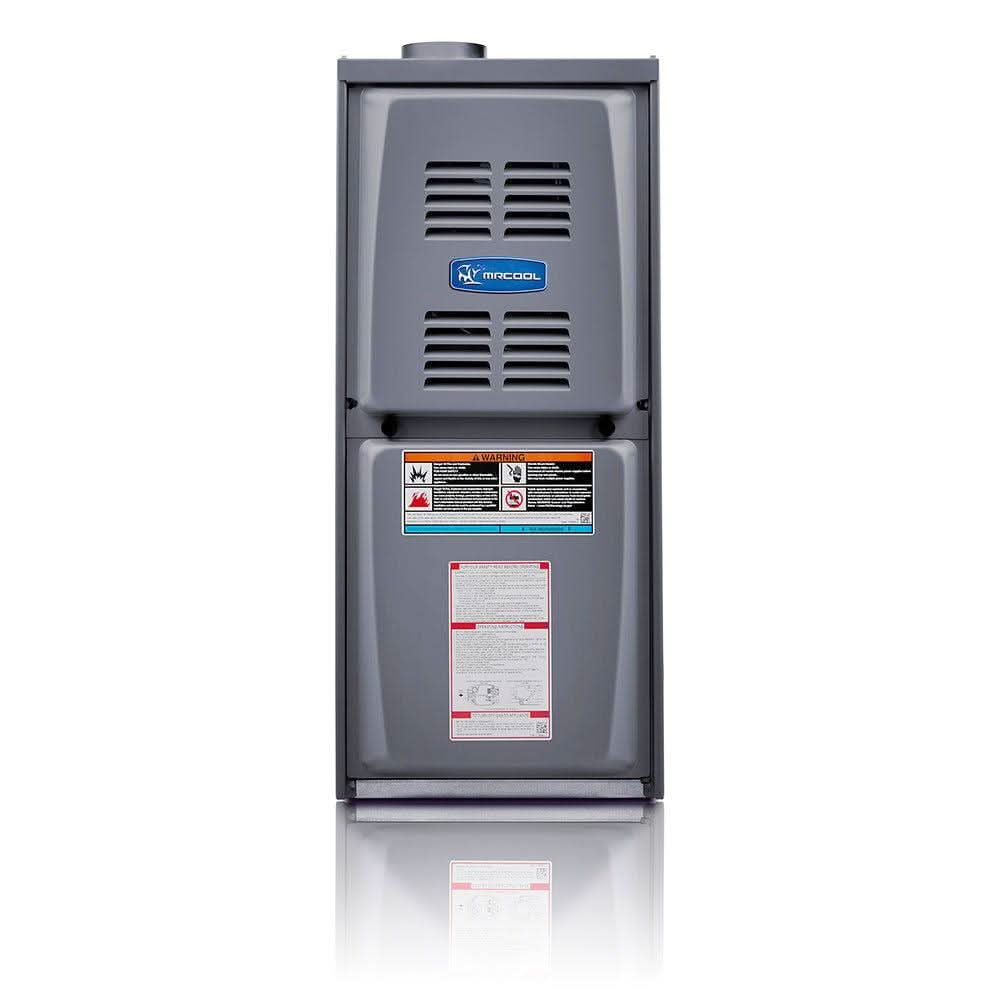

MRCOOL 80% AFUE 3 Ton 45,000 BTU Downflow Multi-Speed Gas Furnace, MGD80SE045A3A
Couldn't load pickup availability
Verified equipment data
MGD80SE045A3A
Stay Warm This Winter with the MRCOOL 80% AFUE Gas Furnace
When winter hits hard, you need a gas furnace that delivers reliable warmth and safety. The MRCOOL single stage, 80% AFUE gas furnace is designed to provide powerful heating while keeping your energy bills manageable. Unlike many other systems, this furnace is built for longevity, efficiency, and performance. With an 80% AFUE rating, it ensures that 80% of every dollar you spend on heating fuel is converted into real, effective heat for your home.
Key Features:
- High Efficiency: Delivers 80% AFUE, ensuring you get the most out of every heating dollar.

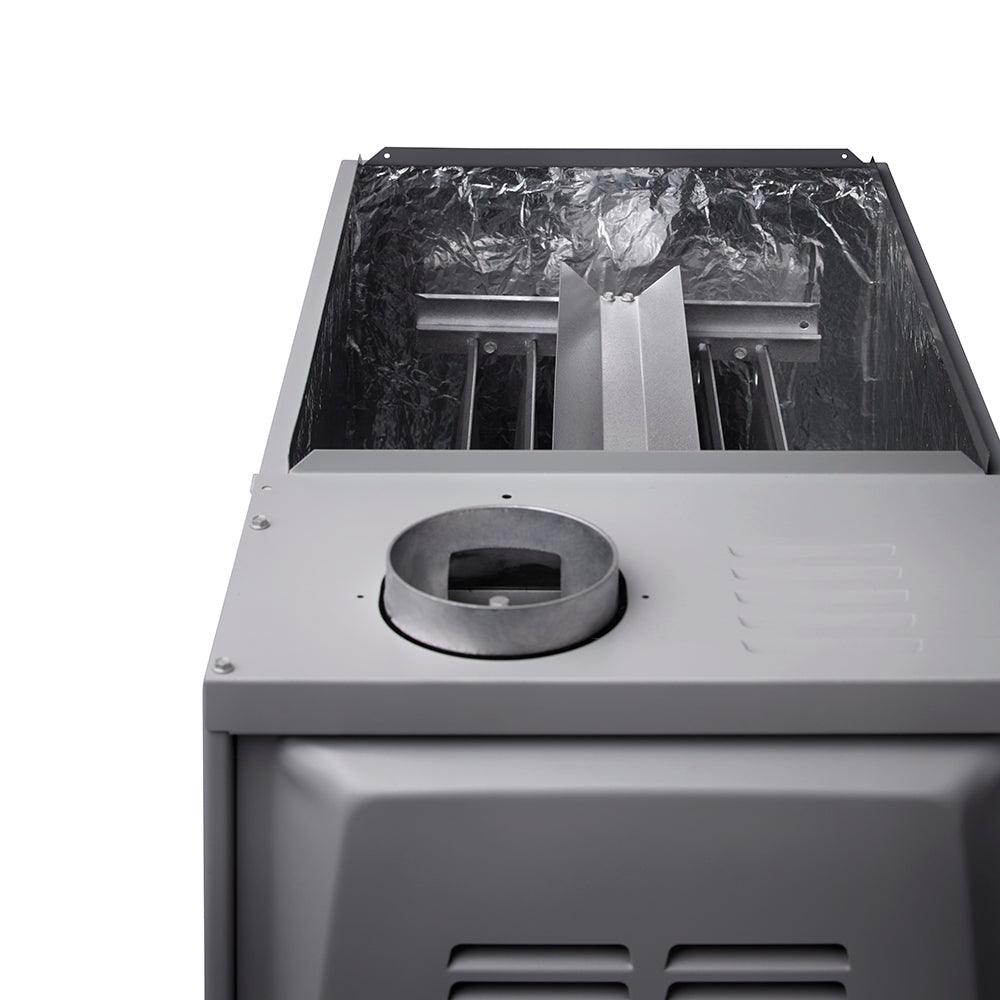

- Flexible Installation: Designed for downflow installation with a rotatable draft inducer for venting flexibility.
- Easy Maintenance: Features an easily removable slide-out blower design for hassle-free maintenance.
- Durable Construction: Aluminized steel tapered crimped non-welded clam shell heat exchanger ensures long-lasting performance.
- Compact Design: Stands at a compact 33" height, fitting easily into tight spaces.
- Utility Connections: Offers left or right utility connections for flexible installation options.
- Multi-Speed Blower: Equipped with a high-efficiency, multi-speed (constant torque) blower motor for consistent airflow.
- Zero Step Horizontal Conversion: Provides additional installation flexibility.
- Warranty: Comes with a registered 10-year parts warranty for added peace of mind.
- AHRI Certified: Meets industry standards for performance and efficiency.
- LP Kit Available: LP kit not included but available separately for those needing liquid propane conversion.
Choose the MRCOOL 80% AFUE Gas Furnace for dependable, efficient heating that keeps your home warm and your bills affordable, season after season.
PRODUCT SPECIFICATIONS:
| Product Dimensions | 14 1/2'W x 28 3/8'D x 33'H |
| Product Weight | 113 lbs |
| Unit Type | Gas Furnace |
| AFUE | 80% |
| CFM | 1275 |
| Tonnage | 3 |
| Heating Capacity | 44,000 BTU |
| Fuel Type | Natural Gas |
| BTU Input | 44000 |
| BTU Output |
35200 |
| Voltage |
Requires a minimum of 120V/60HZ/15A |
| Phase | 1 |
| Cycle | 60 |
| Stage | Single |
| Max Fuse Breaker | 15 |
| Min Circuit Ampacity | 6.8 |
| Color | Gray |
| Full Load | 6.8 |
| Number of Burners | 4 |
| Gas Connection Size | 1/2 |
| Blower Motor Type | ECM |
| Blower Motor HP | 1/2 |
| Blower Motor Speeds | 5 Speed |
| Blower Motor RPM | 565-1275 |
| Heat Exchanger Type | Aluminized steel |
| Ignition Type | Silicon Nitride Ignitor |
| Vent Connector | 4 inch |
| LP Kit Available | Yes |
| Certifications | CSA AHRI |
| Warranty |
Registered 10 Year Parts Warranty |
Overview
| Manufacturer warranty | 5 Year Parts Warranty |
|---|
Performance
| Stage | Single |
|---|
Efficiency
| AFUE | 80% |
|---|
Electrical
| Voltage | 120 V |
|---|---|
| Phase | 1 |
| Frequency | 60 Hz |
| Maximum fuse or breaker | 15 A |
| Minimum circuit ampacity | 6.8 A |
Airflow
| Airflow | 1275 CFM |
|---|
Physical
| Depth | 28.38 in |
|---|---|
| Height | 33.00 in |
| Width | 14.50 in |
| Weight | 113.00 lb |
