PRODUCT DESCRIPTION
PRODUCT DESCRIPTION

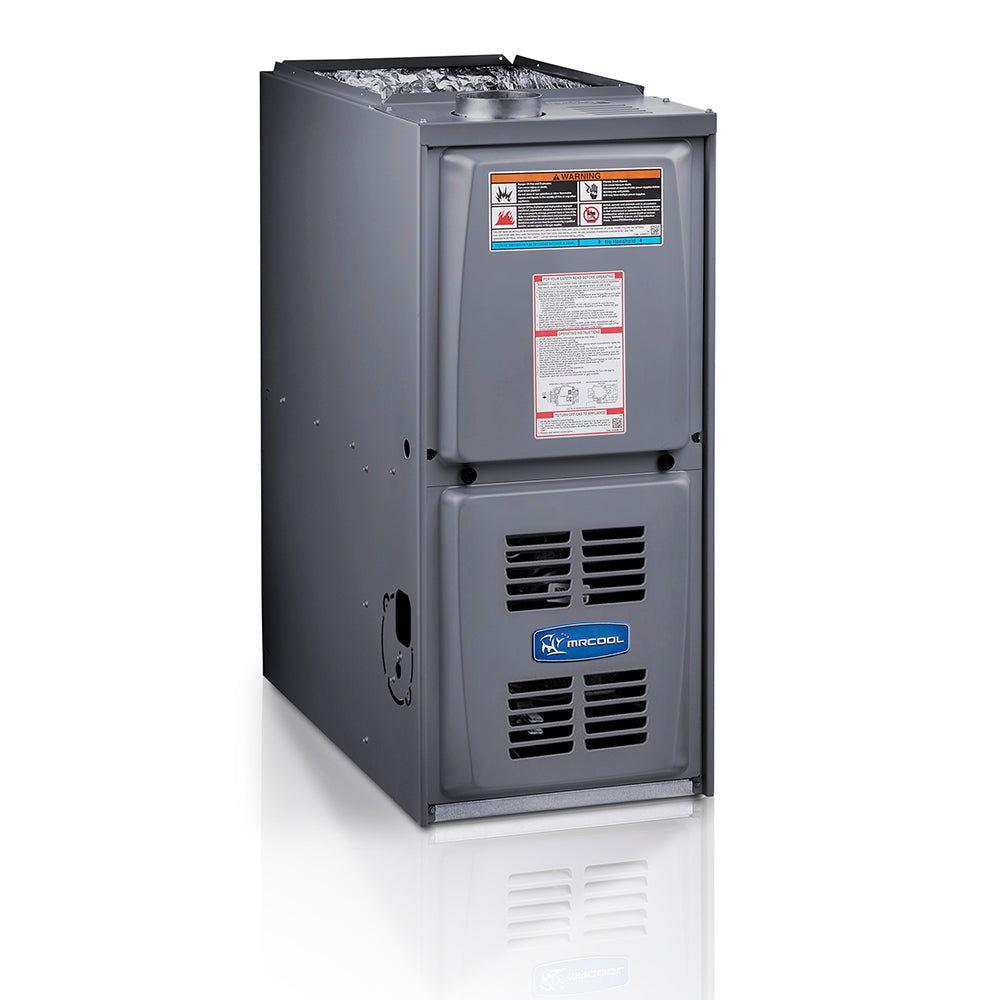

Dependable Warmth with the MRCOOL 80% AFUE Downflow Gas Furnace
When winter's harshest weather hits, the warmth and safety of a powerful, reliable gas furnace become essential. The MRCOOL single-stage, 80% AFUE gas furnace stands out as one of the best options on the market. Specifically designed for downflow installation, this furnace is engineered to deliver powerful heating performance while keeping your energy bills affordable. With its 80% AFUE rating, this furnace ensures that 80% of every dollar spent on heating fuel is converted into effective heat for your home.
Key Features:
- High Efficiency: Boasts an 80% AFUE rating, ensuring maximum value from your heating fuel.
- Downflow Design: Optimized for downflow installation, offering flexibility for various setups.
- Easy Maintenance: Features an easily removable slide-out blower design for quick and simple maintenance.
- Venting Flexibility: Equipped with a rotatable draft inducer, allowing for flexible venting options.
- Durable Construction: Built with an aluminized steel tapered crimped non-welded clam shell heat exchanger for enhanced durability and long-term performance.
- Compact Size: At a compact 33" height, this furnace is designed to fit easily into a variety of spaces.
- Utility Connections: Offers left or right utility connections for versatile installation.
- Efficient Blower Motor: Multi-speed, high-efficiency (constant torque) blower motor ensures consistent and quiet airflow.
- Simple Installation: Zero step horizontal conversion simplifies the installation process.
- Certified Quality: AHRI Certified, meeting strict industry standards for performance and reliability.
- Warranty: Backed by a registered 10-year parts warranty, providing peace of mind for years to come.
- LP Kit: Please note that the LP kit is not included but is available separately.
Choose the MRCOOL 80% AFUE Downflow Gas Furnace for a reliable, efficient, and affordable heating solution that will keep your home warm and comfortable all winter long.
PRODUCT SPECIFICATIONS:
Product Dimensions | 17 1/2'W x 28 3/8'D x 33'H |
Product Weight | 140 lbs |
Unit Type | Gas Furnace |
AFUE | 80% |
CFM | 1570 |
Tonnage | 4 |
Heating Capacity | 88,000 BTU |
Fuel Type | Natural Gas |
BTU Input | 88000 |
BTU Output | 70400 |
Voltage |
Requires a minimum of 120V/60HZ/15A |
Phase | 1 |
Cycle | 60 |
Stage | Single |
Max Fuse Breaker | 15 |
Min Circuit Ampacity | 8.4 |
Color | Gray |
Full Load | 8.4 |
Number of Burners | 8 |
Gas Connection Size | 1/2 |
Blower Motor Type | ECM |
Blower Motor HP | 3/4 |
Blower Motor Speeds | 5 Speed |
Blower Motor RPM | 945-1570 |
Heat Exchanger Type | Aluminized steel |
Ignition Type | Silicon Nitride Ignitor |
Vent Connector | 4 inch |
LP Kit Available | Yes |
Certifications | CSA AHRI |
Warranty |
Registered 10 Year Parts Warranty |
