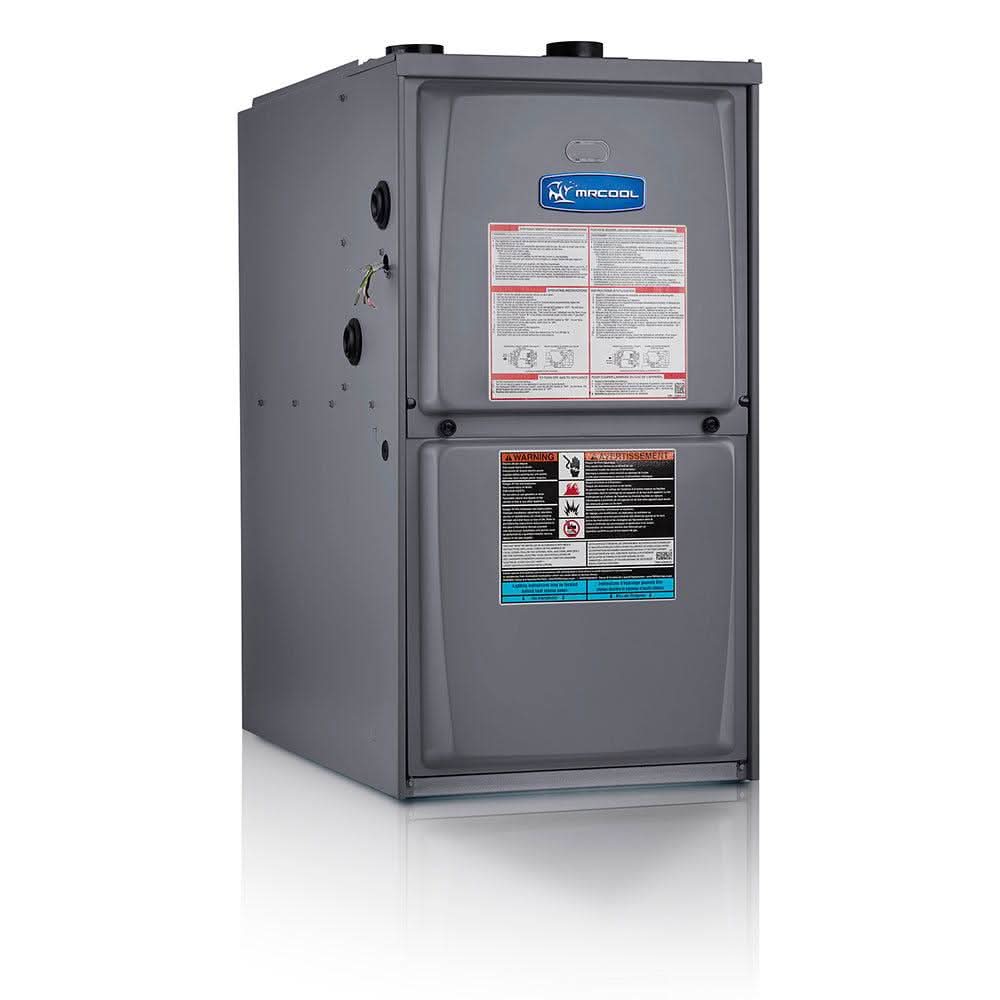

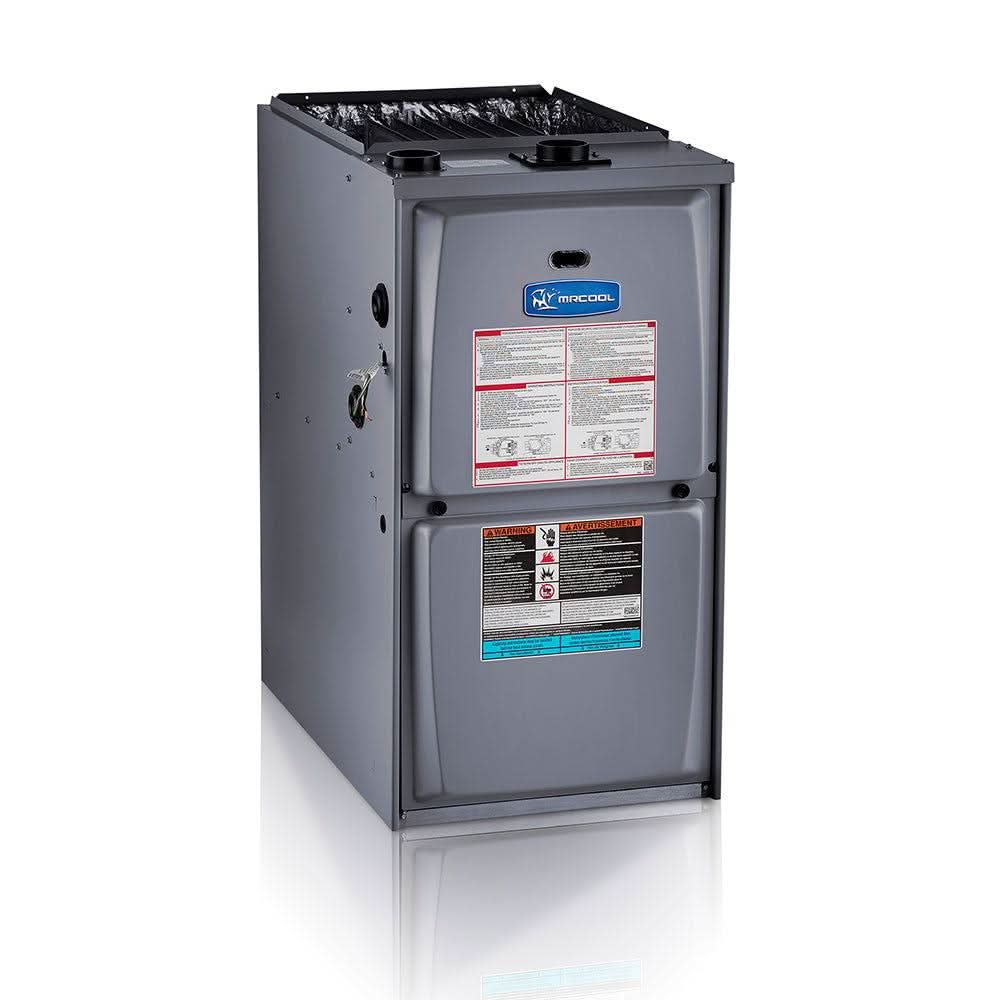

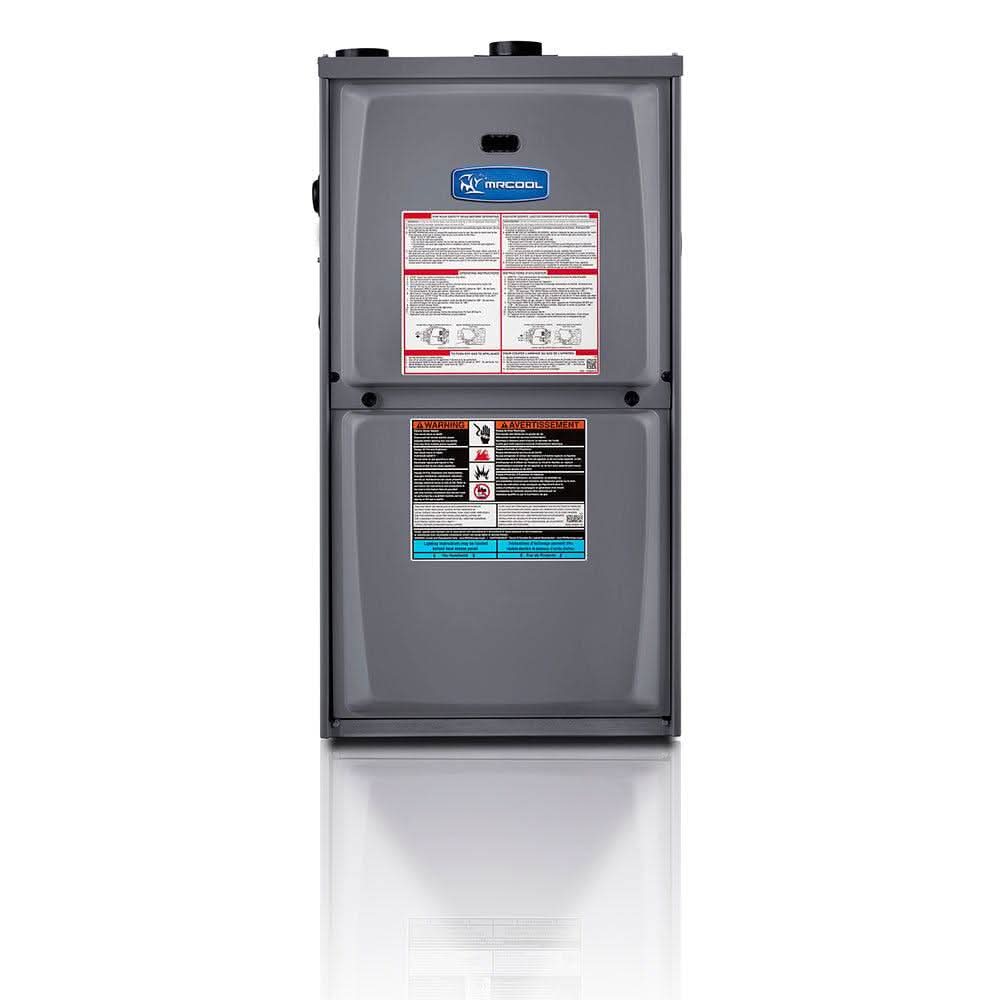

MRCOOL 95% AFUE 4 Ton 70,000 BTU Downflow Multi-Speed Gas Furnace (Model MGD95SE070B4XA)
As winter approaches and the chill sets in, high gas bills can make you dread the season. But with the MRCOOL 95% AFUE 4 Ton 70,000 BTU Downflow Multi-Speed Gas Furnace, you can stay warm and save money. This high-efficiency furnace ensures that 95% of every dollar spent on heating fuel is converted into real, effective heat, minimizing waste and keeping your energy costs low. Unlike many other furnaces, the MRCOOL model offers exceptional performance without sacrificing efficiency.
Whether your winters are mild or severe, this furnace can make a significant difference in your heating expenses, potentially saving you hundreds of dollars. Instead of dreading the cold, embrace it with the reliable, versatile, and high-quality heat that MRCOOL provides. Plus, this furnace is backed by a 20-year Heat Exchanger Warranty and a 10-Year Registered Parts Warranty, ensuring long-term reliability.
Key Features:
- High Efficiency: 95% AFUE rating ensures that 95% of your heating fuel is converted into usable heat, reducing waste and lowering your energy bills.
- Multi-Speed Blower Motor: Constant torque motor delivers consistent airflow and even temperatures, using up to 1/3 less energy than a fixed-speed blower.
- Self-Diagnostics: Built-in diagnostics system saves the last 10 fault codes, even during power interruptions, making maintenance easier.
- Versatile Installation: Standardized widths allow for easy coil fit, with left or right utility connections and a removable floor base for bottom return air.
- Durable Construction: Aluminized steel inshot burners provide smooth ignition and reliable performance.
- Warranty Protection: Backed by a 20-year Heat Exchanger Warranty and a 10-Year Registered Parts Warranty for added peace of mind.
- Environmental Compliance: Meets California's South Coast Air Quality standards, ensuring eco-friendly operation.
- Easy Maintenance: Easily removable slide-out blower design simplifies routine maintenance and servicing.
- Optional LP Kit: Optional liquid propane kit available for those who need LP fuel compatibility.
- Flexible Installation: Zero step horizontal conversion offers flexibility in installation configurations.
Choose the MRCOOL 95% AFUE 4 Ton 70,000 BTU Downflow Gas Furnace for efficient, reliable, and cost-effective heating that will keep your home warm and your energy bills low throughout the winter.
PRODUCT SPECIFICATIONS:
Product Dimensions | 17 1/2'W x 28 1/2'D x 33'H |
Product Weight | 144 lbs |
Unit Type | Gas Furnace |
AFUE | 95 |
CFM | 1585 |
Tonnage | 4 |
Heating Capacity | 66,000 BTU |
Fuel Type | Natural Gas |
BTU Input | 66000 |
BTU Output |
64000 |
Voltage |
Requires a minimum of 120V/60HZ/15A |
Phase | 1 |
Cycle | 60 |
Stage | Single |
Max Fuse Breaker | 15 |
Min Circuit Ampacity | 8.4 |
Color | Gray |
Number of Burners | 6 |
Gas Connection Size | 0.5 |
Blower Motor Type | ECM |
Blower Motor HP | 3/4 |
Blower Motor Speeds | 4 Speed |
Blower Motor RPM | 690-1585 |
Heat Exchanger Type | Aluminized steel primary, AL 29-4C Stainless steel |
Ignition Type | Silicon Nitride Ignitor |
Vent Connector | 2 inch |
LP Kit Available | Yes |
Certifications | CSA AHRI |
Warranty |
10 year registered parts warranty |
