MRCOOL DIY® 5th Gen E-Star 18K BTU (1.5 Ton) Ceiling Cassette Mini Split Heat Pump – 21.5 SEER2
Couldn't load pickup availability
MRCOOL DIY 5th Gen E-Star Series 18K BTU, 1.5 Ton, 21.5 SEER2 Ductless Mini-Split Heat Pump System with Ceiling Cassette Air Handler – R-454B
The MRCOOL DIY 5th Gen E-Star Series 18K BTU Mini-Split Heat Pump System delivers next-generation efficiency, low environmental impact, and true do-it-yourself installation. This single-zone package features a premium ceiling cassette air handler for discreet comfort, providing powerful heating and cooling performance without compromising aesthetics.

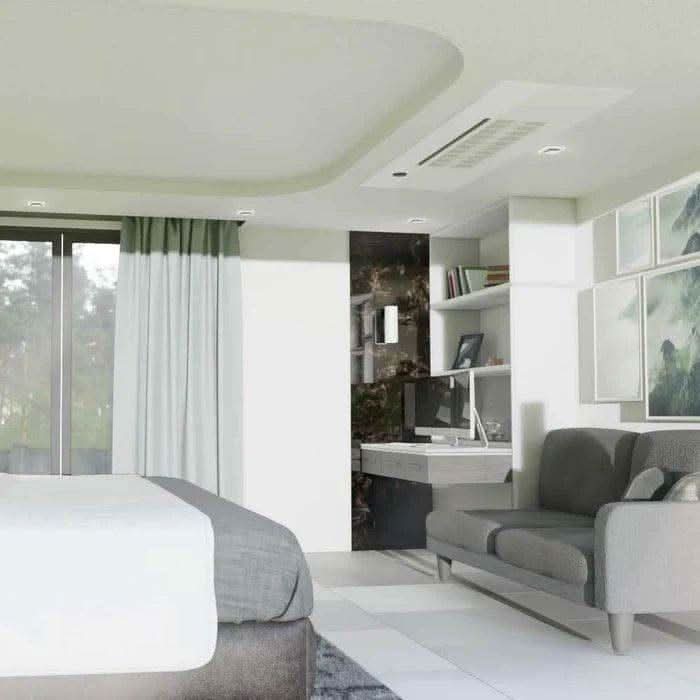

Unlike traditional wall-mounted units, the MRCOOL ceiling cassette fits neatly between standard 16” ceiling joists, making it the perfect low-profile solution for modern homes and office spaces. This system uses MRCOOL’s latest R-454B refrigerant, offering a lower Global Warming Potential (GWP) and compliance with updated refrigerant regulations.

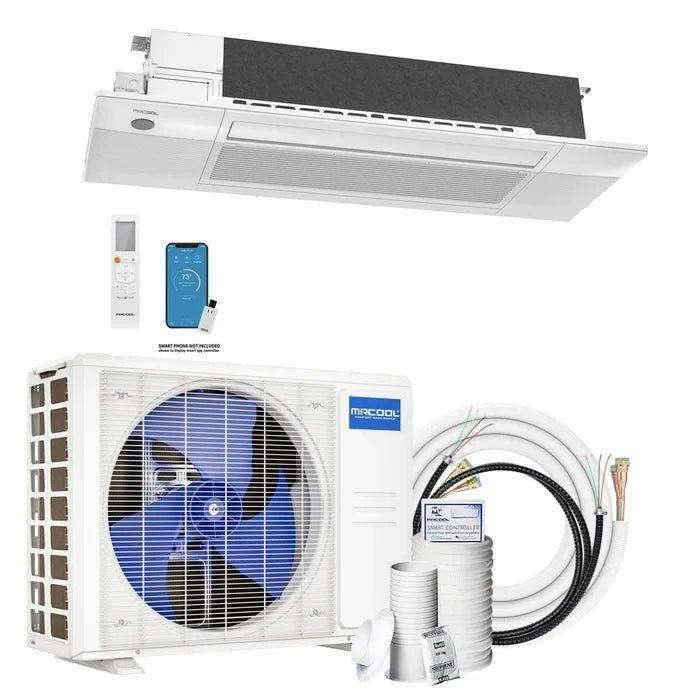

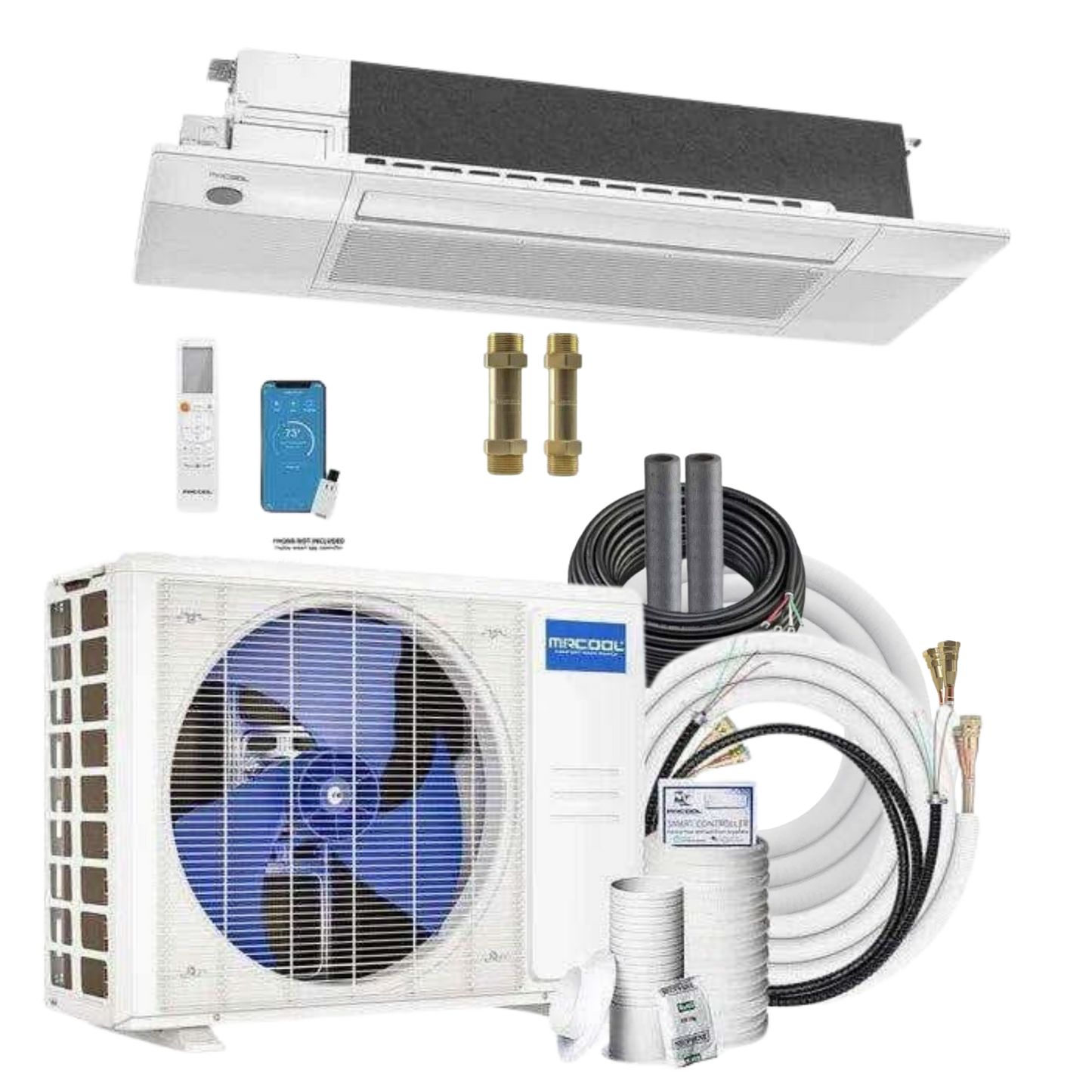

💡 What’s Included in This Bundle?
✔ MRCOOL DIY 5th Gen 18K BTU, 1.5 Ton, 21.5 SEER2 Heat Pump Condenser
(Model: DIY-18-HP-C-230C)
✔ MRCOOL DIY 5th Gen 18K BTU Ceiling Cassette Air Handler
(Model: DIYCASSETTE18HP-230C25)
✔ Standard 25 Ft. MRCOOL Pre-Charged Quick Connect Line Set – R-454B
(No vacuum or special tools required)
💬 Need a longer line set?
This system comes standard with a 25' pre-charged line set. You can upgrade to a 35' continuous line set with matching control wire for installations requiring a bit more reach without added connections.
For even greater flexibility, extended configurations are also available in 41', 50', or 75' total line lengths. These setups use the included 25' pre-charged line set paired with an additional pre-charged line set connected via MRCOOL Quick Connect® couplers, along with a longer control wire.
This sectional or continuous approach provides easy installation options for every scenario—from simple straight runs to complex or tight routing—while maintaining MRCOOL’s leak-proof reliability and DIY simplicity.

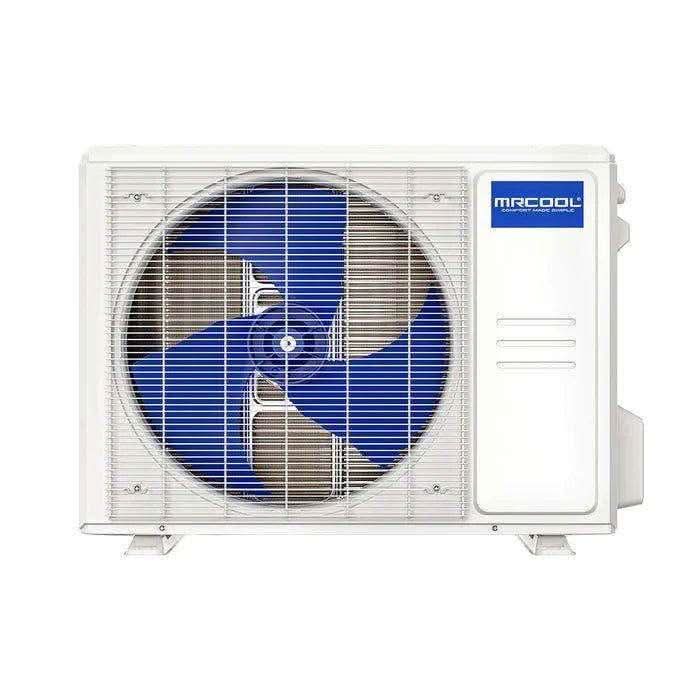

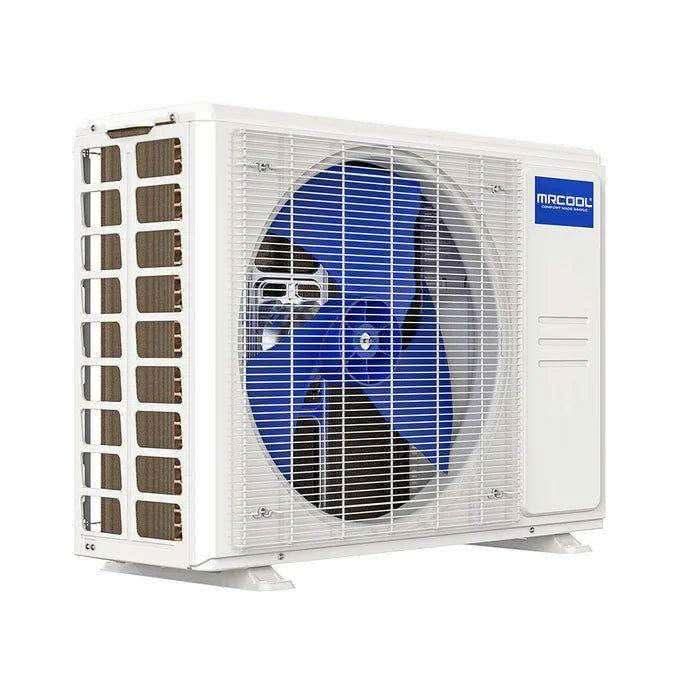

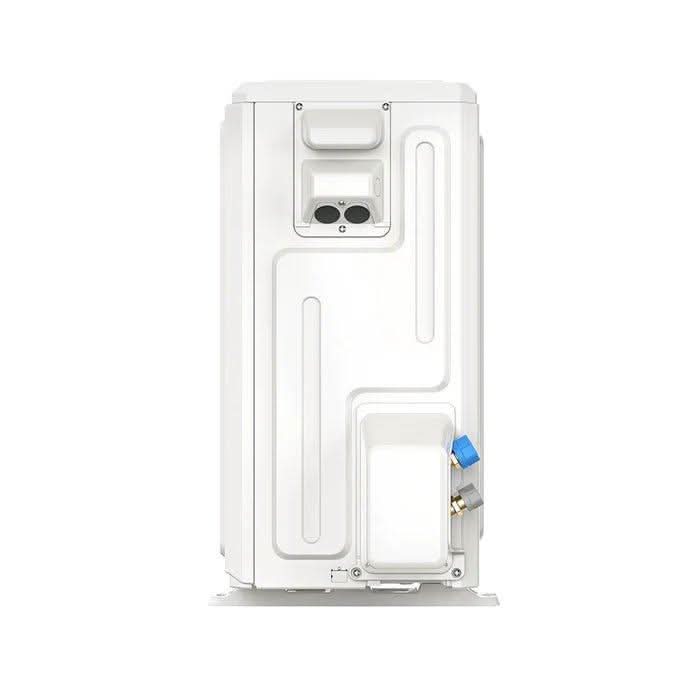

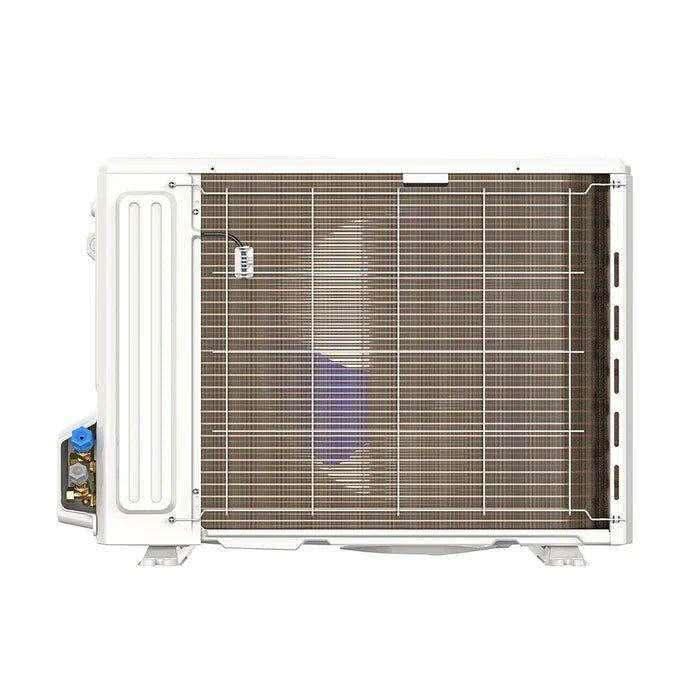

🌡️ MRCOOL 5th Gen Heat Pump Condenser – Key Features
-
18,000 BTU Output – Ideal for heating & cooling single-zone spaces up to ~750–800 sq ft
-
21.5 SEER2 High Efficiency – Lower utility costs without sacrificing performance
-
Pre-Charged with R-454B Refrigerant – Eco-friendly, low-GWP refrigerant
-
Gold Fin Condenser Coating – Corrosion-resistant for long outdoor life
-
Cold Weather Ready – Operates in temperatures down to 5°F
-

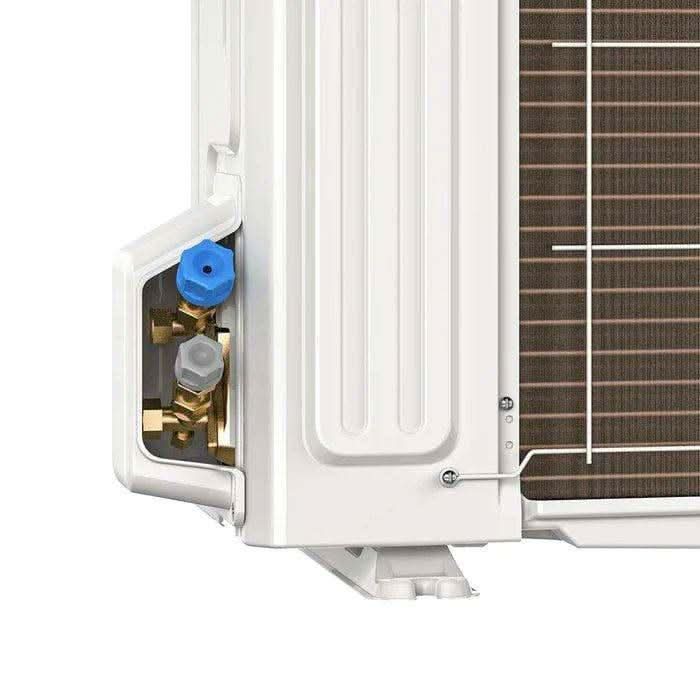

True DIY Installation – Quick Connect fittings, no vacuum pump needed
-
Warranty – 7-Year Compressor / 5-Year Parts (Lifetime Limited Compressor with registration)

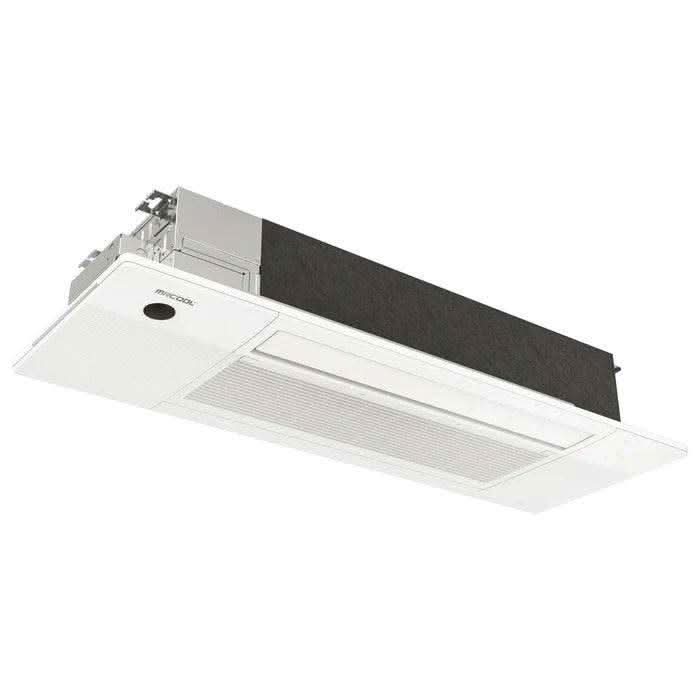

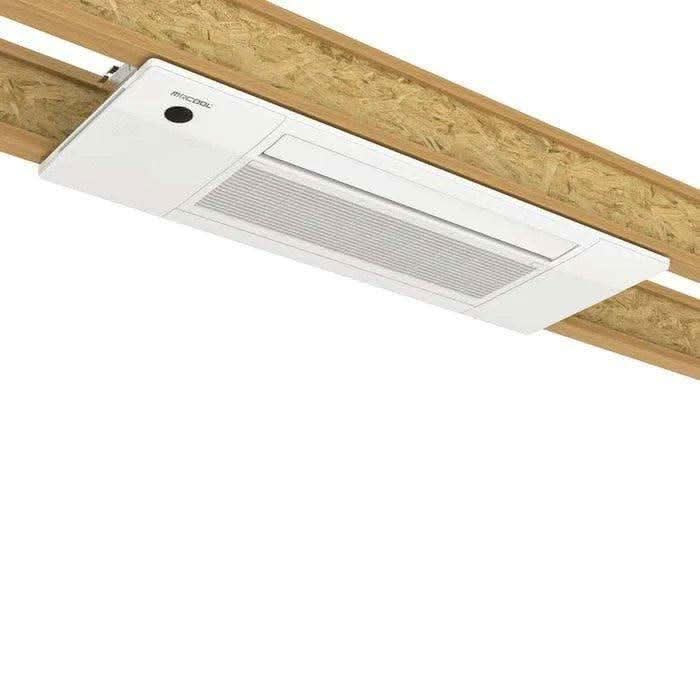

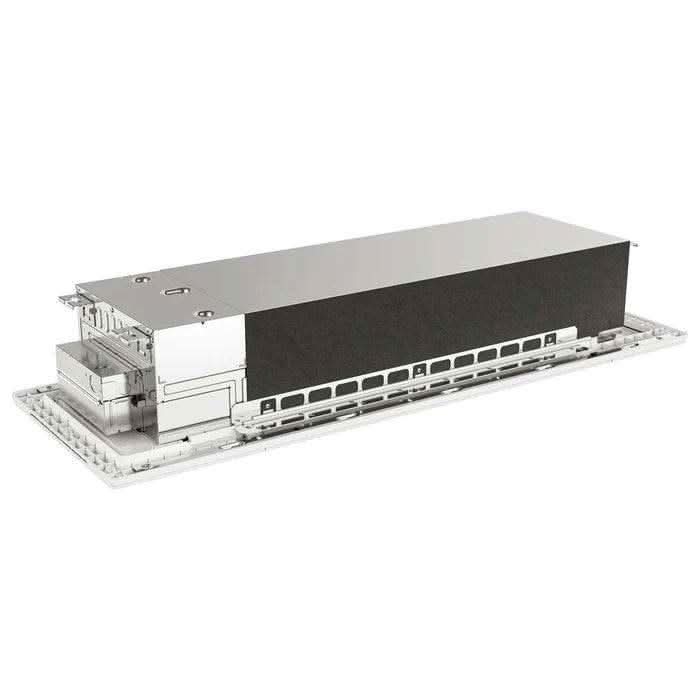

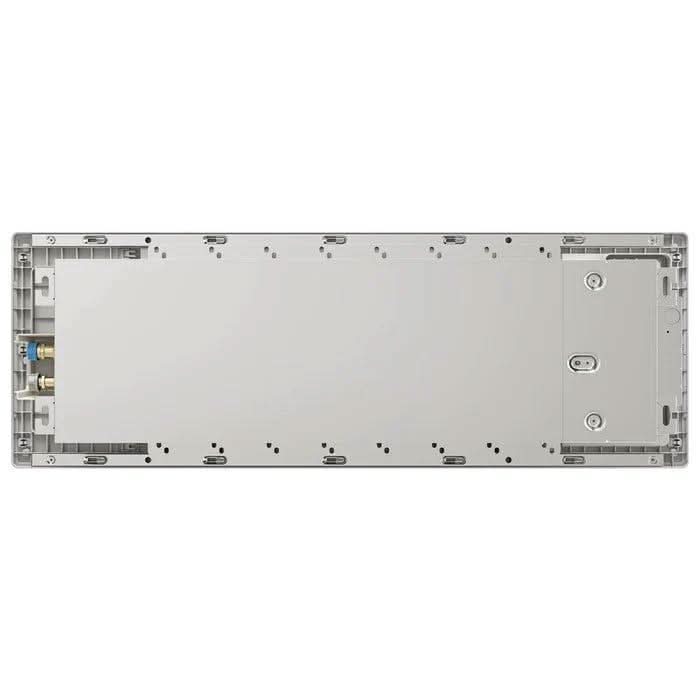

🔲 MRCOOL Ceiling Cassette Air Handler – 18K BTU
-

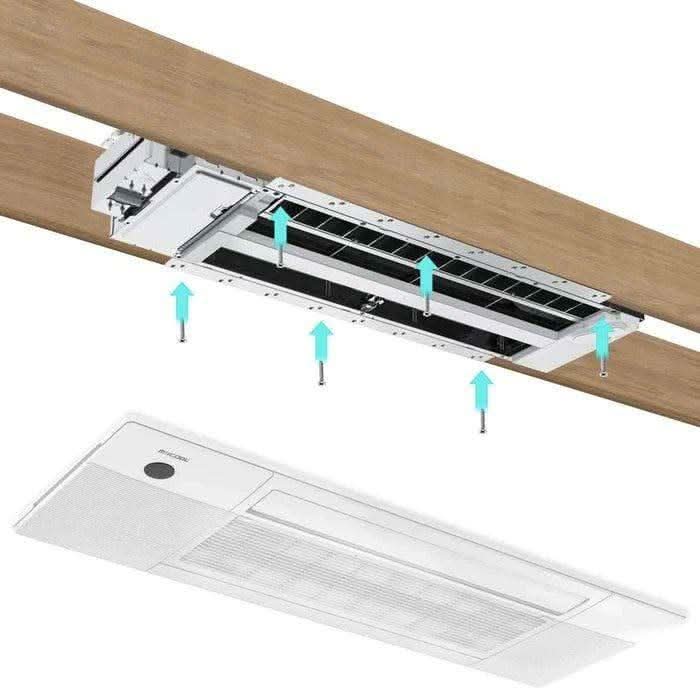

Flush Ceiling Installation – Fits between 16” joists for a seamless appearance
-
Multiple Comfort Modes – FAN ONLY, QUIET, SLEEP, AUTO for complete control
-

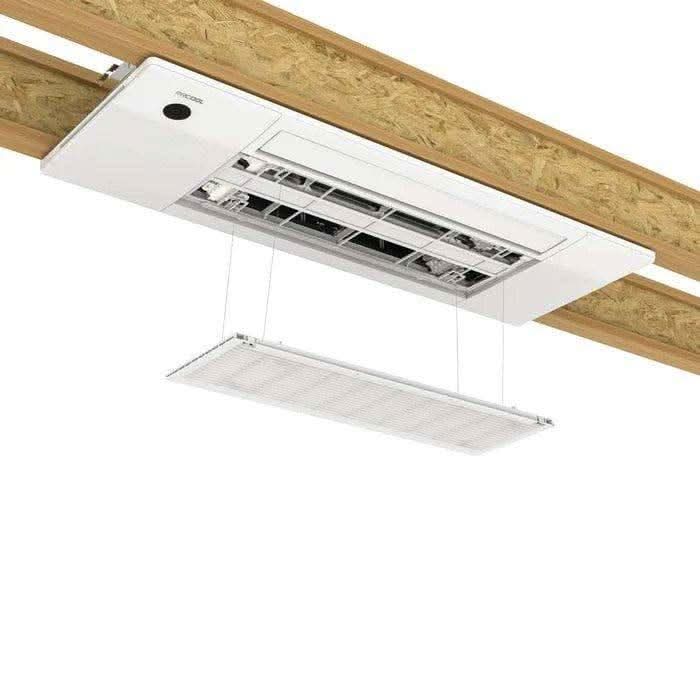

Elevating Air Filter System – Drops up to 4.9 ft for easy, tool-free cleaning
-
Unified Aesthetic – Matches MRCOOL multi-zone cassette design
-
Smart Home Ready – Wi-Fi enabled, works with Alexa & Google Assistant
-
Expandable Design – Visually matches multi-zone setups for future expansion
🔧 Why Choose MRCOOL DIY 5th Gen?
-
No HVAC License Required – Perfect for homeowners & skilled DIYers
-
R-454B Refrigerant Compliant – Ready for new HVAC regulations
-
Pre-Charged Line Sets – No refrigerant handling or vacuuming
-
Energy Efficient – Meets or exceeds ENERGY STAR® guidelines
-
Nationwide Support & Fast Shipping – Buy from the #1 Independent MRCOOL Dealer: MRCOOL DIY Direct
🛒 Order Your MRCOOL 5th Gen DIY Ceiling Cassette System Today!
Experience discreet, high-efficiency climate control you can install yourself. Whether you’re upgrading a bedroom, home office, or guest suite, this 5th Gen DIY mini-split is built for performance, convenience, and compliance.
🔗 Shop now at MRCOOL DIY Direct – stay cool and save the smart, easy way.
|
DIY Single-Zone System Cassette
Outdoor Condenser
DIY Ceiling Cassette
Pre-Charged DIY Line Set
Control Wire
Wireless Remote
WiFi Dongle / Smart Controller Adapter
Wall Sleeve / Wall Pass-Through
Line Set Wrap / Insulation Tape
Installation Manual

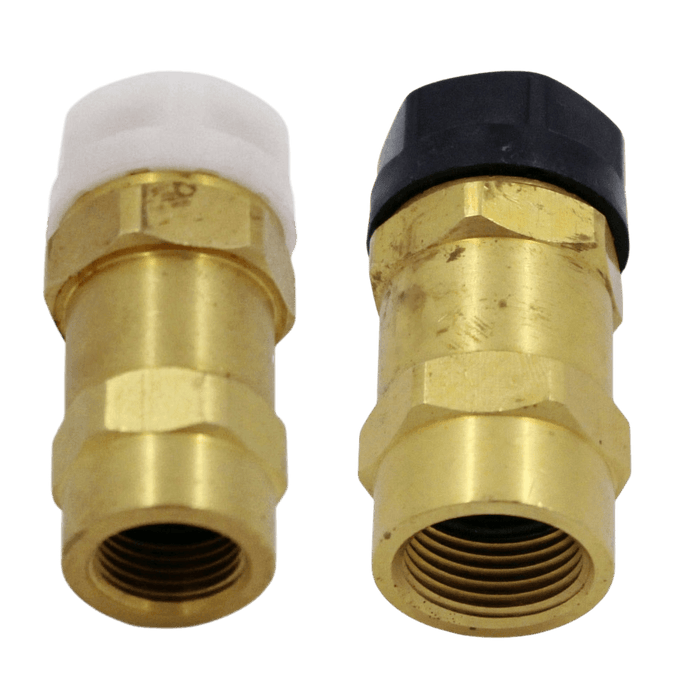

DIY Quick-Connect Adapters
Download installation manuals, spec sheets, and warranty documents for this system.
- E-Star Hybrid Ducted Air Handler Install Manual
- E-Star Ceiling Cassette Service Manual
- E-Star Ceiling Cassette Product Brochure
- E-Star Ceiling Cassette Installation Manual
- E-Star Ceiling Cassette Performance Data
- DIY Ceiling Cassette Air Handler (18K BTU) AHRI
- 5th Gen E-Star® Series Smart Controller Manual
- 5th Gen E-Star® Series Remote Control Guide
- 5th Gen E-Star® Series Quick Start Guide
- 5th Gen E-Star® Series Product Brochure
