EZPro Series (DIY)

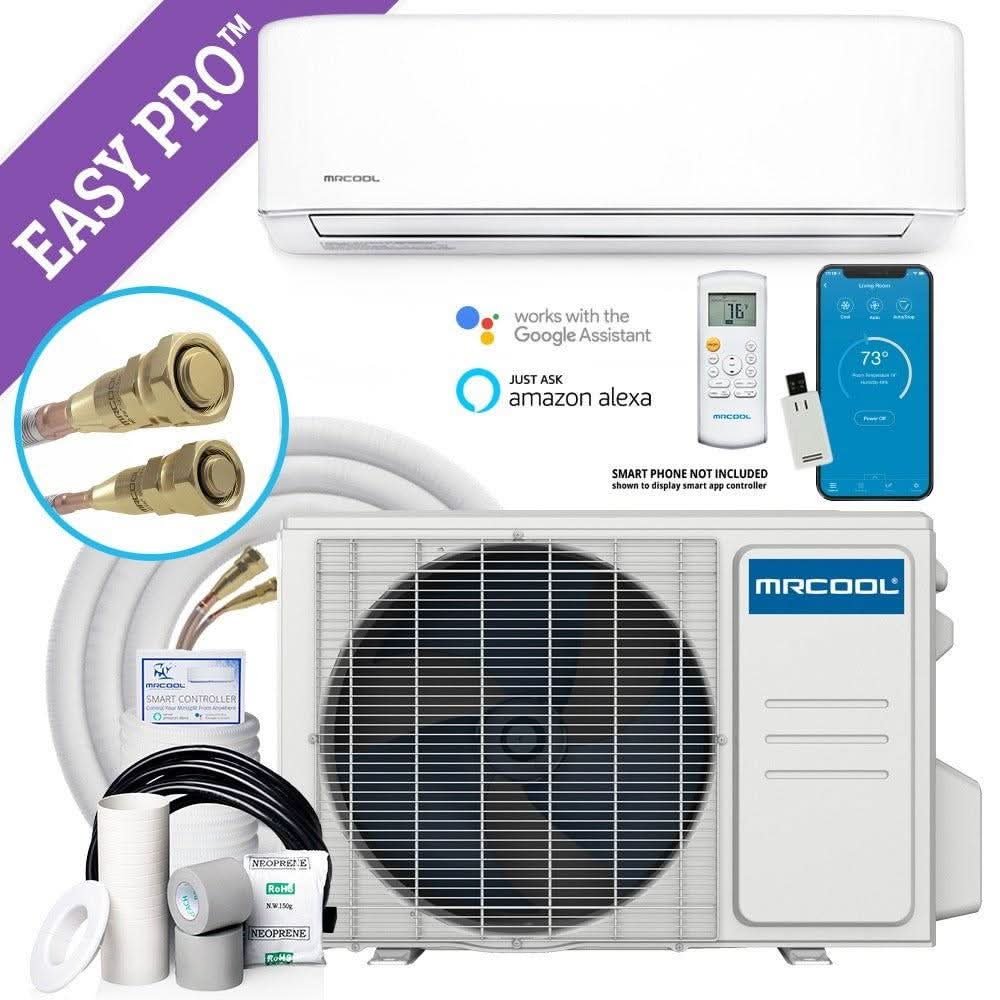

MRCOOL DIY Easy Pro® 9K BTU Ductless Mini Split Heat Pump Complete System, EZPRO-09-HP-11516

MRCOOL DIY Easy Pro® 9K BTU Ductless Mini Split Heat Pump Complete System, EZPRO-09-HP-11516

Regular price $1,252.00 USD
Regular price $1,664.88 USD Sale price $1,252.00 USD
Save $412.88 Sold out
Shipping calculated at checkout.
  • Energy efficient 20 SEER, 10.3 HSPF
  • Easy DIY installation: pre-charged R-410A 16ft quick connect line doesn't require special tools, equipment, or training
  • Designed to efficiently heat and cool a single 350 Sq Ft room

SKUEZPRO-09-HP-11516

Type9K - Single Zone

This item is in stock! Estimated Arrival: 4-8 Days After Order is Received, Depending Upon Your Location.

View full details

Have questions or need help selecting the perfect Mini Split system?

Talk with our expert HVAC team members now for assistance!!

System Overview

  • Number of Zones: 1

  • DIY Installation

  • Wall Mounted

  • Operating Voltage: 110 to 120

PRODUCT DESCRIPTION

MRCOOL Easy Pro 9k BTU Ductless Mini-Split Heat Pump System is a convenient, quality solution to your heating and cooling needs without the hassle of professional installation is the MRCOOL Easy Pro 9k BTU Ductless Mini-Split Heat Pump System. If you’re in need to heat or cool an additional room in your home or office, this 9,000BTU air handler can heat or cool a space of up to 350 square feet and features a SEER of 20.With a 16-foot precharged line set, this system can be installed quickly and easily thanks to the Fast Connect fittings. The precharged line sets allow you to install them quickly and easily without the need for a vacuum. You don’t even need any special tools or equipment. All you have to do is place the outdoor condenser where desired, mount the air handler inside, and connect the precharged line set.
  • Energy efficient 20 SEER, 10.3 HSPF

  • Easy DIY installation: pre-charged R-410A 16ft quick connect line doesn't require special tools, equipment, or training

  • Designed to efficiently heat and cool a single 350 Sq Ft room

  • SmartHVAC app: wifi control - compatible with amazon Alexa and Google assistant - you can control your DIY anywhere with your apple or android smart device and an Internet connection

  • Variable-speed DC inverter compressor technology cuts operating costs

  • Low ambient cooling: cooling down to 5F this feature makes the Mrcool DIY the ideal system for computer server rooms, greenhouses, and any other application that requires cooling all year

  • Gold fin condenser: corrosion resistant - live on the coast don’t worry, our condenser is built to resist long term corrosion

  • 1-Year compressor warranty and 2-year parts warranty

SPECIFICATION & DIMENSIONS

General

Warranty

2-Year Limited

Series Name

EZ Pro

Color

White

Type

DIY system

Dimensions

Air Handler Depth (Inches)

7.87

Height (Inches)

19.49

Air Handler Height (Inches)

11.5

Line-set Connection Size

1/4-in x 1/2-in

Air Handler Width (Inches)

28.7

Line-set Length

16-ft

Compressor Depth (Inches)

10.63

Maximum Coverage Area (Sq. Feet)

250.0

Compressor Height (Inches)

19.49

Weight (lbs.)

54.45

Compressor Width (Inches)

28.35

Width (Inches)

28.35

Cord Length (Feet)

16.0

Zone Capacity

Single

Depth (Inches)

10.63



WHAT'S INCLUDED

  • 16' Pre-Filled Line Set

  • Remote Control

  • Communication Wire

  • Wall Sleeve

  • Condenser

  • Air Handler
