MRCOOL DIY Select 24K BTU 230V Mini Split Heat Pump System with Black Air Handler | 16.5 SEER2 | R-454B | 11.5 ft Pre-Charged Line Set
Couldn't load pickup availability
MRCOOL DIY Select 24K BTU 230V Mini Split System with Black Air Handler
The MRCOOL DIY Select 24K BTU Mini Split System delivers powerful heating and cooling for large spaces, combined with a sleek black air handler that upgrades the look of any room. Because if you're putting something this big on your wall, it might as well look like it belongs there.
Designed for areas up to 1,050 sq ft, this 230V ductless heat pump is ideal for large garages, open living areas, workshops, additions, and light commercial spaces. With 16.5 SEER2 efficiency, you get strong output, reliable performance, and consistent comfort year-round.
Installation stays simple thanks to the included 11.5 ft pre-charged Quick Connect® line set. No vacuum pumps, no gauges, and no refrigerant handling required. Mount it, connect it, power it, and enjoy full-scale comfort without the usual installation cost.
Key Features
- Black wall-mounted air handler for a modern, premium look
- 24,000 BTU heating and cooling for large spaces
- 230V power for high-capacity performance
- 16.5 SEER2 efficiency for balanced performance and energy savings
- True DIY installation with pre-charged line set
- R-454B refrigerant for future-ready operation
- Smart control with MRCOOL Comfort App
- Compatible with Alexa and Google Assistant
- Quiet operation for residential and workspace use
- Gold Fin® protection for long-term durability

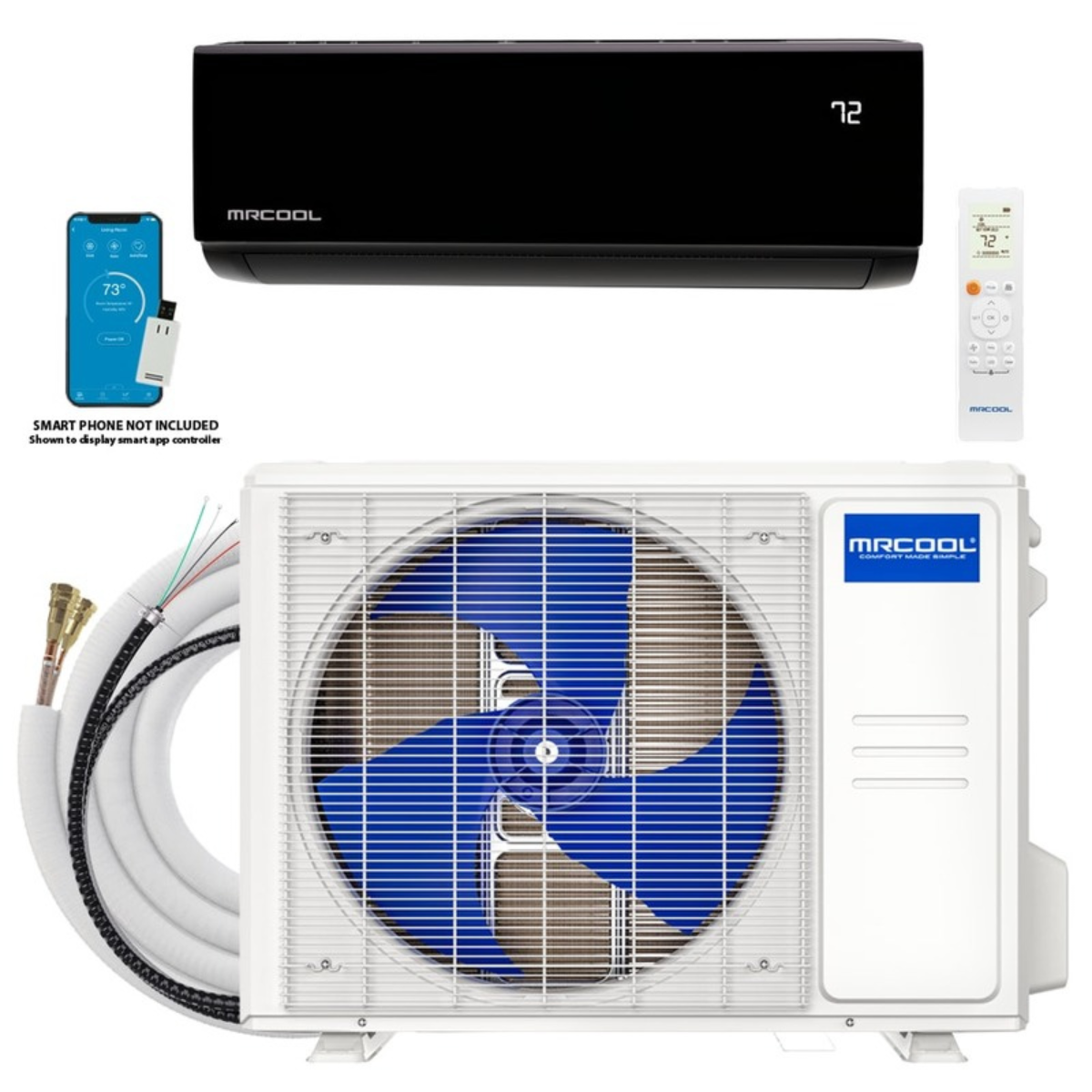

What’s Included
| Component | Details |
|---|---|

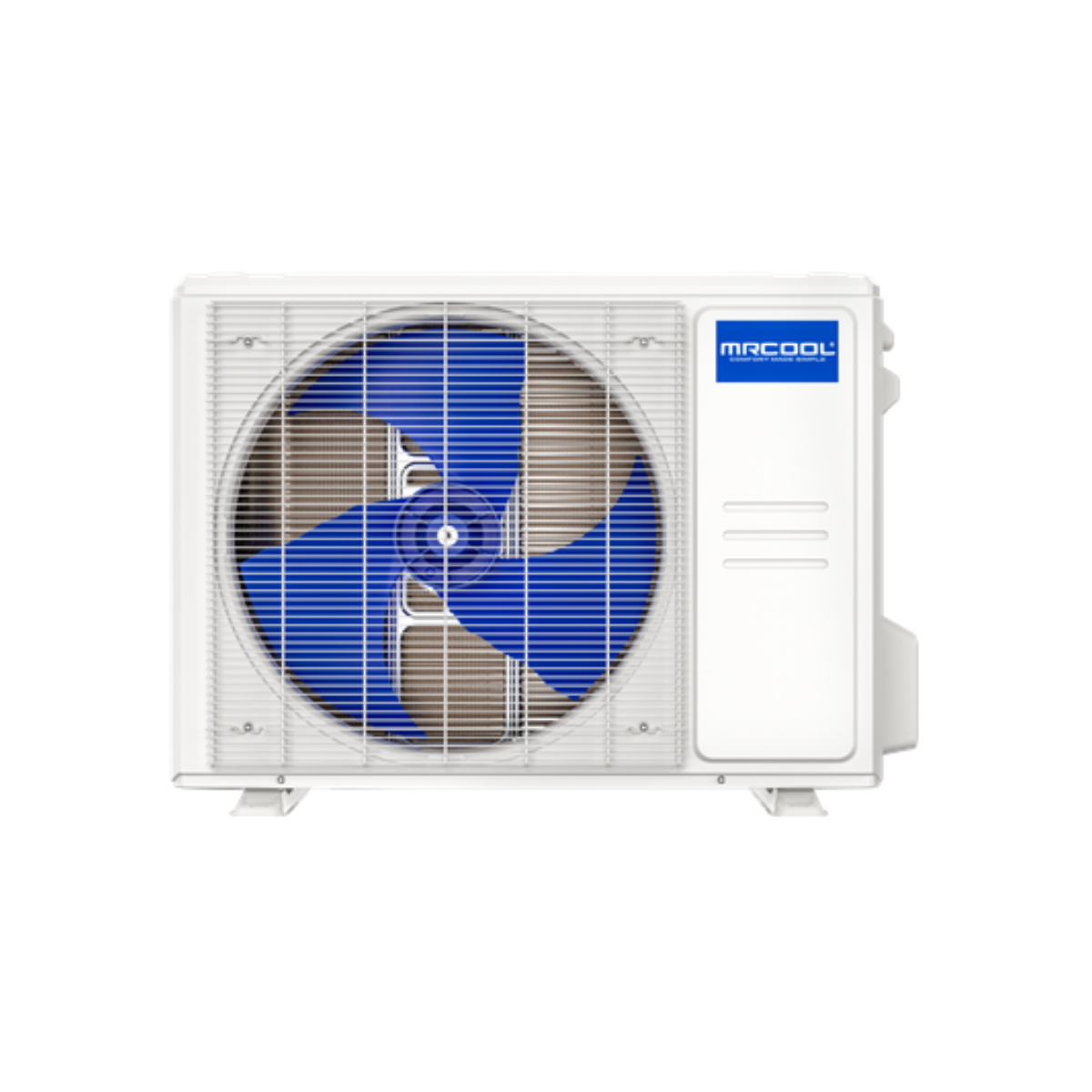

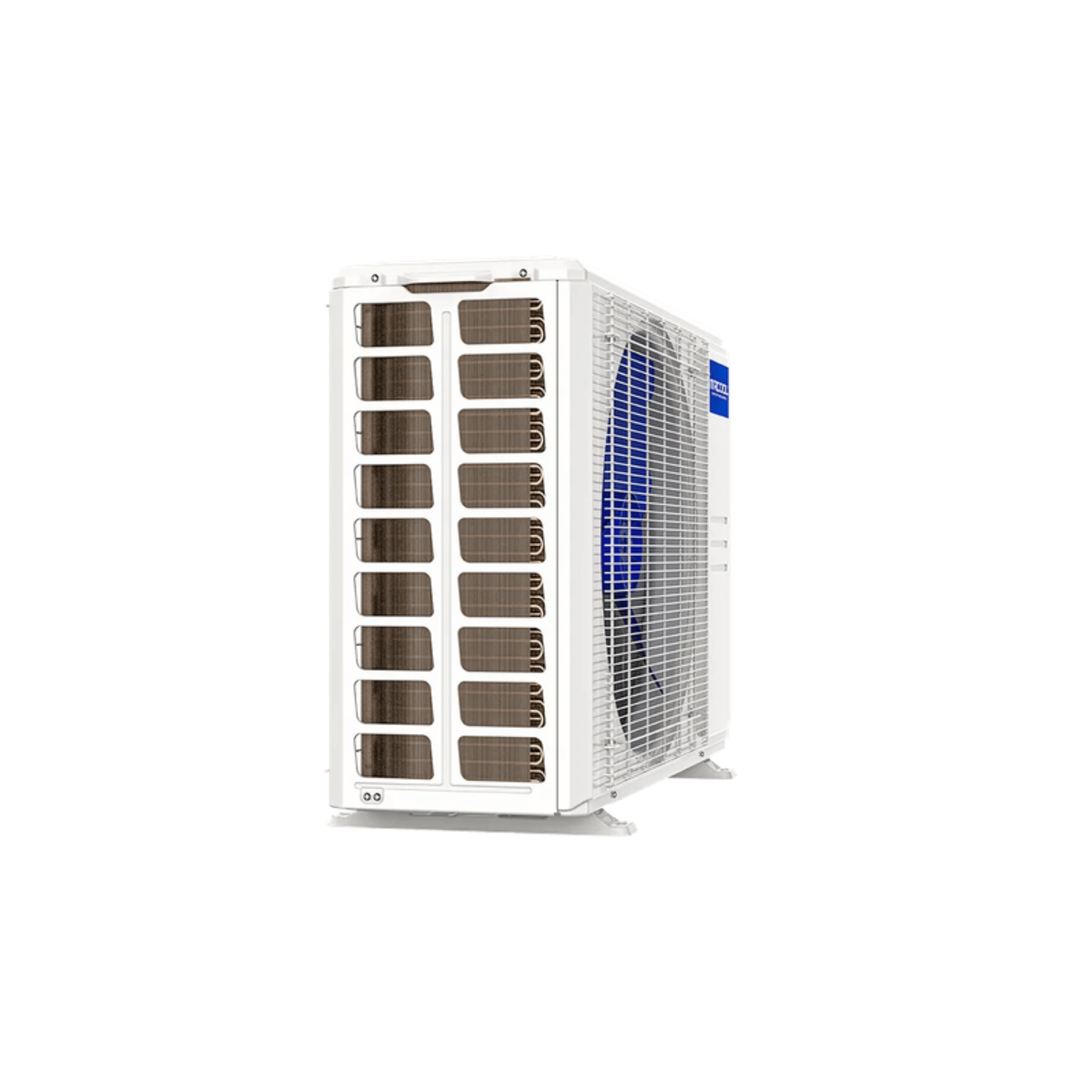

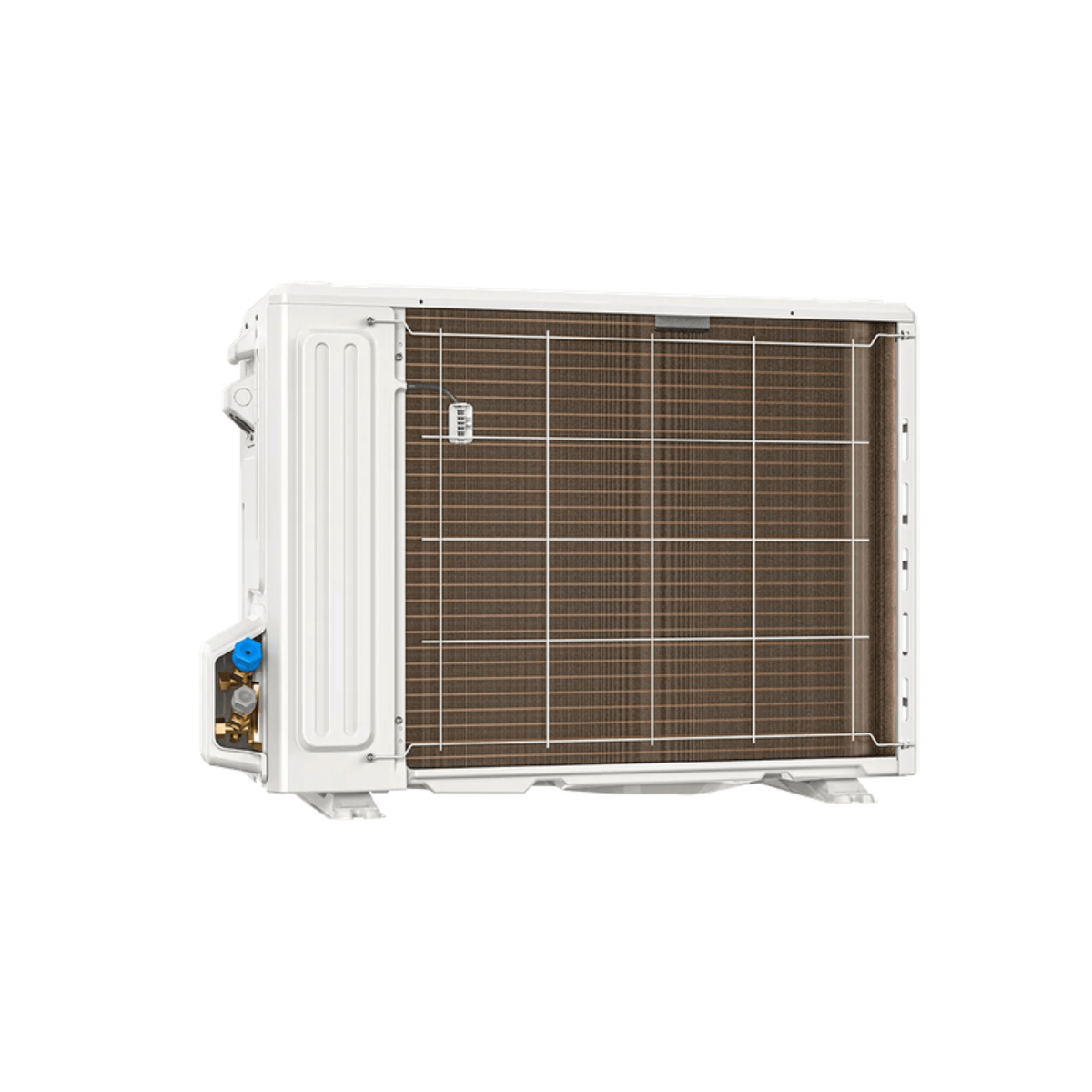

| Outdoor Condenser | MRCOOL DIY Select 24K 230V heat pump condenser |

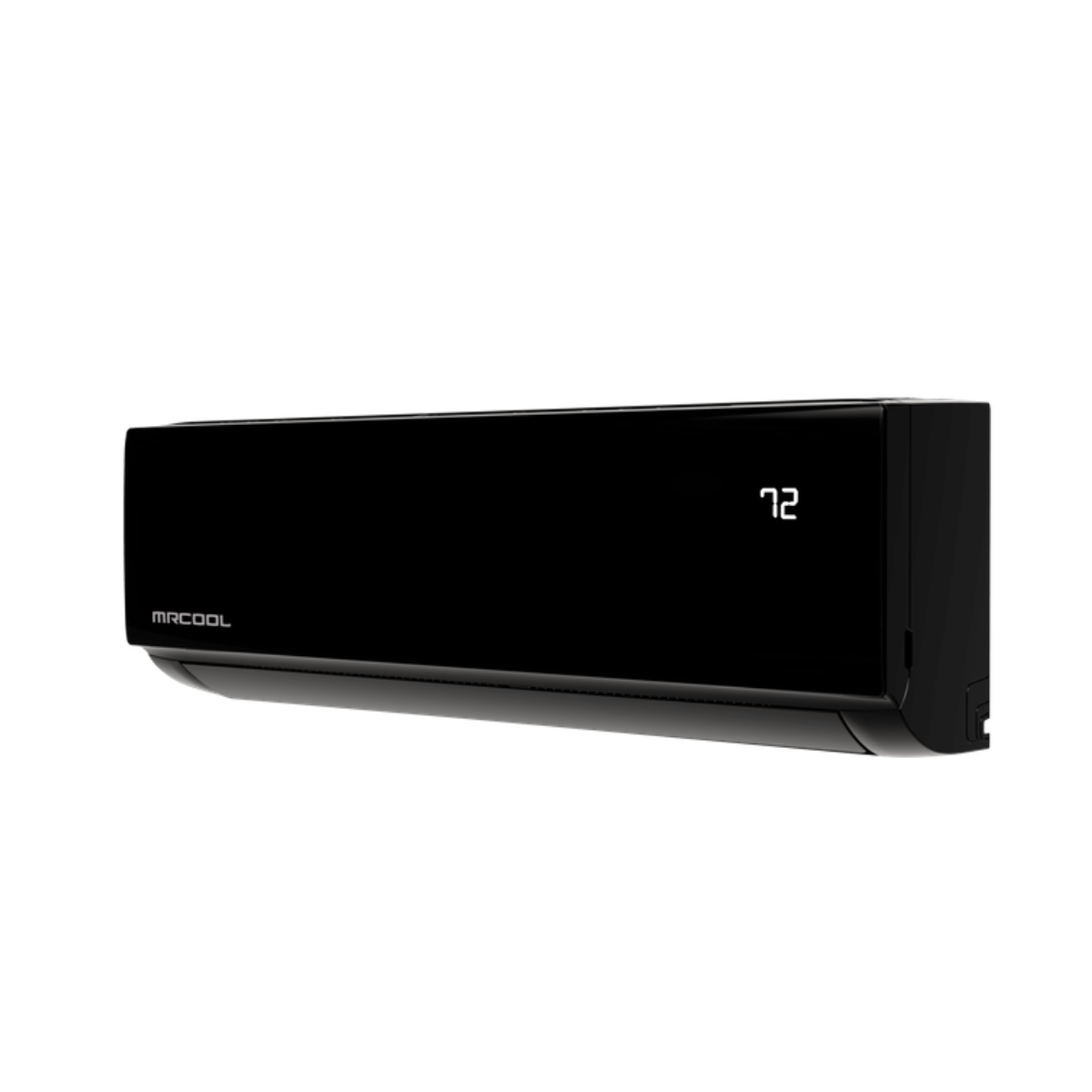

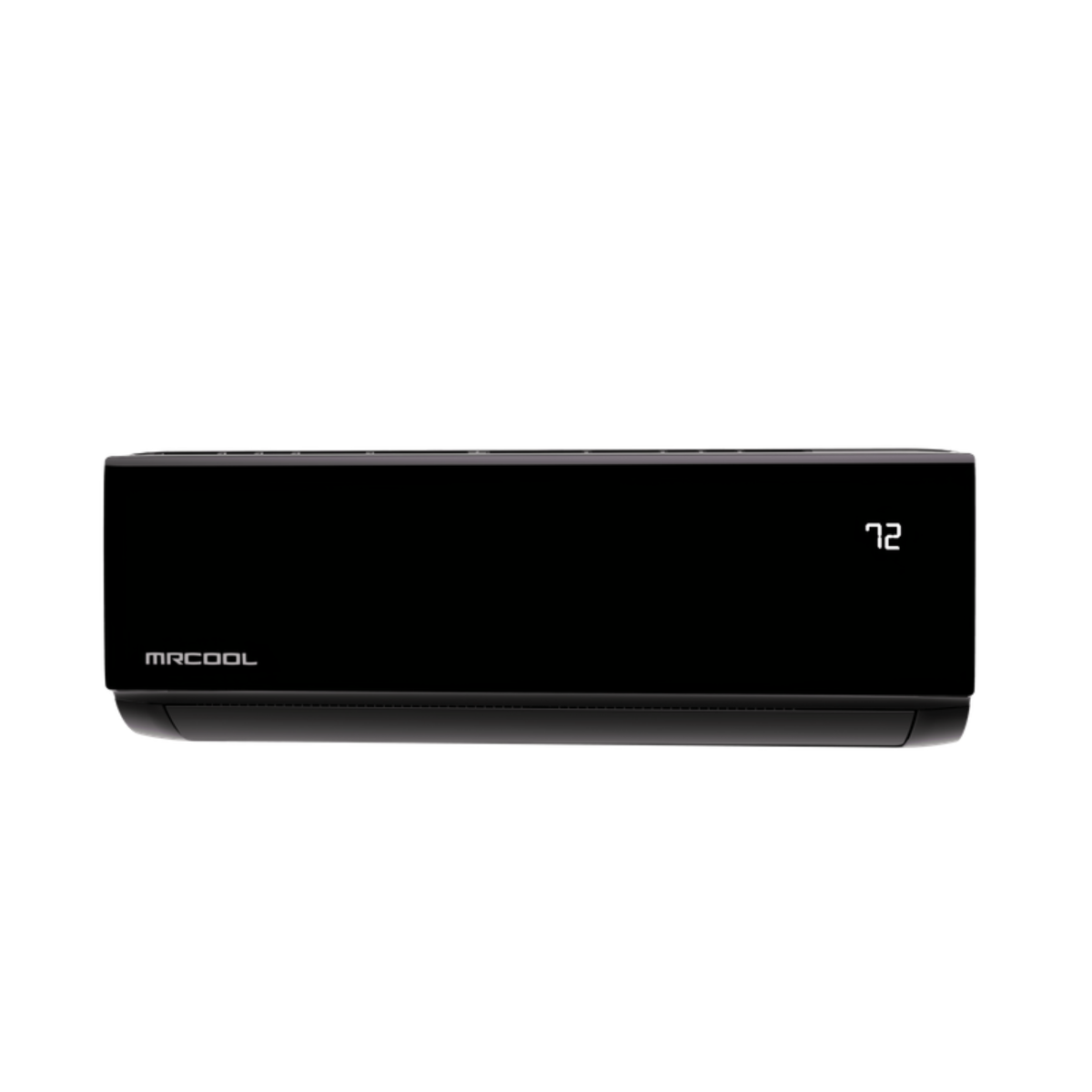

| Indoor Air Handler | Black wall-mounted air handler |

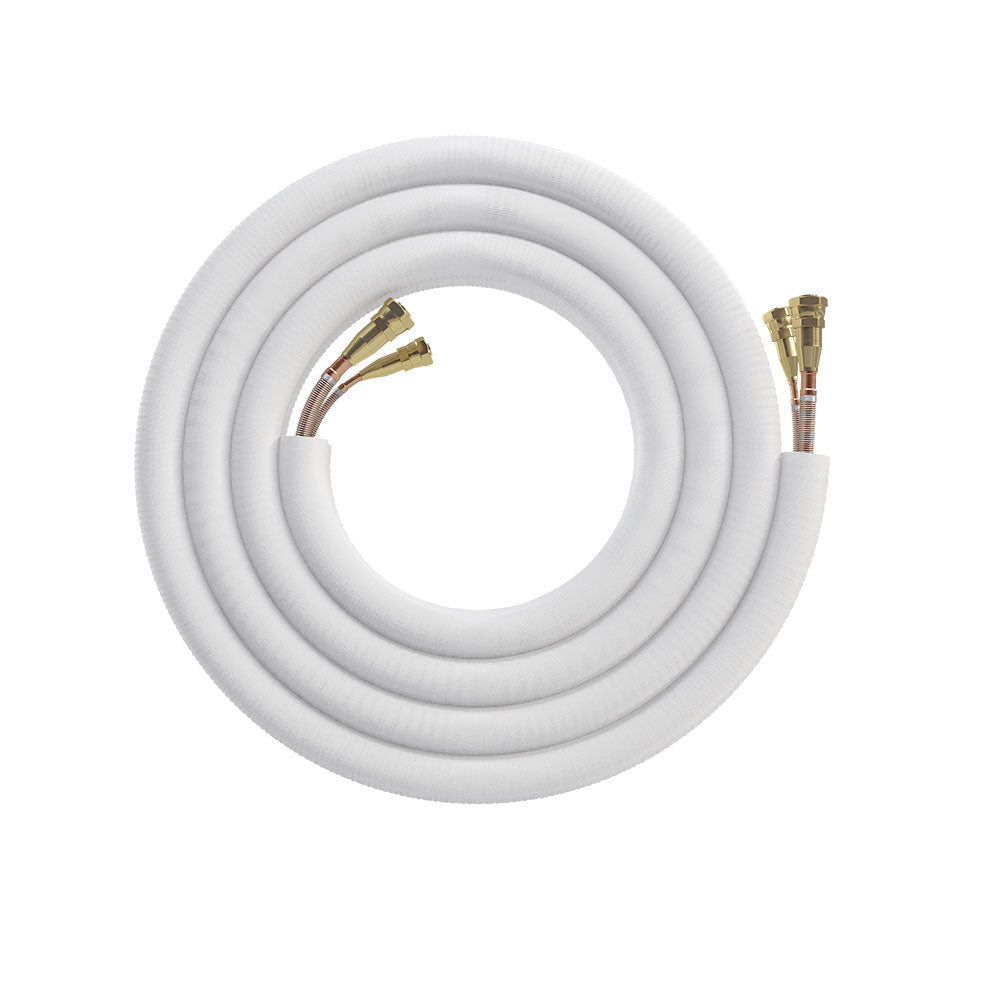

| Pre-Charged Line Set | 11.5 ft Quick Connect® DIY line set |

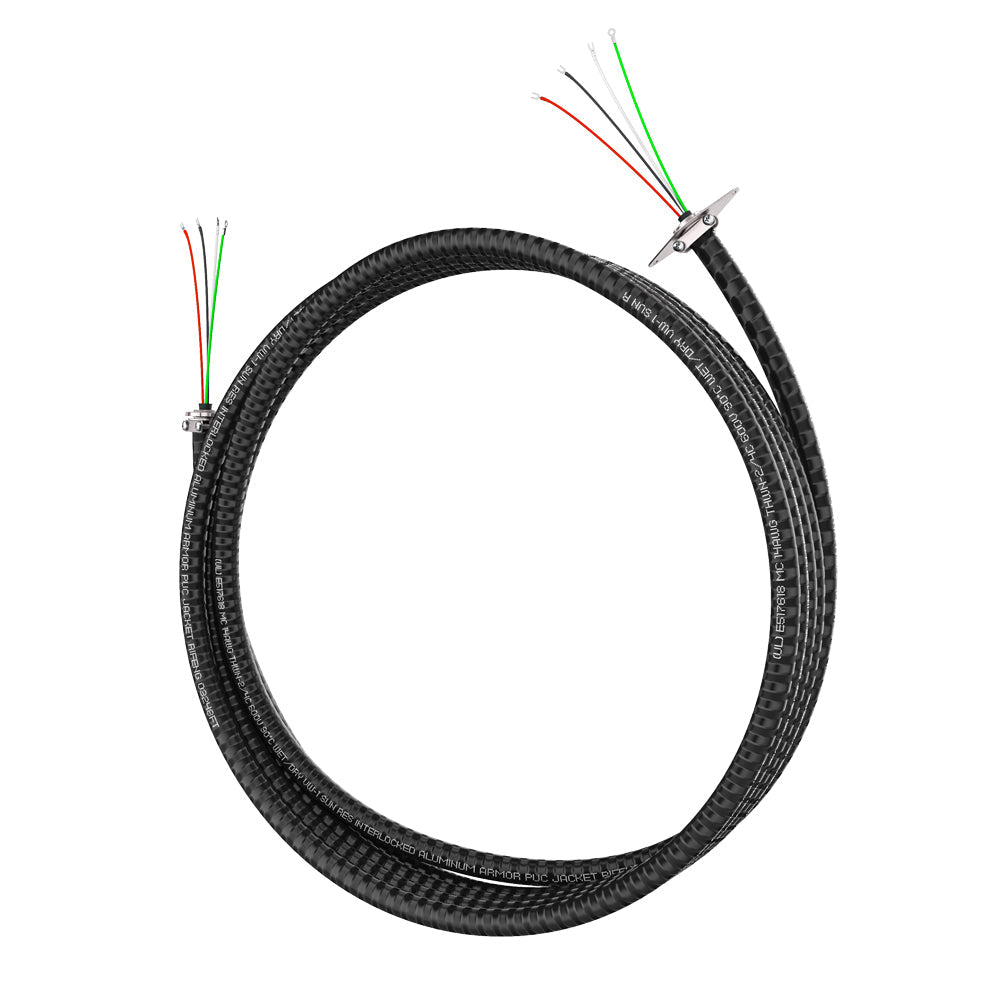

| DIYPRO® Cable | 13 ft communication cable |
| Remote Control | Included |
| Installation Hardware | Included |
Performance
| Specification | 24K 230V DIY Select |
|---|---|
| Cooling Capacity | 24,000 BTU |
| Heating Capacity | 24,000 BTU |
| SEER2 | 16.5 |
| HSPF2-4 | 8.3 |
| HSPF2-5 | 6.3 |
| Coverage Area | Up to 1,050 sq ft |
| Indoor Noise Level | 51.5 / 45.5 / 40.5 / 26.5 / 21.5 dB(A) |
| Outdoor Noise Level | 61 dB(A) |
| Refrigerant | R-454B |
Electrical Requirements
| Specification | Requirement |
|---|---|
| Power Supply | 208/230V, 60Hz, Single Phase |
| Outdoor Minimum Circuit Ampacity | 19A |
| Maximum Breaker / Fuse | 20A |
Important: Always size your breaker based on the outdoor condenser specs and follow local electrical codes. Electricity remains extremely unforgiving.
Warranty Information
| Coverage | Details |
|---|---|
| Compressor | 2-Year Warranty |
| Parts | 1-Year Warranty |
| Remote | 1-Year Warranty |
Why Choose This System?
The MRCOOL DIY Select 24K system is the top-tier option in the Select lineup, built for larger spaces that demand more power. It combines strong output, efficient performance, and a modern black air handler design with a simplified installation process, making it a practical choice for homeowners who want maximum coverage without professional install costs.
No package information available for this product.
Download installation manuals, spec sheets, and warranty documents for this system.
No documents available for this product.
No Q&A content set for this product.
No helpful articles linked for this product.
Rated 4.7 / 5 Stars
4700+ Verified Reviews
Comfort That Speaks for Itself
See why homeowners and pros alike trust MRCOOL DIY systems to deliver comfort, savings, and easy installation.
I never thought I’d install my own HVAC system, but MRCOOL made it possible. The instructions were easy, and the pre-charged lines saved me from hiring a tech. Cools my garage workshop perfectly!
Our MRCOOL mini-split runs really quiet — you can barely tell it’s on. Our electric bill dropped about 35% this summer. Very impressed with the efficiency
Installed this in my detached office. Took me a Saturday morning and a friend to lift the outdoor unit. Works flawlessly — heats in winter and cools in summer.
I swapped my old central unit for two MRCOOL DIY mini-splits. Same comfort, way lower bills. The inverter technology really makes a difference.
Had a small question during installation and Vanessa picked up right away. They walked me through it step by step — best customer service I’ve had in years.
Keeps our sunroom comfortable in 100°F summers and comfy in the winter. The heat pump feature is amazing — one system for both heating and cooling!
I’ve remodeled a few homes, and MRCOOL DIY systems are a game-changer. No need for HVAC pros or special tools — everything is plug-and-play.
I never thought I’d install my own HVAC system, but MRCOOL made it possible. The instructions were easy, and the pre-charged lines saved me from hiring a tech. Cools my garage workshop perfectly!
Our MRCOOL mini-split runs really quiet — you can barely tell it’s on. Our electric bill dropped about 35% this summer. Very impressed with the efficiency
Installed this in my detached office. Took me a Saturday morning and a friend to lift the outdoor unit. Works flawlessly — heats in winter and cools in summer.
I swapped my old central unit for two MRCOOL DIY mini-splits. Same comfort, way lower bills. The inverter technology really makes a difference.
Had a small question during installation and Vanessa picked up right away. They walked me through it step by step — best customer service I’ve had in years.
Keeps our sunroom comfortable in 100°F summers and comfy in the winter. The heat pump feature is amazing — one system for both heating and cooling!
I’ve remodeled a few homes, and MRCOOL DIY systems are a game-changer. No need for HVAC pros or special tools — everything is plug-and-play.
I never thought I’d install my own HVAC system, but MRCOOL made it possible. The instructions were easy, and the pre-charged lines saved me from hiring a tech. Cools my garage workshop perfectly!
Our MRCOOL mini-split runs really quiet — you can barely tell it’s on. Our electric bill dropped about 35% this summer. Very impressed with the efficiency
Installed this in my detached office. Took me a Saturday morning and a friend to lift the outdoor unit. Works flawlessly — heats in winter and cools in summer.
I swapped my old central unit for two MRCOOL DIY mini-splits. Same comfort, way lower bills. The inverter technology really makes a difference.
Had a small question during installation and Vanessa picked up right away. They walked me through it step by step — best customer service I’ve had in years.
Keeps our sunroom comfortable in 100°F summers and comfy in the winter. The heat pump feature is amazing — one system for both heating and cooling!
I’ve remodeled a few homes, and MRCOOL DIY systems are a game-changer. No need for HVAC pros or special tools — everything is plug-and-play.
I never thought I’d install my own HVAC system, but MRCOOL made it possible. The instructions were easy, and the pre-charged lines saved me from hiring a tech. Cools my garage workshop perfectly!
Our MRCOOL mini-split runs really quiet — you can barely tell it’s on. Our electric bill dropped about 35% this summer. Very impressed with the efficiency
Installed this in my detached office. Took me a Saturday morning and a friend to lift the outdoor unit. Works flawlessly — heats in winter and cools in summer.
I swapped my old central unit for two MRCOOL DIY mini-splits. Same comfort, way lower bills. The inverter technology really makes a difference.
Had a small question during installation and Vanessa picked up right away. They walked me through it step by step — best customer service I’ve had in years.
Keeps our sunroom comfortable in 100°F summers and comfy in the winter. The heat pump feature is amazing — one system for both heating and cooling!
I’ve remodeled a few homes, and MRCOOL DIY systems are a game-changer. No need for HVAC pros or special tools — everything is plug-and-play.
I never thought I’d install my own HVAC system, but MRCOOL made it possible. The instructions were easy, and the pre-charged lines saved me from hiring a tech. Cools my garage workshop perfectly!
Our MRCOOL mini-split runs really quiet — you can barely tell it’s on. Our electric bill dropped about 35% this summer. Very impressed with the efficiency
Installed this in my detached office. Took me a Saturday morning and a friend to lift the outdoor unit. Works flawlessly — heats in winter and cools in summer.
I swapped my old central unit for two MRCOOL DIY mini-splits. Same comfort, way lower bills. The inverter technology really makes a difference.
Had a small question during installation and Vanessa picked up right away. They walked me through it step by step — best customer service I’ve had in years.
Keeps our sunroom comfortable in 100°F summers and comfy in the winter. The heat pump feature is amazing — one system for both heating and cooling!
I’ve remodeled a few homes, and MRCOOL DIY systems are a game-changer. No need for HVAC pros or special tools — everything is plug-and-play.
I never thought I’d install my own HVAC system, but MRCOOL made it possible. The instructions were easy, and the pre-charged lines saved me from hiring a tech. Cools my garage workshop perfectly!
Our MRCOOL mini-split runs really quiet — you can barely tell it’s on. Our electric bill dropped about 35% this summer. Very impressed with the efficiency
Installed this in my detached office. Took me a Saturday morning and a friend to lift the outdoor unit. Works flawlessly — heats in winter and cools in summer.
I swapped my old central unit for two MRCOOL DIY mini-splits. Same comfort, way lower bills. The inverter technology really makes a difference.
Had a small question during installation and Vanessa picked up right away. They walked me through it step by step — best customer service I’ve had in years.
Keeps our sunroom comfortable in 100°F summers and comfy in the winter. The heat pump feature is amazing — one system for both heating and cooling!
I’ve remodeled a few homes, and MRCOOL DIY systems are a game-changer. No need for HVAC pros or special tools — everything is plug-and-play.
I never thought I’d install my own HVAC system, but MRCOOL made it possible. The instructions were easy, and the pre-charged lines saved me from hiring a tech. Cools my garage workshop perfectly!
Our MRCOOL mini-split runs really quiet — you can barely tell it’s on. Our electric bill dropped about 35% this summer. Very impressed with the efficiency
Installed this in my detached office. Took me a Saturday morning and a friend to lift the outdoor unit. Works flawlessly — heats in winter and cools in summer.
I swapped my old central unit for two MRCOOL DIY mini-splits. Same comfort, way lower bills. The inverter technology really makes a difference.
Had a small question during installation and Vanessa picked up right away. They walked me through it step by step — best customer service I’ve had in years.
Keeps our sunroom comfortable in 100°F summers and comfy in the winter. The heat pump feature is amazing — one system for both heating and cooling!
I’ve remodeled a few homes, and MRCOOL DIY systems are a game-changer. No need for HVAC pros or special tools — everything is plug-and-play.
I never thought I’d install my own HVAC system, but MRCOOL made it possible. The instructions were easy, and the pre-charged lines saved me from hiring a tech. Cools my garage workshop perfectly!
Our MRCOOL mini-split runs really quiet — you can barely tell it’s on. Our electric bill dropped about 35% this summer. Very impressed with the efficiency
Installed this in my detached office. Took me a Saturday morning and a friend to lift the outdoor unit. Works flawlessly — heats in winter and cools in summer.
I swapped my old central unit for two MRCOOL DIY mini-splits. Same comfort, way lower bills. The inverter technology really makes a difference.
Had a small question during installation and Vanessa picked up right away. They walked me through it step by step — best customer service I’ve had in years.
Keeps our sunroom comfortable in 100°F summers and comfy in the winter. The heat pump feature is amazing — one system for both heating and cooling!
I’ve remodeled a few homes, and MRCOOL DIY systems are a game-changer. No need for HVAC pros or special tools — everything is plug-and-play.
I never thought I’d install my own HVAC system, but MRCOOL made it possible. The instructions were easy, and the pre-charged lines saved me from hiring a tech. Cools my garage workshop perfectly!
Our MRCOOL mini-split runs really quiet — you can barely tell it’s on. Our electric bill dropped about 35% this summer. Very impressed with the efficiency
Installed this in my detached office. Took me a Saturday morning and a friend to lift the outdoor unit. Works flawlessly — heats in winter and cools in summer.
I swapped my old central unit for two MRCOOL DIY mini-splits. Same comfort, way lower bills. The inverter technology really makes a difference.
Had a small question during installation and Vanessa picked up right away. They walked me through it step by step — best customer service I’ve had in years.
Keeps our sunroom comfortable in 100°F summers and comfy in the winter. The heat pump feature is amazing — one system for both heating and cooling!
I’ve remodeled a few homes, and MRCOOL DIY systems are a game-changer. No need for HVAC pros or special tools — everything is plug-and-play.
I never thought I’d install my own HVAC system, but MRCOOL made it possible. The instructions were easy, and the pre-charged lines saved me from hiring a tech. Cools my garage workshop perfectly!
Our MRCOOL mini-split runs really quiet — you can barely tell it’s on. Our electric bill dropped about 35% this summer. Very impressed with the efficiency
Installed this in my detached office. Took me a Saturday morning and a friend to lift the outdoor unit. Works flawlessly — heats in winter and cools in summer.
I swapped my old central unit for two MRCOOL DIY mini-splits. Same comfort, way lower bills. The inverter technology really makes a difference.
Had a small question during installation and Vanessa picked up right away. They walked me through it step by step — best customer service I’ve had in years.
Keeps our sunroom comfortable in 100°F summers and comfy in the winter. The heat pump feature is amazing — one system for both heating and cooling!
I’ve remodeled a few homes, and MRCOOL DIY systems are a game-changer. No need for HVAC pros or special tools — everything is plug-and-play.
DIY-Friendly Installation
Designed specifically for homeowners, the MRCOOL DIY system includes an installation template for the wall-mounted air handler, making it easy to place holes for refrigerant lines, cables, and drain connections accurately. The simplified design eliminates guesswork and helps you complete installation faster with confidence.
Heat Pump Technology – Heating & Cooling
The MRCOOL DIY system is a true heat pump, providing both heating and cooling in one system. It transfers heat rather than generating it, delivering highly efficient comfort year-round. The system can heat in temperatures as low as -13°F and cool in temperatures up to 122°F, keeping your home comfortable in nearly any climate.
Variable-Speed DC Inverter Compressor
The MRCOOL DIY system uses advanced DC inverter technology to continuously adjust compressor speed based on your comfort needs. Instead of constantly turning on and off like traditional systems, it runs at the optimal level to maintain temperature while using less energy. This results in lower energy costs, quieter operation, and longer system life.
Smart Control with Wi-Fi & Voice Assistants
Take full control of your comfort from anywhere using the MRCOOL SmartHVAC app on iOS or Android. Adjust temperature, monitor usage, and set automated comfort schedules. The system also integrates with Amazon Alexa and Google Assistant for convenient voice control.

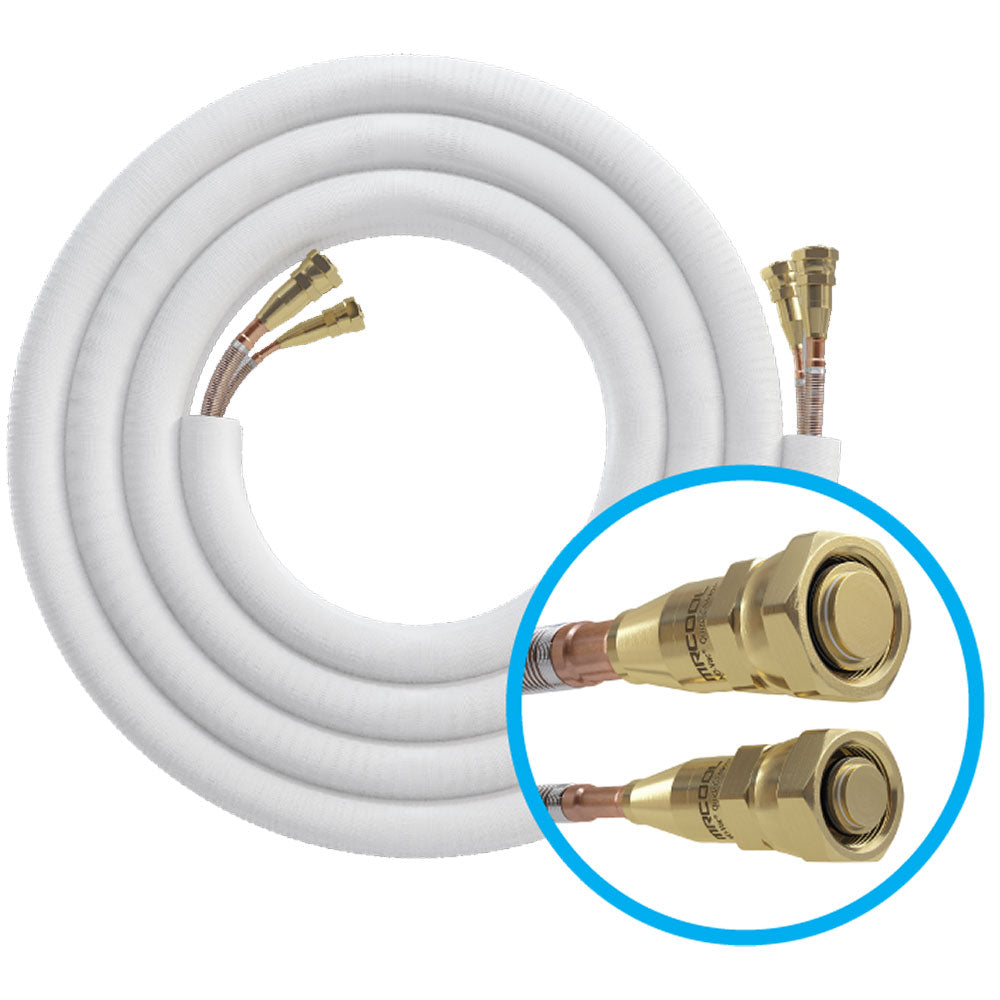

No-Vac Quick Connect® Line Sets
Installation is simple thanks to MRCOOL’s patented Quick Connect® fittings. The pre-charged line sets come sealed with refrigerant and connect using basic hand tools — no vacuum pump or specialized HVAC equipment required. Just align the fittings, tighten with a wrench, and your system is ready to go.
Protected DIYPro™ Communication Cable
The MRCOOL DIYPro™ communication cable connects the indoor air handler and outdoor condenser while protecting electrical wiring inside a durable protective conduit. This heavy-duty cable helps shield wiring from weather exposure and accidental damage during installation.
