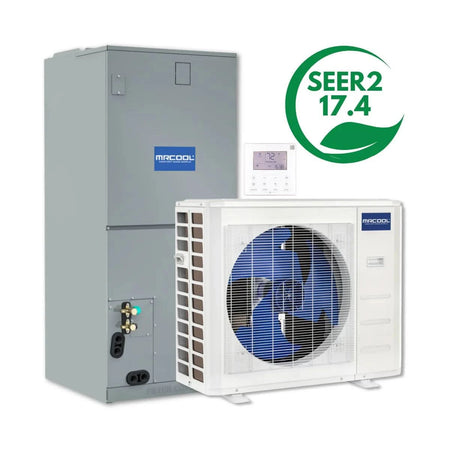

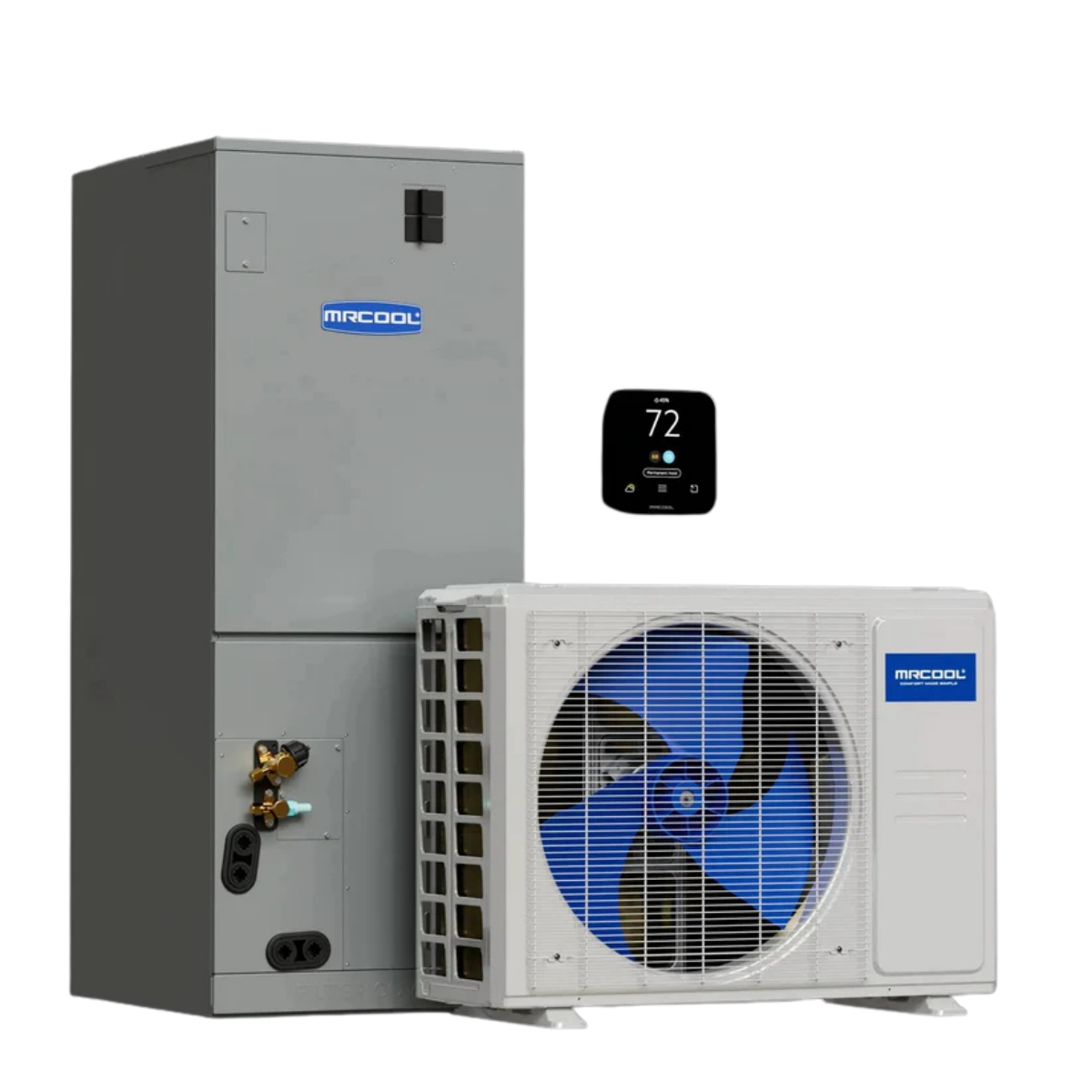

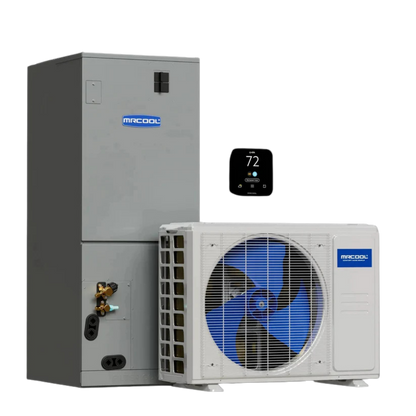

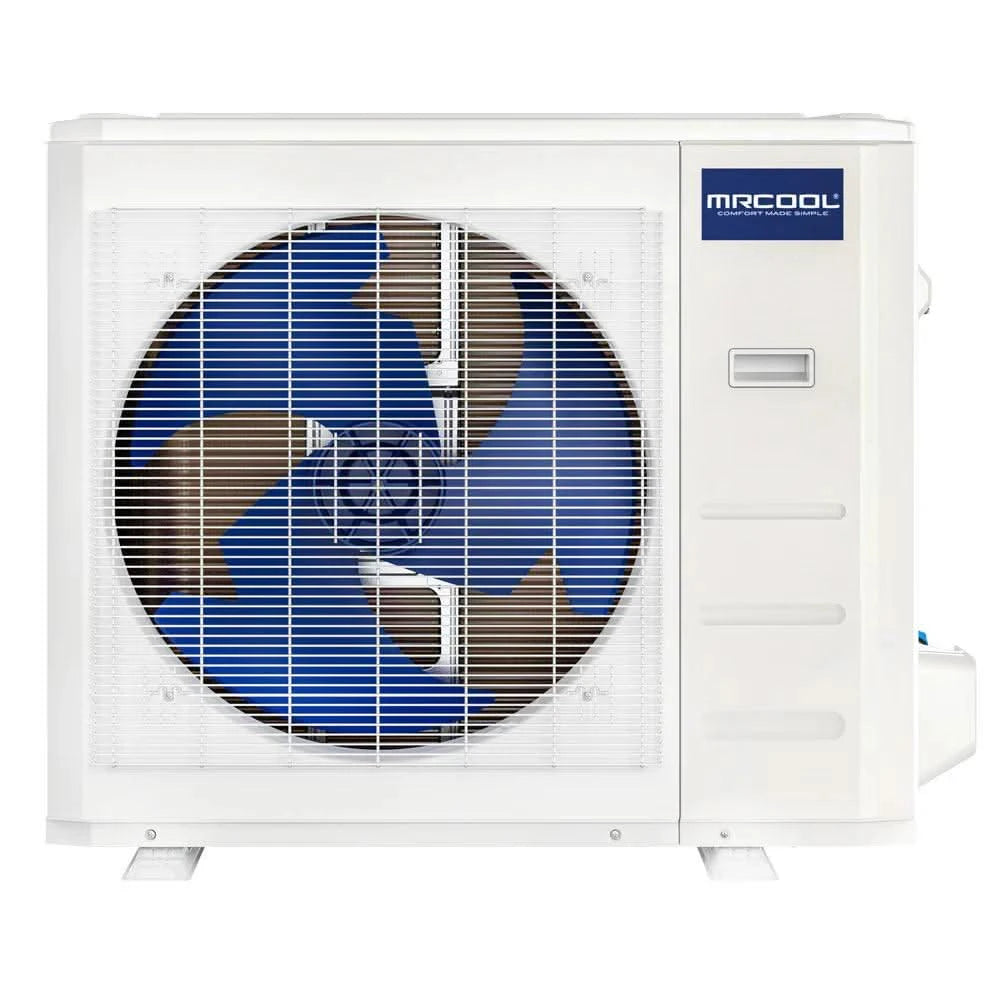

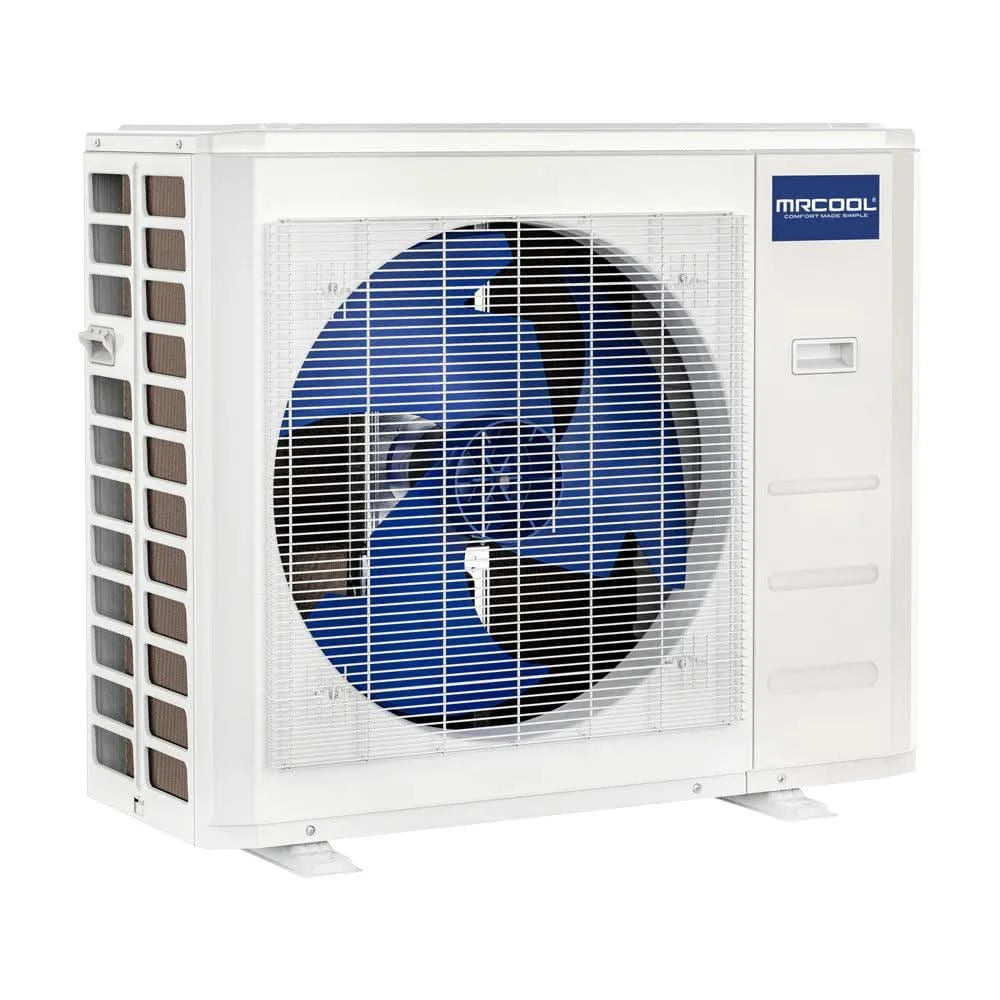

MRCOOL Hyper Heat 2nd Gen 36K BTU 3 Ton 17.4 SEER2 Central Ducted Heat Pump Split System – CENTRAL-36-HP-230B00-O
Couldn't load pickup availability
MRCOOL Hyper Heat 2nd Gen 36K BTU 3 Ton 17.4 SEER2 Central Ducted Heat Pump Split System – CENTRAL-36-HP-230B00-O
Upgrade your home's heating and cooling system with the MRCOOL® Hyper Heat 2nd Gen 36K BTU Central Ducted Heat Pump Split System—a top-tier solution for year-round comfort. Engineered to deliver superior performance in extreme climates, this high-efficiency system boasts an impressive 17.4 SEER2 rating and an HSPF2-4 rating of up to 10.2, ensuring maximum energy savings while keeping your home at the perfect temperature.
Key Features & Benefits
✔ High-Efficiency Heating & Cooling
- Delivers reliable performance in both freezing winters and scorching summers.
- SEER2 rating of up to 17.4 and HSPF2-4 rating of up to 10.2, optimizing energy efficiency and reducing utility costs.
✔ Smart Control & Easy Operation

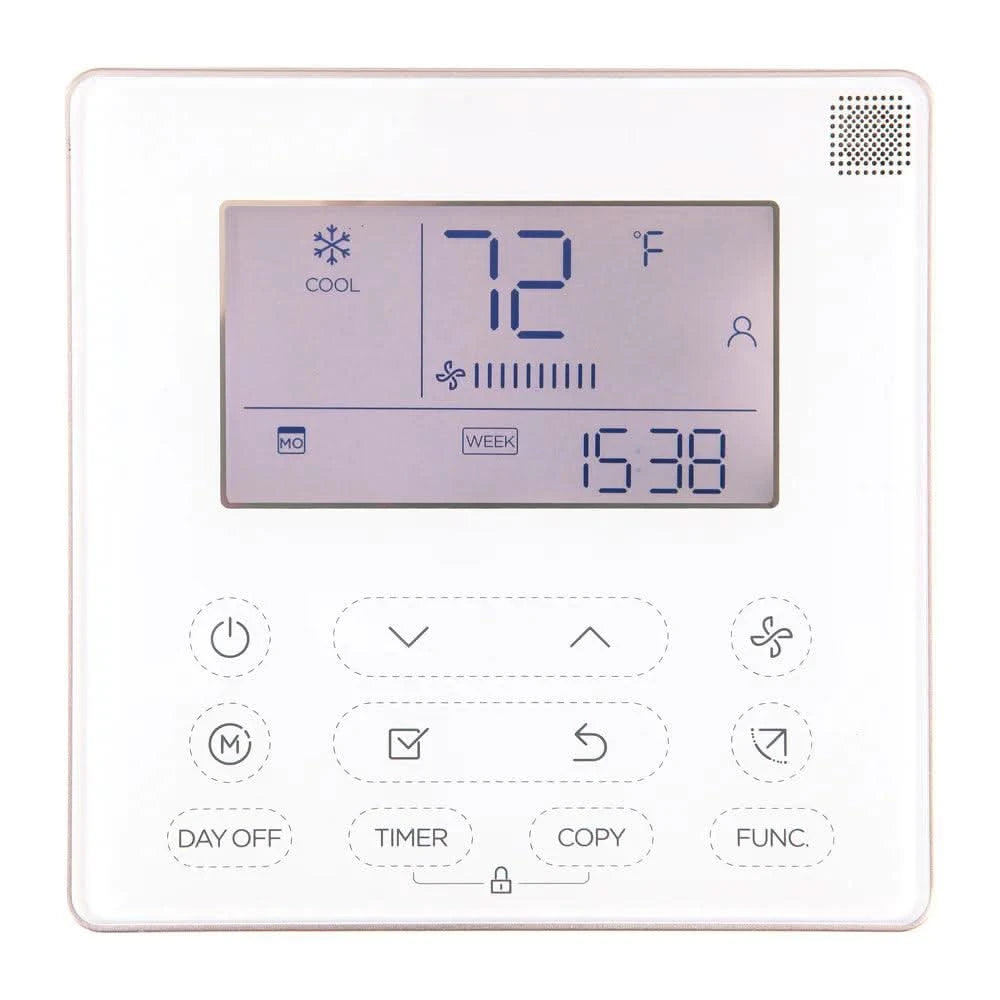

- Includes the MRCOOL® Smart Thermostat for effortless temperature management.
- Compatible with the SmartHVAC app, allowing remote monitoring and control from anywhere.
✔ Versatile Installation & Compatibility
- Designed to pair seamlessly with the MRCOOL® VersaPro® Central Ducted Air Handler (sold separately).
- Supports multiple installation configurations, including upflow, downflow, and horizontal left/right airflow options.
- Compatible with an optional heat kit for added warmth during colder months.
✔ Durable & Long-Lasting Construction
- Built with a painted galvanized steel exterior, ensuring protection against the elements and long-term durability.
- The air handler features a compact design, slide-out blower, and self-diagnostics panel for easier maintenance.
✔ Eco-Friendly & Sustainable Technology
- Uses R-454B refrigerant, a next-generation refrigerant with a lower environmental impact.
- Helps reduce carbon footprint while maintaining high-performance heating and cooling efficiency.
✔ Comprehensive Warranty Protection
- 10-Year Warranty covering the compressor, parts, and labor for peace of mind.
- Labor warranty is automatically activated upon installation, ensuring hassle-free protection.
Simplified DIY Installation with No Vac® Quick Connect® Line Sets
This system is designed to work with No Vac® Quick Connect® Line Sets, which come pre-charged with R-454B refrigerant for a faster and simpler installation—no vacuum pump required!
Note: Line sets are sold separately. For those opting for traditional flare nut installation, the unit includes stub pipes and copper nuts for added flexibility.

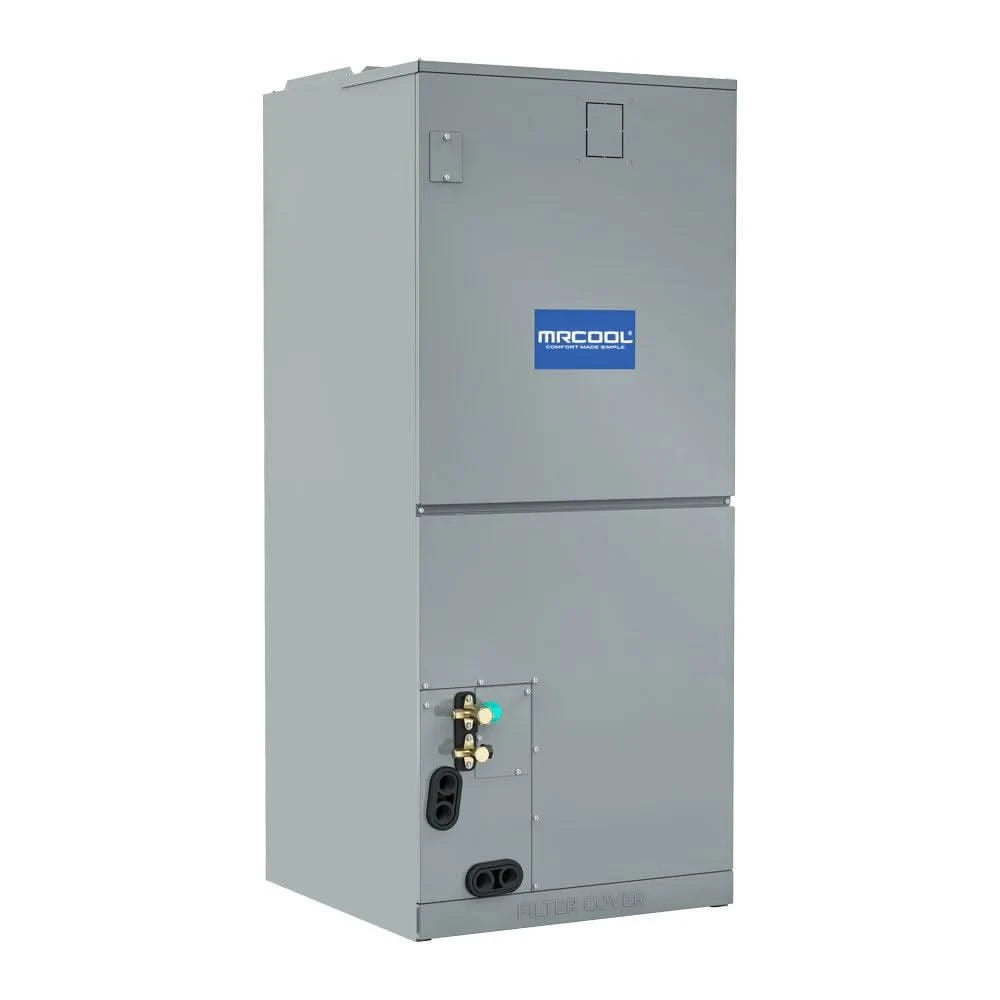

Pair It with the MRCOOL® VersaPro® Central Ducted Air Handler
When combined with the VersaPro® Central Ducted Air Handler, this 36K BTU heat pump system provides consistent and efficient climate control for spaces up to 1,500 square feet.
Why Choose MRCOOL DIY Direct?
As the USA’s most trusted MRCOOL dealer, we offer expert support, fast shipping, and the best deals on MRCOOL® heating and cooling solutions.
🔥 Take control of your home’s comfort with the MRCOOL® Hyper Heat 36K BTU Central Ducted System—available now at MRCOOL DIY Direct! 🔥
| Category | Specification |
|---|---|
| Cooling Capacity (Btu/h) | 36,000 |
| SEER2 | 17.4 |
| EER2 | 11.7 |
| Heating Capacity (Btu/h) | 37,000 |
| HSPF2-4 | 10.2 |
| HSPF2-5 | 8.6 |
| Indoor Noise Level (Turbo/Hi/Mi/Lo) | 49 / 48 / 45.5 / 25.5 dB(A) |
| Outdoor Noise Level | 62.5 dB(A) |
| Power Supply (Indoor) | 208/230V ~ 60Hz, 1ph |
| Power Supply (Outdoor) | 208/230V ~ 60Hz, 1ph |
| Min Circuit Ampacity (Indoor) | 8.0 / 6.0 A |
| Max Fuse (Indoor) | 15 A |
| Min Circuit Ampacity (Outdoor) | 29.0 A |
| Max Fuse (Outdoor) | 30 A |
| Indoor Unit Dimensions (WxDxH) | 21.02 x 21.02 x 49.02 in |
| Indoor Packing Dimensions (WxDxH) | 26.57 x 24.41 x 52.56 in |
| Indoor Net/Gross Weight | 129.41 / 153.88 lbs |
| Outdoor Unit Dimensions (WxDxH) | 38.58 x 16.34 x 38.39 in |
| Outdoor Packing Dimensions (WxDxH) | 45.08 x 19.68 x 42.52 in |
| Outdoor Net/Gross Weight | 204.15 / 235.23 lbs |
| Indoor Airflow (CFM Turbo/Hi/Mi/Lo) | 1188 / 1082 / 970 / 865 |
| Outdoor Airflow (CFM) | 3001.8 |
| Refrigerant Type | R-454B |
| Refrigerant Charge | 126.99 oz |
| Piping Size (Liquid/Gas) | 3/8" - 3/4" |
No package information available for this product.
Download installation manuals, spec sheets, and warranty documents for this system.
No documents available for this product.
No Q&A content set for this product.
No helpful articles linked for this product.
MRCOOL SIGNATURE SERIES BUYING GUIDE
How to Choose the Right MRCOOL Signature Series TruInverter System
The MRCOOL Signature Series TruInverter systems are engineered for high-performance heating and cooling in residential and light commercial applications. With advanced inverter technology, R-454B refrigerant, and durable construction, these systems deliver consistent comfort, improved efficiency, and reliable operation in extreme conditions. Use this guide to compare system sizes, performance capabilities, and installation requirements so you can confidently select the right system for your space.
MRCOOL Signature Series TruInverter HVAC System Buying Guide
The MRCOOL Signature Series TruInverter heat pump systems are designed for homeowners and professionals who need high-performance, energy-efficient HVAC solutions for year-round comfort. Unlike traditional single-stage systems, these inverter-driven systems continuously adjust output based on real-time demand, delivering more consistent indoor temperatures and improved energy efficiency.
One of the key advantages of the Signature Series is its ability to operate in extreme conditions. These systems are engineered to provide reliable cooling in high outdoor temperatures and maintain heating performance in low ambient environments, making them ideal for a wide range of climate zones.
Each system is factory-charged with R-454B refrigerant, a next-generation solution that improves heat transfer efficiency while reducing environmental impact compared to older refrigerants. Combined with advanced compressor technology, this results in lower energy consumption and long-term operational savings.
When selecting a MRCOOL Signature Series system, it is important to consider system size (tonnage), square footage, insulation quality, and climate conditions. Available options range from 2 ton to 5 ton systems, making them suitable for everything from smaller homes to large residential and light commercial applications.
These systems are designed for professional installation and are compatible with standard 24V thermostats, offering flexibility for both new construction and system replacement projects. With durable construction, quiet operation, and service-friendly design, the MRCOOL Signature Series provides a reliable, long-term HVAC solution built for real-world performance.
Frequently Asked Questions
What size MRCOOL Signature Series system do I need?
A: System size depends on square footage, insulation, ceiling height, and climate zone. A properly sized system ensures optimal efficiency, performance, and long-term reliability.
What is TruInverter technology and why does it matter?
TruInverter technology allows the system to continuously adjust compressor speed instead of cycling on and off. This results in more consistent temperatures, improved energy efficiency, quieter operation, and reduced wear on components.
Can MRCOOL Signature Series systems handle extreme temperatures?
A: Yes. These systems are engineered to operate in both high heat and low ambient conditions, providing reliable cooling during extreme summer temperatures and consistent heating in cold climates.
Is professional installation required for Signature Series systems?
A: Yes. Unlike DIY mini splits, Signature Series systems are designed for professional installation to ensure proper sizing, airflow design, refrigerant handling, and electrical setup.
What are the benefits of an inverter heat pump vs a traditional HVAC system?
Inverter heat pumps provide better efficiency, more consistent comfort, lower energy costs, and longer system lifespan compared to traditional single-stage systems that frequently cycle on and off.
Rated 4.7 / 5 Stars
4700+ Verified Reviews
Comfort That Speaks for Itself
See why homeowners and pros alike trust MRCOOL DIY systems to deliver comfort, savings, and easy installation.
I never thought I’d install my own HVAC system, but MRCOOL made it possible. The instructions were easy, and the pre-charged lines saved me from hiring a tech. Cools my garage workshop perfectly!
Our MRCOOL mini-split runs really quiet — you can barely tell it’s on. Our electric bill dropped about 35% this summer. Very impressed with the efficiency
Installed this in my detached office. Took me a Saturday morning and a friend to lift the outdoor unit. Works flawlessly — heats in winter and cools in summer.
I swapped my old central unit for two MRCOOL DIY mini-splits. Same comfort, way lower bills. The inverter technology really makes a difference.
Had a small question during installation and Vanessa picked up right away. They walked me through it step by step — best customer service I’ve had in years.
Keeps our sunroom comfortable in 100°F summers and comfy in the winter. The heat pump feature is amazing — one system for both heating and cooling!
I’ve remodeled a few homes, and MRCOOL DIY systems are a game-changer. No need for HVAC pros or special tools — everything is plug-and-play.
I never thought I’d install my own HVAC system, but MRCOOL made it possible. The instructions were easy, and the pre-charged lines saved me from hiring a tech. Cools my garage workshop perfectly!
Our MRCOOL mini-split runs really quiet — you can barely tell it’s on. Our electric bill dropped about 35% this summer. Very impressed with the efficiency
Installed this in my detached office. Took me a Saturday morning and a friend to lift the outdoor unit. Works flawlessly — heats in winter and cools in summer.
I swapped my old central unit for two MRCOOL DIY mini-splits. Same comfort, way lower bills. The inverter technology really makes a difference.
Had a small question during installation and Vanessa picked up right away. They walked me through it step by step — best customer service I’ve had in years.
Keeps our sunroom comfortable in 100°F summers and comfy in the winter. The heat pump feature is amazing — one system for both heating and cooling!
I’ve remodeled a few homes, and MRCOOL DIY systems are a game-changer. No need for HVAC pros or special tools — everything is plug-and-play.
I never thought I’d install my own HVAC system, but MRCOOL made it possible. The instructions were easy, and the pre-charged lines saved me from hiring a tech. Cools my garage workshop perfectly!
Our MRCOOL mini-split runs really quiet — you can barely tell it’s on. Our electric bill dropped about 35% this summer. Very impressed with the efficiency
Installed this in my detached office. Took me a Saturday morning and a friend to lift the outdoor unit. Works flawlessly — heats in winter and cools in summer.
I swapped my old central unit for two MRCOOL DIY mini-splits. Same comfort, way lower bills. The inverter technology really makes a difference.
Had a small question during installation and Vanessa picked up right away. They walked me through it step by step — best customer service I’ve had in years.
Keeps our sunroom comfortable in 100°F summers and comfy in the winter. The heat pump feature is amazing — one system for both heating and cooling!
I’ve remodeled a few homes, and MRCOOL DIY systems are a game-changer. No need for HVAC pros or special tools — everything is plug-and-play.
I never thought I’d install my own HVAC system, but MRCOOL made it possible. The instructions were easy, and the pre-charged lines saved me from hiring a tech. Cools my garage workshop perfectly!
Our MRCOOL mini-split runs really quiet — you can barely tell it’s on. Our electric bill dropped about 35% this summer. Very impressed with the efficiency
Installed this in my detached office. Took me a Saturday morning and a friend to lift the outdoor unit. Works flawlessly — heats in winter and cools in summer.
I swapped my old central unit for two MRCOOL DIY mini-splits. Same comfort, way lower bills. The inverter technology really makes a difference.
Had a small question during installation and Vanessa picked up right away. They walked me through it step by step — best customer service I’ve had in years.
Keeps our sunroom comfortable in 100°F summers and comfy in the winter. The heat pump feature is amazing — one system for both heating and cooling!
I’ve remodeled a few homes, and MRCOOL DIY systems are a game-changer. No need for HVAC pros or special tools — everything is plug-and-play.
I never thought I’d install my own HVAC system, but MRCOOL made it possible. The instructions were easy, and the pre-charged lines saved me from hiring a tech. Cools my garage workshop perfectly!
Our MRCOOL mini-split runs really quiet — you can barely tell it’s on. Our electric bill dropped about 35% this summer. Very impressed with the efficiency
Installed this in my detached office. Took me a Saturday morning and a friend to lift the outdoor unit. Works flawlessly — heats in winter and cools in summer.
I swapped my old central unit for two MRCOOL DIY mini-splits. Same comfort, way lower bills. The inverter technology really makes a difference.
Had a small question during installation and Vanessa picked up right away. They walked me through it step by step — best customer service I’ve had in years.
Keeps our sunroom comfortable in 100°F summers and comfy in the winter. The heat pump feature is amazing — one system for both heating and cooling!
I’ve remodeled a few homes, and MRCOOL DIY systems are a game-changer. No need for HVAC pros or special tools — everything is plug-and-play.
I never thought I’d install my own HVAC system, but MRCOOL made it possible. The instructions were easy, and the pre-charged lines saved me from hiring a tech. Cools my garage workshop perfectly!
Our MRCOOL mini-split runs really quiet — you can barely tell it’s on. Our electric bill dropped about 35% this summer. Very impressed with the efficiency
Installed this in my detached office. Took me a Saturday morning and a friend to lift the outdoor unit. Works flawlessly — heats in winter and cools in summer.
I swapped my old central unit for two MRCOOL DIY mini-splits. Same comfort, way lower bills. The inverter technology really makes a difference.
Had a small question during installation and Vanessa picked up right away. They walked me through it step by step — best customer service I’ve had in years.
Keeps our sunroom comfortable in 100°F summers and comfy in the winter. The heat pump feature is amazing — one system for both heating and cooling!
I’ve remodeled a few homes, and MRCOOL DIY systems are a game-changer. No need for HVAC pros or special tools — everything is plug-and-play.
I never thought I’d install my own HVAC system, but MRCOOL made it possible. The instructions were easy, and the pre-charged lines saved me from hiring a tech. Cools my garage workshop perfectly!
Our MRCOOL mini-split runs really quiet — you can barely tell it’s on. Our electric bill dropped about 35% this summer. Very impressed with the efficiency
Installed this in my detached office. Took me a Saturday morning and a friend to lift the outdoor unit. Works flawlessly — heats in winter and cools in summer.
I swapped my old central unit for two MRCOOL DIY mini-splits. Same comfort, way lower bills. The inverter technology really makes a difference.
Had a small question during installation and Vanessa picked up right away. They walked me through it step by step — best customer service I’ve had in years.
Keeps our sunroom comfortable in 100°F summers and comfy in the winter. The heat pump feature is amazing — one system for both heating and cooling!
I’ve remodeled a few homes, and MRCOOL DIY systems are a game-changer. No need for HVAC pros or special tools — everything is plug-and-play.
I never thought I’d install my own HVAC system, but MRCOOL made it possible. The instructions were easy, and the pre-charged lines saved me from hiring a tech. Cools my garage workshop perfectly!
Our MRCOOL mini-split runs really quiet — you can barely tell it’s on. Our electric bill dropped about 35% this summer. Very impressed with the efficiency
Installed this in my detached office. Took me a Saturday morning and a friend to lift the outdoor unit. Works flawlessly — heats in winter and cools in summer.
I swapped my old central unit for two MRCOOL DIY mini-splits. Same comfort, way lower bills. The inverter technology really makes a difference.
Had a small question during installation and Vanessa picked up right away. They walked me through it step by step — best customer service I’ve had in years.
Keeps our sunroom comfortable in 100°F summers and comfy in the winter. The heat pump feature is amazing — one system for both heating and cooling!
I’ve remodeled a few homes, and MRCOOL DIY systems are a game-changer. No need for HVAC pros or special tools — everything is plug-and-play.
I never thought I’d install my own HVAC system, but MRCOOL made it possible. The instructions were easy, and the pre-charged lines saved me from hiring a tech. Cools my garage workshop perfectly!
Our MRCOOL mini-split runs really quiet — you can barely tell it’s on. Our electric bill dropped about 35% this summer. Very impressed with the efficiency
Installed this in my detached office. Took me a Saturday morning and a friend to lift the outdoor unit. Works flawlessly — heats in winter and cools in summer.
I swapped my old central unit for two MRCOOL DIY mini-splits. Same comfort, way lower bills. The inverter technology really makes a difference.
Had a small question during installation and Vanessa picked up right away. They walked me through it step by step — best customer service I’ve had in years.
Keeps our sunroom comfortable in 100°F summers and comfy in the winter. The heat pump feature is amazing — one system for both heating and cooling!
I’ve remodeled a few homes, and MRCOOL DIY systems are a game-changer. No need for HVAC pros or special tools — everything is plug-and-play.
I never thought I’d install my own HVAC system, but MRCOOL made it possible. The instructions were easy, and the pre-charged lines saved me from hiring a tech. Cools my garage workshop perfectly!
Our MRCOOL mini-split runs really quiet — you can barely tell it’s on. Our electric bill dropped about 35% this summer. Very impressed with the efficiency
Installed this in my detached office. Took me a Saturday morning and a friend to lift the outdoor unit. Works flawlessly — heats in winter and cools in summer.
I swapped my old central unit for two MRCOOL DIY mini-splits. Same comfort, way lower bills. The inverter technology really makes a difference.
Had a small question during installation and Vanessa picked up right away. They walked me through it step by step — best customer service I’ve had in years.
Keeps our sunroom comfortable in 100°F summers and comfy in the winter. The heat pump feature is amazing — one system for both heating and cooling!
I’ve remodeled a few homes, and MRCOOL DIY systems are a game-changer. No need for HVAC pros or special tools — everything is plug-and-play.
MRCOOL Signature Series System Size Comparison
Choosing the right system size is critical for performance, efficiency, and long-term reliability. Use the chart below to compare MRCOOL Signature Series TruInverter systems and find the best fit for your space.
| System Size | BTU Capacity | Recommended Coverage | Best For | Common Applications |
|---|---|---|---|---|
| 2 Ton | 24,000 BTU | 1,000 – 1,200 sq ft | Smaller homes / tight layouts | Condos, small houses, additions |
| 3 Ton | 36,000 BTU | 1,200 – 1,800 sq ft | Standard residential homes | Single-family homes, mid-size layouts |
| 4 Ton | 48,000 BTU | 1,800 – 2,500 sq ft | Larger homes / open floor plans | Large houses, multi-level homes |
| 5 Ton | 60,000 BTU | 2,500+ sq ft | High-demand / large spaces | Large homes, shops, light commercial |
Note: These sizing estimates are general guidelines. Proper HVAC sizing should always account for insulation, ceiling height, windows, climate zone, and overall building design. For best results, consult a licensed HVAC professional.
