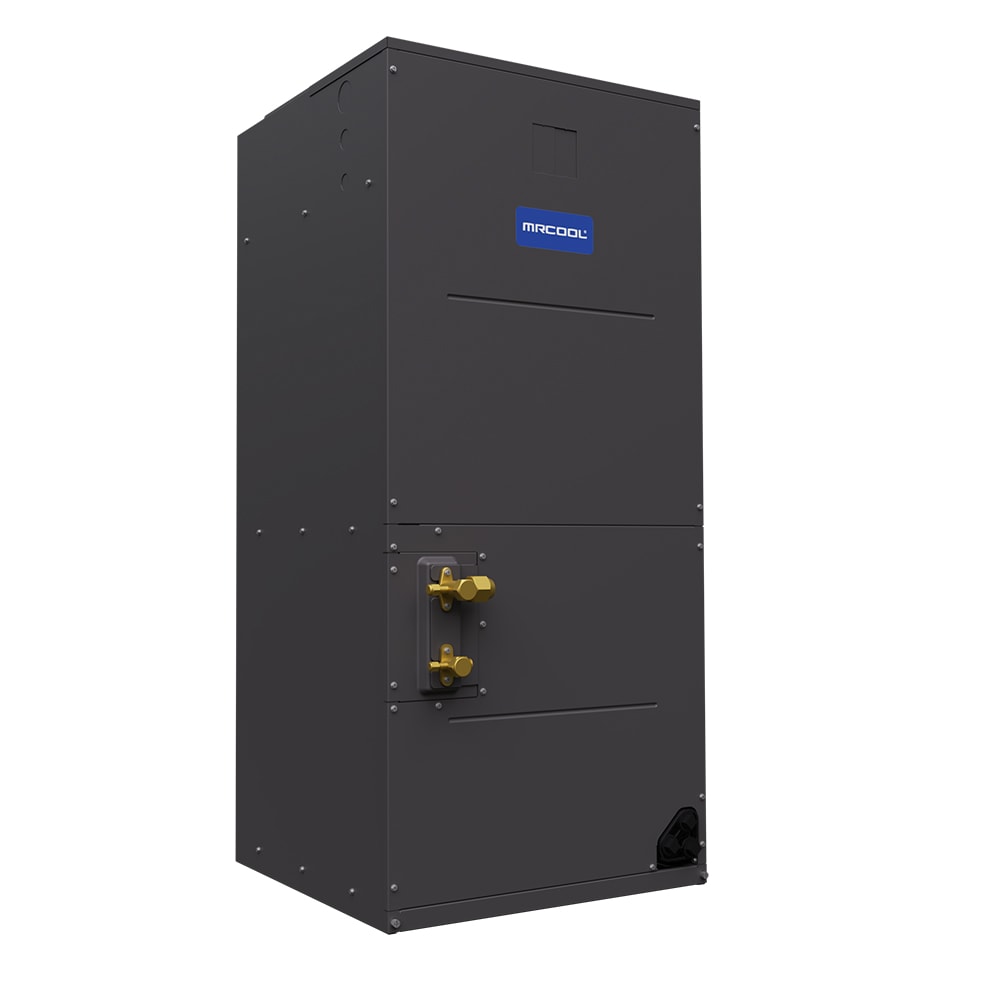

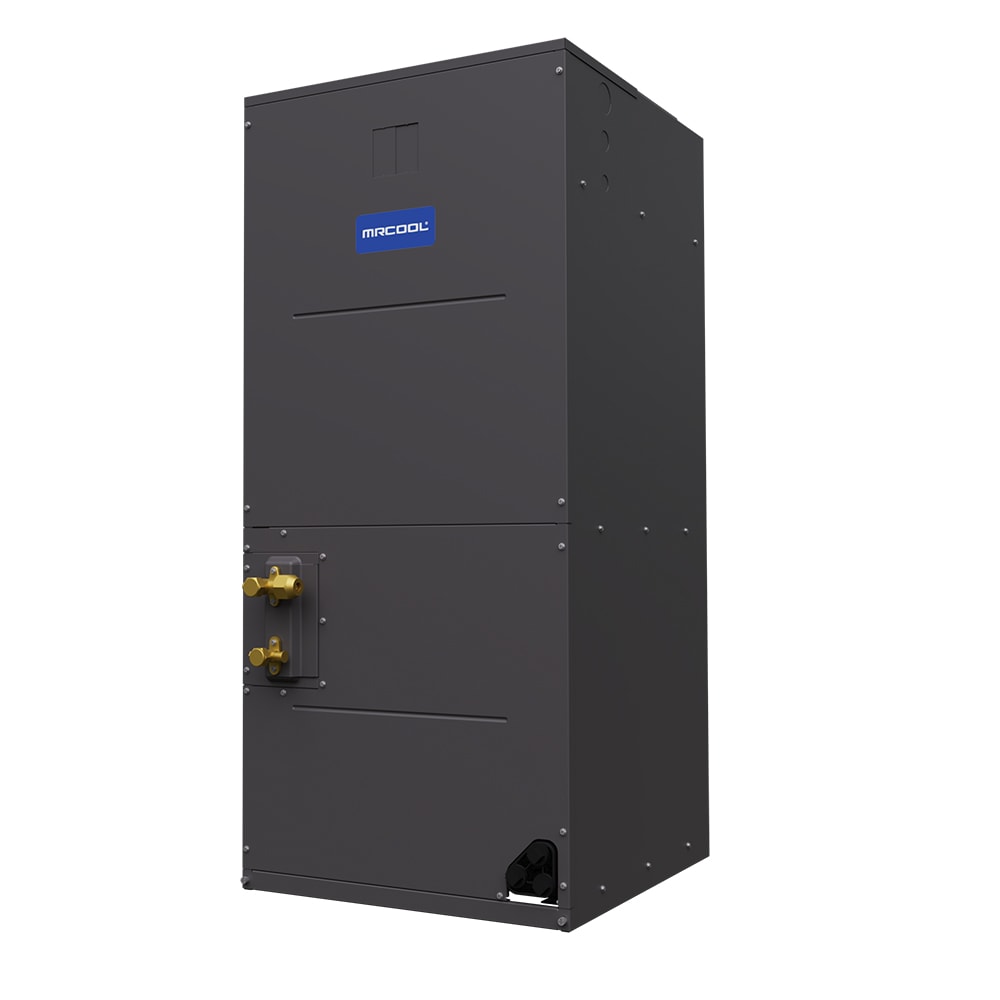

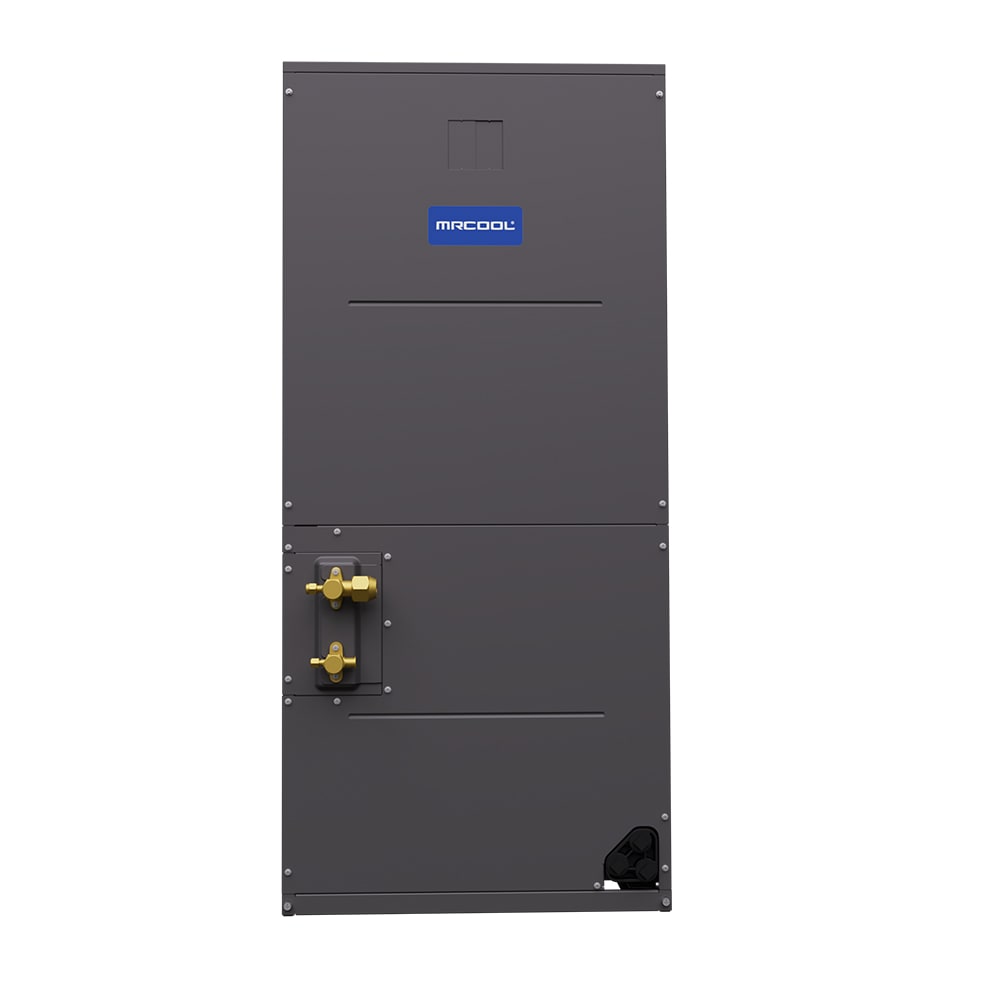

MRCOOL Signature Series TruInverter 4 Ton 48,000 BTU Multi-Position Air Handler - MCAEAMPVT48F21BA
Couldn't load pickup availability
Verified equipment data
MCAEAMPVT48F21BA
MRCOOL Signature Series TruInverter 4 Ton 48,000 BTU Multi-Position Air Handler - MCAEAMPVT48F21BA
The MRCOOL Signature Series TruInverter 48K multi-position air handler delivers smooth, efficient airflow for a matched TruInverter central heat pump system. Its variable-speed design helps maintain steadier temperatures, better humidity control, and quieter operation than conventional fixed-speed equipment.
The cabinet supports upflow, downflow, and horizontal installation, giving contractors flexibility for closets, attics, basements, crawl spaces, and mechanical rooms. It uses R-454B refrigerant and is compatible with MRCOOL No-Vac Quick Connect line sets.
This listing includes the indoor air handler only. Pair it with the compatible TruInverter condenser MCAESHV8T4821BA. A thermostat, line set, heat kit, and other installation materials are sold separately. Licensed professional installation is required.
Key Specifications
| CFM | 1600 |
| TONNAGE | 4 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 7 |
| MOUNT TYPE | Mulit-Position |
| COLOR | Gunmetal |
| REFRIGERANT TYPE | R-454B |
| DECIBEL RATING (DBA) | 60 |
| MAX LINESET LENGTH (FT) | 100 |
| LIQUID LINE SIZE | 3/8 |
| SUCTION LINE SIZE | 7/8 |
| BLOWER MOTOR TYPE | DC |
| BLOWER MOTOR HP | 3/4 |
| BLOWER MOTOR SPEEDS | 5 |
| METERING DEVICE | TXV |
| AUXILIARY HEATER SIZES | 5kW, 10kW, 15kW, 20kW |
| NET DEPTH (IN) | 21 |
| NET HEIGHT (IN) | 56 |
| NET WIDTH (IN) | 24.5 |
| NET WEIGHT (LBS) | 161 |
Product Documents
Overview
| Manufacturer warranty | 10 Year Parts |
|---|
Performance
| Nominal capacity | 4 tons |
|---|
Electrical
| Voltage | 208/230 V |
|---|---|
| Phase | 1 |
| Frequency | 60 Hz |
| Maximum fuse or breaker | 15 A |
| Minimum circuit ampacity | 7 A |
Refrigeration
| Refrigerant | R-454B |
|---|---|
| Liquid line | 3/8 in |
| Suction line | 7/8 in |
| Metering device | TXV |
Airflow
| Airflow | 1600 CFM |
|---|
Physical
| Depth | 21 in |
|---|---|
| Height | 56 in |
| Width | 24.5 in |
| Weight | 161 lb |
