PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
SPECIFICATION & DIMENSIONS
SPECIFICATION & DIMENSIONS
Category | Specification |
---|---|
Cooling Capacity (Btu/h) | 18,000 |
SEER2 | 18.8 |
EER2 | 11.0 |
Heating Capacity (Btu/h) | 18,000 |
HSPF2-4 | 9.1 |
HSPF2-5 | 7.0 |
Indoor Noise Level (Turbo/Hi/Mi/Lo) | 44 / 43 / 41 / 33 dB(A) |
Outdoor Noise Level | 55 dB(A) |
Power Supply (Indoor) | 115/208/230V ~ 60Hz, 1ph |
Power Supply (Outdoor) | 208/230V ~ 60Hz, 1ph |
Min Circuit Ampacity (Indoor) | 5.5 / 4.0 A |
Max Fuse (Indoor) | 15 A |
Min Circuit Ampacity (Outdoor) | 16 A |
Max Fuse (Outdoor) | 20 A |

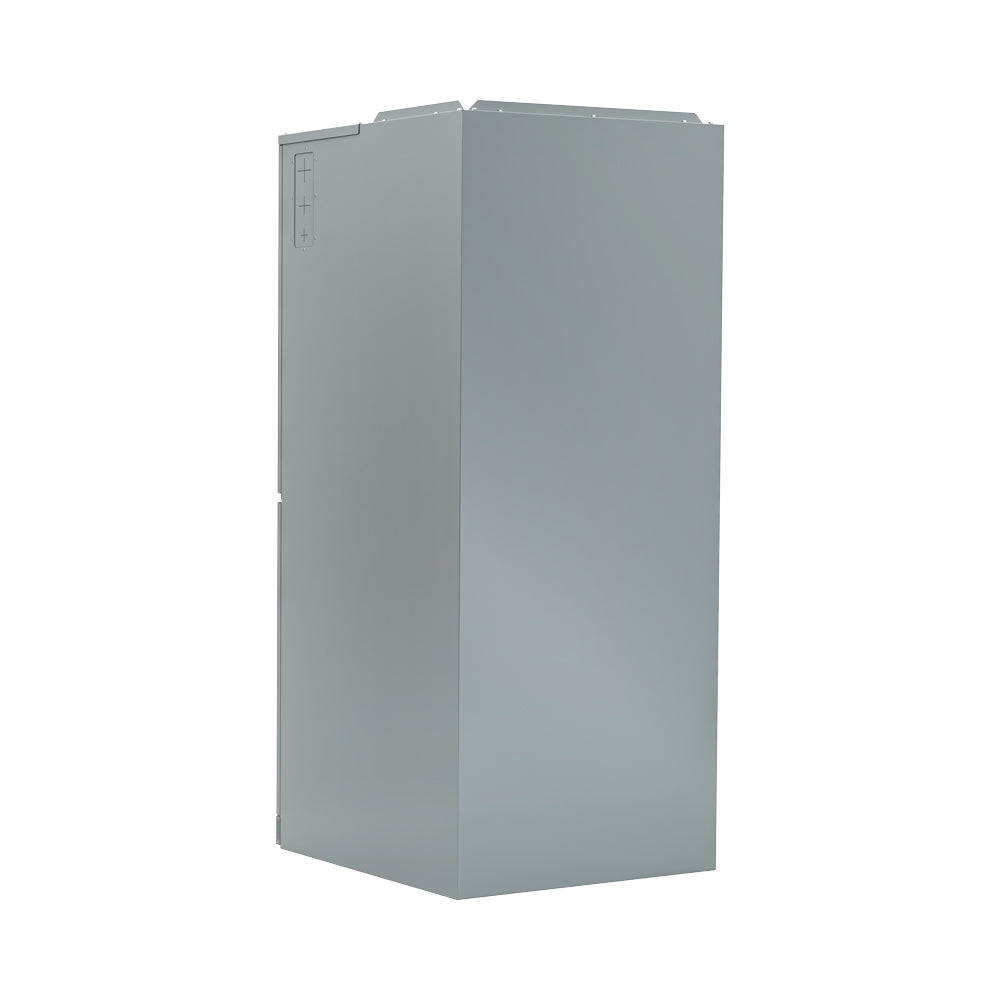

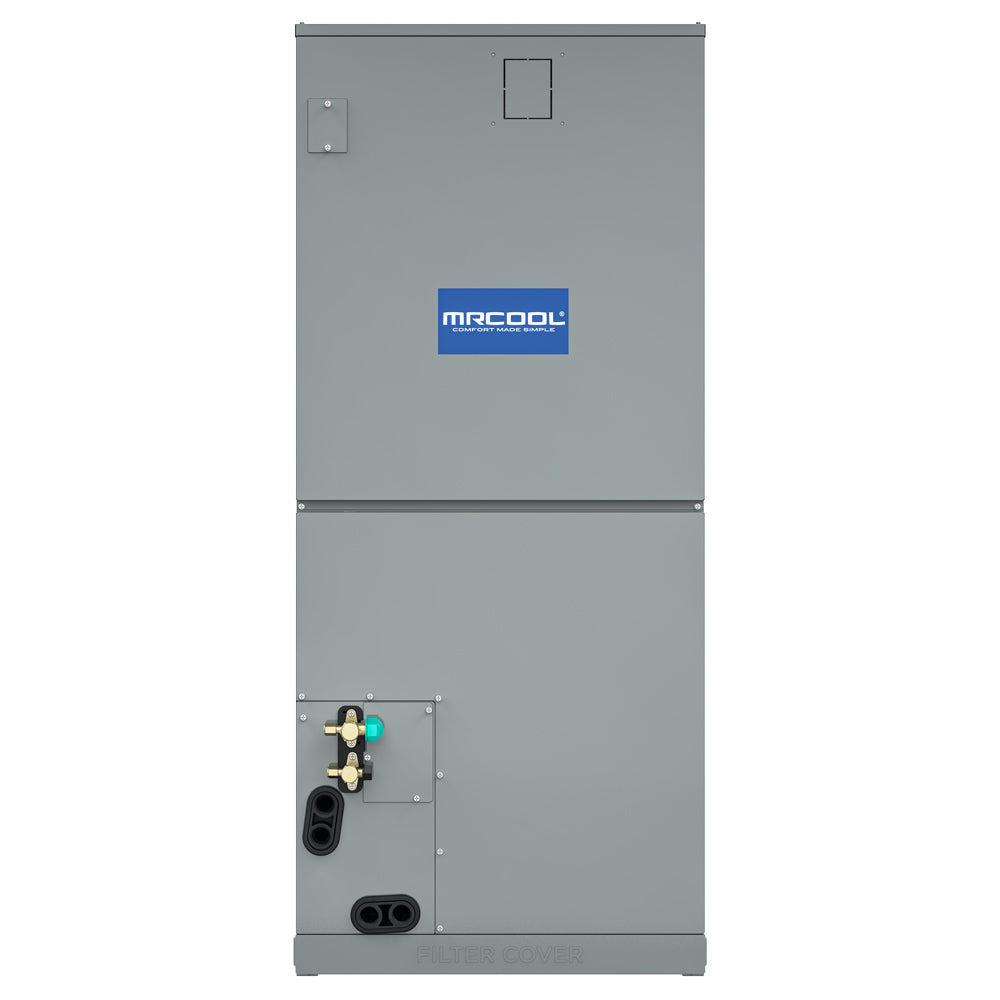

Indoor Unit Dimensions (WxDxH) | 17.52 x 21.02 x 45.00 in |
Indoor Packing Dimensions (WxDxH) | 20.87 x 26.57 x 48.62 in |
Indoor Net/Gross Weight | 105.82 / 126.76 lbs |

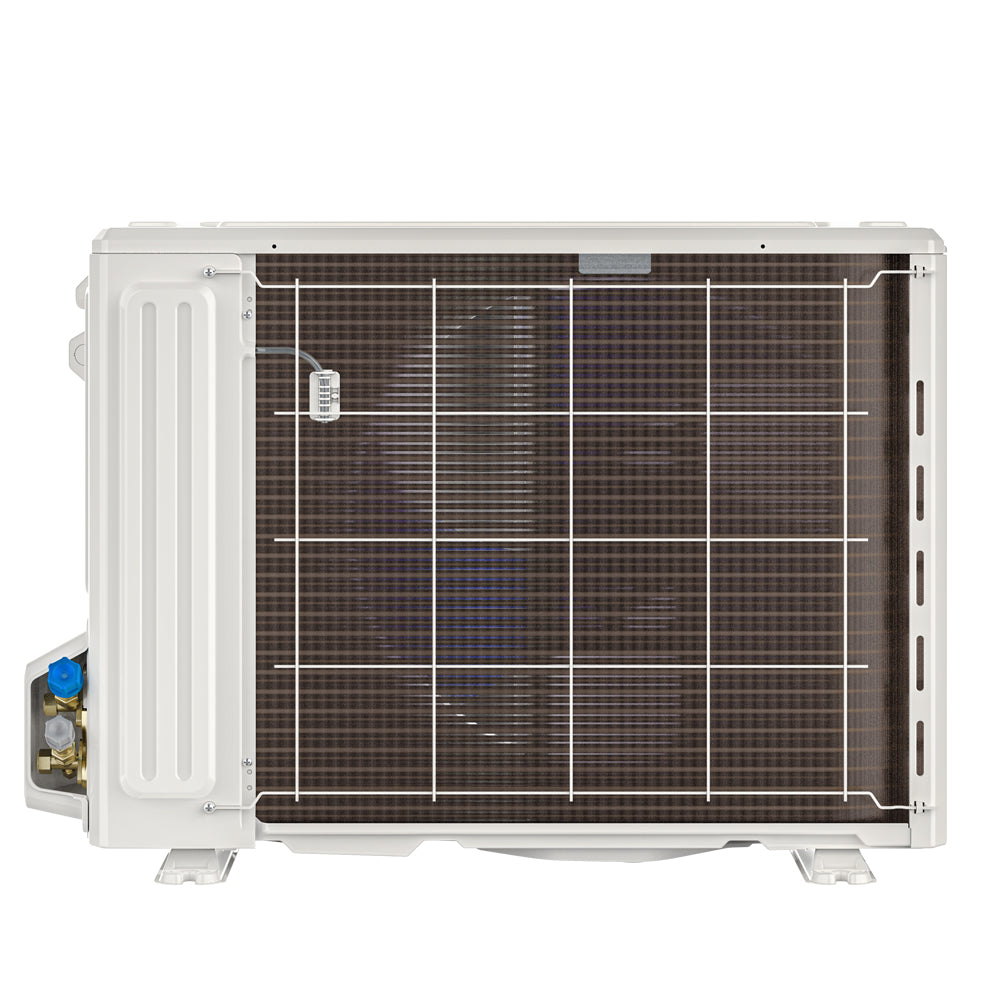

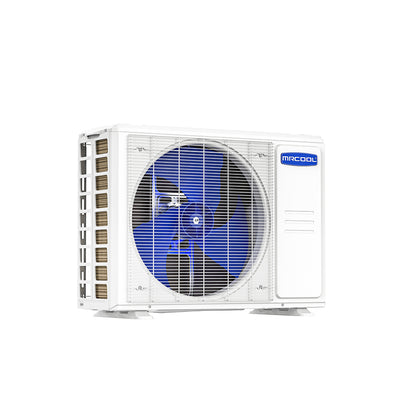

Outdoor Unit Dimensions (WxDxH) | 31.69 x 12.99 x 21.81 in |
Outdoor Packing Dimensions (WxDxH) | 36.02 x 14.57 x 24.21 in |
Outdoor Net/Gross Weight | 77 / 84 lbs |
Indoor Airflow (CFM Turbo/Hi/Mi/Lo) | 618 / 577 / 530 / 489 |
Outdoor Airflow (CFM) | 1450.9 |
Refrigerant Type | R-454B |
Refrigerant Charge | 51.15 oz |
Piping Size (Liquid/Gas) | 3/8" - 3/4" |
