MRCOOL® VersaPro® Series

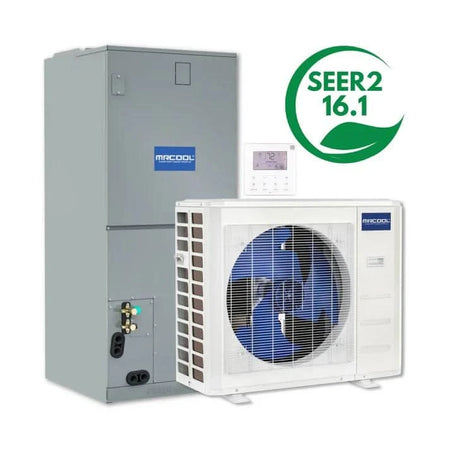

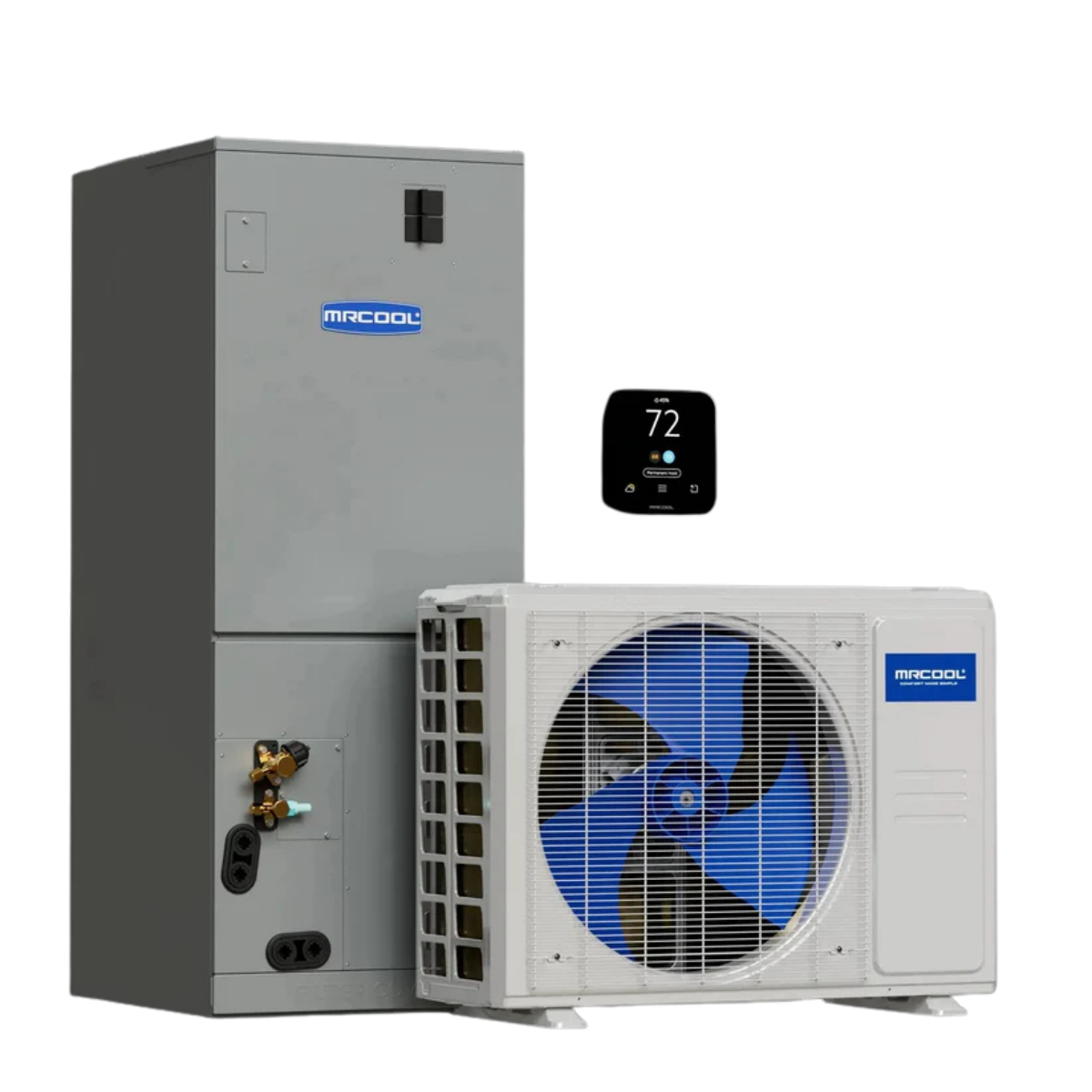

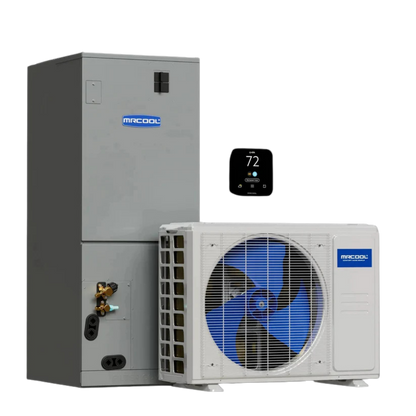

MRCOOL VersaPro 2nd Gen 36K BTU 3 Ton 16.1 SEER2 Central Ducted Heat Pump Split System
MRCOOL VersaPro 2nd Gen 36K BTU 3 Ton 16.1 SEER2 Central Ducted Heat Pump Split System
SKUMVP-36-HP-230A00-O
TypeDucted Heat Pump System
Couldn't load pickup availability
Have questions or need help selecting the perfect Mini Split system?
Talk with our expert HVAC team members now for assistance!!
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
SPECIFICATION & DIMENSIONS
SPECIFICATION & DIMENSIONS
| Category | Specification |
|---|---|
| Cooling Capacity (Btu/h) | 36,000 |
| SEER2 | 16.1 |
| EER2 | 10.0 |
| Heating Capacity (Btu/h) | 36,000 |
| HSPF2-4 | 8.7 |
| HSPF2-5 | 7.0 |
| Indoor Noise Level (Turbo/Hi/Mi/Lo) | 48 / 45 / 28 dB(A) |
| Outdoor Noise Level | 63 dB(A) |
| Power Supply (Indoor) | 115/208/230V ~ 60Hz, 1ph |
| Power Supply (Outdoor) | 208/230V ~ 60Hz, 1ph |
| Min Circuit Ampacity (Indoor) | 8.0 / 6.0 A |
| Max Fuse (Indoor) | 15 A |
| Min Circuit Ampacity (Outdoor) | 24 A |
| Max Fuse (Outdoor) | 30 A |

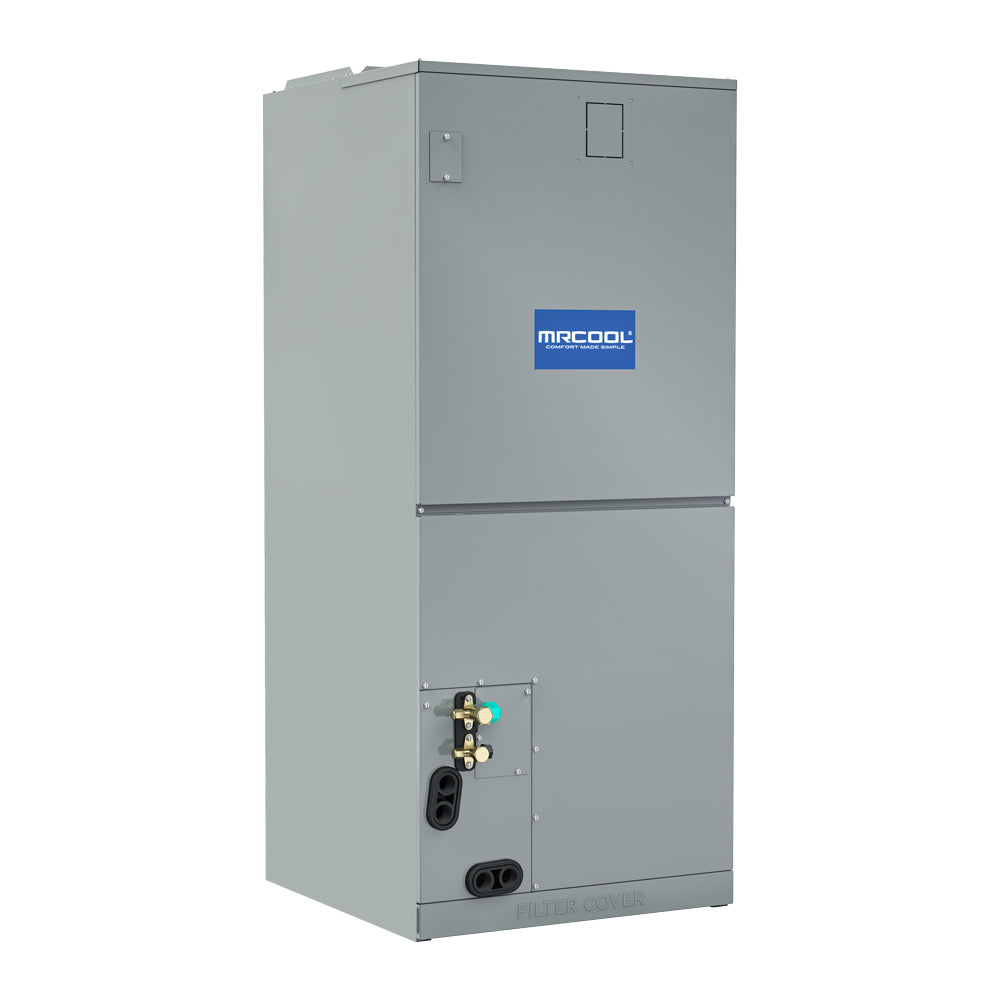

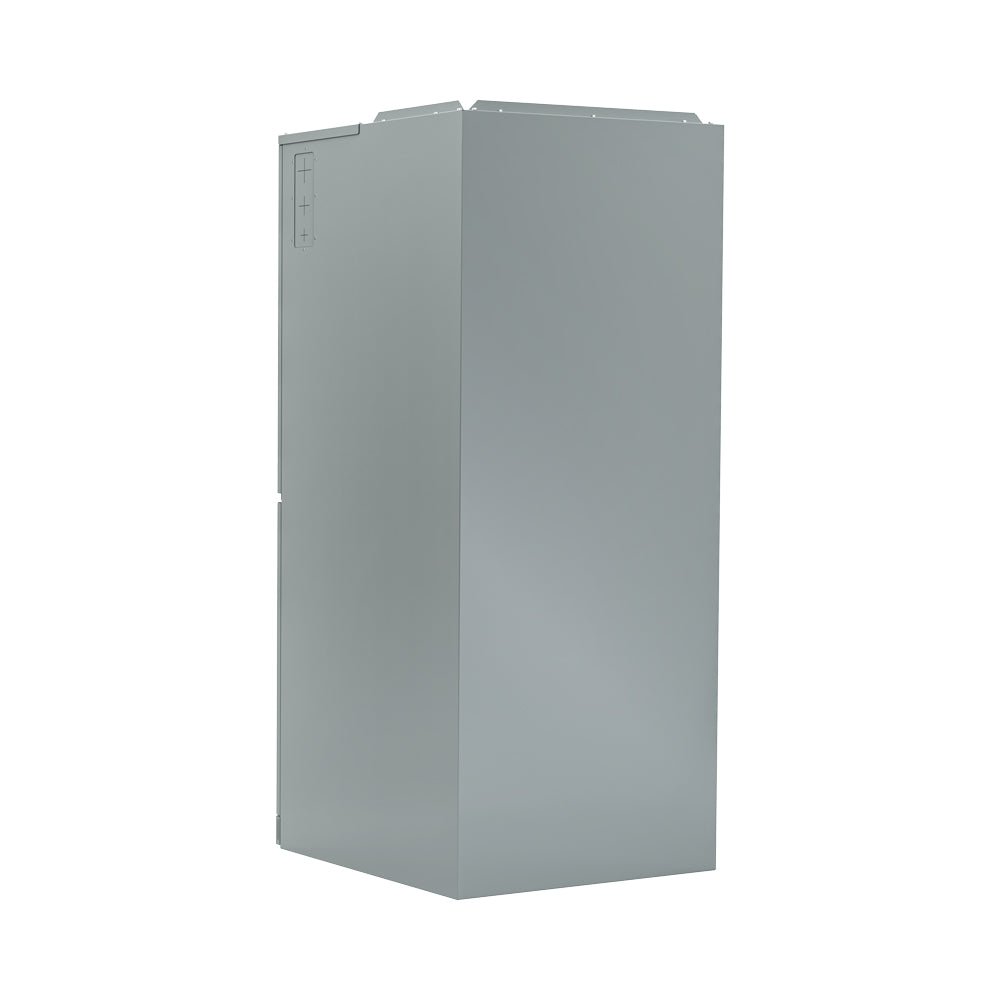

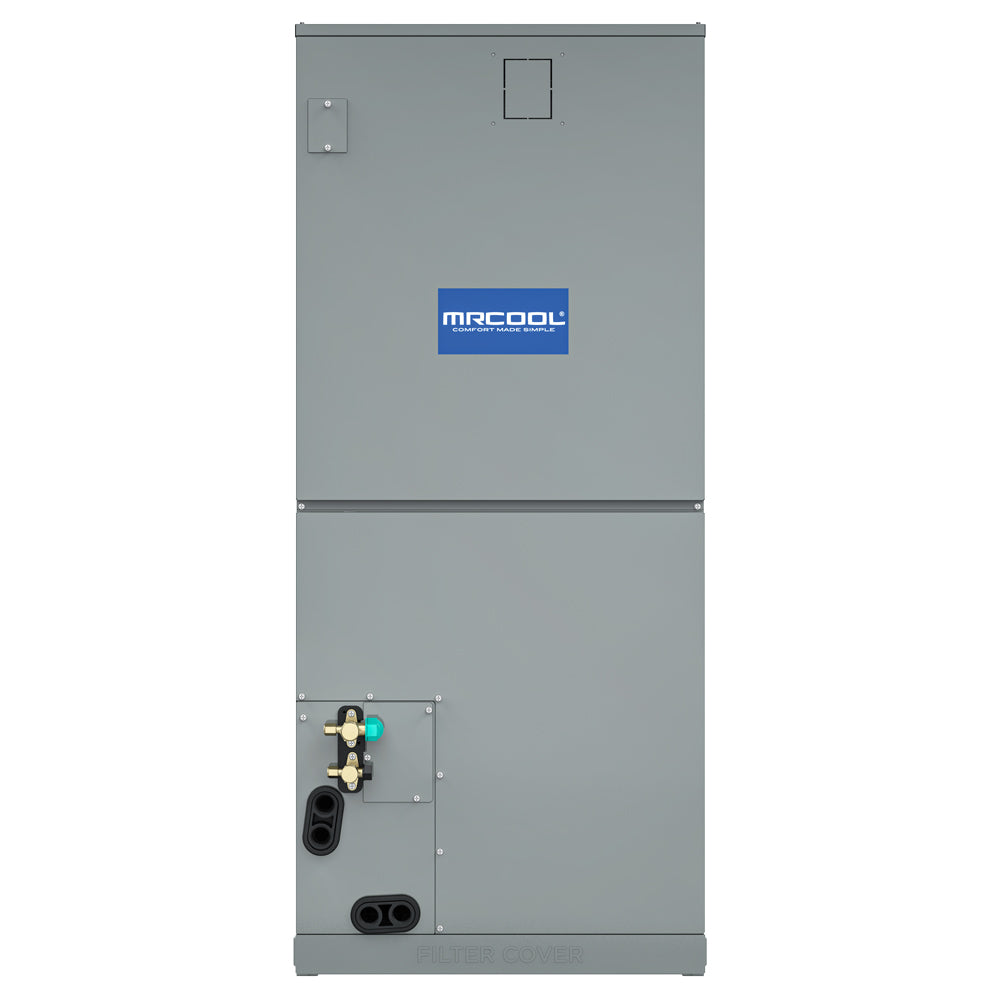

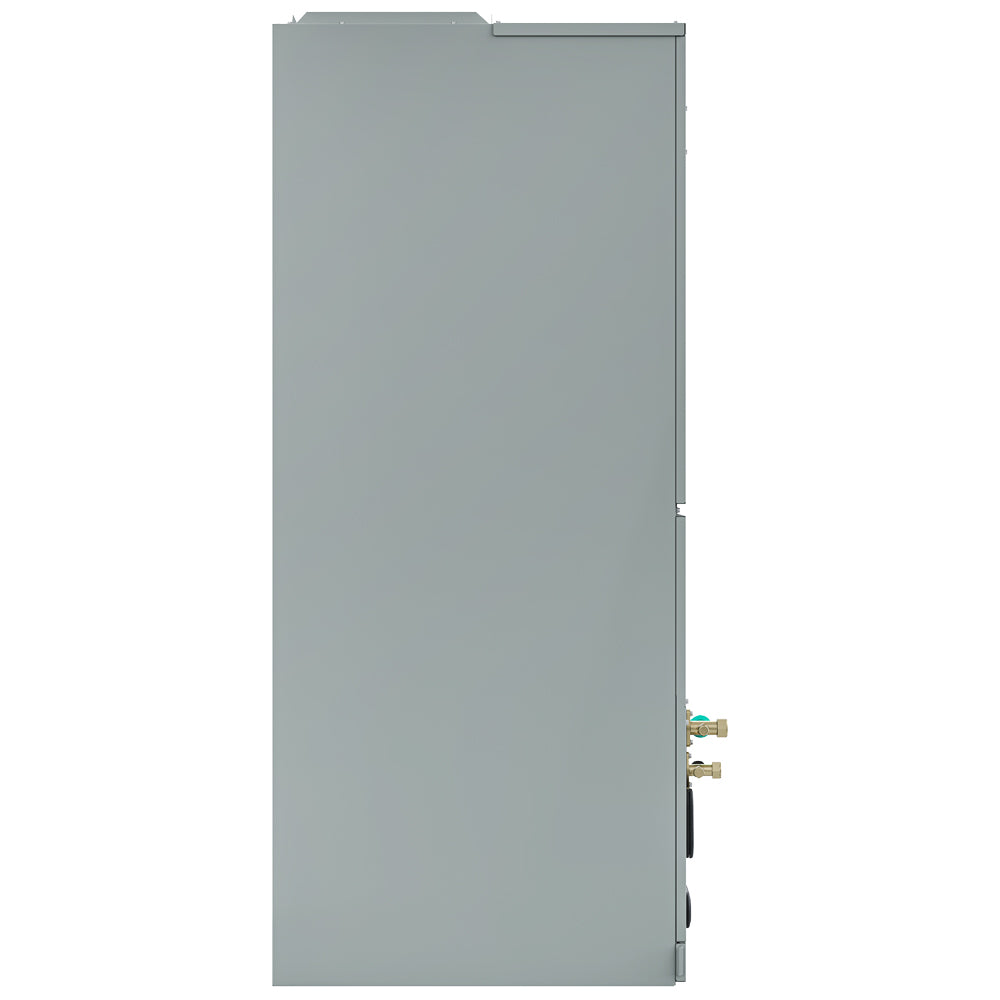

| Indoor Unit Dimensions (WxDxH) | 21.02 x 21.02 x 49.02 in |
| Indoor Packing Dimensions (WxDxH) | 24.41 x 26.57 x 52.56 in |
| Indoor Net/Gross Weight | 129.41 / 153.88 lbs |

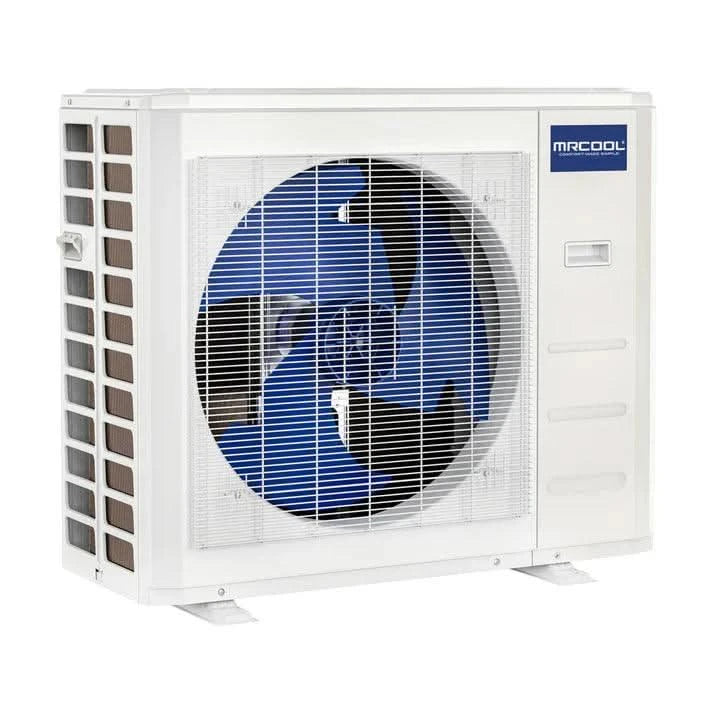

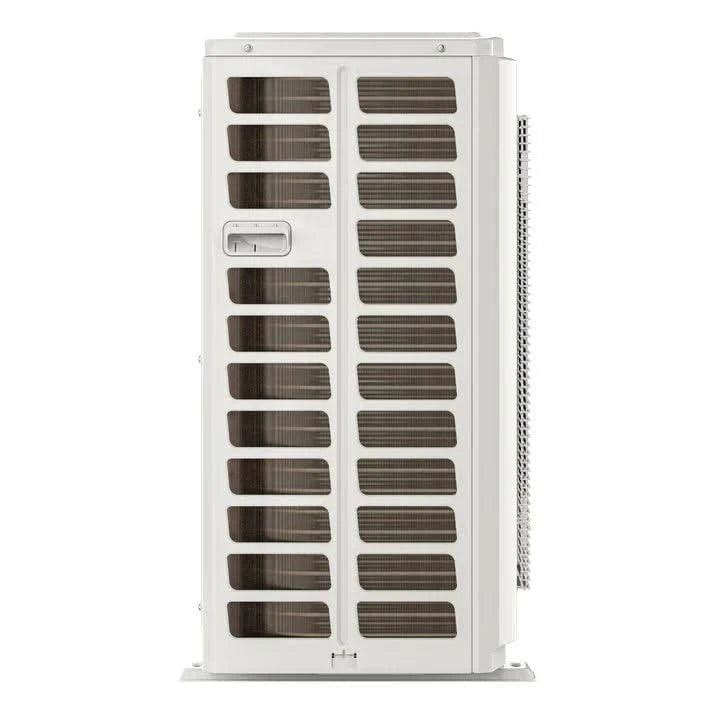

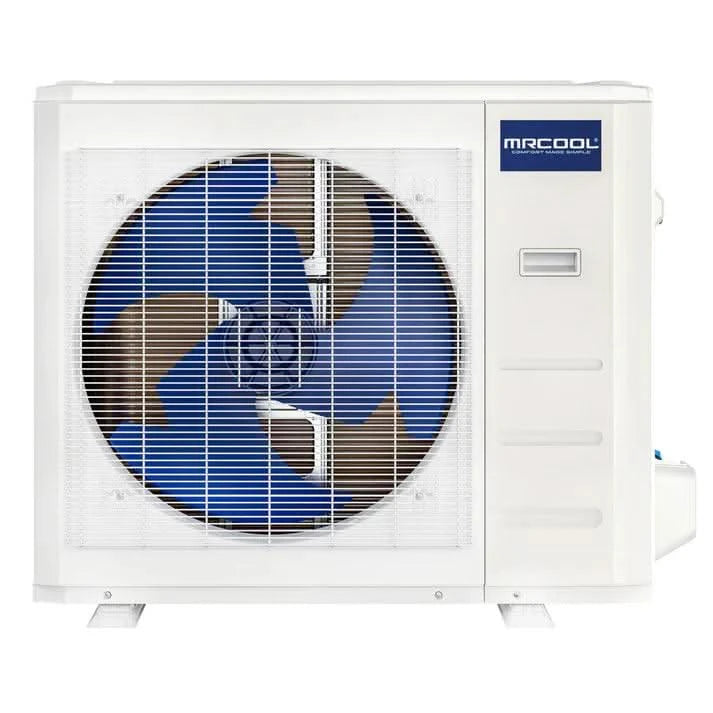

| Outdoor Unit Dimensions (WxDxH) | 37.24 x 16.14 x 31.89 in |
| Outdoor Packing Dimensions (WxDxH) | 42.91 x 19.68 x 34.84 in |
| Outdoor Net/Gross Weight | 153.22 / 163.58 lbs |
| Indoor Airflow (CFM Turbo/Hi/Mi/Lo) | 1189 / 1083 / 971 / 865 |
| Outdoor Airflow (CFM) | 2413.2 |
| Refrigerant Type | R-454B |
| Refrigerant Charge | 116.4 oz |
| Piping Size (Liquid/Gas) | 3/8" - 3/4" |
