RectorSeal Aspen Mini Orange 16W Condensate Pump Kit – 100V-250V | Quiet Operation | For Mini-Split HVAC Systems
Efficiently manage condensate drainage from your ductless mini-split system with the RectorSeal Aspen Mini Orange Pump Kit. Designed for whisper-quiet performance and reliable operation, this 16-watt pump system is ideal for installations where space, noise level, and aesthetics matter. The self-priming, fully potted pump can be installed remotely—either above the ceiling or inside a lineset cover—making it a flexible solution for residential and commercial HVAC applications.
Perfect for ductless mini-split air conditioners up to 49,500 BTU/H, the Mini Orange pump features a separate inline and submersible reservoir, allowing multiple installation options for various mini-split configurations. It’s rated for 100V–250V operation, offering worldwide voltage compatibility.

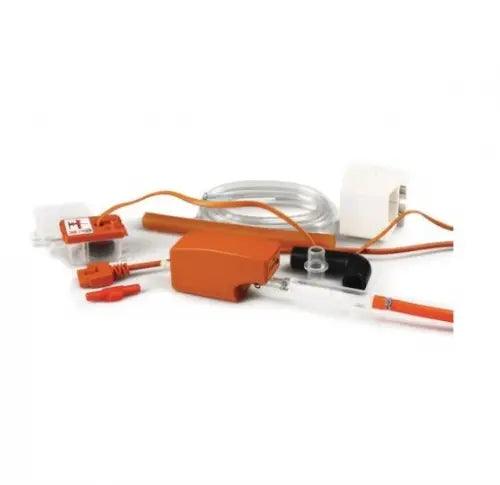

🔧 Kit Includes:
-
(1) Mini Orange Pump Assembly
-
(1) Inline Reservoir
-
(1) Submersible Reservoir
-
(1) 5-ft x ¼-in I.D. Vinyl Discharge Tube
-
(1) Modular 6-ft Power Cable
-
(1) 6-in x ¼-in I.D. Vinyl Breather Tube
-
(1) Drain Hose Adaptor
-
(1) Inline Fuse
-
(6) Cable Ties
-
(2) Self-Adhesive Velcro Strips
-
(1) 8-in x ⅝-in I.D. Inlet Tube
-
(1) Anti-Siphon Device
-
(1) 90° Elbow
-
(1) Installation Manual
💡 Product Highlights:
-
Voltage Range: 100V–250V
-
Power Consumption: 16W
-
Current Draw: 0.17A
-
BTU Compatibility: Up to 49,500 BTU/H
-
Suction Lift: Up to 5 feet
-
Quiet Operation: Fully potted and designed for minimal noise
-
Modular Terminals: Quick and easy connections
-
Flexible Installation: Gravity-fed inlet with both pan-mount and inline reservoir options
-
Self-Priming: Pump can be installed remotely above ceiling or within a lineset cover
-
CSA Certified (USA & Canada)
Whether you’re installing a new system or retrofitting an existing one, the Aspen Mini Orange Pump Kit from RectorSeal provides a compact, efficient, and virtually silent condensate removal solution.
