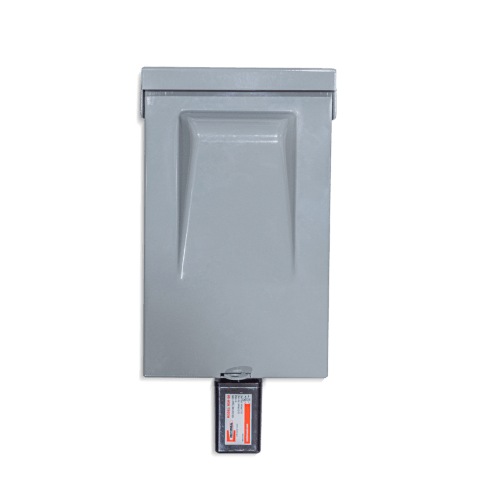

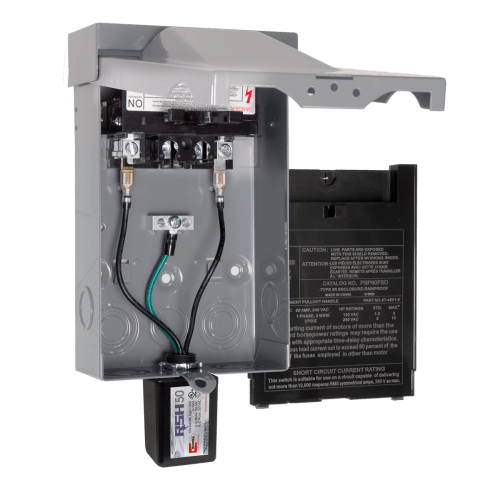

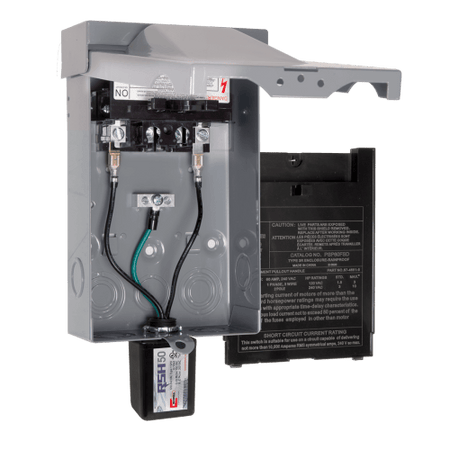

The RectorSeal RSH-50 with 60A Non-Fused Disconnect Box (Model 96419) is a complete HVAC protection solution designed to safeguard air conditioners, heat pumps, and ductless mini-split systems from damaging power surges and transient over-voltages. With the RSH-50 surge protector pre-installed and tabbed into the disconnect, this unit eliminates the risk of code violations from multiple wires being lugged into a single terminal, ensuring both safety and compliance.
Engineered with long-lasting Gas Discharge Tube (GDT) technology and TFMOV technology, the RSH-50 offers superior reliability and surge protection for residential and light commercial systems. The green LED indicator provides instant visual confirmation of protection status, giving peace of mind that your equipment is safeguarded.
With a surge protection capacity of up to 50,000 amps, a NEMA 4 weather-rated enclosure, and support for single-phase 120/240V systems, this disconnect box is built for long-term outdoor use. Lightweight yet durable, it installs easily and provides reliable operation in all environments.
Key Features:
-
Integrated Protection: RSH-50 surge protector pre-installed in a 60A non-fused disconnect box.
-
Advanced Technology: Gas Discharge Tube (GDT) + TFMOV technology for long-lasting performance.
-
Powerful Surge Capacity: Protects against surges up to 50,000 amps.
-
Easy Status Monitoring: Green LED indicator confirms system protection at a glance.
-
Versatile Application: Compatible with single-phase 120/240V A/C units, heat pumps, and ductless mini-splits.
-
Weather-Resistant: NEMA 4 rated for reliable outdoor installation.
-
Compact & Durable: Lightweight 2.2 lb design with a slim profile for easy mounting.
Technical Specifications:
-
Brand: RectorSeal
-
Model/MPN: 96419
-
Voltage: 120/240V, Single Phase
-
Frequency: 60 Hz
-
Maximum Load: 60 Amps
-
Surge Protection: Up to 50,000 Amps
-
Type: Surge Protection Device Type 1
-
Enclosure Rating: NEMA 4 (Outdoor Use)
-
Weight: 2.2 lbs
-
Dimensions: 1.625” W x 4.394” H
Why Choose This Disconnect with Surge Protection?
By combining a 60A disconnect switch with a pre-installed RSH-50 surge protector, this unit offers both convenience and code-compliant safety. It’s the ideal solution for HVAC professionals and DIY installers seeking long-lasting protection for critical heating and cooling equipment.
