Ductless Ceiling Assembly
- Dimensions
- 22.78 × 20.39 × 2.57 in
- Package
- 25.47 × 22.64 × 5.71 in
- Net weight
- 9.92 lb
- Shipping weight
- 11.5 lb
USA's Most Trusted MRCOOL Dealer – Free Shipping On Systems*
Select a rooftop finish to see the model
FREE Shipping Across the Contiguous U.S.

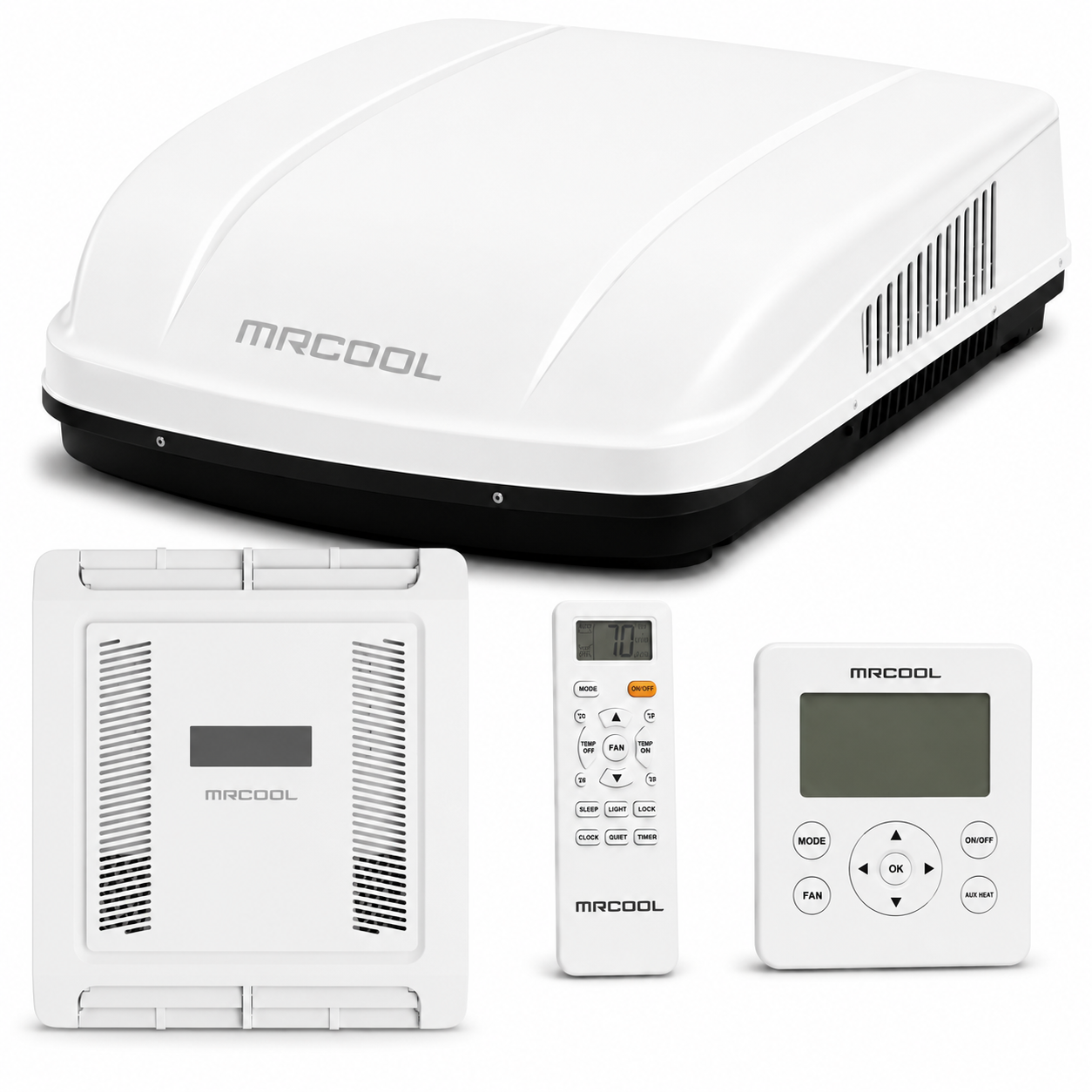

Every complete TravelCool system includes the rooftop heat pump, your selected ceiling assembly, the wireless remote and the wired wall controller.
Complete-system specifications
White and black rooftop units share the same performance specifications. Choose the ceiling assembly that matches the RV's air-distribution design.


A complete TravelCool system requires one rooftop unit and exactly one ceiling assembly. Verify the official installation documentation before purchase.
TravelCool product details
TravelCool combines inverter-driven rooftop cooling, heat-pump operation and included system controls for RV applications.
TravelCool uses AC115V 60Hz. Confirm installation requirements in the official documentation, and verify supporting generator, inverter, battery or soft-start equipment separately.
Select one compatible ceiling assembly and verify the roof opening, roof support, clearances, electrical supply and control connections.
Every complete system includes both the MRDRC Wireless Remote Controller and the MRDCW Wired Wall Controller / Thermostat.
Specifications shown are for the selected TravelCool configuration.
TravelCool system controls
Every complete TravelCool system includes the MRDRC Wireless Remote Controller and the MRDCW Wired Wall Controller / Thermostat.
Included with every completed TravelCool system for common comfort adjustments inside the RV.
Included with every completed TravelCool system for permanent wall-mounted control.
Use the official controller documentation to set up supported connected control.


Advertised operating range
Use the documented outdoor operating ranges as firm planning boundaries.
Outdoor operation: 63°F–109°F
Outdoor operation: 41°F–75°F
Heat-pump heating is supplemental. Do not operate outside the documented range for the exact equipment.
Complete-system package
Every completed TravelCool system includes one selected rooftop unit, one selected ceiling assembly, the MRDRC wireless remote and the MRDCW wired wall controller / thermostat.

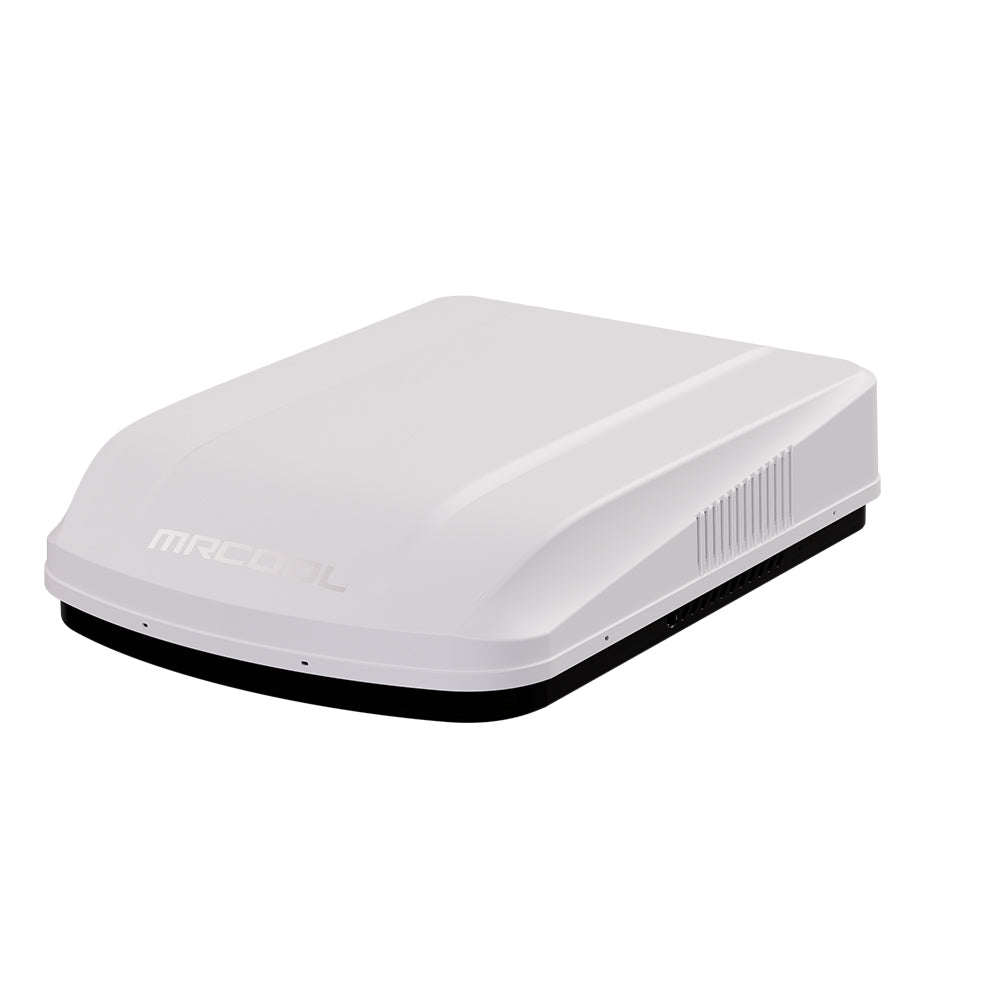

One white or black rooftop unit is included in the configured system.

One ductless or ducted ceiling assembly is included in the configured system.

Included with every completed TravelCool system for wireless comfort control.

Included with every completed TravelCool system for permanent wall-mounted control.
One rooftop unit and exactly one ceiling assembly are required. Both controllers are included in the bundle price.
Installation readiness
Review roof fit, air distribution, power and controls as one complete installation.
Compare the documented 14.17 × 14.25 in opening with the RV.
Verify structure, clearances and manufacturer requirements.
Choose exactly one ducted or ductless ceiling assembly.
Confirm the documented AC115V 60Hz supply and installation requirements.
The wireless remote and wired wall controller are included. Plan the compatible wired-controller connection using the official MRDCW instructions.
Plan around the documented 40.95 × 29.72 × 10.63 in rooftop dimensions.
Account for 95.24 lb net and 101.4 lb shipping weight.
Verify the RV manufacturer's roof requirements and use the official TravelCool installation documentation. Seek qualified RV service support when roof structure, wiring or compatibility is uncertain.
Official resources
Use current official resources for installation, operation, warranty and service information.
Official English installation, operation, safety, and maintenance manual.
View TravelCool Installation & Owner's ManualCurrent English customer-facing TravelCool brochure, version 08.18.26.
View TravelCool RV Inverter System BrochureOfficial English two-year limited parts warranty dated 7/15/26.
View TravelCool Limited WarrantyOfficial English MRDCW installation, operation, app, wiring, and troubleshooting manual.
View TravelCool MRDCW Wired Controller ManualTravelCool education
Compare air distribution, understand heat-pump operation and verify electrical planning before choosing a complete TravelCool configuration.
Replacement parts & accessories
Shop genuine rooftop units, ceiling assemblies, replacement remotes and wired wall controllers after configuring the complete system above.
Product questions
Confirm installation and operating guidance against the official documentation before purchase.
Select one white or black rooftop unit and exactly one ductless or ducted ceiling assembly. The MRDRC wireless remote and MRDCW wired wall controller / thermostat are both included.

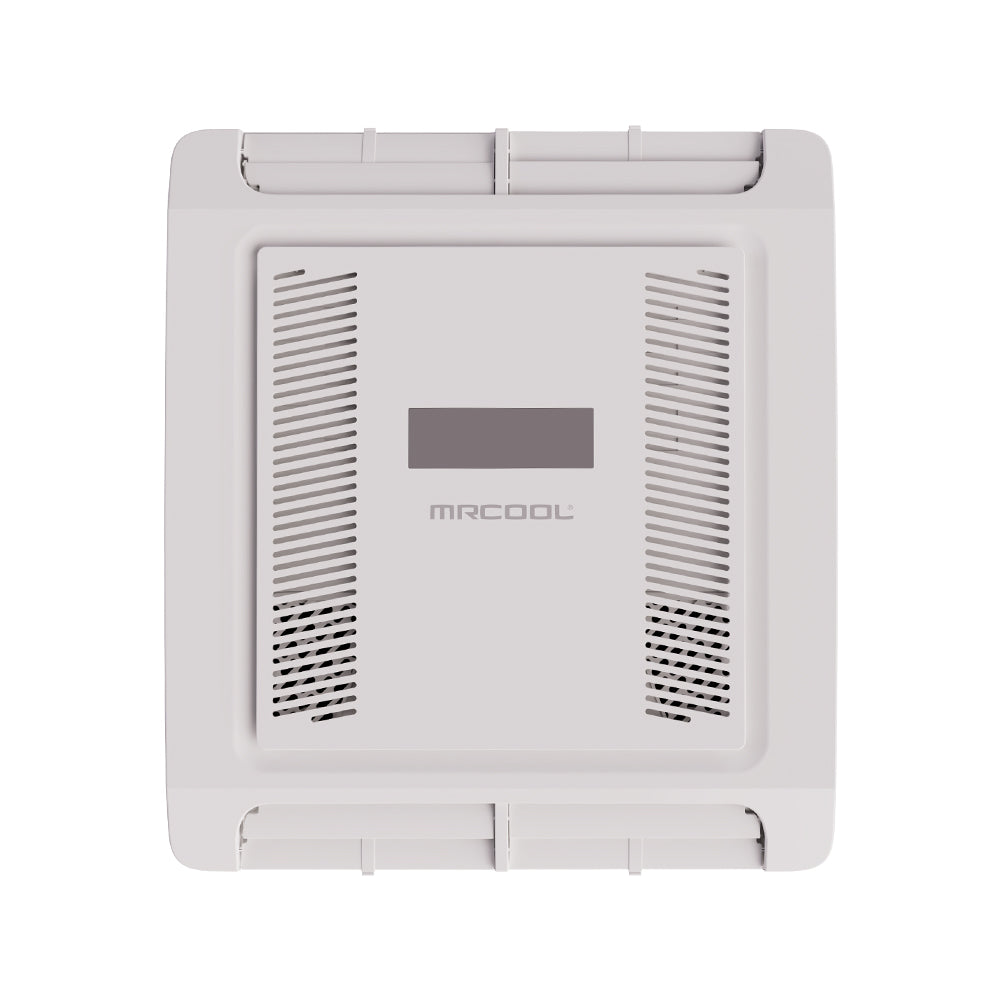

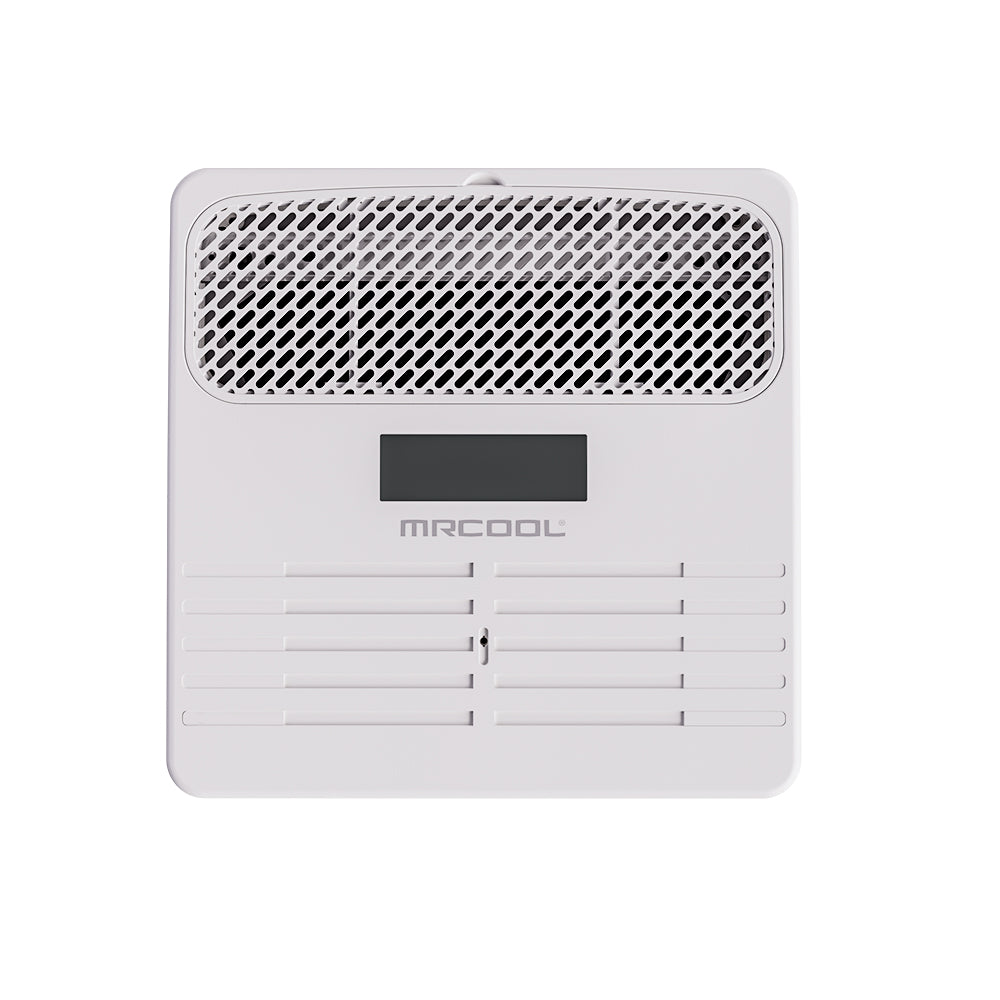

Choose MDRDK Ducted for an RV using an existing ceiling duct network. Choose MLRDK Ductless for a direct-discharge application without an existing duct network.
Heat-pump operation is supplemental and depends on outdoor temperature and the exact equipment. Maintain an appropriate primary heat source outside the documented operating range.
Use verified model-specific running and startup requirements, then account for the source, wiring, battery system and every simultaneous load.
