How Rooftop AC Works
The rooftop unit rejects indoor heat outdoors while the compatible interior assembly manages RV airflow.
TravelCool buying guide
How to Choose an RV Air Conditioner & Heat Pump
Understand rooftop cooling, 15,000 BTU capacity, heat-pump operation, roof fit, air distribution, power, controls and finish before choosing a TravelCool configuration.
Start with the complete system
Eight decisions—not just one BTU number
A successful RV climate installation matches the rooftop unit, RV structure, interior airflow, electrical supply and controls.
15,000 BTU Capacity
TravelCool's current advertised cooling capacity is 15,000 BTU with an identified 172 sq ft coverage area.
Supplemental Heating
The reversible cycle provides 10,236 BTU advertised heating within documented conditions.
11-Inch Low-Profile Design
The streamlined rooftop design has an exact documented unit height of 10.63 in.
Replacement or New Install
Neither path is automatic—roof, power, air distribution, controls and assemblies must match.
Connected Control
Every complete system includes the MRDRC wireless remote and MRDCW wired wall controller; follow official documentation for MRCOOL Connect setup.
Understand the technology
What an RV heat pump does
TravelCool's refrigeration cycle changes direction to provide cooling or supplemental electric heating.
TravelCool provides 15,000 BTU cooling and 10,236 BTU supplemental heating. Outdoor heating operation is documented from 41°F to 75°F.
Cooling mode
Heat is moved from inside the RV to the outdoors.
Heating mode
Available outdoor heat is transferred into the RV.
Choose the airflow path
Ducted MDRDK or ductless MLRDK
Ducted systems use a compatible RV ceiling duct network. Ductless systems discharge directly through the compatible interior assembly.

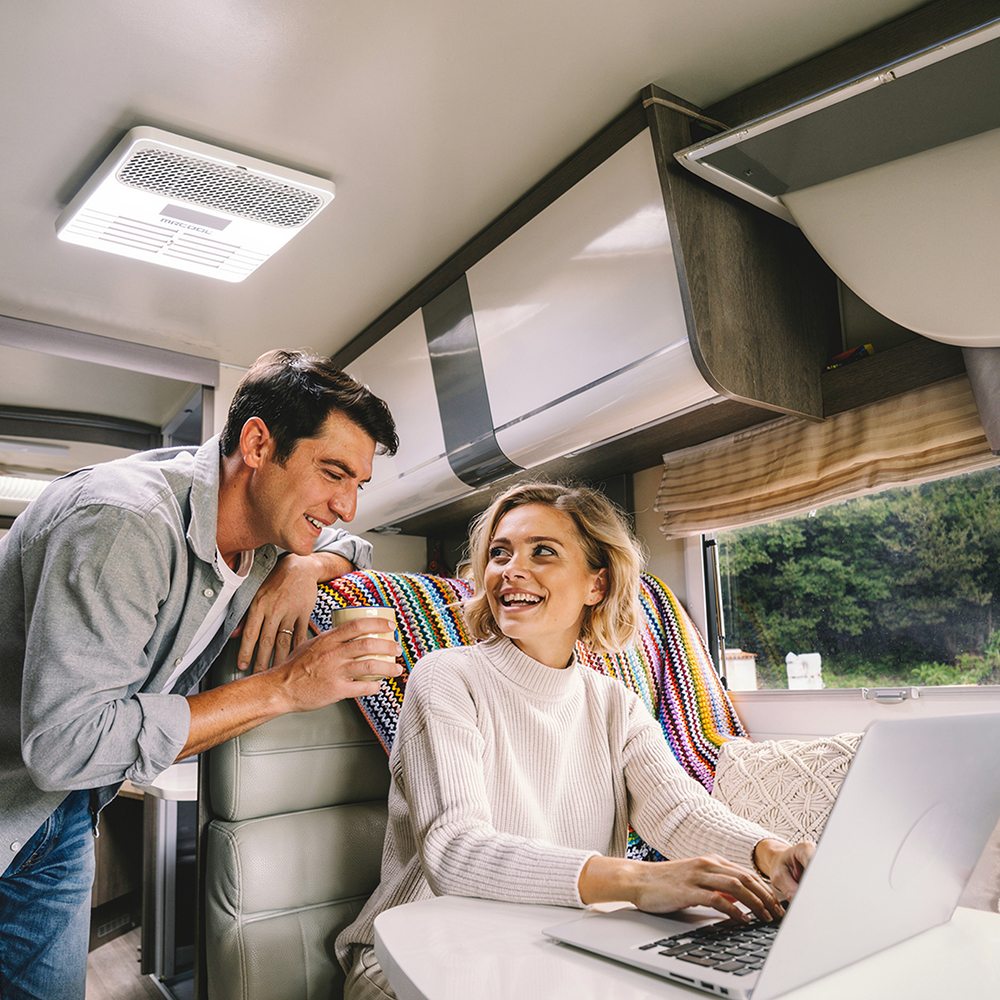

MDRDK
Ducted TravelCool
For compatible existing RV ceiling duct systems using the MDRDK assembly.
- Uses a compatible existing RV ceiling duct system
- Distributes conditioned air through the RV
- Requires complete system and control compatibility

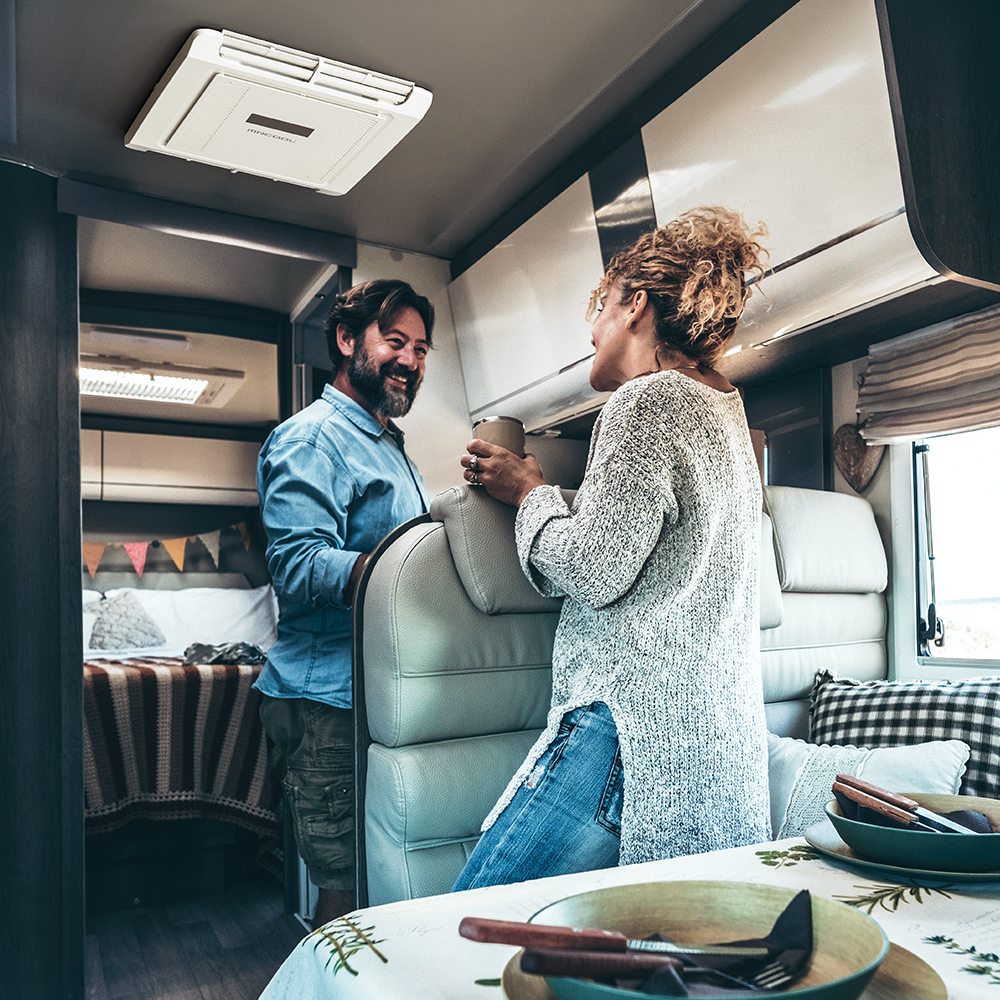

MLRDK
Ductless TravelCool
For direct-discharge applications using the MLRDK assembly.
- Direct-discharge, non-ducted application
- Uses the compatible interior ceiling assembly
- Requires roof, electrical and control verification
Do not infer compatibility from appearance alone. Confirm every component and the RV installation conditions.
Rooftop finish
White or black: choose the exterior fit
The current family includes white MRDHP15W-D and black MRDHP15K-D rooftop models.

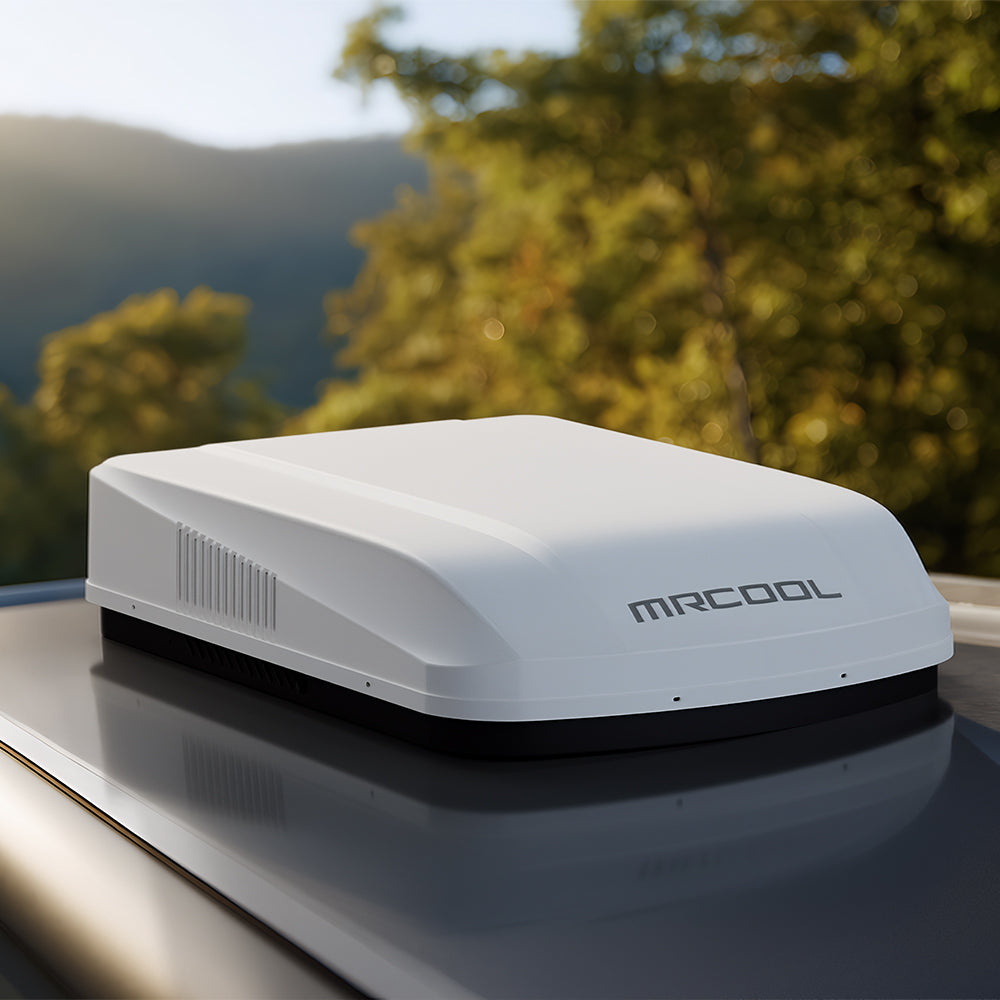

MRDHP15W-D
TravelCool White
A bright finish for light-colored RV rooftops.

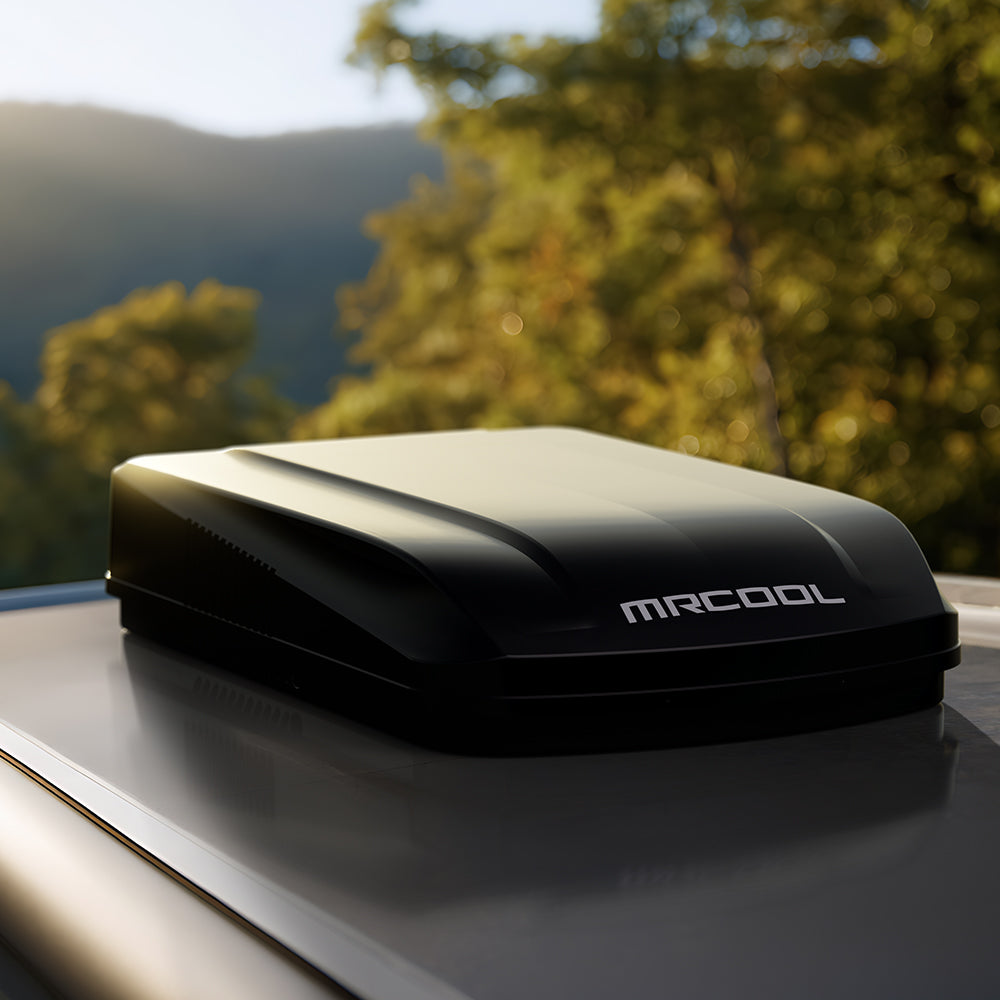

MRDHP15K-D
TravelCool Black
A modern black finish for darker exterior accents.
Plan for the weather
Documented temperature limits matter
Use outdoor operating ranges to decide when TravelCool cooling or supplemental heating is appropriate.
Outdoor operation: 63°F–109°F
Outdoor operation: 41°F–75°F
Operate TravelCool within the documented limits for the exact equipment.
Included system controls
Remote and wall control are part of the system
TravelCool supports Auto, Cool, Dry, Fan and Heat operating modes through documented control methods.
Included MRDRC Wireless Remote
The handheld remote is included with every complete TravelCool system.
Included MRDCW Wall Controller
The wired wall controller / thermostat is included with every complete TravelCool system.
MRCOOL Connect
Follow official setup documentation for supported smart-device control.
AutoCoolDryFanHeat
Electrical considerations
Start with AC115V 60Hz
Follow the official installation documentation and assess the RV's complete electrical load before installation.
AC115V
TravelCool's documented operating voltage.
60Hz
Confirm the exact product and installation requirements.
30-amp / 50-amp RV service
Evaluate the complete RV electrical load rather than the service label alone.
Plan supporting power
Verify generator, inverter, battery, solar and soft-start requirements for the exact installation and supporting equipment.
Confirm supporting power-equipment requirements for the exact TravelCool installation.
Replacement or new installation
Complete the TravelCool readiness check
Use the exact RV, roof and system conditions—not general assumptions.
Documented ceiling opening14.17 × 14.25 inVerify the exact RV and installation instructions.
- Roof opening
Documented opening: 14.17 × 14.25 in.
- Roof support
Follow RV manufacturer structure and clearance requirements.
- Ducting
Identify ducted or direct-discharge air distribution.
- Electrical supply
Verify AC115V 60Hz and official installation requirements.
- Controls
Match the supported control method to the configuration.
- Ceiling assembly
Confirm MDRDK or MLRDK as required.
- Dimensions
Exact unit: 40.95 × 29.72 × 10.63 in.
- Weight
Net unit weight: 95.24 lb.
Verify the RV manufacturer's roof requirements and use official TravelCool installation documentation. Seek qualified RV service support when conditions are uncertain.
Official resources
Continue with TravelCool documentation
Use the official English manuals, brochure and warranty when planning, installing and operating TravelCool.
Installation & Owner's Manual
Installation, operation, safety, service and maintenance reference.
View manualTravelCool Brochure
Customer-facing features and advertised specifications.
View brochureTravelCool Limited Warranty
Coverage terms, requirements and exclusions for TravelCool equipment.
View warrantyMRDCW Wired Controller Manual
Installation and operation reference for the included wired wall controller.
View controller manualTravelCool education
Plan your RV comfort system with confidence
Compare air distribution, understand heat-pump operation and verify electrical planning before choosing a complete TravelCool configuration.
RV Air Conditioner & Heat Pump Buying GuideStart with the complete selection and installation-readiness overview.
Ducted vs. Ductless RV Air ConditionersChoose the ceiling air-distribution approach that matches your RV.
What Is an RV Air Conditioner With a Heat Pump?Learn how one rooftop system can provide cooling and supplemental heating.
RV Air Conditioner Power RequirementsPlan the supply, dedicated circuit and installation checks using official guidance.
Buying guide FAQ
Resolve these questions before selection
Use current official product documentation for final decisions.
Is 15,000 BTU the right capacity for my RV?
TravelCool's current advertised capacity is 15,000 BTU, but final suitability depends on the RV, climate, insulation, layout and documented product guidance.
Can TravelCool replace my current rooftop unit?
Possibly. Verify roof opening and support, clearances, electrical supply, ducting, ceiling assembly and controls before treating any replacement as compatible.
How do I identify ducted versus ductless?
A ducted RV distributes air through ceiling ducts. A ductless system discharges directly through the interior assembly. Inspect the RV and its documentation.
How tall is the TravelCool rooftop unit?
Marketing describes an approximately 11-inch low profile. The exact documented unit height is 10.63 in.
Does TravelCool support smart control?
TravelCool supports MRCOOL Connect smart-device control when configured according to official documentation.
