DIY - Line Set Extension Kit

35' Install Kit for 24/36k BTU Gen 4 DIY or Easy Pro Systems - 35 Foot Pre-Filled Line Set With Wire and 2 Couplers

35' Install Kit for 24/36k BTU Gen 4 DIY or Easy Pro Systems - 35 Foot Pre-Filled Line Set With Wire and 2 Couplers

Regular price $849.00 USD
Regular price $1,026.88 USD Sale price $849.00 USD
Save $177.88 Sold out
Shipping calculated at checkout.

SKUMRCOOL Coupler Kit for DIY Single Zone and Multizone 24K, 36K & 48K

Type50' Install Kit With Couplers & Wire

This item is in stock! Estimated Arrival: 4-8 Days After Order is Received, Depending Upon Your Location.

View full details

Have questions or need help selecting the perfect Mini Split system?

Talk with our expert HVAC team members now for assistance!!

PRODUCT DESCRIPTION

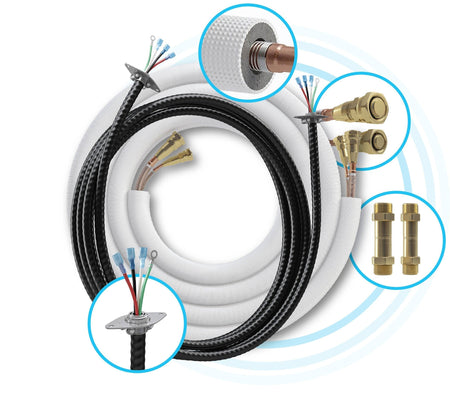

MRCOOL 35' Line Set Extension Kit for DIY Mini Split Systems

When installing your MRCOOL Mini Split System at a distance greater than the standard 25 feet, this extension kit provides everything you need to extend the line set for longer installations. Perfect for setups requiring up to 75 feet between the air handler and condenser, this kit includes a 35-foot pre-charged line set, couplers, and an extended control cable to ensure a smooth, efficient installation.

Key Features:

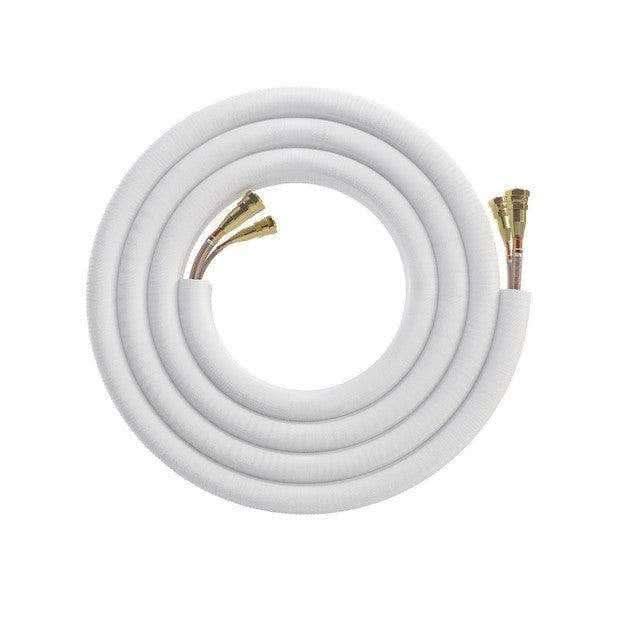

  • 35' Pre-Charged Line Set: Extends your system's line set beyond the standard 25 feet.
  • Couplers Included: The kit comes with DIYCOUPLER-38 and DIYCOUPLER-58 to seamlessly connect the additional line set to the existing one, ensuring a secure and leak-free extension.
  • 75' MC5 Pro Cable: Provides a continuous electrical connection between the indoor and outdoor units, replacing the pre-attached 25-foot wire.

Installation Process:

  1. Remove the Pre-Attached Cable: Disconnect the 25-foot control cable or wire pre-installed on your indoor unit.
  2. Install the 75' Cable: Replace it with the new 75-foot MC5 Pro cable provided in the kit for uninterrupted power and control.
  3. Connect Line Sets: Use the included couplers to join the 35-foot line set with your existing 25-foot line, extending the total reach to 75 feet.

Important Considerations:

  • Maximum Length: For optimal performance, the total length of the line set per zone should not exceed 75 feet, measured from the air handler to the condenser.
  • Handling Excess Cable: If there is any excess cable after installation, it should be coiled—never cut—to maintain system integrity.

Compatibility: This kit is designed for use with 24,000 BTU and 36,000 BTU MRCOOL indoor wall units, making it ideal for larger installations that require extended line set lengths.

Extend your MRCOOL Mini Split System confidently with this 35-foot line set extension kit, ensuring a simple, DIY-friendly setup for longer distance installations.
