Have questions or need help selecting the perfect Mini Split system?
Talk with our expert HVAC team members now for assistance!!
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
If you need longer line sets, extra cost will apply, please make the selection above.
If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 18K BTU Rating of the Condenser.
Condenser
- Energy Efficient. This 2 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21 SEER efficiency rating.
- Works In All Environments. The capability to continue to deliver heating performance when temperatures reach -13°F
- Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

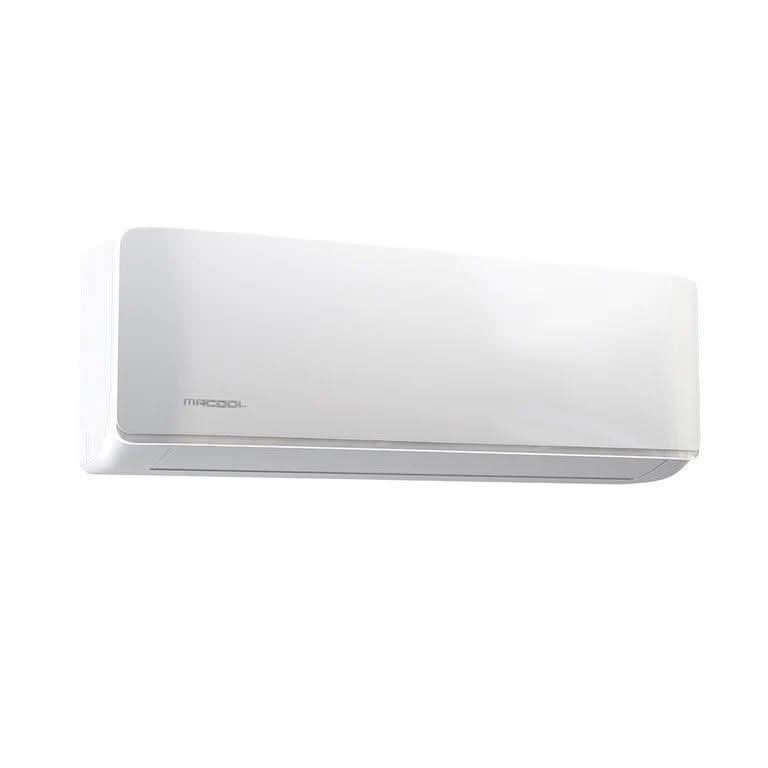

Air Handler, 9K BTU, Quantity 1
- Large Coverage Area. Handler covers an area up to 375 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
Air Handler, 12K BTU, Quantity 1
- Large Coverage Area. Handler covers an area up to 500 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
Condenser
Product Dimensions | 35.04"W x 13.46"D x 26.50"H |
Cooling Capacity | 18,000 BTU |
Heating Capacity | 19,000 BTU |
Zone Capacity | 2 |
Cool Mode - Outdoor Operating Temperature Range | 5F ~ 122F |
Heat Mode - Outdoor Operating Temperature Range | -13F ~ 75.2F |
SEER | 21 |
EER | 12.5 |
Voltage | Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase) |
Registered Warranty |
7 Years Replacement on Condenser, 5 Years Parts |
Air Handler 9K BTU
Product Dimensions | 31.57"W x 7.44"D x 11.69"H |
Mount Type | Wall |
Cooling Capacity | 9,000 BTU |
Heating Capacity |
9,000 BTU |
Registered Warranty |
5 Years Parts |
Modes | Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
Air Handler 12K BTU
Product Dimensions | 31.57"W x 7.44"D x 11.69"H |
Mount Type | Wall |
Cooling Capacity | 12,000 BTU |
Heating Capacity |
12,000 BTU |
Registered Warranty | 5 Years Parts |
Modes | Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
