MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM248HPW00C00

MRCOOL DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM248HPW00C00

Regular price $4,855.67
Regular price $7,289.71 Sale price $4,855.67
Sale Sold out
Shipping calculated at checkout.

SKUDIYM248HPW00C00

Type2 Zone/Room

Style
Color

This item is in stock! Estimated Arrival: 4-6 Days After Order is Received.

View full details

Have questions or need help selecting the perfect Mini Split system?

Talk with our expert HVAC team members now for assistance!!

PRODUCT DESCRIPTION

This 4th Generation MRCOOL Mini Split includes everything you need to cool and heat two different rooms.

The best part about all of this is that you can install it yourself!



Condenser

  • Energy Efficient. This 5 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 20.5 SEER efficiency rating.
  • Works In All Environments. The ability to heat even when temperatures drop to -5°F.
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

    Air Handler, 18K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 750 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

    Air Handler, 24K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 1,000 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

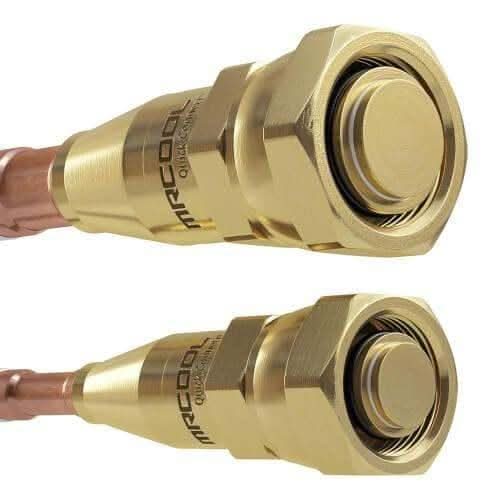

      Line Set 16, 25, 35 or 50 ft., Quantity 2

      • The copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
      • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
      • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

      Condenser Specifications



      Product Dimensions 37.24"W x 16.34"D x 52.48"H
      Cooling Capacity 48,000 BTU
      Heating Capacity 48,000 BTU
      Zone Capacity 5
      Cool Mode - Outdoor Operating Temperature Range 5F ~ 122F
      Heat Mode - Outdoor Operating Temperature Range 5F ~ 75.2F
      SEER 20.5
      EER 11
      Voltage Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase)
      Registered Warranty
      7 Years Replacement on Condenser, 5 Years Parts


      Air Handler 18K BTU

      Product Dimensions 42.52"W x 8.90"D x 13.19"H
      Mount Type Wall
      Cooling Capacity 18,000 BTU
      Heating Capacity 18,000 BTU
      Registered Warranty 5 Years Parts
      Modes Auto - auto selects from Cool, Heat or Fan-Only
      Dry - dehumidify
      Cool
      Heat
      Fan Only
      Quiet
      Sleep
      Electrical Requirements Requires a minimum of 208V-230V/60HZ/18-30A (please check your home meets this electrical requirement prior to purchase)


      Air Handler 24K BTU

      Product Dimensions 42.52"W x 8.90"D x 13.19"H
      Mount Type Wall
      Cooling Capacity 23,000 BTU
      Heating Capacity 25,000 BTU
      Registered Warranty 5 Years Parts
      Modes Auto - auto selects from Cool, Heat or Fan-Only
      Dry - dehumidify
      Cool
      Heat
      Fan Only
      Quiet
      Sleep
      Electrical Requirements Requires a minimum of 208V-230V/60HZ/22-35A (please check your home meets this electrical requirement prior to purchase)


      Line Set

      Length 16 Feet
      Liquid Line Size 3/8"
      Suction Line Size 5/8"


      Line Set

      Length 16 Feet
      Liquid Line Size 1/4"
      Suction Line Size 1/2"
