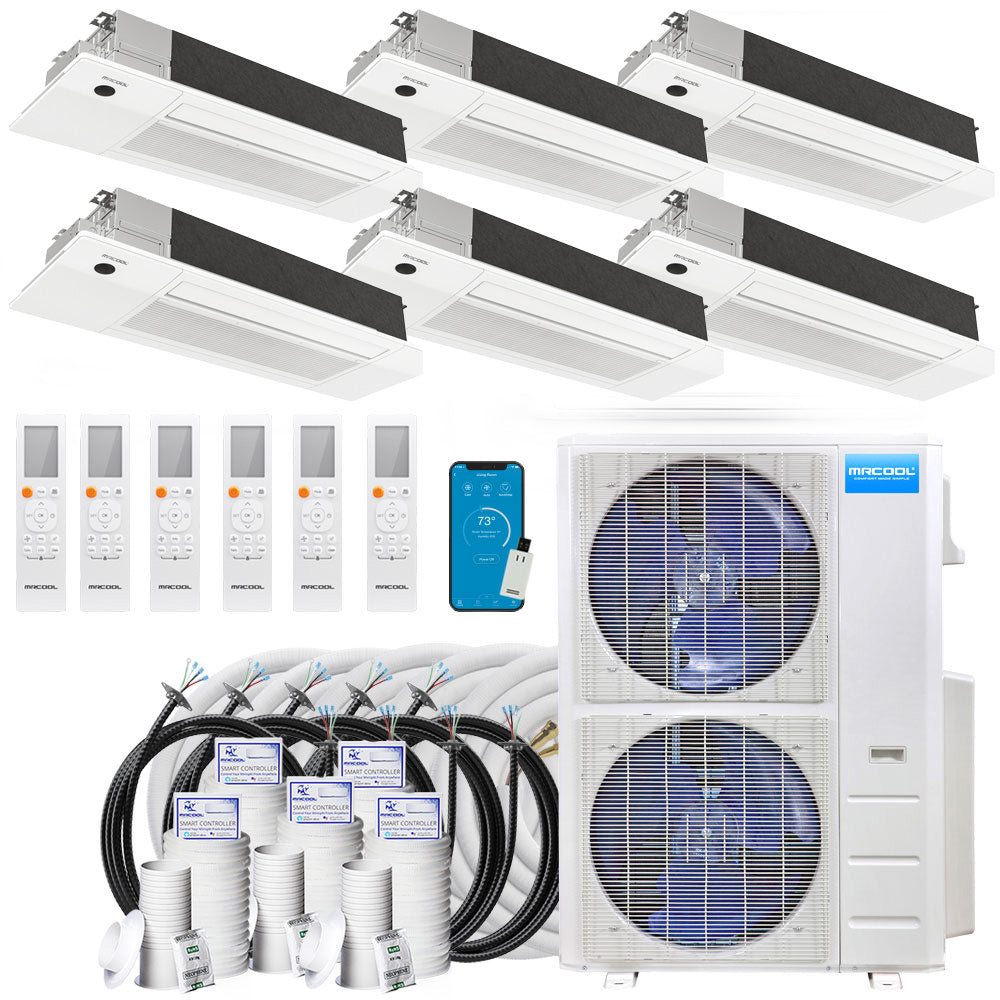

• Complete MRCOOL DIY 5th Gen 55,000 BTU 6-zone mini-split kit with condenser, ceiling cassette air handlers, pre-charged line sets, and remote controls — full ductless HVAC system for DIY installation.

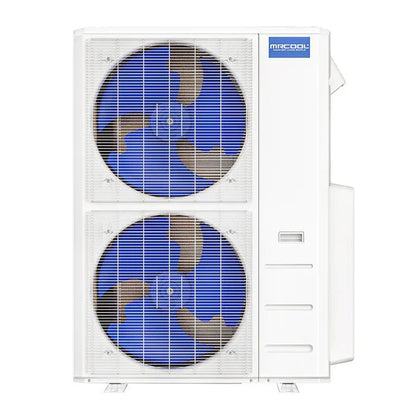

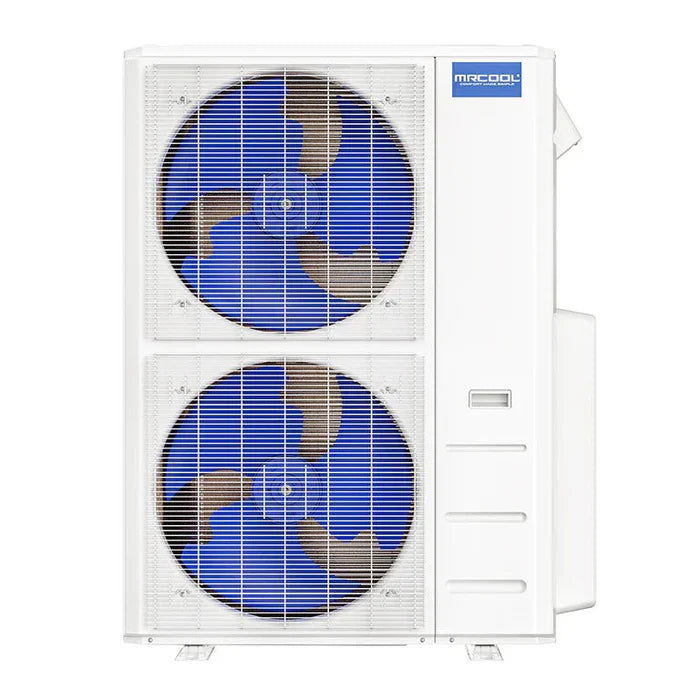

  • Front view of MRCOOL DIY 5th Gen 55,000 BTU multi-zone outdoor condenser — high-efficiency ductless mini-split heat pump.
  • Side view of MRCOOL DIY-MULTI6-55HP230D-O outdoor condenser showing dual-fan airflow and durable metal cabinet design.

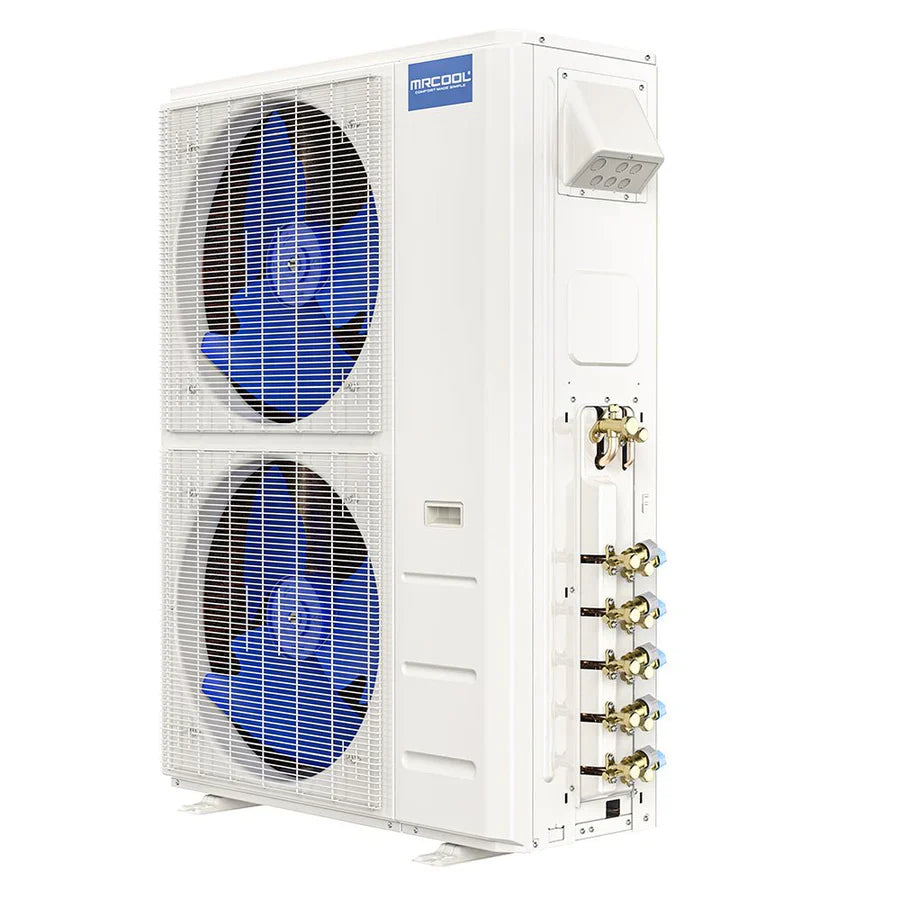

  • MRCOOL DIY 5th Gen condenser rear panel showing Quick-Connect® refrigerant ports for easy plug-and-play installation.

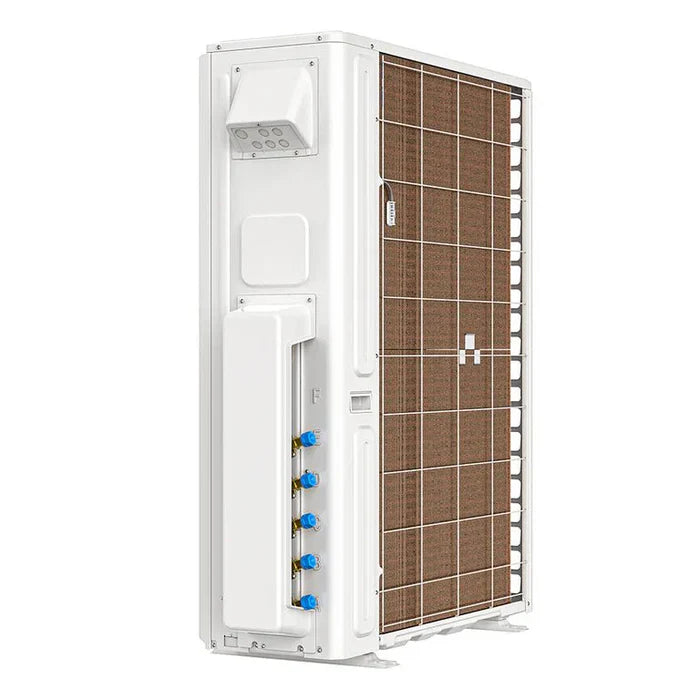

  • MRCOOL DIY 5th Gen Gold Fin® condenser close-up — corrosion-resistant finish for long-lasting outdoor performance.
  • MRCOOL DIY 12K BTU ceiling cassette air handler installed flush with ceiling — compact and quiet mini-split zone unit.

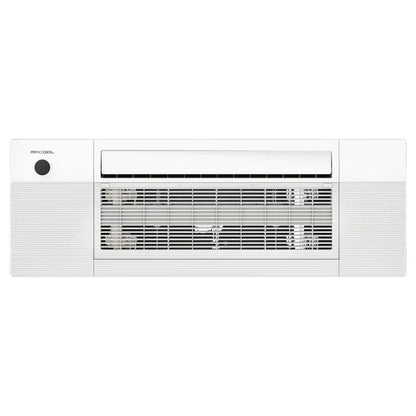

  • MRCOOL DIY 12K BTU ceiling cassette front grille showing 4-way directional airflow vents for even air distribution.
  • MRCOOL DIY 18K BTU ceiling cassette air handler installed in living area — efficient climate control for large spaces.

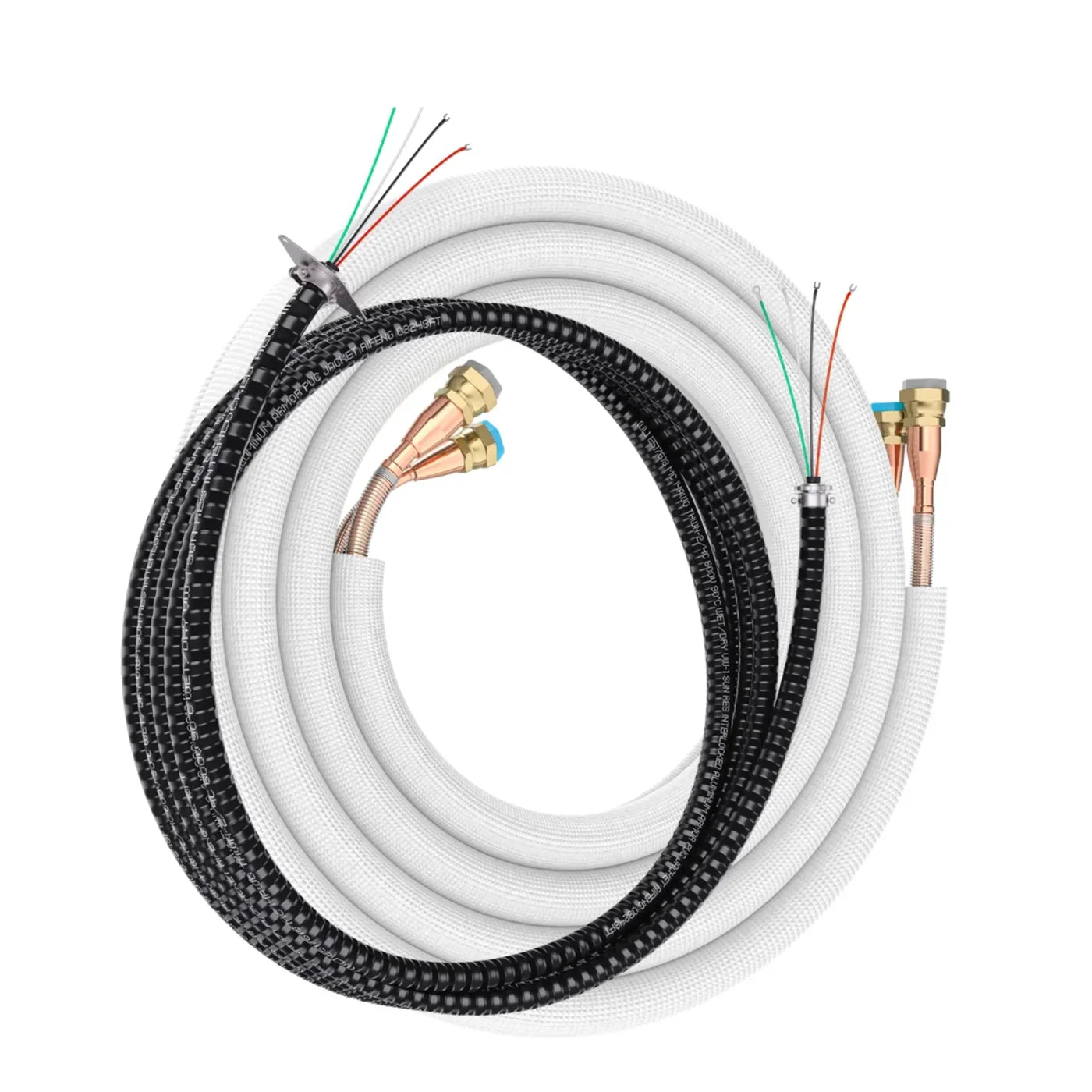

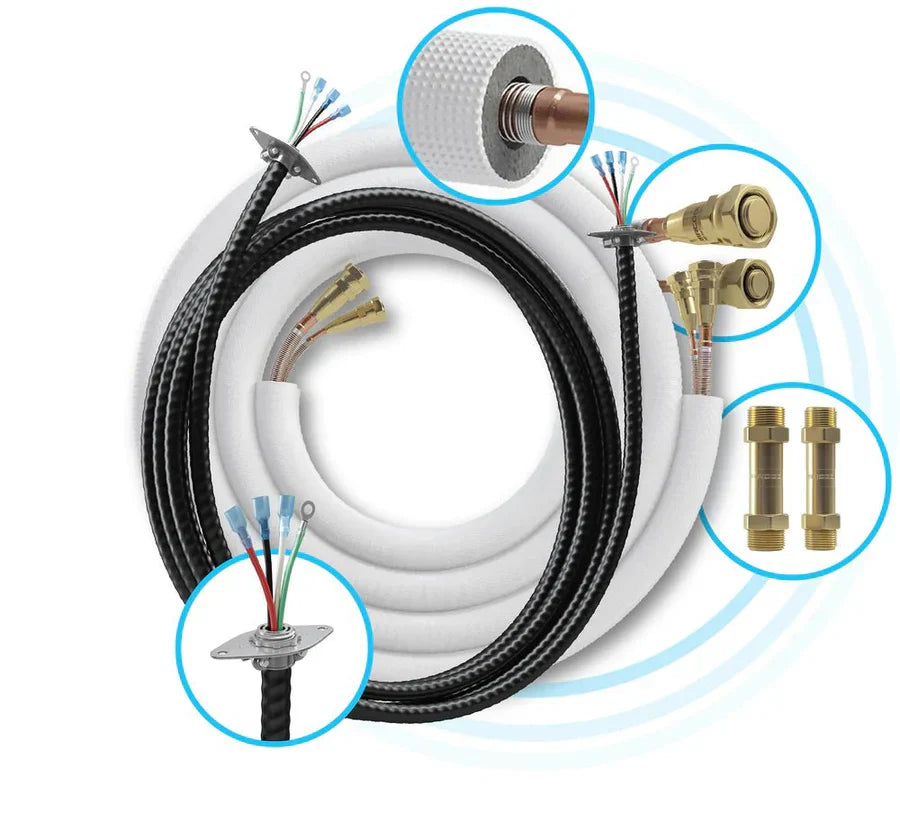

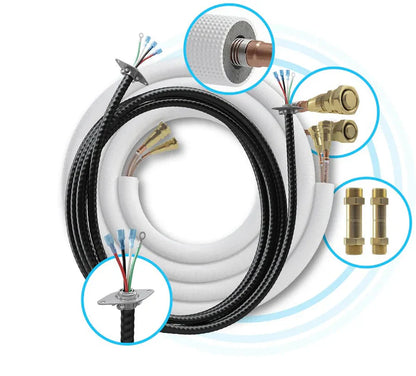

  • MRCOOL Quick-Connect® pre-charged line set — no vacuum or charging required for DIY mini-split installation.
  • MRCOOL DIY 5th Gen line set connected between condenser and ceiling cassette air handler — simple push-and-seal install.

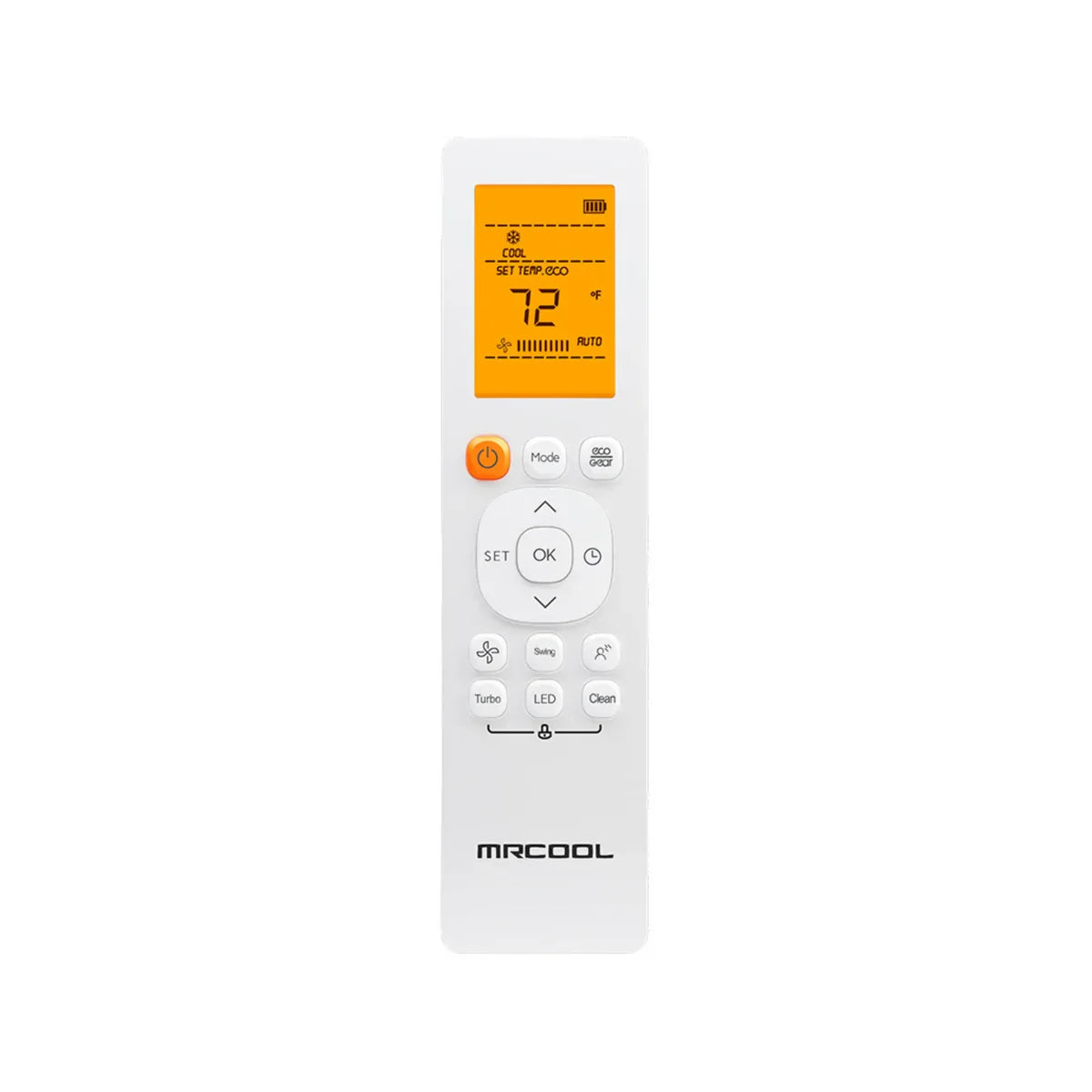

  • MRCOOL DIY Follow Me® remote control for mini-split air handler — wireless temperature tracking and mode control.
1 11

  • Free Shipping

  • 30-Day Returns*

  • Authorized Dealer

  • Professional Services

Authorized Dealer

6 Zone Bundle (New for 2025)

MRCOOL DIY 5th Gen Multi-Zone 6-Zone 55,000 BTU 22 SEER2 (9K + 9K + 12K + 12K + 12K + 12K) Ductless Mini-Split Air Conditioner and Heat Pump with Ceiling Cassettes

MRCOOL DIY 5th Gen Multi-Zone 6-Zone 55,000 BTU 22 SEER2 (9K + 9K + 12K + 12K + 12K + 12K) Ductless Mini-Split Air Conditioner and Heat Pump with Ceiling Cassettes

$12,436.00
$12,436.00 $15,514.00
You Save: $3,078.00
SALE Sold out
Shipping calculated at checkout.
CHOOSE YOUR LINE SET LENGTH:
Each pre-charged line set includes the correct length communication wire.
Total Bundle Price: $12,436.00

SKUDIYM655090912121212-CC

Type55K

Refrigerant Type: R-454B

In stock
Ready to ship
Free delivery*
Ships in 1–2 business days
Estimated arrival: Feb 13 – Feb 15
Based on order date & typical delivery times
View full details

Have questions or need help selecting the perfect Mini Split system?

Talk with our expert HVAC team members now for assistance!!

Call Us Chat Now Design Your Own Mini Split Tool

PRODUCT DESCRIPTION

MRCOOL DIY 5th Gen Multi-Zone 6-Zone 55,000 BTU 22 SEER2 (9K + 9K + 12K + 12K + 12K + 12K) Ductless Mini-Split Air Conditioner & Heat Pump with Ceiling Cassettes

Experience total home comfort with the MRCOOL DIY 5th Gen 55,000 BTU 6-Zone Ductless Mini-Split System — the ultimate DIY climate solution for large homes, shops, and offices. This complete setup pairs a powerful 55K BTU condenser with six low-profile ceiling cassette air handlers (9K + 9K + 12K + 12K + 12K + 12K), delivering efficient zoned heating and cooling with no professional installation required.

With Quick-Connect® pre-charged line sets, advanced Wi-Fi control, and an industry-leading 22 SEER2 efficiency rating, this MRCOOL system offers premium performance, whisper-quiet operation, and smart home integration through Alexa or Google Assistant.

Key Features & Benefits

  • ✔ 6-Zone configuration: (9K + 9K + 12K + 12K + 12K + 12K) ceiling cassette air handlers.
  • ✔ 22 SEER2 / 10.6 HSPF2-4 energy efficiency for reduced power costs.
  • ✔ Heats to −13°F and cools to 122°F for true four-season comfort.
  • ✔ Quick-Connect® pre-charged R-454B line sets — no vacuuming or refrigerant handling required.
  • ✔ Ceiling cassette design blends seamlessly into ceilings for a low-profile look.
  • ✔ Wi-Fi, Alexa, and Google Assistant control via MRCOOL SmartHVAC App.
  • ✔ DIYPro® cable included — eliminates electrical conduit needs for faster installation.
  • ✔ Gold Fin® anti-corrosion coating protects against outdoor elements.
  • ✔ Follow Me® remote sensor maintains the perfect temperature near you.
  • ✔ Energy Star, AHRI, and ETL Certified — proven efficiency and safety.
💡 Pro Tip: Each MRCOOL DIY ceiling cassette includes the WMK-19 Smart HVAC Wi-Fi Controller. Simply plug it into the air handler for instant app access via MRCOOL or SmartHVAC. Schedule temperature changes, monitor performance, and control your system hands-free with Alexa or Google Assistant.

Technical Specifications

  • Brand / Series: MRCOOL DIY 5th Gen Multi-Zone Mini-Split
  • Outdoor Model: DIY-MULTI6-55HP230D-O
  • Indoor Models: Ceiling Cassettes (9K + 9K + 12K + 12K + 12K + 12K)
  • Total Capacity: 55,000 BTU Heating / 47,000 BTU Cooling
  • Zones: 6
  • Refrigerant: R-454B (Pre-Charged Quick-Connect)
  • Efficiency: SEER2 22 | EER2 12 | HSPF2-4 10.6 | HSPF2-5 8.5
  • Voltage: 208/230V, 1 Phase, 60 Hz
  • Operating Range: Heat down to −13°F | Cool up to 122°F
  • Sound Level: 64 dBA (Outdoor Unit)
  • Compressor: DC Inverter Rotary
  • Max Line Set Length: 221.4 ft total combined
  • Certifications: Energy Star, AHRI, ETL, UL, Intertek 5031495
  • Warranty: 5-Year Parts | 7-Year Compressor | Limited Lifetime with MRCOOL Care registration
