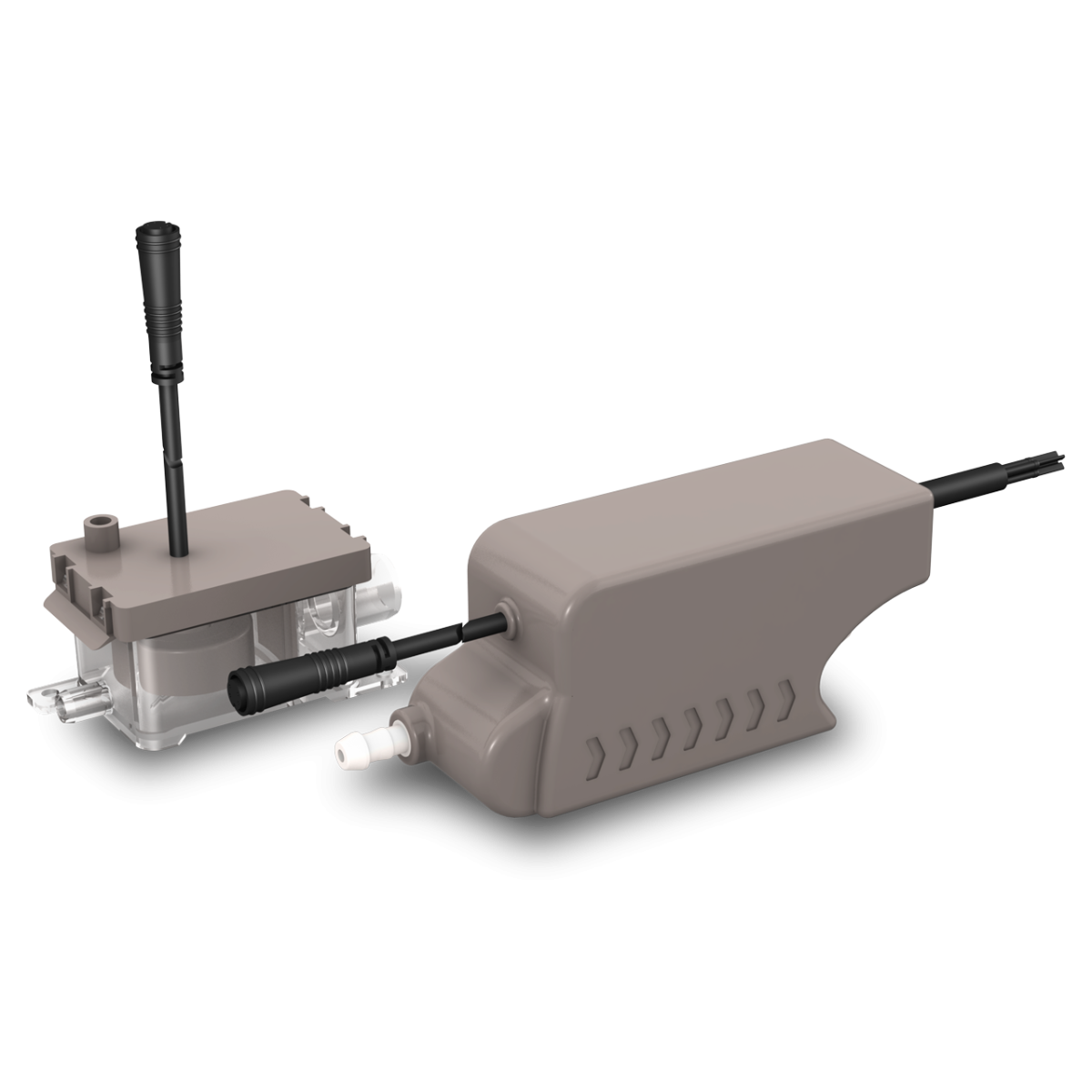

Ghost™ Series Remote Condensate Pump – RectorSeal Upgrade to Aspen Orange

Ghost™ Series Remote Condensate Pump – RectorSeal Upgrade to Aspen Orange

SKU83909

TypeCondensate Pumps

Regular price $309.63
Sale price $309.63 Regular price $397.99
You Save: $88.36
SALE Sold out
Shipping calculated at checkout.
In stock
Only 1 left
Free delivery
Ships in 1–2 business days
Estimated arrival: Jan 24 – Jan 26
Based on order date & typical delivery times
View full details

Have questions or need help selecting the perfect Mini Split system?

Talk with our expert HVAC team members now for assistance!!

PRODUCT DESCRIPTION

The Ghost™ Series Remote Condensate Pump is RectorSeal’s next-generation upgrade to the discontinued Aspen Orange Series. When RectorSeal retired the Orange line, they didn’t downgrade or sideways-move it. They rebuilt it into something quieter, more reliable, and better suited for modern high-efficiency HVAC systems.

This is now RectorSeal’s flagship mini-split condensate pump.

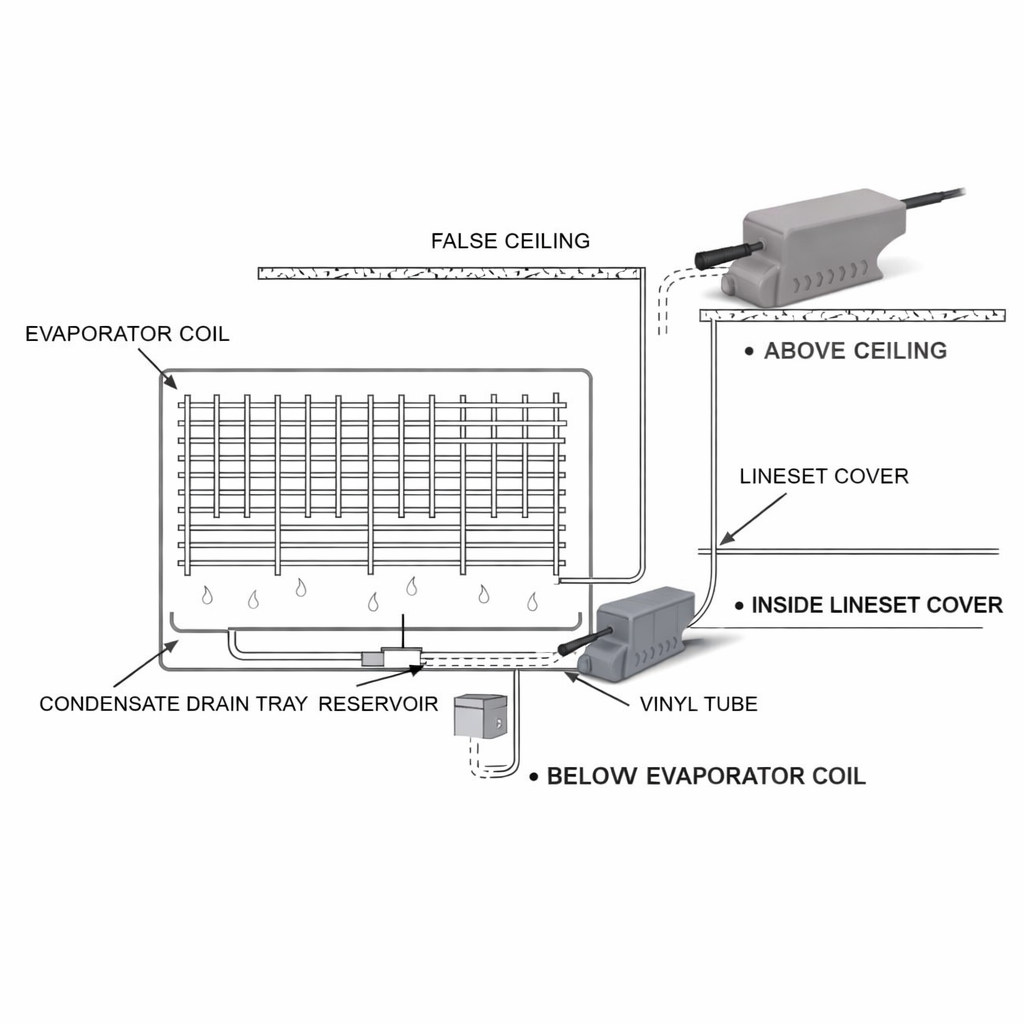

Designed for remote mounting above ceilings or inside line set covers, the Ghost™ Series delivers ultra-quiet operation, sealed electronics, and dependable condensate removal across a wide range of applications. It is ideal for wall-mounted mini splits, ceiling cassette air handlers, concealed ducted systems, and other installations where gravity drainage is not possible.

If you previously spec’d Aspen Orange, this is its direct replacement and improvement, not a budget substitute.

Aspen Orange → Ghost™ Series Upgrade

RectorSeal discontinued the Aspen Orange Series and replaced it with the Ghost™ Series as the official upgrade. The Ghost™ Series offers:

  • Quieter operation (down to 16 dB)
  • Fully potted, sealed electronics for improved durability
  • Remote mounting flexibility for cleaner installs
  • Enhanced reliability with a rotary diaphragm design
  • Universal voltage for residential and light commercial systems

Same manufacturer. Same intent. Better execution.

Key Features

  • Remote-mount condensate pump for hidden or above-ceiling installations
  • Rotary diaphragm pump for long service life and consistent performance
  • Ultra-quiet operation at only 16 dB
  • Fully potted electronics for moisture and vibration protection
  • Gravity inlet for reliable condensate collection
  • 3 normally-closed dry contacts for system safety shutoff
  • Integrated anti-siphon device
  • Compact footprint for tight ceiling and line set spaces
  • ETL Listed (Intertek)

Technical Specifications

  • Power Supply: 100–240V AC, 50/60Hz
  • Power Consumption: < 4W
  • Capacity:
  • 10.6 GPH @ 0 ft head
  • 3.67 GPH @ 32.8 ft head
  • Maximum Discharge Head: 32.8 ft (10 m)
  • Maximum Suction Lift: 6.6 ft (2 m)
  • Maximum Output: 157,000 BTU/hr (46 kW)
  • Maximum Water Temperature: 158°F
  • Safety Switch: 3A, normally closed
  • Discharge Tube Size: 1/4" ID
  • Sound Level: 16 dB @ 3.3 ft
  • Pump Dimensions: 4.9" × 1.5" × 1.9"
  • Weight: 1.57 lbs
  • Appliance Class: Class II

Compatible Applications

  • Wall-mounted mini split air handlers
  • Ceiling cassette mini split systems
  • Concealed ducted and slim duct air handlers
  • Multi-zone and VRF systems
  • Residential and light commercial HVAC

If it produces condensate and gravity won’t cooperate, this pump handles it quietly and reliably.

Why We Carry It at MRCOOL DIY Direct

The Ghost™ Series is RectorSeal’s official successor to Aspen Orange, and it meets the standards we expect for modern mini-split and ducted installs. Quieter operation, improved electronics, and better long-term reliability make it the correct choice for both DIY customers and professional installers.

No guesswork. No downgrades. This is the current, supported solution.
