Product Overview
-
Number of Zones: 1
-
Outdoor Operating Temp (Cool): -13°F to 122°F
-
Outdoor Operating Temp (Heat): -13°F to 75.2°F
-
Voltage: 208 to 230
-
Wall Mounted
-
DIY Installation
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
MRCOOL DIY 4th Gen 24K BTU Ductless Mini-Split Heat Pump System – 20.5 SEER Efficiency & DIY Installation
Efficient. Powerful. Easy to Install. The Ultimate Heating & Cooling Solution for Your Home.
The MRCOOL DIY 4th Generation 24K BTU, 2 Ton, 20.5 SEER Ductless Mini-Split Heat Pump System (DIY-24-HP-WM-230C25) is designed for homeowners looking for energy efficiency, powerful climate control, and true DIY installation—without the need for professional HVAC assistance.
Perfect for spaces up to 1,000 sq. ft., this Energy Star-certified system provides year-round comfort with its heating, cooling, and dehumidification capabilities—all while helping you save on energy bills. With its pre-charged quick-connect line set, setting up your system is simpler and faster than ever.
🌟 Key Features & Benefits
✔ Exceptional Energy Efficiency – Save More Every Month
- 20.5 SEER rating exceeds Energy Star certification standards for superior energy savings.
- High-performance inverter technology optimizes temperature control while reducing power consumption.
- Enjoy cost-effective heating & cooling for homes, garages, offices, workshops, and more.

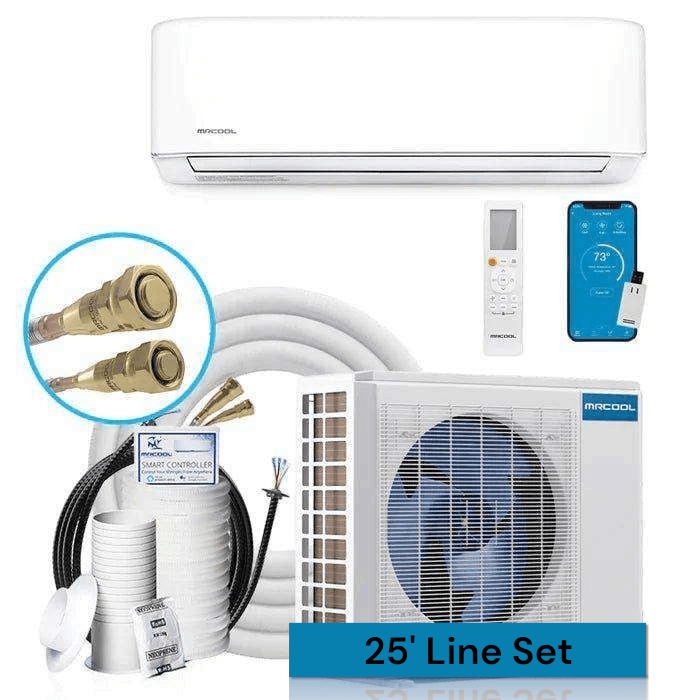

✔ All-In-One DIY System – What’s Included
This complete mini-split system comes with everything you need for easy installation:
✅ 24K BTU Outdoor Condenser Unit
✅ 24K BTU Indoor Air Handler
✅ 25 ft. Pre-Charged Line Set with R-410A Refrigerant (No HVAC Technician Needed)
✅ Smart Remote Control with Follow Me Function
✅ Wall-Mounting Bracket, Communication Cable, and Installation Kit
✔ DIY Installation – No Special Tools or HVAC License Required
- Pre-charged Quick-Connect line set makes installation fast and simple.
- Designed for DIY homeowners, saving you hundreds on professional installation costs.
- Step-by-step installation guides and videos ensure a smooth setup process.
✔ Multiple Operating Modes for Maximum Comfort
The MRCOOL DIY 24K Mini Split adapts to your needs with multiple modes:
✅ Cooling Mode – Keeps your home cool and comfortable even in extreme heat.
✅ Heating Mode – Provides powerful warmth during cold months.
✅ Dehumidification Mode – Reduces excess moisture to improve air quality.
✅ Sleep Mode – Adjusts settings automatically for energy savings and optimal nighttime comfort.
✔ Smart Technology – Control Your Comfort from Anywhere
- Smart HVAC App lets you adjust settings remotely from your smartphone.
- Works with Alexa & Google Assistant for hands-free voice control.
- Follow Me Function detects the remote’s location to adjust the temperature based on where you are.
✔ Industry-Leading Warranty for Peace of Mind
- Limited Lifetime Compressor Warranty – A testament to MRCOOL’s commitment to quality.
- 5-Year Parts & 7-Year Compressor Warranty – Ensuring long-term performance and reliability.
✔ Extended Line Set Options for Custom Installations
Need a longer reach? Upgrade to 50 ft. or 75 ft. line sets, pre-charged with refrigerant and ready for easy connection.
📦 Why Choose the MRCOOL 24K BTU DIY Mini-Split System?
✅ DIY Installation – No HVAC professional required
✅ Energy Star Certified – 20.5 SEER efficiency for lower energy bills
✅ Smart Control – Manage settings remotely via smartphone or voice assistant
✅ Quiet Operation – Designed for whisper-quiet performance
✅ Pre-Charged Line Set – Simplifies setup with quick-connect technology
✅ Warranty Protection – Industry-leading coverage for parts and compressor
🛒 Order Your MRCOOL DIY 4th Gen 24K BTU Mini-Split Today!
Take control of your home’s comfort with the MRCOOL DIY 24K BTU Mini-Split System—the perfect combination of performance, convenience, and energy savings.
📦 Order now from MRCOOL DIY Direct – The USA’s most trusted MRCOOL dealer!
SPECIFICATION & DIMENSIONS
SPECIFICATION & DIMENSIONS
General |
|||
---|---|---|---|
Warranty |
5-Year Replacement 7-Year Compressor |
Series Name |
DIY 4th gen Energy Star |
Color |
White |
Type |
DIY system |
Dimensions |
|||
---|---|---|---|
Air Handler Depth (Inches) |
8.9 |
Height (Inches) |
31.89 |
Air Handler Height (Inches) |
13.19 |
Line-set Connection Size |
3/8-in x 5/8-in |
Air Handler Width (Inches) |
42.52 |
Line-set Length |
25-ft |
Compressor Depth (Inches) |
16.14 |
Maximum Coverage Area (Sq. Feet) |
1050 |
Compressor Height (Inches) |
31.89 |
Weight (lbs.) |
125.22 |
Compressor Width (Inches) |
37.24 |
Width (Inches) |
37.24 |
Cord Length (Feet) |
25.0 |
Zone Capacity |
Single |
Depth (Inches) |
16.14
|
|
WHAT'S INCLUDED
WHAT'S INCLUDED
-
25' Pre-Filled Line Set
-
Remote Control
-
Communication Wire
-
Wall Sleeve
-
Condenser
-
Air Handler
