PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
Upgrade your home climate control with the MRCOOL Hyper Heat Central Ducted Condenser, a 24K BTU dynamo engineered to ensure optimal indoor comfort all year long. This model features a DC Inverter and advanced variable speed technology, providing top-notch efficiency that lowers energy costs while maintaining consistent performance.

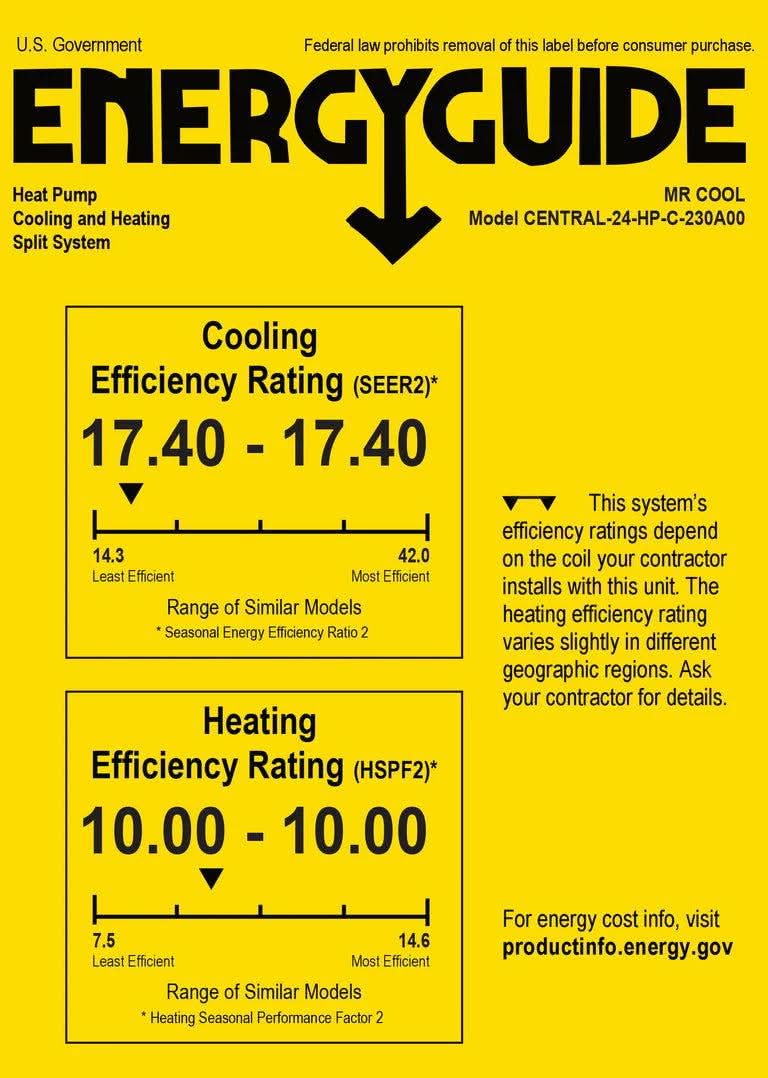

The MRCOOL Hyper Heat Condenser stands out with an exceptional SEER2 rating of up to 17.4 and an HSPF2-4 rating of 10, guaranteeing powerful heating capabilities and energy efficiency. It reliably maintains a comfortable indoor temperature, even when external conditions fluctuate between -22°F and 122°F.
Installation is simplified for professional HVAC technicians with the innovative MRCOOL No-Vac Quick Connect Line Set, which eliminates the need for vacuuming or flare welding. This feature prevents kinking and speeds up the connection process, reducing installation time and costs, thus making this system an economically advantageous option.
Environmentally responsible, the unit utilizes the R-410A refrigerant, which significantly lessens its environmental impact. Constructed from durable painted galvanized steel, the condenser is designed to withstand severe weather, wildlife, and damage from landscaping equipment, ensuring long-lasting reliability.
For further assurance, the system includes a comprehensive 10-year warranty that covers the compressor, parts, and labor. There's no need for complex registration processes—the labor warranty activates automatically upon installation. Trust the MRCOOL Hyper Heat Central Ducted Condenser for a high-quality, efficient, and dependable heating and cooling solution.
Key Features:
- Highly Energy Efficient: Achieves up to 17.4 SEER2
- Robust Warranty: 10-year coverage on parts, labor, and the compressor
- Built for Extreme Temperatures: Operates effectively in conditions ranging from -22°F to 122°F.
Specifications
Condenser Dimensions | 37.24"W x 16.14"D x 31.89"H |
Condenser Weight | 136.69 |
SEER2 | 17.4 |
EER2 | 11.7 |
HSPF2 | hspf2-4/2-5: 10/8 |
CFM | 3,000 |
Cooling Capacity | 24000 BTU |
Heating Capacity | 24,000 BTU |
Voltage | Requires a minimum of 208-230V/60HZ/20.5 to 35A (please check your home meets this electrical requirement prior to purchase) |
Phase | 1 |
Cycle | 60 Hz |
Max Fuse Breaker | 35 |
Min Circuit Ampacity | 20.5 |
Coverage Area | 1,000 square feet |
Refrigerant Type | R410A |
Refrigerant Volume | 102.29 oz |
Decibel Rating | 62 |
Inverter System | DC |
Air Flow Direction | Upflow, Downflow, Horizontal Left, Horizontal Right |
Cool Mode - Outdoor Operating Temperature Range | 5°F to 122°F |
Heat Mode - Outdoor Operating Temperature Range | -22°F to 75°F |
Room Temperature | Cool: 61°F to 90°F Heat: 32°F to 86°F Dry: 50°F to 90°F |
Lineset Included | No |
Liquid Line Size | 3/8in |
Suction Line Size | 3/4in |
Auxiliary Heater Included | No |
Auxiliary Heater Available | Yes |
Certificates | AHRI |
Warranty | 10 years Parts and Labor |
Propositon 65 Warning | Yes |
