PRODUCT DESCRIPTION
PRODUCT DESCRIPTION

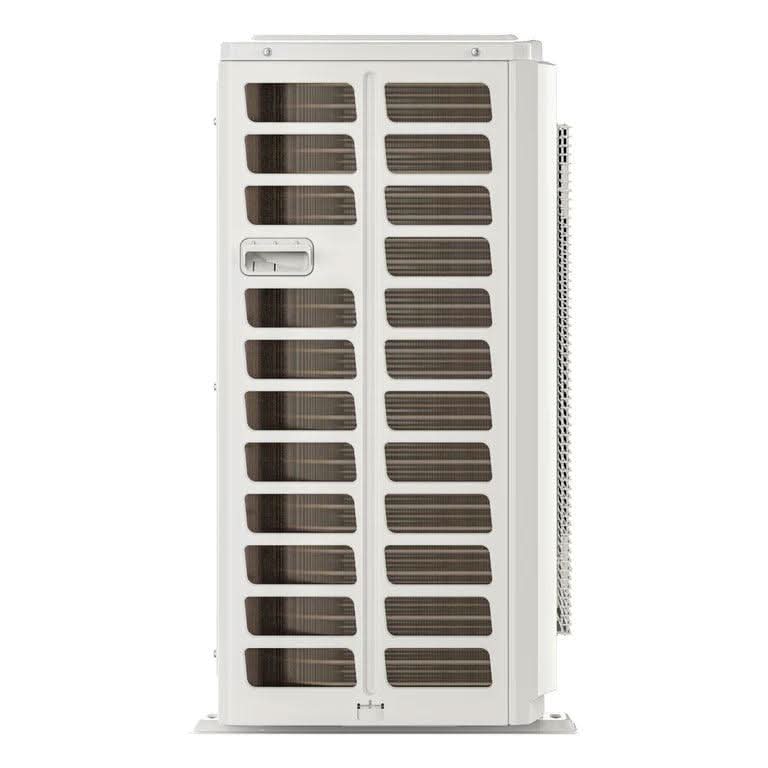

The 36K BTU MRCOOL® Hyper Heat Central Ducted Heat Pump Condenser is engineered to provide exceptional year-round climate control, effortlessly handling even the most extreme weather conditions. This high-performance unit incorporates a DC Inverter and advanced variable speed technology, which together enhance operational efficiency, significantly reduce energy costs, and maintain optimal performance levels.
This condenser is notable for its high efficiency, with a SEER2 rating of up to 16 and an HSPF2-4 rating of up to 9.5. Its robust heating capabilities ensure that indoor comfort is maintained even when outdoor temperatures range from a chilling -22°F to a scorching 122°F. Designed for straightforward installation, the MRCOOL® No-Vac® Quick Connect® Line Set used with this unit simplifies the process by eliminating the need for vacuuming or flare welding, thanks to its kink-resistant design that speeds up and reduces the cost of installation.
Eco-friendly and durable, the unit uses R-410A refrigerant, minimizing its environmental impact. It is built from high-quality painted galvanized steel to withstand harsh weather, animal interference, and damage from landscaping equipment, ensuring longevity and reliability. Supporting the unit's quality and durability is a comprehensive 10-year warranty that covers the compressor, parts, and labor, with the labor warranty automatically activated upon installation—no registration required.
Features:
- Up to 16 SEER2: High energy efficiency for significant utility savings.
- Comprehensive 10-Year Warranty: Covers parts, labor, and compressor, with automatic activation upon installation.
- Optional Heating Kit: Enhances warmth during extremely cold conditions, providing additional comfort and peace of mind.
Choose the 36K BTU MRCOOL® Hyper Heat Central Ducted Heat Pump Condenser for dependable, efficient, and environmentally friendly heating and cooling solutions.
SPECIFICATION & DIMENSIONS
SPECIFICATION & DIMENSIONS
Condenser Dimensions | 37.48"W x 16.14"D x 52.48"H |
Condenser Weight | 227.07 |
SEER2 | 16 |
EER2 | 10 |
HSPF2 | hspf2-4/2-5: 9.5/8 |
CFM | 4,500 |
Cooling Capacity | 36,000 BTU |
Heating Capacity | 40,000 BTU |
Voltage | Requires a minimum of 208-230V/60HZ/41 to 50A (please check your home meets this electrical requirement prior to purchase) |
Phase | 1 |
Cycle | 60 Hz |
Max Fuse Breaker | 50 |
Min Circuit Ampacity | 41 |
Coverage Area | 1,500 square feet |
Refrigerant Type | R410A |
Refrigerant Volume | 165.79 oz |
Decibel Rating | 64 |
Inverter System | DC |
Air Flow Direction | Upflow, Downflow, Horizontal Left, Horizontal Right |
Cool Mode - Outdoor Operating Temperature Range | 5°F to 122°F |
Heat Mode - Outdoor Operating Temperature Range | -22°F to 75°F |
Room Temperature | Cool: 61°F to 90°F Heat: 32°F to 86°F Dry: 50°F to 90°F |
Line set Included | No |
Max Line Set Length | 213.25 ft |
Liquid Line Size | 3/8in |
Suction Line Size | 3/4in |
Auxiliary Heater Included | No |
Auxiliary Heater Available | Yes |
Certificates | AHRI |
Warranty | 10 years Parts and Labor |
Propositon 65 Warning | Yes |
