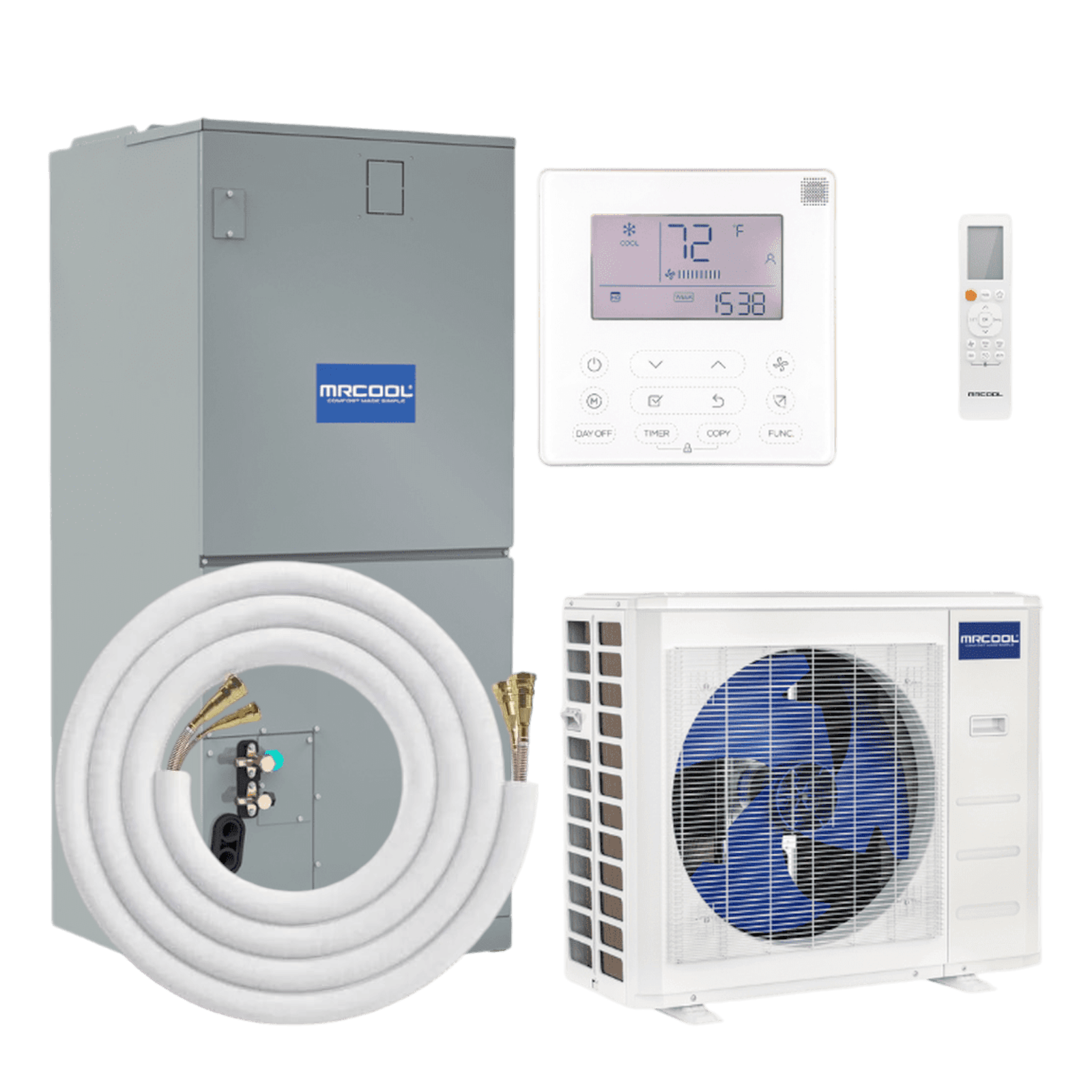

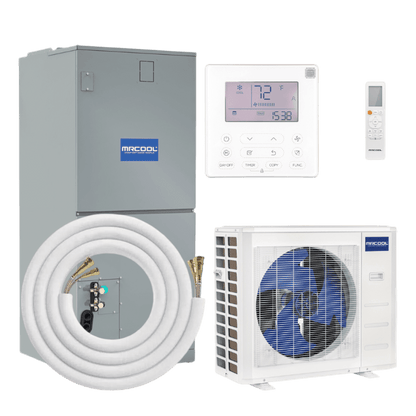

MRCOOL 36K BTU HyperHeat Central Ducted Air Handler and Heat Pump Condenser - 16 SEER2, CENTRAL-36-HP-230A00

MRCOOL 36K BTU HyperHeat Central Ducted Air Handler and Heat Pump Condenser - 16 SEER2, CENTRAL-36-HP-230A00

Regular price $3,468.47 USD
Regular price $4,196.88 USD Sale price $3,468.47 USD
Save $728.41 Sold out
Shipping calculated at checkout.

SKU

TypeHyper Heat Central Ducted

Size

This item is in stock! Estimated Arrival: 4-8 Days After Order is Received, Depending Upon Your Location.

View full details

Have questions or need help selecting the perfect Mini Split system?

Talk with our expert HVAC team members now for assistance!!

PRODUCT DESCRIPTION

Experience Ultimate Comfort with the MRCOOL® 36K Hyper Heat Central Ducted System

Discover year-round comfort with the MRCOOL® 36K Hyper Heat Central Ducted System, engineered to meet all your heating and cooling needs. With an exceptional SEER2 rating of up to 16, this system provides the perfect balance of energy efficiency and performance, ensuring lower energy bills while maintaining a comfortable home in any weather.

Seamless Installation with MRCOOL® No-Vac® Quick Connect® Line Set

The MRCOOL® No-Vac® Quick Connect® Line Set simplifies installation, pre-charged with eco-friendly R410-A refrigerant to eliminate the need for time-consuming vacuuming and welding. Designed for durability, the line set resists kinking, ensuring a smooth and reliable setup.

For those who prefer traditional methods, this system is also compatible with traditional flare and sweat fittings, allowing flexibility in installation options.

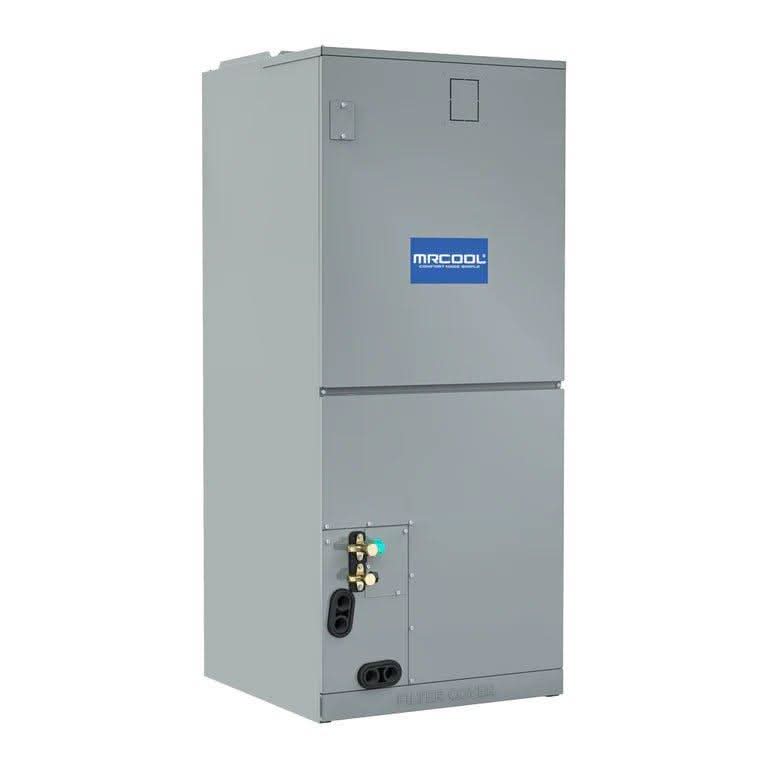

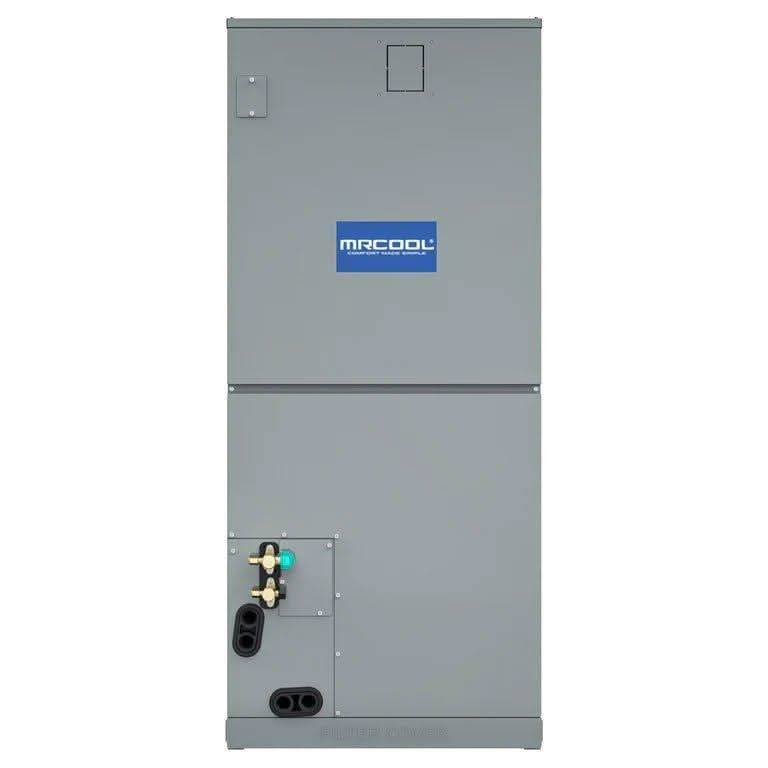

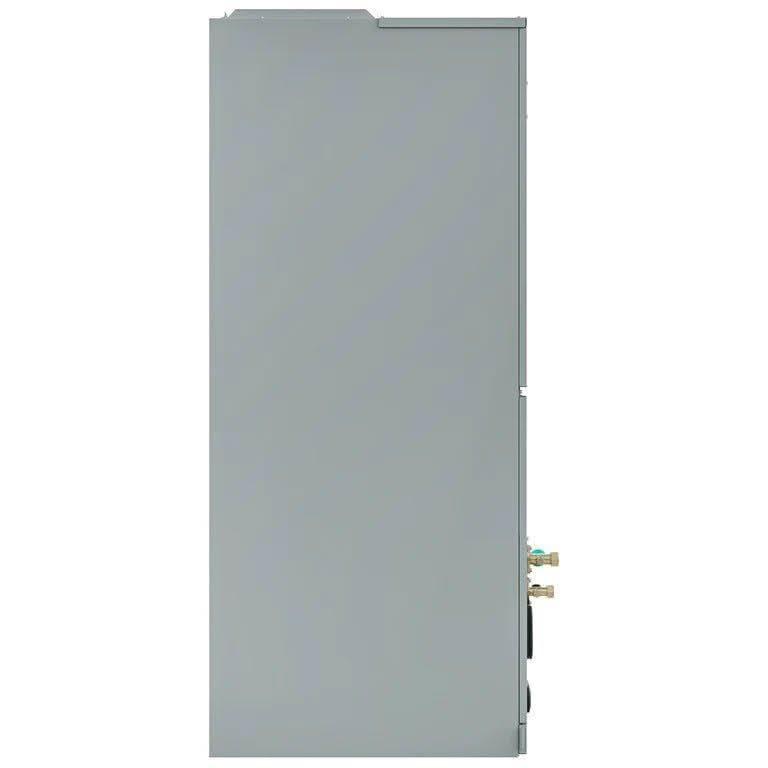

Versatile Air Handler for Flexible Installation

The adaptive air handler design fits into a variety of configurations, making it compatible with upflow, downflow, and horizontal setups. Whether you’re building a new home or retrofitting an existing one, this system can be tailored to meet your needs. For added warmth during the colder months, an optional heat kit can be easily integrated.

Durability and Easy Maintenance

Constructed from painted galvanized steel, the unit combines durability with functionality. The side-discharge design, slide-out blower, and removable filters make maintenance simple, ensuring long-lasting performance. Additionally, a built-in self-diagnostics panel simplifies troubleshooting, allowing you to resolve issues quickly.

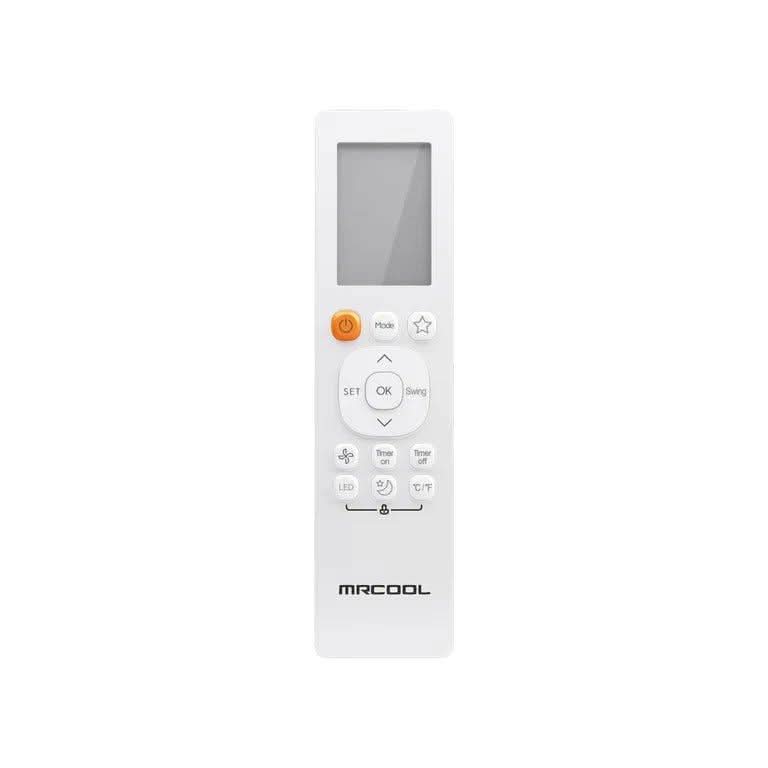

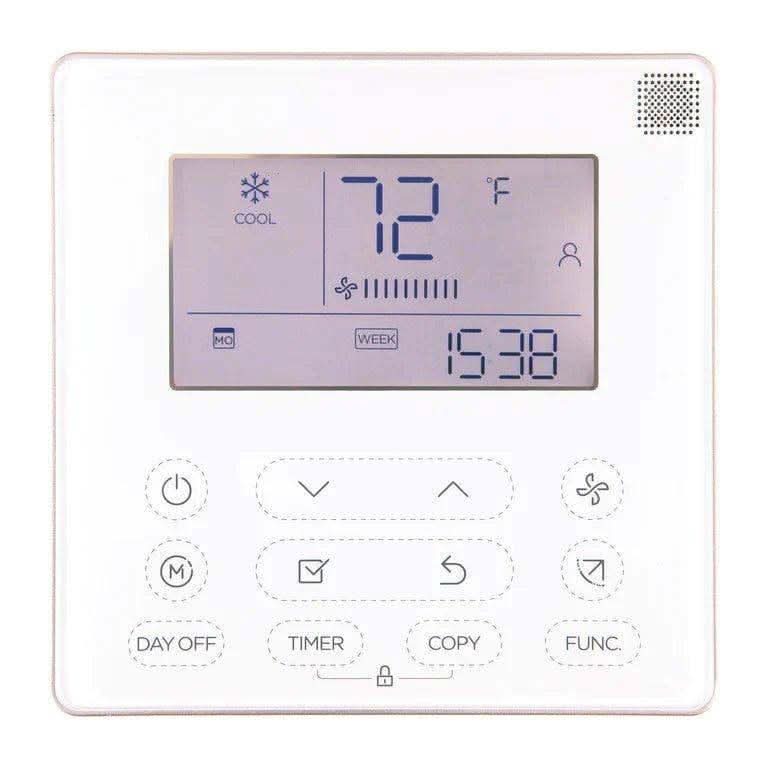

Complete Control with Wired Thermostat and Wireless Remote

Managing your home’s temperature is a breeze with the included wired thermostat and wireless remote, providing you with various options to customize your climate settings for optimal comfort.

Worry-Free Warranty for Long-Term Peace of Mind

The MRCOOL® 36K Hyper Heat Central Ducted System comes with a 10-year parts and labor warranty and a 10-year compressor warranty, offering long-term protection and peace of mind. No registration is needed to activate the labor warranty, ensuring you are covered from the start.

Key Features:

  • Coverage Area: Ideal for spaces up to 1,500 sq. ft.
  • Energy Efficiency: Delivers up to 16 SEER2 for optimized energy savings.
  • Extreme Temperature Performance: Operates smoothly in conditions ranging from -22°F to 122°F.
  • Modular Home Compatibility: Engineered to meet the high static requirements of modular and manufactured homes.
  • Multi-Positional Air Handler: Compatible with upflow, downflow, and horizontal configurations.
  • Thermostat and Remote: Enjoy precise control with the wired thermostat and wireless remote.
  • Reliable Warranty: Backed by a 10-year parts and labor warranty and a 10-year compressor warranty.

The MRCOOL® 36K Hyper Heat Central Ducted System is the perfect solution for homeowners looking for an efficient, reliable, and easy-to-install HVAC system. Experience the MRCOOL® difference today by purchasing from MRCOOL DIY Direct, the USA’s most trusted authorized dealer.

SPECIFICATION & DIMENSIONS

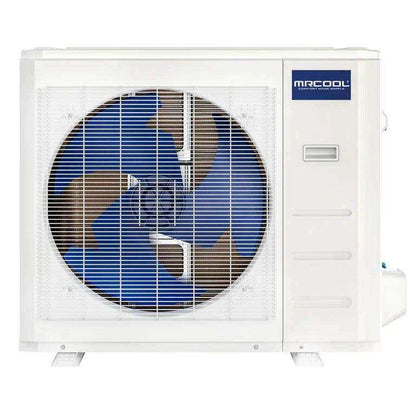

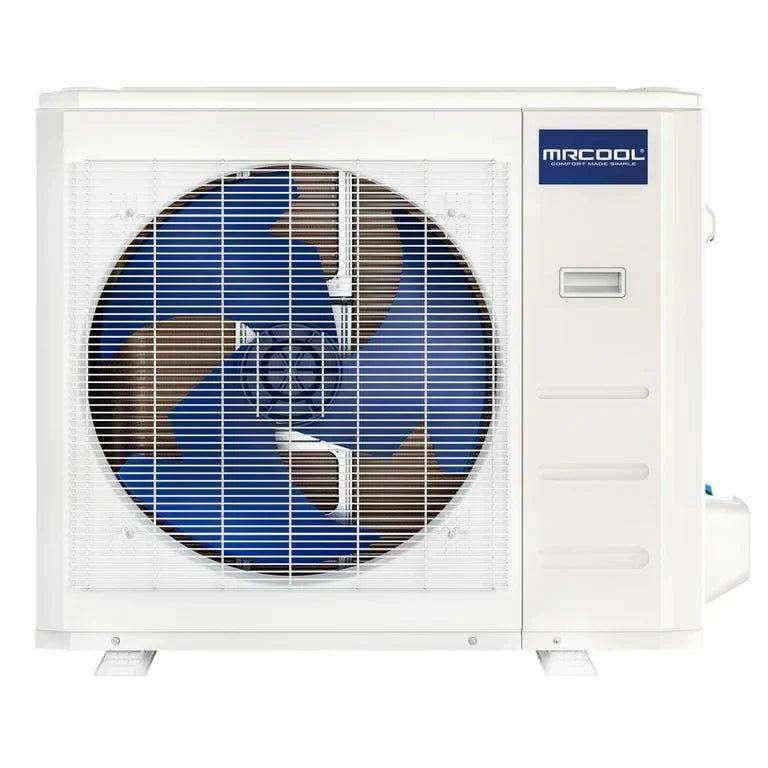

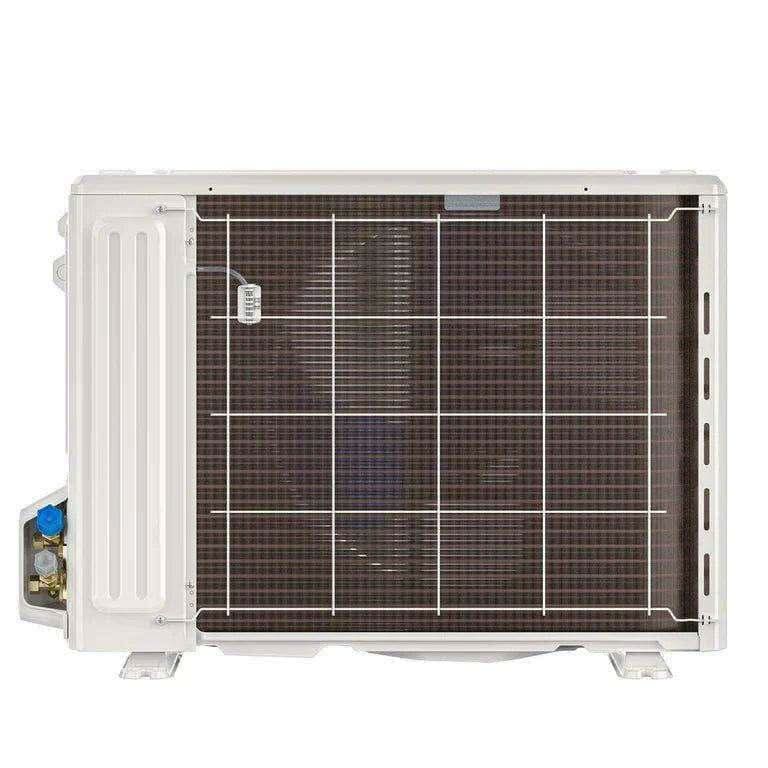

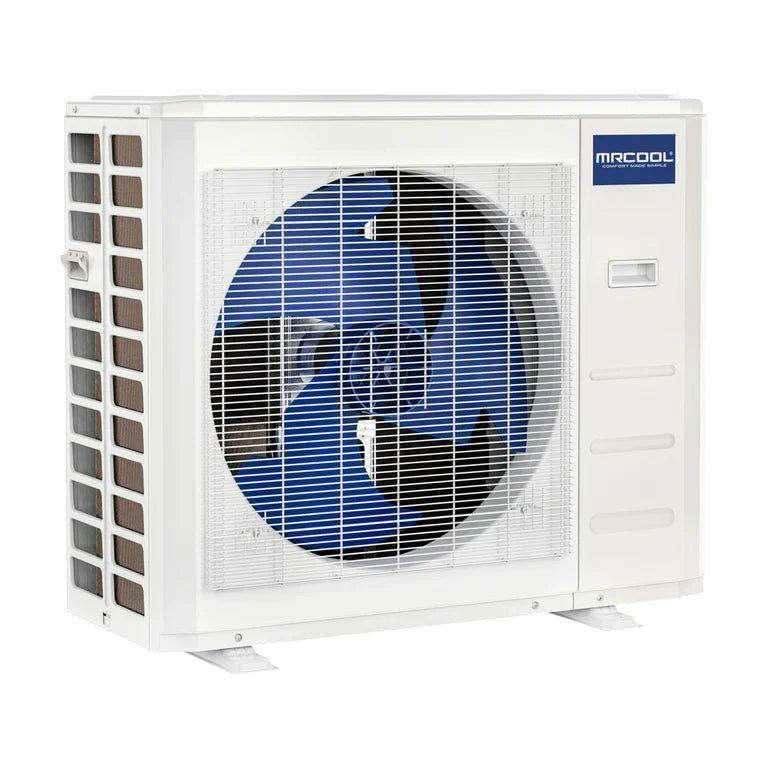

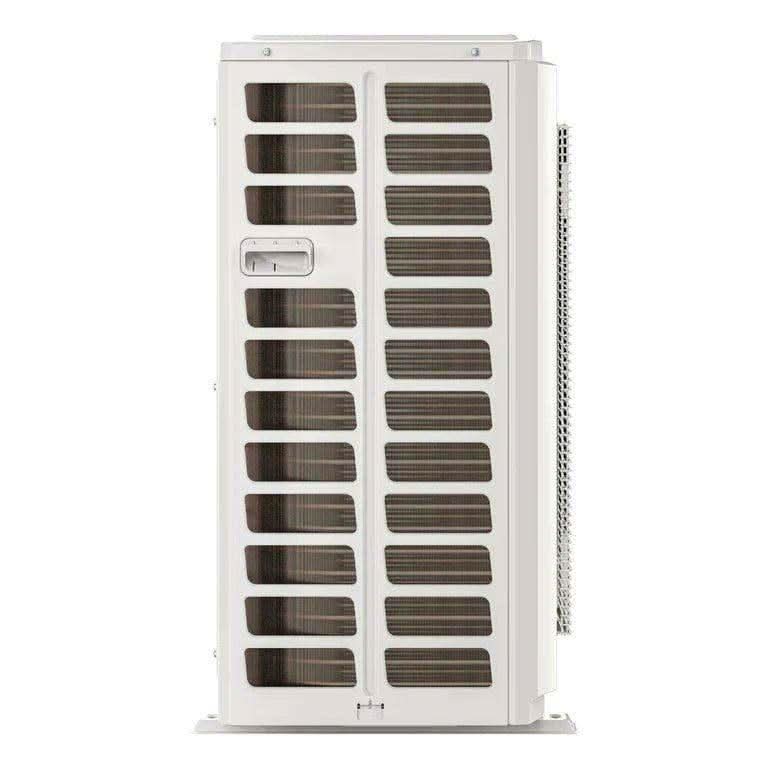

Condenser Dimensions 37.48"W x 16.14"D x 52.48"H
Condenser Weight 227.07 lbs

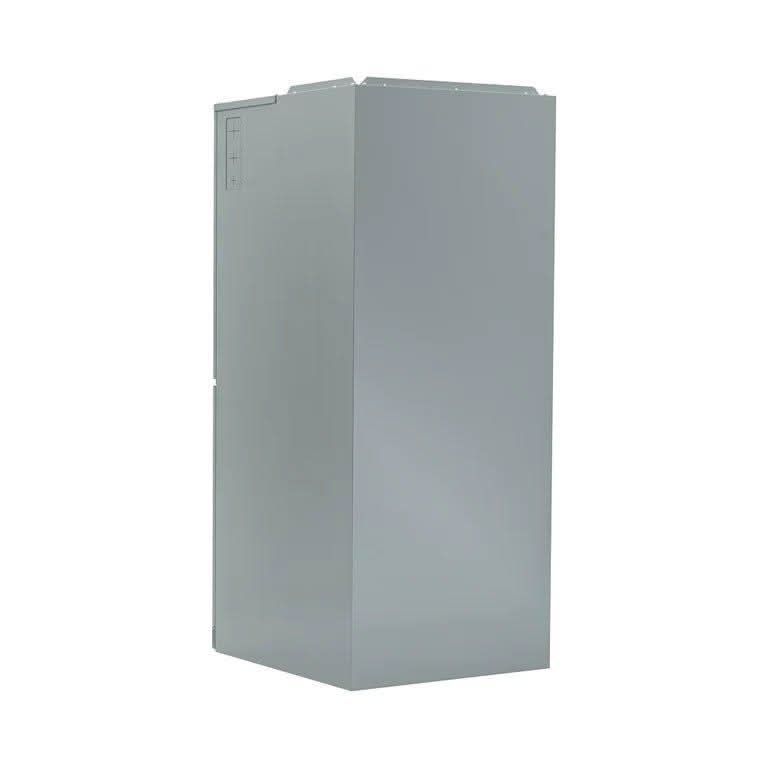

Air Handler Dimensions 21.02"W x 21.02"D x 49.02"H
Air Handler Weight 129.63 lbs
SEER2 16
EER2 10
HSPF2 hspf2-4/2-5: 9.5/8
Cooling Capacity 36,000 BTU
Heating Capacity 40,000 BTU
Condenser Electrical Requires a minimum of 208-230V/60HZ/41 to 50A (please check your home meets this electrical requirement prior to purchase)
Air Handler Electrical Requires a minimum of 208-230V/60HZ/5 to 15A (please check your home meets this electrical requirement prior to purchase)
Coverage Area 1,500 square feet
Refrigerant Type R410A
Refrigerant Volume 165.79 oz
Condenser Decibel Rating 64
Air Handler Decibel Rating 41 to 45
Air Flow Direction Downflow, Upflow, Horizontal Left, Horizontal Right
Cool Mode - Outdoor Operating Temperature Range 5°F to 122°F
Heat Mode - Outdoor Operating Temperature Range -22°F to 75°F
Room Temperature Cool: 61°F to 90°F
Heat: 32°F to 86°F
Dry: 50°F to 90°F
Line Set Included No
Max Line Set Length 213.25 ft
Liquid Line Size 3/8 in
Suction Line Size 3/4 in
Auxiliary Heater Included No
Auxiliary Heater Available Yes
Auxiliary Heater Sizes 5kw, 8kw,10kw, 15kw
Adjustable Thermostat Yes
Modes Cool, Heat Dry, Auto, Fan
Includes Remote
Wired Thermostat
App Compatibility No
Certificates AHRI
Warranty 10 years parts and labor
